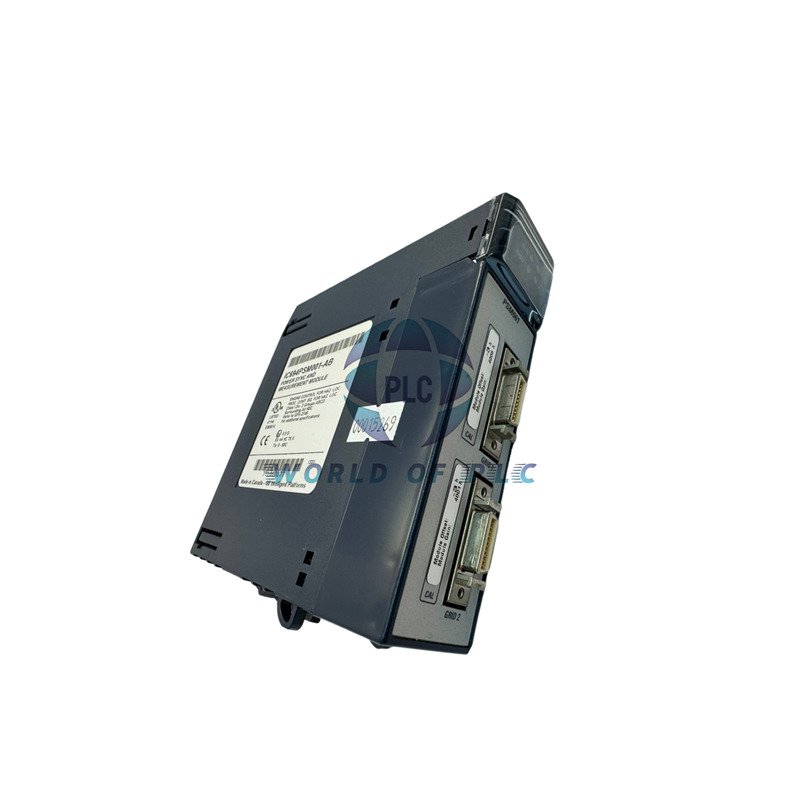

GE Fanuc IC694PSM001 Power Sync and Measurement Module

The IC694PSM001 from GE Fanuc delivers advanced power monitoring capabilities for PACSystems RX3i automation platforms. This sophisticated module simultaneously monitors two independent three-phase power grids with precision measurement technology. It provides comprehensive power quality analysis and synchronization functions for critical industrial applications.

Technical Specifications & Performance Data

• Brand: GE Fanuc
• Model: IC694PSM001
• Module Type: Power Sync and Measurement (PSM)
• Monitoring Capacity: 2 independent three-phase grids
• Input Channels: 4 current + 3 voltage inputs per grid
• Processor Technology: Digital Signal Processor (DSP)
• System Compatibility: RX3i CPUs firmware 7.70 or newer
• Hot Swap Capability: Supported in main CPU rack
• Phase Support: Single-phase, Wye, and Delta configurations
• Installation Location: Main CPU backplane required

Power Measurement Capabilities

• The IC694PSM001 measures true RMS power values for accurate monitoring
• It calculates RMS voltage and current measurements with high precision
• This module monitors system frequency variations across both power grids
• It analyzes phase relationship differences between voltage waveforms
• The DSP technology enables continuous real-time processing of all inputs
• It provides comprehensive power quality assessment for both grids

System Integration & Installation

• This PSM module requires installation in the main CPU rack or backplane
• It supports safe hot-swap installation and removal during operation
• The module connects to terminal assemblies and interface cables
• It forms a complete power monitoring system with peripheral components
• Installation does not require system shutdown or power interruption
• It maintains full operational safety during hot swapping

Application Solutions & Benefits

• This module enables comprehensive fault monitoring for power systems
• It provides generator control synchronization between grids and generators
• The module facilitates electrical power consumption reporting for efficiency
• It helps reduce load demand penalty costs through intelligent monitoring
• This system supports power quality improvement initiatives
• It enables predictive maintenance scheduling based on power data

Electrical System Compatibility

• The module supports single-phase power system configurations
• It monitors Wye-type three-phase power systems with neutral connection
• This PSM module works with Delta-type three-phase systems without neutral
• It handles various voltage and current transformer ratios
• The system accommodates different power system frequencies worldwide
• It provides flexible configuration for various grid types

Measurement Accuracy & Performance

• Voltage Accuracy: ±0.2% of reading for precise monitoring
• Current Accuracy: ±0.5% of reading across measurement range
• Frequency Resolution: 0.01 Hz for detailed analysis
• Power Calculation: Active, reactive, and apparent power measurements
• Harmonic Analysis: Up to 31st harmonic monitoring capability
• Update Rate: 128 samples per cycle for real-time data

Packaging & Shipping Information

• Your order includes one IC694PSM001 Power Sync and Measurement Module
• All shipments include comprehensive 12-month warranty coverage
• We provide worldwide shipping via FedEx, UPS, and DHL services
• Standard packaging includes installation guidelines and technical documentation

Comparison with Related RX3i Modules

• The IC694PSM001 specializes in power system monitoring and synchronization
• For memory redundancy applications, consider the IC695RMX128 module
• The IC695RMX228 provides enhanced redundancy memory functionality

Professional FAQ Section

• How many independent power grids can this module monitor?
• The IC694PSM001 simultaneously monitors two completely independent three-phase power grids.
• What CPU firmware version is required for this module?
• It requires RX3i CPUs with firmware version 7.70 or any newer version for proper operation.
• Can I install this module without shutting down the system?
• Yes, it supports hot-swap installation and removal in the main CPU backplane while powered.
• What types of three-phase systems does this module support?
• It works with both Wye and Delta configured three-phase power systems for flexibility.
• What measurement capabilities does the DSP technology provide?
• The Digital Signal Processor enables RMS power, voltage, current, frequency, and phase measurements.
