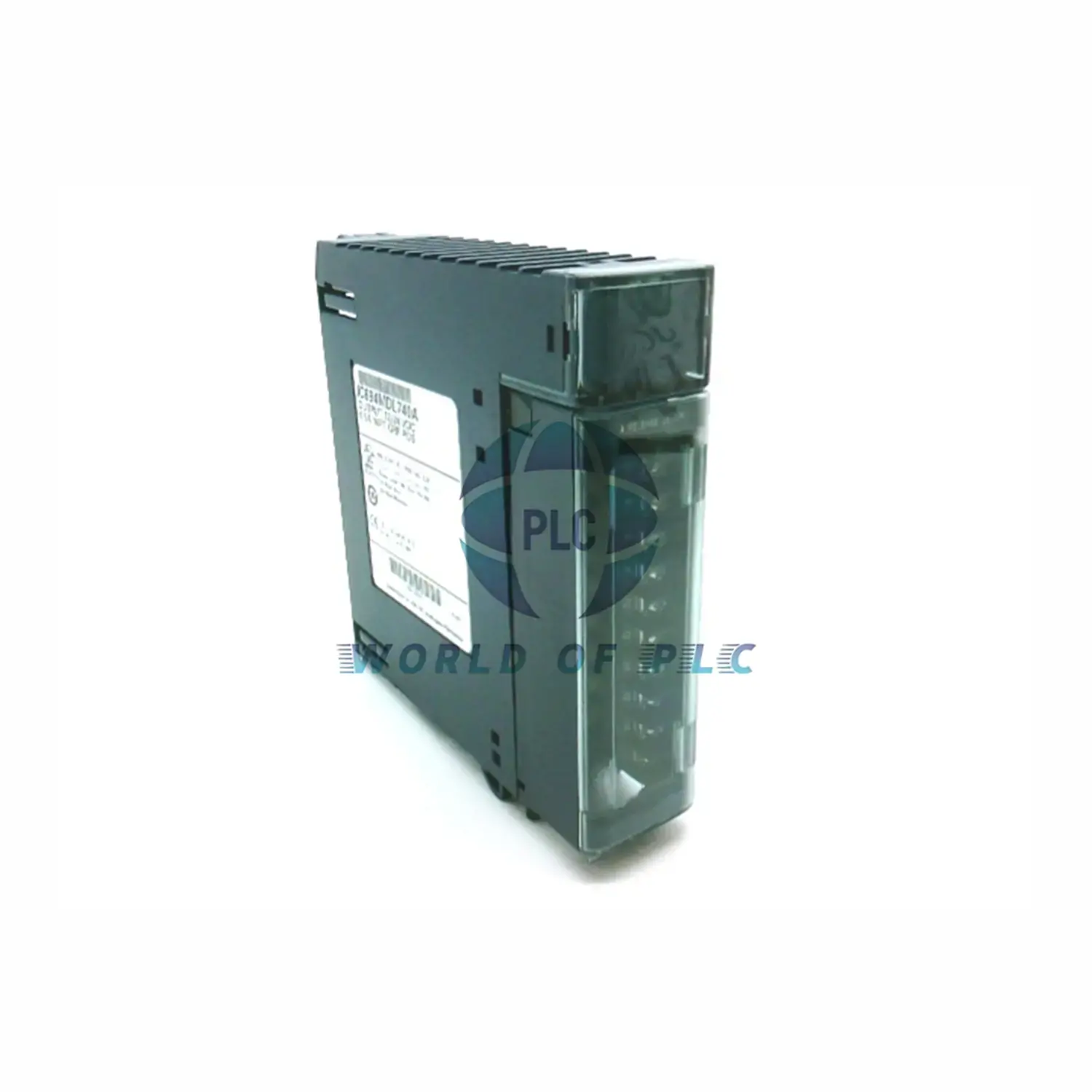

GE Fanuc PACSystem RX3i IC694MDL655 AC Input Module

Emerson IC694MDL655 32-Channel High-Density Input Module

Technical Specifications

• Brand: Emerson (formerly GE Fanuc)
• Model: IC694MDL655
• Input Voltage: 24VDC nominal (0-30VDC range)
• On-State Voltage: 11.5-30VDC
• Response Time: 2ms maximum (on/off)
• Input Current: 7mA per channel
• Isolation: 250VAC continuous (1500VAC for 1 minute)
• Power Draw: 195mA @5VDC, 224mA @24VDC
• Max Cable Length: 30 meters

Wiring Configuration

• Positive or Negative logic support
• Four independent 8-channel groups
• 24-pin male connectors (2 required)
• Group-to-group isolation: 50VAC

Environmental Ratings

• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Storage Temp: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5-95% non-condensing

Visual Indicators

• 32 individual green LED status lights
• Instant channel activity confirmation
• Blue bands indicate low-voltage rating

Compatibility

• Fits any RX3i local or distributed I/O slot
• Works with RX7i systems (distributed I/O)
• Connects to switches, sensors, contacts

Package Contents

• IC694MDL655 input module
• Installation documentation
• Warranty: 12-month coverage

Shipping Information

Global express delivery via FedEx, UPS, or DHL. Tracking included.

Frequently Asked Questions

Q: How many input groups are isolated?
A: Four groups with 50VAC isolation between them

Q: Can I use different logic types per group?
A: Yes, each 8-channel group can be wired independently

Q: What’s the maximum sensor distance?
A: Supports cable runs up to 30 meters

Q: Is this suitable for safety systems?
A: Yes, with 1500VAC isolation protection

Q: Can I mix 12VDC and 24VDC sensors?
A: Yes, all channels accept 0-30VDC input
