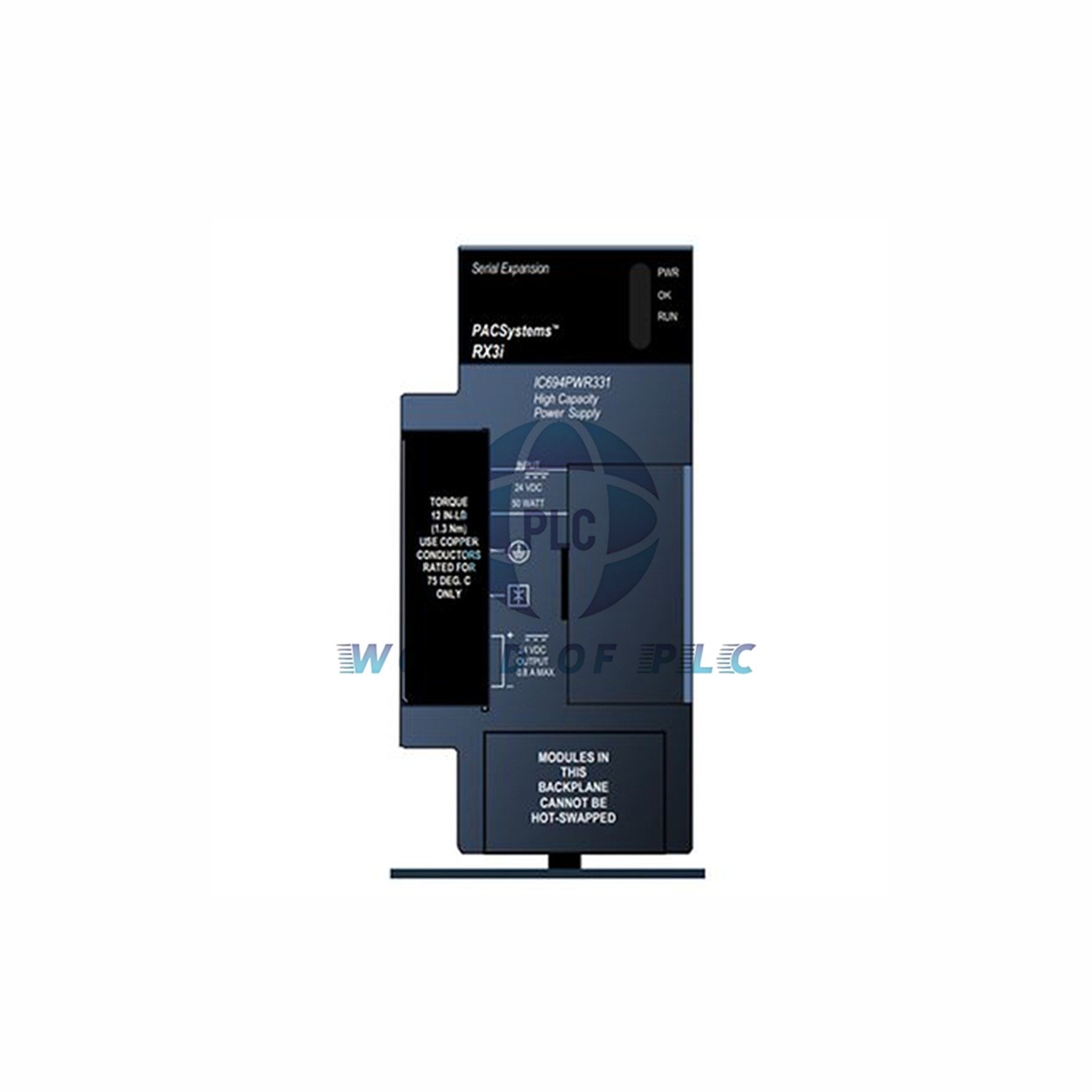

GE Fanuc Emerson IC694PWR331 Expansion Power Supply Module

The IC694PWR331 from GE Fanuc Emerson delivers versatile power distribution for PACSystems RX3i remote and expansion applications. This high-capacity power supply module supports various system configurations with multiple output options. It provides reliable power for remote bases and high-speed serial communication networks.

Technical Specifications & Performance Data

• Brand: GE Fanuc Emerson
• Model: IC694PWR331
• Module Type: Expansion Power Supply / Remote Base Power Supply
• Nominal Voltage: 24 Volts DC input
• Total Output Capacity: 30 Watts maximum
• 5V Output Rating: 30 Watts full capacity
• 24V Relay Output: 15 Watts dedicated power
• 24V Isolated Output: 20 Watts separate capacity
• Current Capacity: 0.8 Amps at 24V DC
• Base Compatibility: High-speed serial bases supported

Power Distribution & Output Configuration

• The IC694PWR331 provides three distinct output configurations for flexibility
• It delivers full 30-watt capacity at 5V output for logic circuits
• This module supplies 15 watts for relay applications at 24V
• It offers 20 watts of isolated 24V power for sensitive devices
• The power supply maintains stable 0.8 amp current output at 24V DC
• It ensures reliable power distribution across multiple load types

System Integration & Application Support

• This expansion power supply supports remote base installations for distributed systems
• It enables high-speed serial base operation with adequate power
• The module provides versatile power solutions for various industrial setups
• It facilitates system expansion projects requiring additional power
• This power supply ensures stable communication performance in networks
• It supports multiple device configurations with different power needs

Electrical Characteristics & Performance

• Input Voltage Range: 19-30V DC for flexible power sourcing
• Efficiency Rating: >85% for reduced energy consumption
• Ripple and Noise: <100mV peak-to-peak maximum
• Load Regulation: ±2% for consistent output under varying loads
• Overload Protection: Automatic current limiting for safety
• Operating Temperature: 0°C to 60°C industrial range

Installation & Mounting Options

• This power supply module installs in standard RX3i backplane slots
• It supports remote base configurations for distributed control
• The module enables high-speed serial network expansion
• Installation requires proper ventilation and clearance for cooling
• It maintains compatibility with various base units in RX3i systems
• The design ensures easy integration into existing systems

Protection Features & Reliability

• The module includes overcurrent protection circuits for safety
• It features thermal overload protection against overheating
• This power supply provides short-circuit protection for connected devices
• It maintains stable output under varying load conditions
• The design ensures long-term reliability in industrial environments
• It offers electrical isolation between output types

Packaging & Shipping Information

• Your order includes one IC694PWR331 Expansion Power Supply Module
• All shipments include comprehensive 12-month warranty coverage
• We provide worldwide shipping via FedEx, UPS, and DHL services
• Standard packaging includes installation guidelines and technical documentation

Comparison with Related RX3i Modules

• The IC694PWR331 specializes in expansion power supply applications
• For network scanning functionality, consider the IC695SPF010 module
• The IC695STK001 provides starter kit components for system setup

Professional FAQ Section

• What is the total power capacity of this expansion power supply?
• The IC694PWR331 provides 30 watts total output capacity with multiple voltage options.
• What types of bases does this power supply support?
• It supports remote bases and high-speed serial bases for various system configurations.
• How much current can the 24V output provide?
• The 24V output delivers 0.8 amps maximum for powering relays and other devices.
• What are the different output configurations available?
• It provides 5V at 30W, 24V relay at 15W, and isolated 24V at 20W outputs.
• Is this power supply suitable for remote installations?
• Yes, it specifically functions as both an expansion and remote base power supply.
