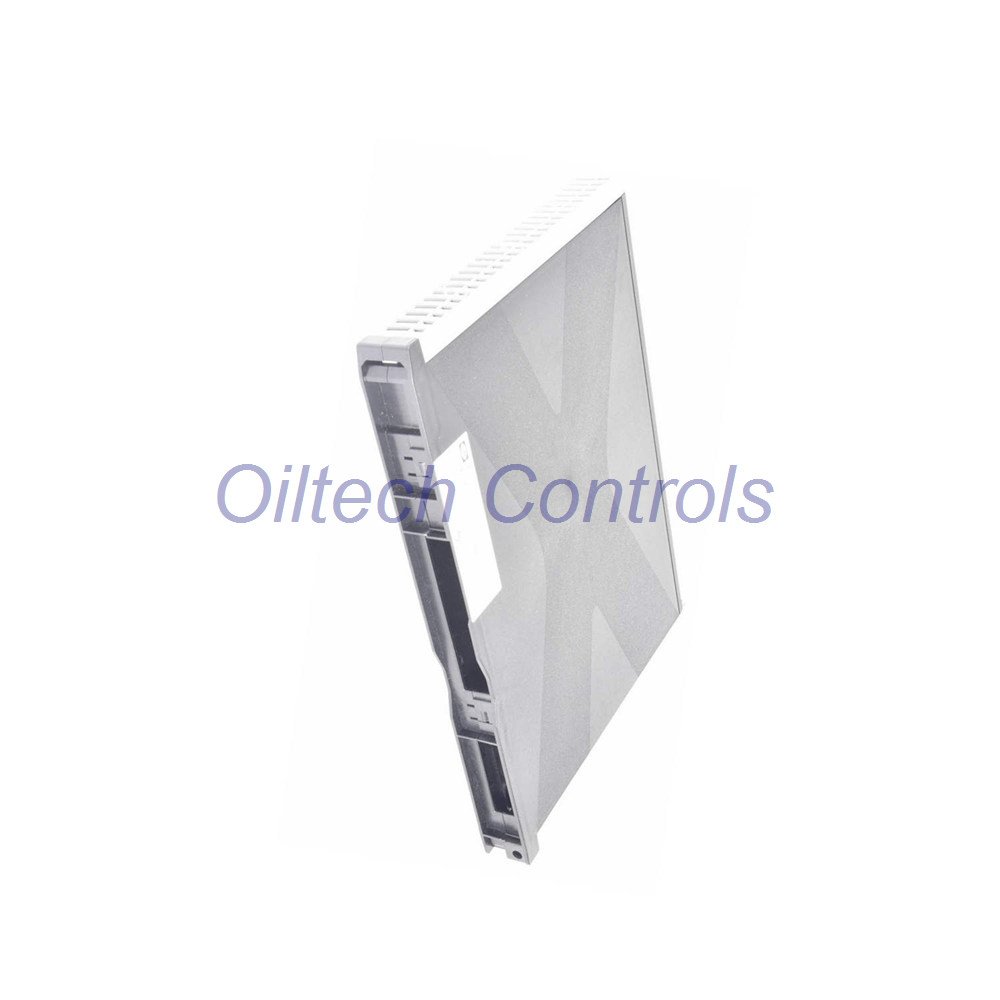

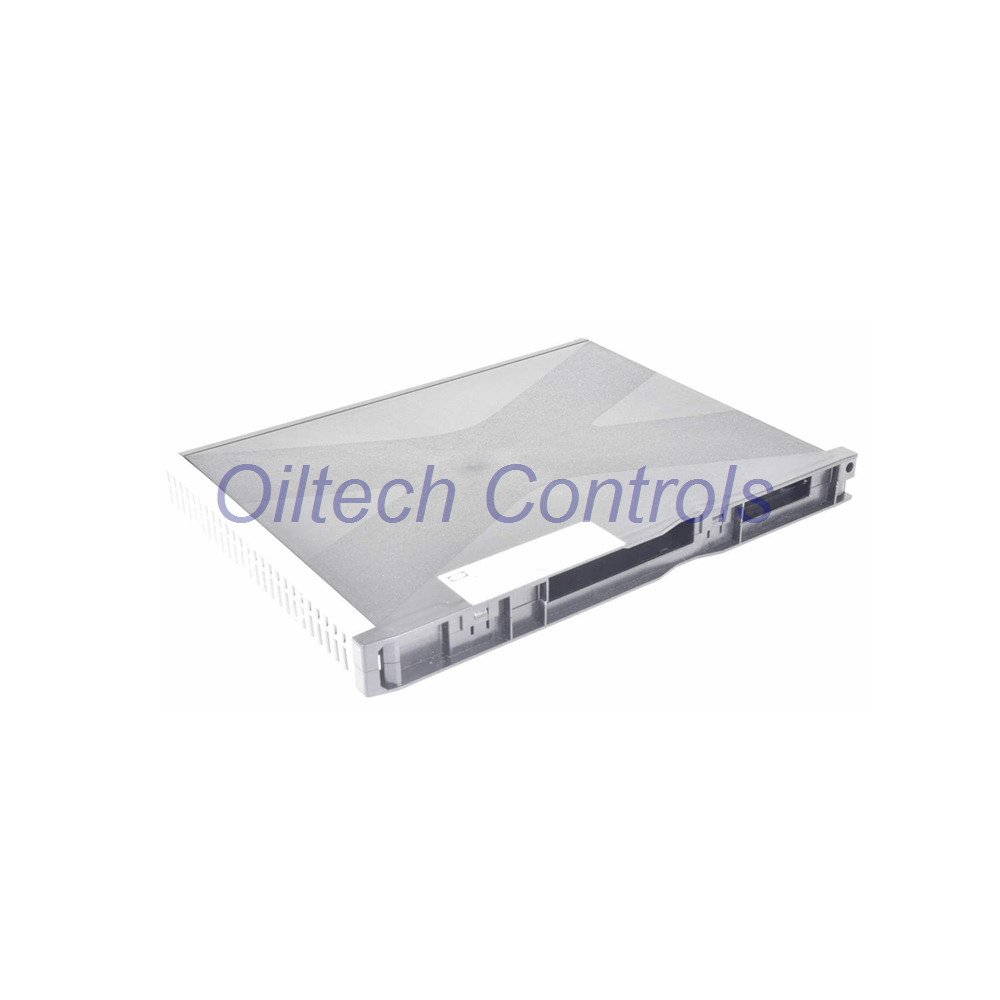

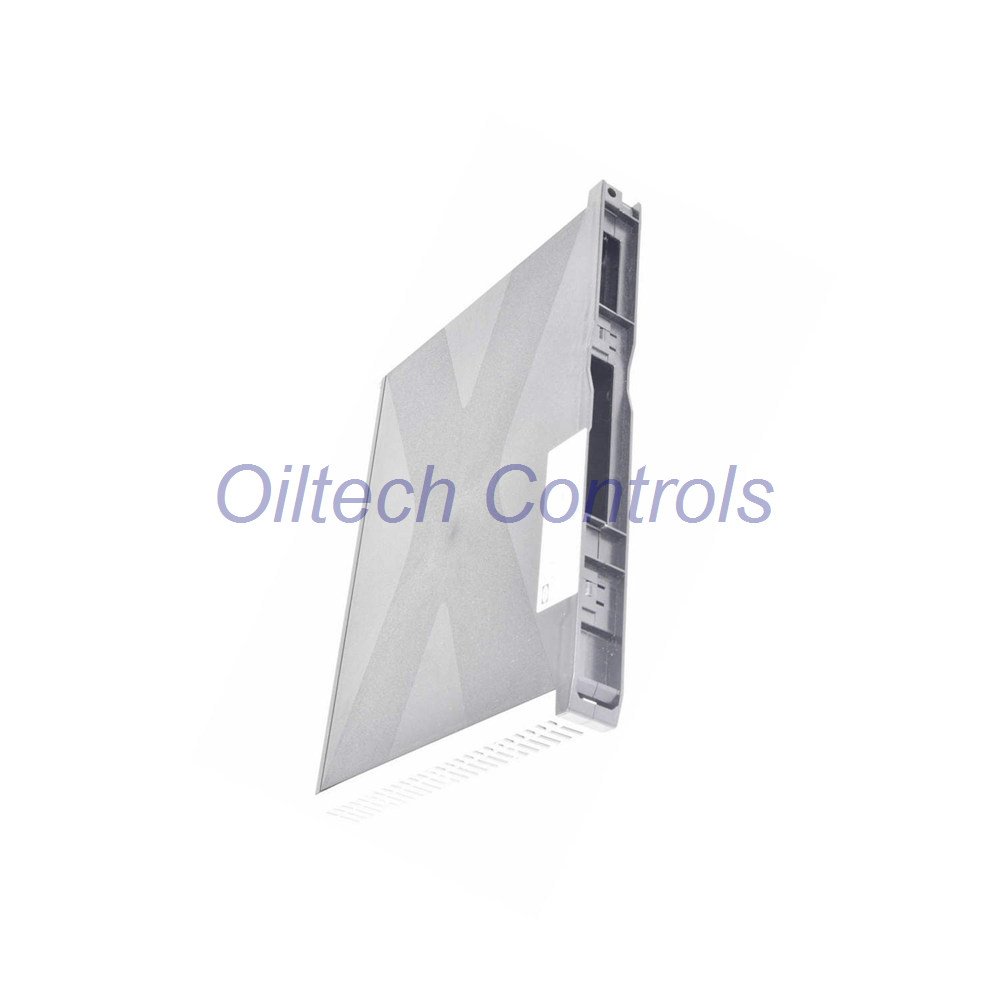

HIMA X-BLK 03 HIMax Blanking Module | Industrial Rack Protection

HIMA X-BLK 03 Engineering Specifications

• Component Function: Dedicated blank module for unused SB slots.
• Electrical Rating: 24 VDC operating voltage (-15% to +20%).
• Power Connectivity: Redundant L1+ and L2+ power supply connections.
• Current Handling: Maximum throughput current up to 63 A.
• External Protection: Requires a maximum 63 A line protection fuse.
• Physical Build: Stainless steel backplane with precision aluminum mounting parts.

Operational Environment & Durability

• Thermal Tolerance: Operational range 0 °C to +60 °C; Storage -40 °C to +85 °C.
• Humidity Rating: Withstands up to 95% non-condensing relative humidity.
• Ingress Protection: IP20 standard for dust and mechanical debris protection.
• Safety Standard: Safe insulation compliance per IEC 61131-2.

Oiltech Controls’ Insight: Application & Utility

• Suitable Systems: Essential for all HIMax safety controller rack configurations.
• Expert Review: The HIMA X-BLK 03 ensures the mechanical and structural integrity of the backplane.
• System Longevity: Prevents oxidation and debris buildup on exposed pin connectors.
• Configuration Tip: Always install these modules in empty slots to maintain airflow and rack stability.
• Need Help? Contact info@oiltechcontrols.com or click +86 158 8020 0923 for expert support.

Fast Shipping & Service Assurance

• Dispatch Time: Guaranteed 24-28 hour processing and shipment.
• Global Courier Partners: Secure transit via FedEx, UPS, and DHL.
• Warranty Clause: Each HIMA X-BLK 03 includes a 12-month quality warranty.
• Professional Support: Dedicated assistance for all HIMA hardware inquiries.

FAQ & Strategic Selection Guide

• Question: Can I use this in older HIMA systems?
  >>Answer: No, this is specifically engineered for the HIMax SB slot architecture.
• Question: Does the module consume power?
  >>Answer: It does not perform active logic, but it provides a pass-through path for the 24 VDC redundant power bus.
• Question: How should I secure the mounting components?
  Answer: Ensure the aluminum attaching parts are firmly fixed to the rack to prevent vibration-induced loosening.
• Question: Is there a specific maintenance requirement for this module?
  Answer: Periodic inspection for oxidation on the contact points is recommended in high-humidity areas.
