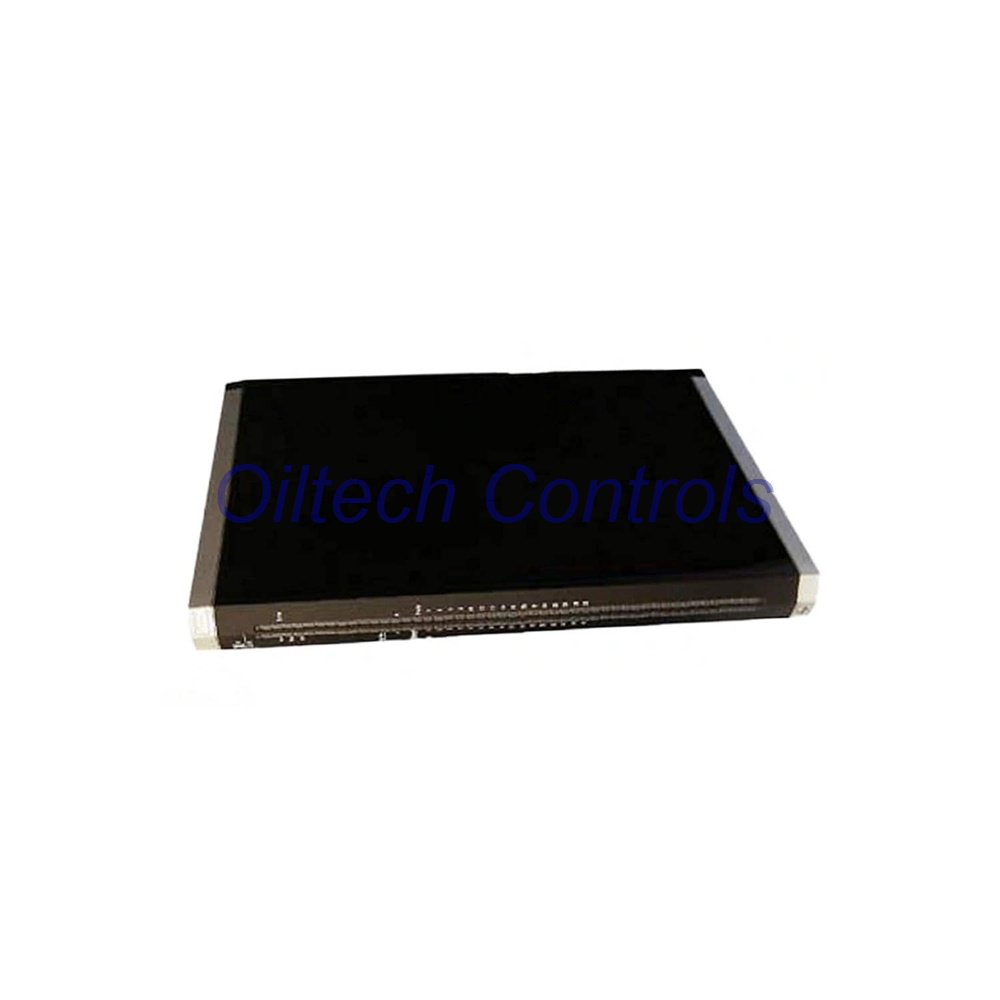

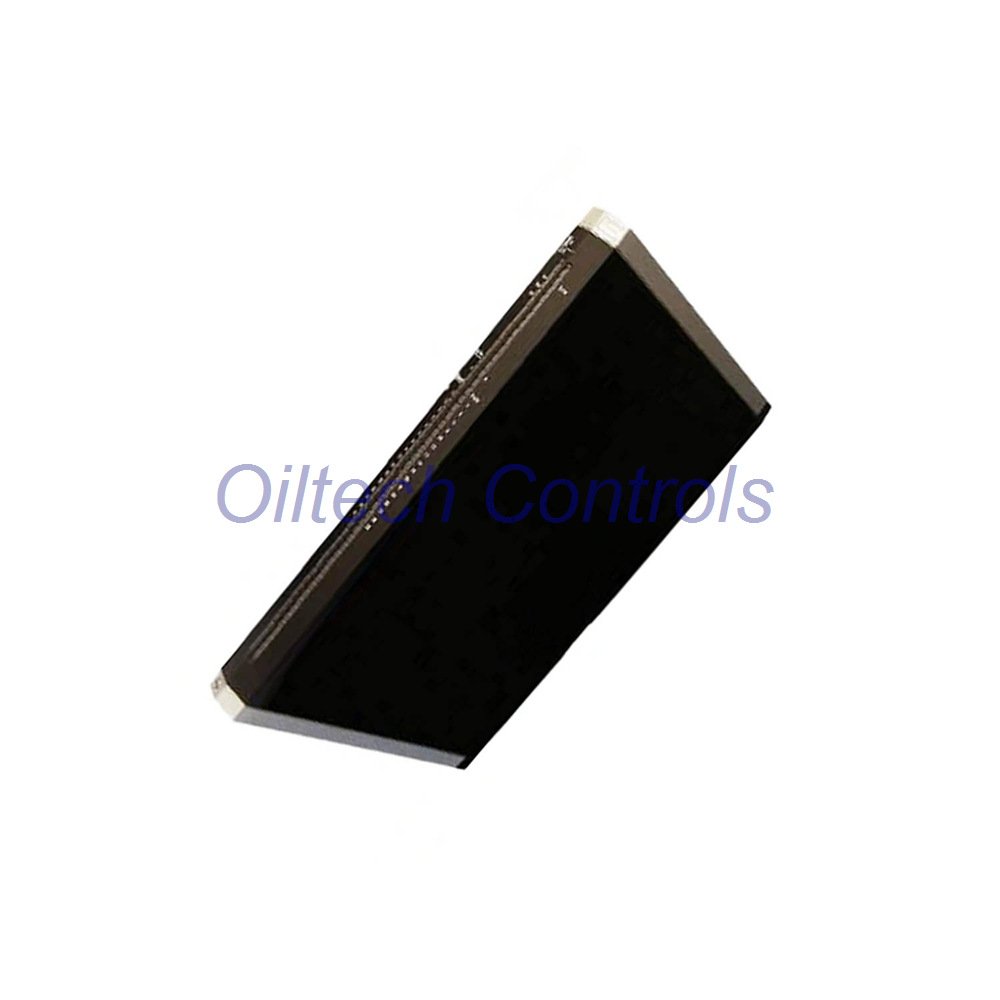

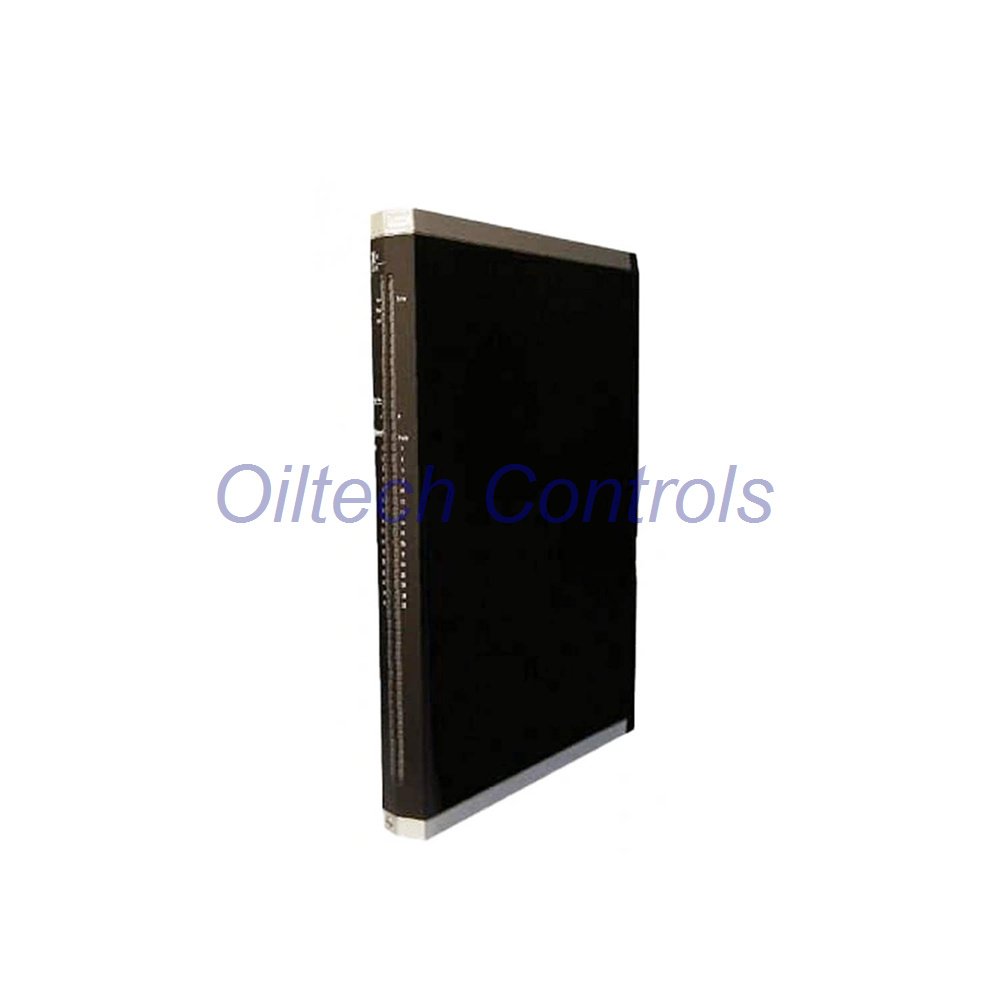

HIMA X-CPU 01 Processor Module – HIMax System Controller

Product Overview

The HIMA X-CPU 01 is a critical processor module for the HIMax system. It manages all central data processing tasks. The module ensures reliable operation for safety-related automation applications.

Technical Specifications

• Brand: HIMA
• Model: X-CPU 01 (X-CPU01)
• Supply Voltage: 24V DC (-15% to +20%)
• Processor: PowerPC architecture
• Flash EPROM: 128 MB
• DDRAM/NVRAM: 256 MB
• Total Program/Data Memory: 10 MB
• Communication: 4 x RJ-45 (10/100/1000 Base-T)
• Operating Temperature: 0°C to +60°C
• Protection Class: IP20
• Dimensions: 310 x 29.2 x 236 mm
• Weight: Approx. 1.3 kg

Core Features & Capabilities

• Safety Certification: Certified for SIL 3, Cat. 4, and PL e applications.
• Program Handling: Processes up to 32 independent user programs.
• Redundancy: Supports redundant operation with 3 additional CPU modules.
• Communication: Handles secure data exchange via safeethernet protocol.
• Event Logging: Creates and stores detailed CPU and I/O module events.
• Networking: Features auto-negotiation and auto-crossover for network ports.

Installation & Service

• Installation: Designed for standard DIN rail mount within the HIMax housing.
• Maintenance: Built-in diagnostic capabilities minimize system downtime.
• Warranty: This product includes a 12-month quality guarantee.
• Logistics: Fast worldwide delivery via FedEx, UPS, or DHL.
• Technical Support: Need help? Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.

FAQ

• Is this module SIL 3 certified? Yes, it meets IEC 61508 and related safety standards.
• Does it support redundant setups? Yes, it allows redundancy with up to 3 extra modules.
• What is the operating temp? The module operates reliably between 0°C and +60°C.
