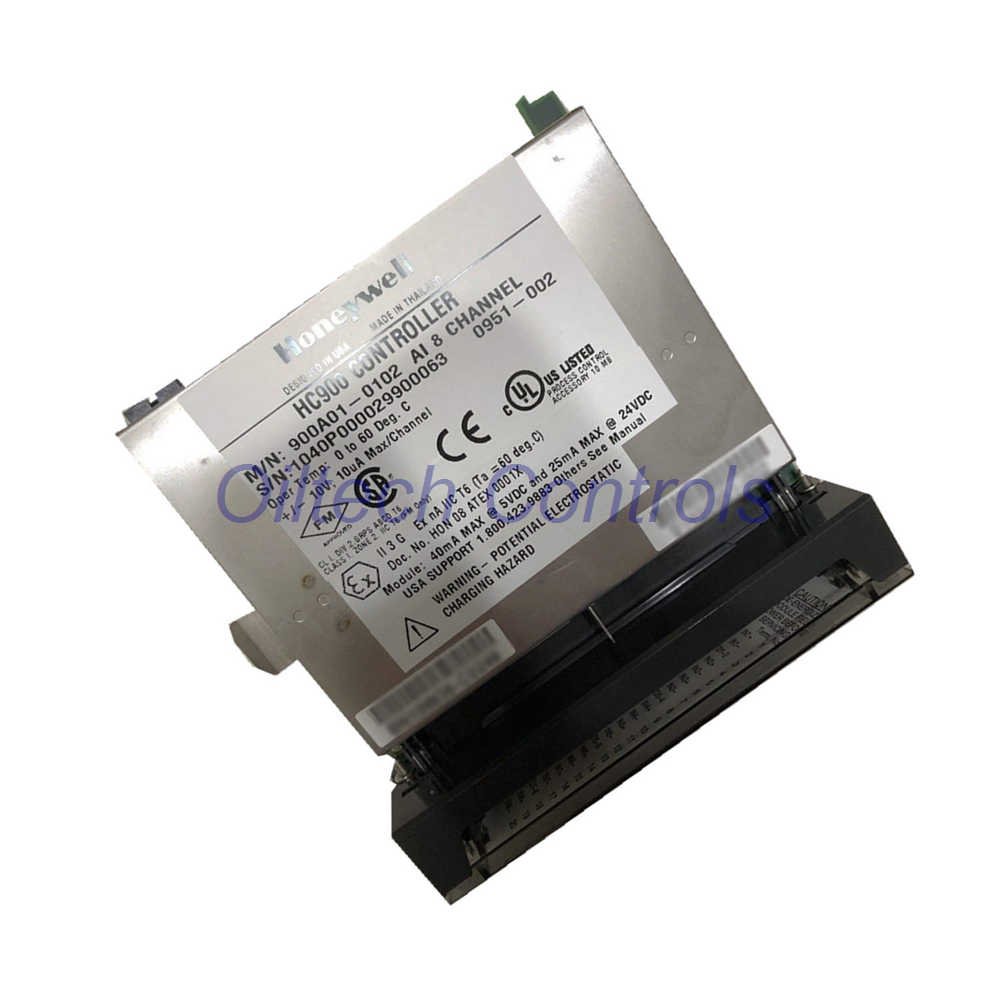

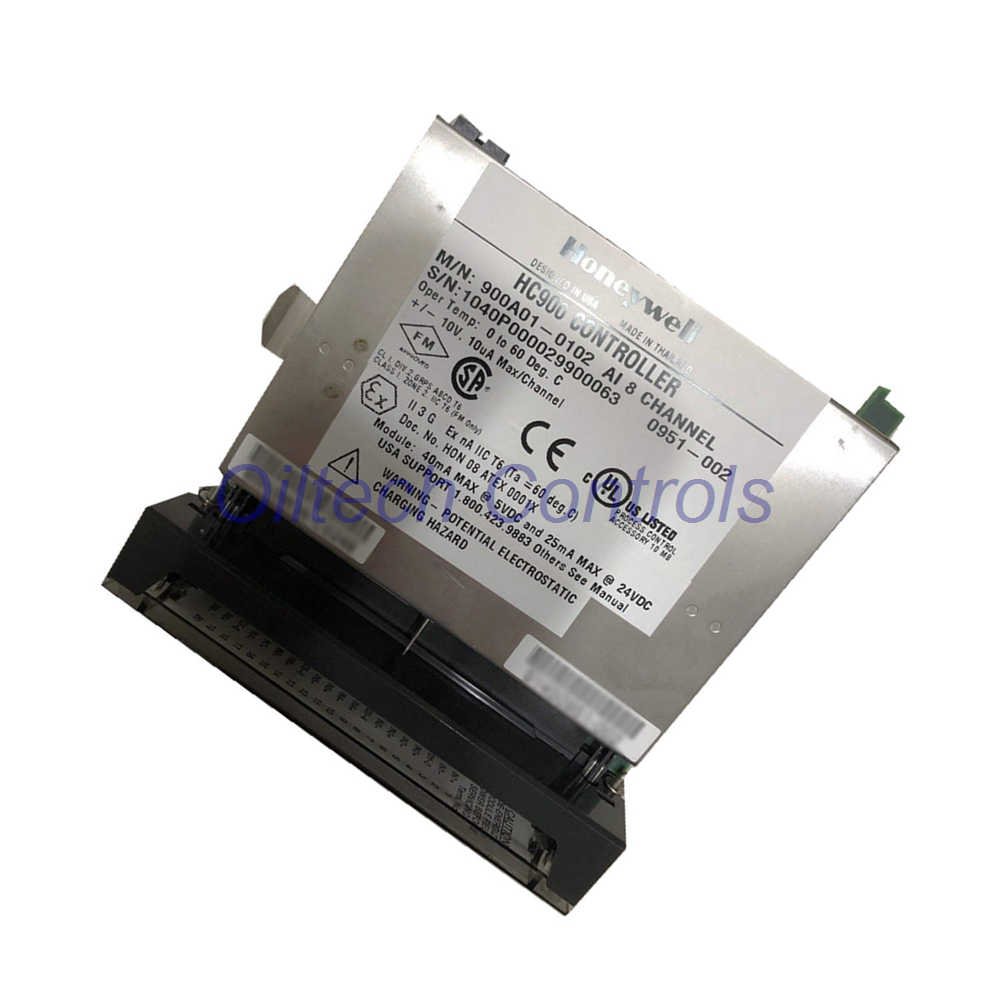

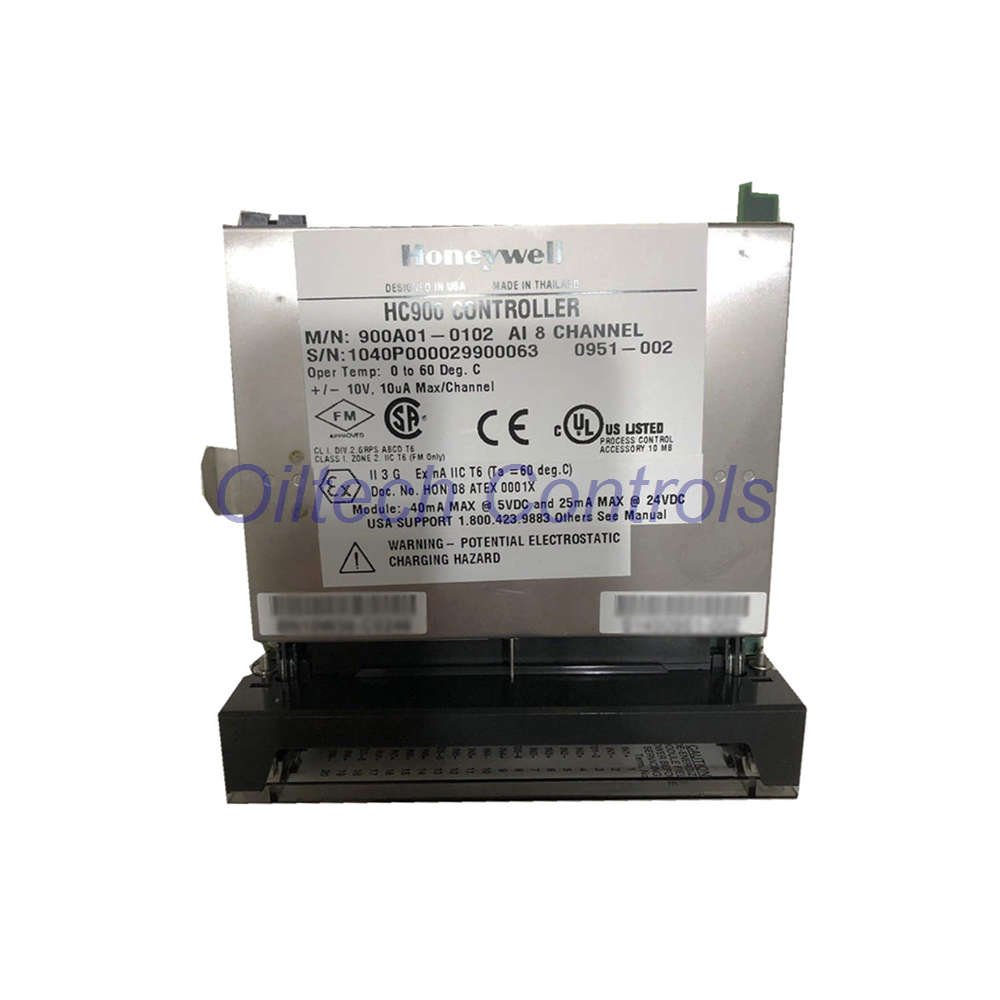

Honeywell 900A01-0202 AI Module 8-Point Universal Input for HC900 Systems

Overview

The Honeywell 900A01-0202 is a high-density Universal Analog Input module designed for the HC900 Controller series. It features 8 user-configurable channels that support a diverse range of signal types including Thermocouple, RTD, Resistance, and Voltage/Current (mA, mV, V). This module employs point-to-point galvanic isolation and 15-bit A/D conversion synchronized with the CPU to eliminate data latency. Engineered for mission-critical process control, the 900A01-0202 provides real-time diagnostics and sensor failure warnings to ensure maximum system uptime.

Core Engineering Parameters and Signal Ranges

• Input Density: 8 fully isolated channels per module
• Universal Input Compatibility: Supports mV, V, T/C, RTD, Ohms, and 4-20mA signals
• A/D Resolution: High-precision 15-bit analog-to-digital conversion
• Galvanic Isolation: 400 VDC point-to-point and 1K VDC to internal logic circuits
• Accuracy Standard: Factory calibrated to ± 0.1 % of full-scale range
• Update Rate: 500ms synchronous conversion per module independent of system load
• Input Impedance: 10 megohms for T/C/mV; >1 megohm for Volts; 250 ohms for mA
• Stability: Excellent long-term stability rated at 0.1% drift per year

Advanced Diagnostics and Fail-Safe Features

• Sensor Health Monitoring: Specialized warning signal for T/C maintenance prior to actual failure
• Burnout Configuration: Selectable upscale, downscale, or defined value on a per-channel basis
• Visual Indicators: Green blinking LED for scan status; Red LED for diagnostic fault detection
• Cold Junction Compensation: Precision sensing via dual RTDs at the top and bottom of the module
• Data Integrity: All calibration and configuration data stored in non-volatile onboard memory
• Noise Rejection: High interference resistance with >60dB Series Mode and >130dB Common Mode rejection

Oiltech Controls’s Insight and Application

• The 900A01-0202 is essential for high-mix thermal processing where multiple sensor types coexist on one rack.
• Oiltech Controls recommends this module for chemical reactors and industrial furnaces requiring sub-degree accuracy.
• Compatible with all Honeywell HC900 Modular Systems and standard I/O expansion racks.
• The point-to-point isolation prevents ground loop interference from affecting neighboring sensitive RTD signals.
• Ideally suited for power generation monitoring, pharmaceutical autoclaves, and complex environmental chambers.

Global Logistics and Warranty Terms

• Includes a 12-month standard warranty from Oiltech Controls Limited
• Rapid dispatch within 24-28 hours for all in-stock 900A01-0202 units
• Worldwide express delivery provided by FedEx, UPS, and DHL
• Secure technical packaging ensures anti-static protection during international transit

Professional FAQ and Selection Guide

• How do I configure the input type for a specific channel?
• Engineers use the HC900 configuration software to set each point independently; no physical jumpers are required.
• What happens if a thermocouple exceeds 100 ohms of lead resistance?
• The module triggers a maintenance warning status, alerting operators to check the sensor before failure occurs.
• Are the RTD inputs isolated individually or in groups?
• While most signals feature point-to-point isolation, RTDs are isolated in pairs within the 900A01-0202 architecture.
• Does adding more AI modules increase the total PLC scan time?
• No, the modules process conversions in parallel, preventing any increase in overall system scan cycles.
