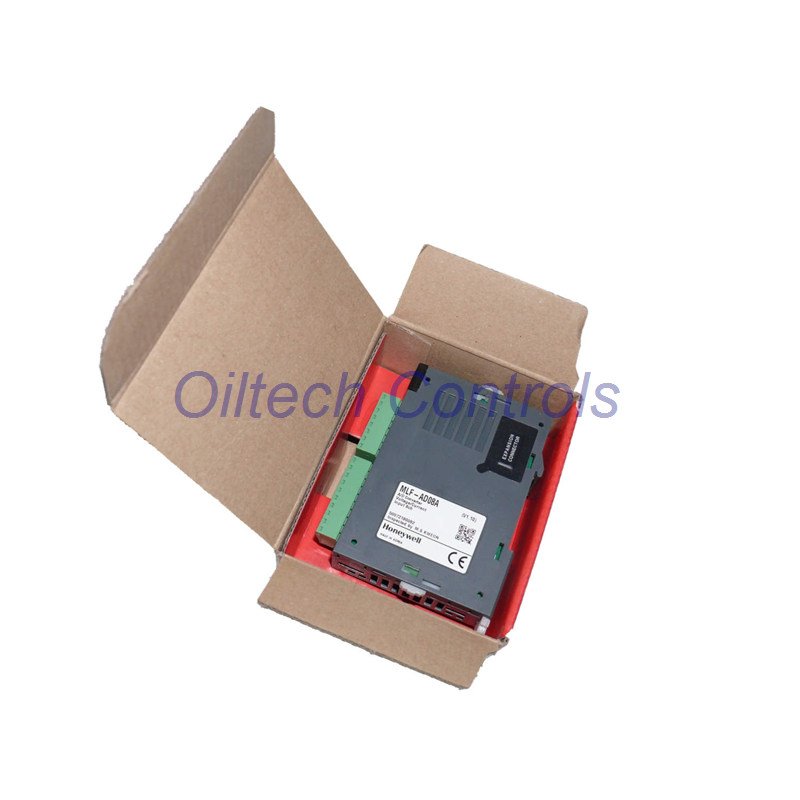

Honeywell MLF-AD08A Analog Input Module
The Honeywell MLF-AD08A reads voltage and current signals with fast speed and clear output. It fits small and large control jobs.
- Supports DC 1–5 V, 0–5 V, 0–10 V inputs.
- Handles DC 4–20 mA and 0–20 mA signals.
- Output formats: unsigned, signed, precise, and percent.
- 12-bit resolution for stable data.
- Fast 1.5 ms per channel read speed.
- 8 input channels per module.
- Input resistance: 250 MΩ (voltage) / 250 Ω (current).
- Max input: ±15 V, ±25 mA.
- Photo-coupler insulation for safety.
- Power draw: DC5V 105 mA + DC24V 85 mA.
- Weight: 70 g for easy panel use.
- Fixed assignment: 64 points.
- Simple 11-point terminal for wiring.
- Works well with PLC and DCS hardware.
- Strong noise immunity for field sites.
Why Choose the MLF-AD08A
- Clear readings even with long cables.
- Wide voltage and current input list.
- Fast scan time boosts system speed.
- Safe insulation protects your controller.
- Compact and light for easy install.
- 12-month warranty for worry-free use.
- Ships by FedEx, UPS, or DHL.
Extra Technical Details
- Percent value ranges: 0–1000 for all modes.
- Precise value ranges: 100–500 (1–5 V), 0–500 (0–5 V), 0–1000 (0–10 V).
- Precise current ranges: 400–2000 (4–20 mA), 0–2000 (0–20 mA).
- Stable accuracy across full scale.
- Low drift design for long operation.
FAQ
- Q: Can this module read both voltage and current?
A: Yes, the MLF-AD08A supports both types with clear conversion. - Q: What systems can use this module?
A: Most Honeywell or third-party PLC/DCS systems accept it. - Q: Does it support fast sampling?
A: It reads each channel in 1.5 ms for quick updates. - Q: How many channels does it offer?
A: It provides 8 channels for flexible input groups. - Q: Is wiring simple for new users?
A: Yes, the 11-point terminal makes basic wiring easy.
