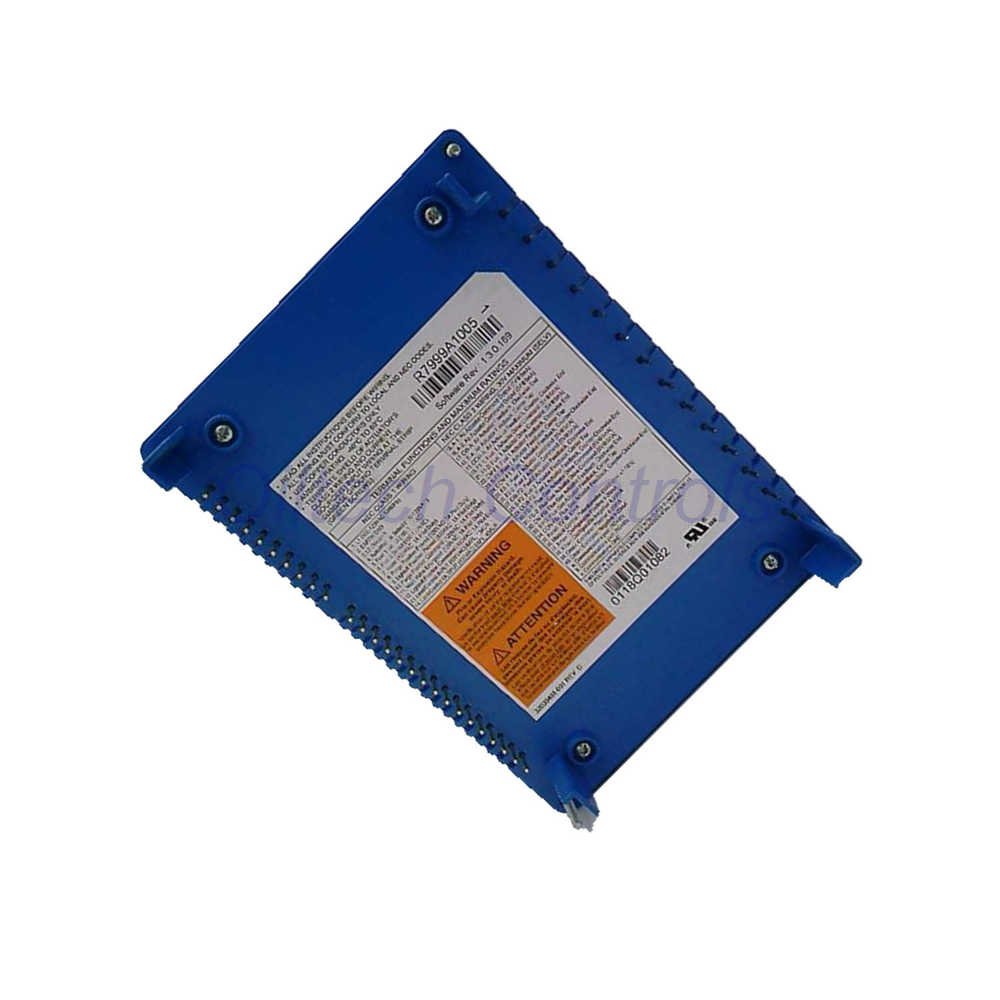

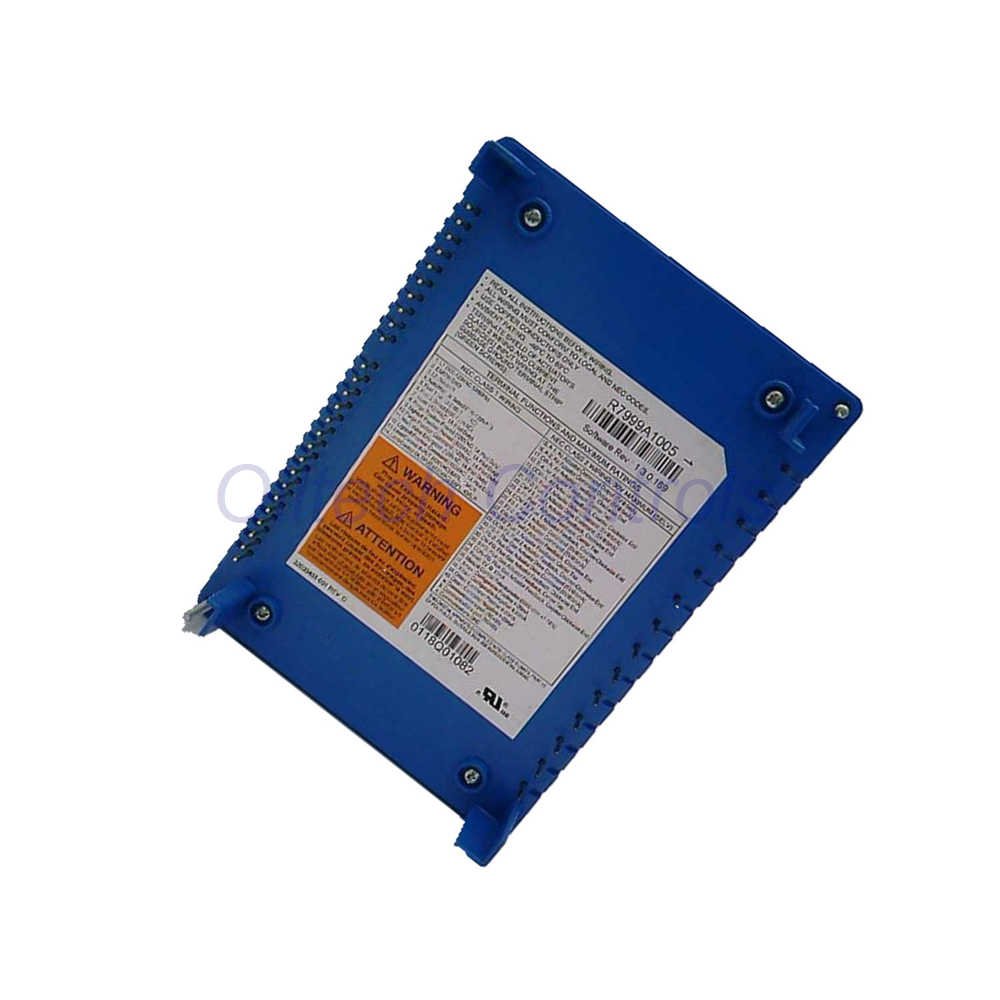

R7999A1005 Honeywell ControLinks Fuel Air Controller
Author: Oiltech Controls
The R7999A1005 serves as the primary microprocessor command center for the Honeywell ControLinks parallel positioning system. Engineers utilize this controller to achieve high-precision combustion by coordinating multiple ML7999 actuators simultaneously. This device eliminates mechanical linkages to ensure repeatable air-fuel ratios and significant energy savings for modern boiler plants.
Technical Specifications
- Brand: Honeywell
- Model: R7999A1005
- Input Voltage: 100-120 VAC at 50/60 Hz frequency for global industrial power compatibility.
- Profile Range: 7 to 24 adjustable setpoints for precise linear or non-linear combustion curve mapping.
- Ambient Temperature: Reliable operation within a wide range of -40°F to 140°F for harsh environments.
- Operating Humidity: Maximum 90% RH non-condensing to protect internal electronic circuits from moisture damage.
- Communication Port: Multipurpose interface supports fast burner setup via PC or laptop configuration software tools.
- Mounting Style: Pluggable controller design fits onto a dedicated wiring subbase for rapid field replacement.
- Safety Approvals: UL, FM, CSA, and CE certified to meet NFPA and CSD-1 industrial boiler standards.
Installation and Engineering Guidelines
- Mount the subbase in a clean enclosure to protect the R7999A1005 from excessive vibration and dust.
- Connect the ML7999 actuators using shielded cables to maintain signal integrity and prevent electromagnetic interference issues.
- Verify the power supply voltage stays within the 100-120 VAC range before energizing the control system.
- Utilize the manual mode firing rate input during the initial tuning phase to establish safe combustion limits.
- Ensure the ambient temperature surrounding the controller does not exceed the 140°F limit during peak operation.
- Contact us at info@oiltechcontrols.com for specific wiring diagrams or complex multi-fuel application support.
Package Contents and Shipping
- One Honeywell R7999A1005 ControLinks Fuel Air Controller unit.
- Protective industrial packaging designed to withstand transit shocks and environmental exposure during long-distance shipping.
- Complete technical documentation including installation instructions and terminal connection maps for site engineers.
- Available shipping via Fedex, UPS, or DHL for rapid global delivery.
Frequently Asked Questions (FAQ)
- How does the R7999A1005 improve burner efficiency compared to mechanical linkages?
The electronic parallel positioning removes hysteresis and mechanical play to maintain the exact air-fuel ratio needed. - Can I use this controller with third-party actuators?
This specific model is designed exclusively to communicate with the Honeywell ML7999 universal parallel positioning actuators. - What should I consider when selecting a fuel-air controller for a low-NOx burner?
Ensure the controller supports FGR hold functions and high-resolution profiles to manage complex emission control requirements. - Is technical support available for programming the 24-point profiles?
Yes, reach our experts via WhatsApp at +86 158 8020 0923 for immediate configuration assistance.
