XNX-UTAI-NHNNN

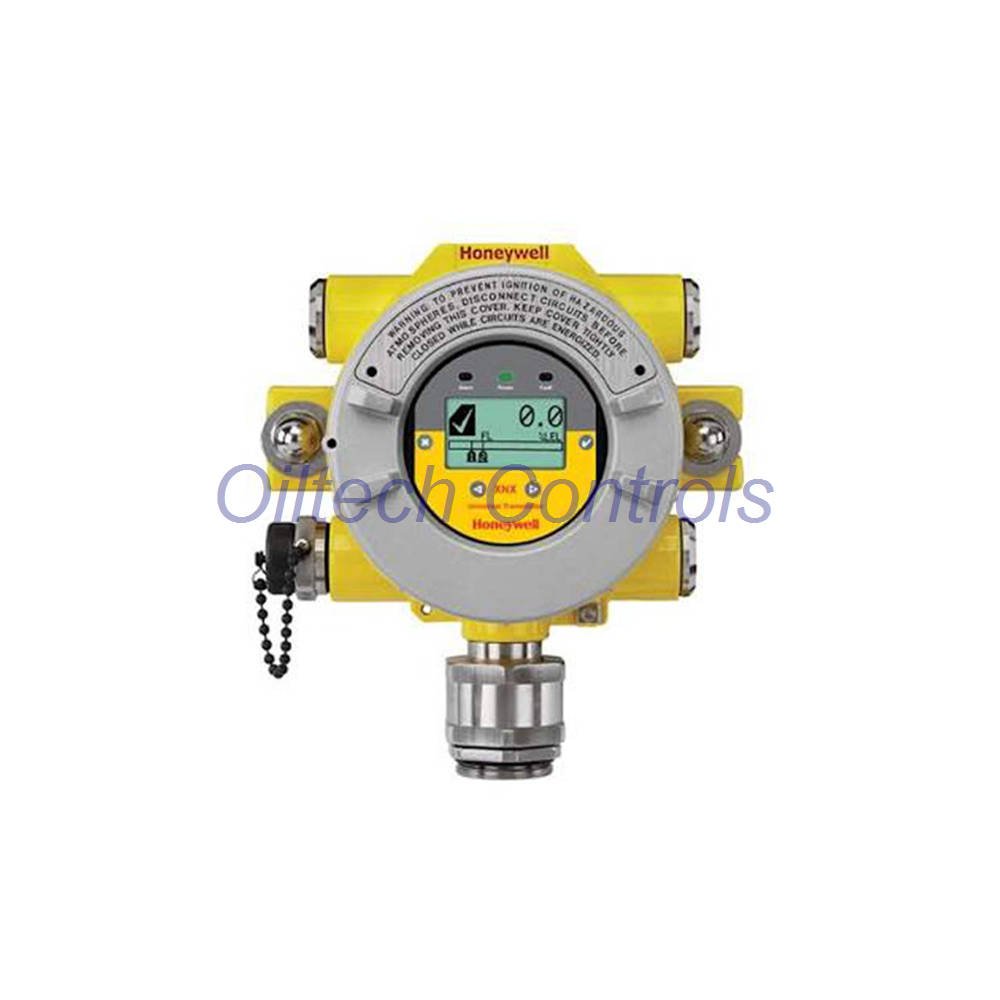

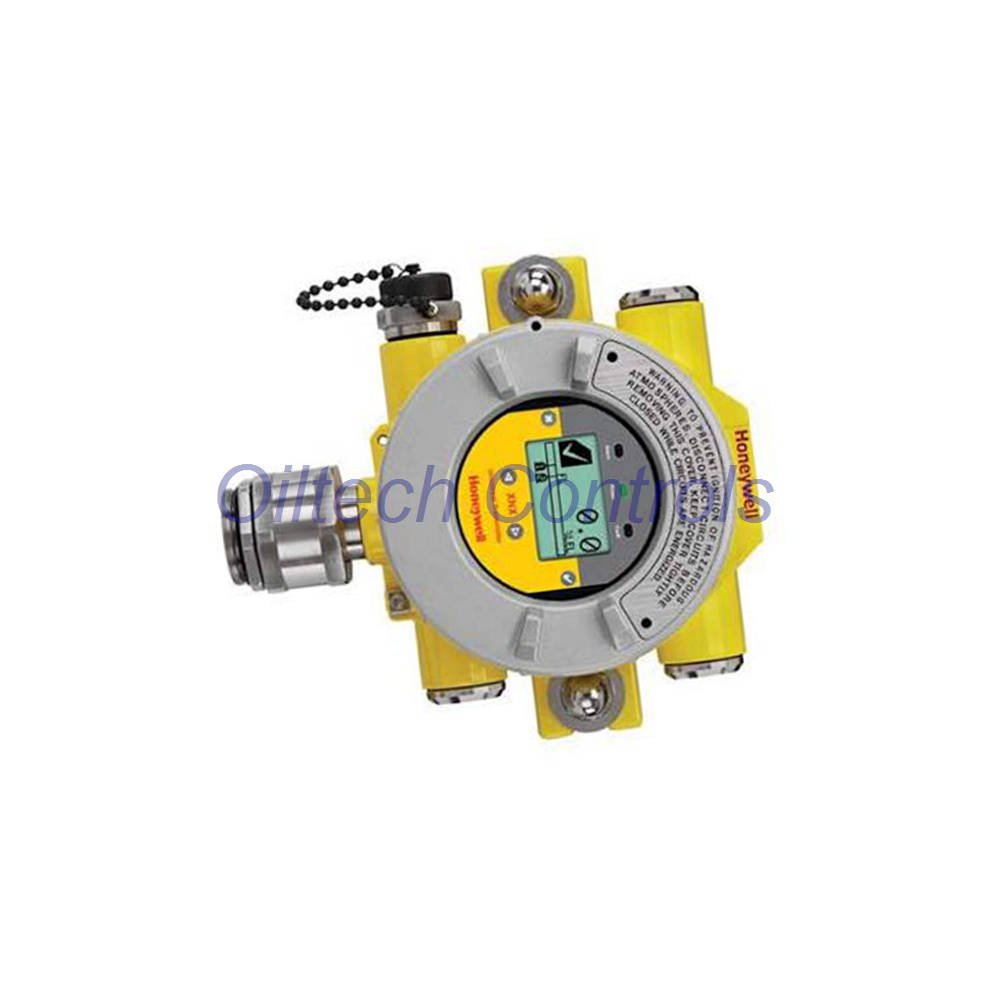

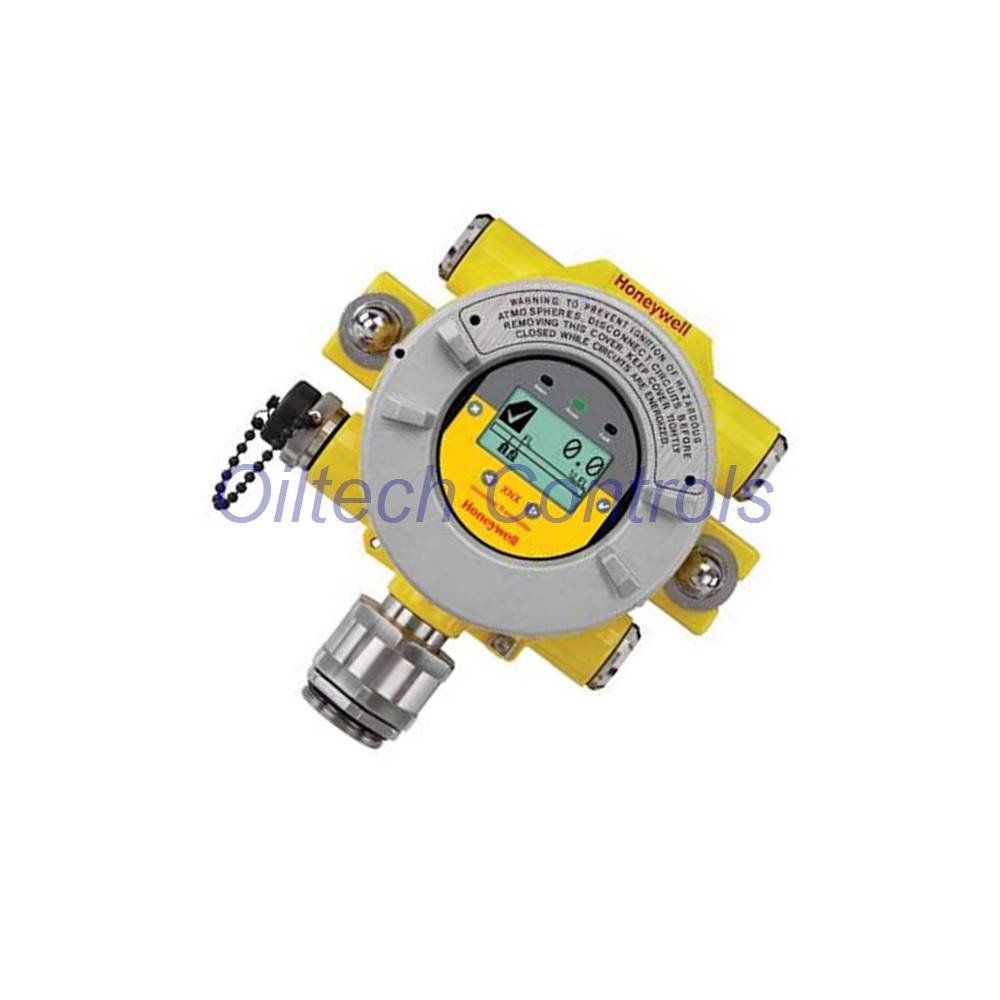

Explosion-Proof Universal Transmitter

Honeywell Analytics · XNX Series · HART over 4-20 mA · Painted Aluminium · for Optima Plus & Excel

Description

XNX-UTAI-NHNNN is an explosion-proof universal transmitter. Honeywell designed it for harsh industrial environments. This device delivers reliable gas detection with HART communication. It supports 4-20 mA analog output and local HART interface port. The unit is pre-configured for Searchline Excel and Optima Plus detectors.

Housing uses painted marine-grade LM25 aluminium alloy. It withstands dust and moisture (IP66). The transmitter operates from -40°C to +65°C. It also handles 0–99% RH non-condensing. Five 3/4″ NPT conduit entries simplify wiring. This model does not include relay output — it focuses on precise gas monitoring.

Power consumption reaches 13.2 W maximum (with Searchline Excel receiver). Voltage range is 18–32 VDC. The local IS HART port allows easy configuration. This transmitter suits open-path IR gas detection systems. It ensures robust performance for leak detection and safety applications.

Technical Specifications

Key Performance & Environmental

• Measurement range: depends on connected IR detector (Searchline Excel / Optima Plus)
• Response: fast gas leak detection with HART digital feedback
• Linearity & resolution: determined by the IR sensor; transmitter provides stable 4-20 mA output
• Interference immunity: designed for explosive atmospheres; UL/CSA/FM approved
• Diagnostic capability: local HART interface enables device status, calibration, and fault diagnosis

Installation & Compatibility

• Mounting: Use 5 x 3/4″ NPT entries for conduit or cable glands. Ensure IP66 sealing.
• Wiring: 4-20 mA loop with HART. Local IS port for configuration.
• Compatible detectors: Searchline Excel open-path IR and Optima Plus.
• Approvals: UL/CSA/FM certified for hazardous locations. Explosion-proof rating.
• Environmental tolerance: -40°C to +65°C, 0-99% RH, IP66, marine-grade aluminium.

Diagnostics & Applications

Diagnostic capabilities: Local HART port provides real-time device status, calibration data, fault logs, and signal integrity checks. Users can perform zero/span adjustments and view diagnostic alerts via HART communicator or software.

Typical applications: Oil & gas refineries, chemical plants, offshore platforms, pipeline monitoring, LNG terminals, and industrial safety systems. Ideal for continuous open-path gas detection in explosive zones.

Package, Warranty & Shipping

• Package contents: XNX-UTAI-NHNNN transmitter, mounting hardware, documentation (manual).
• Warranty: 12 months against defects. Technical verification before shipment.
• Shipping carriers: FedEx, UPS, DHL – global express delivery.
• Obsolete support: Oiltech Controls supports legacy systems. We also offer tested refurbished options.

FAQ – Quick Answers

• Q: Is this transmitter compatible with other IR detectors? A: It is pre-configured for Searchline Excel and Optima Plus.
• Q: Does it include a relay output? A: No, this model has no relay. It provides 4-20 mA + HART.
• Q: Can I use it in extreme cold? A: Yes, operating range -40°C to +65°C.
• Q: What approvals does it hold? A: UL/CSA/FM, explosion-proof, IP66.

For compatible control systems, explore Modicon Quantum series for integration.
