GE Fanuc IC693CBL313 I/O Expansion Cable

This expansion cable connects GE Series 90-30 PLC baseplates. It creates a strong “daisy-chain” for I/O systems. The IC693CBL313 cable lets you add more modules far from the CPU. Perfect for large control panels.

Product Overview

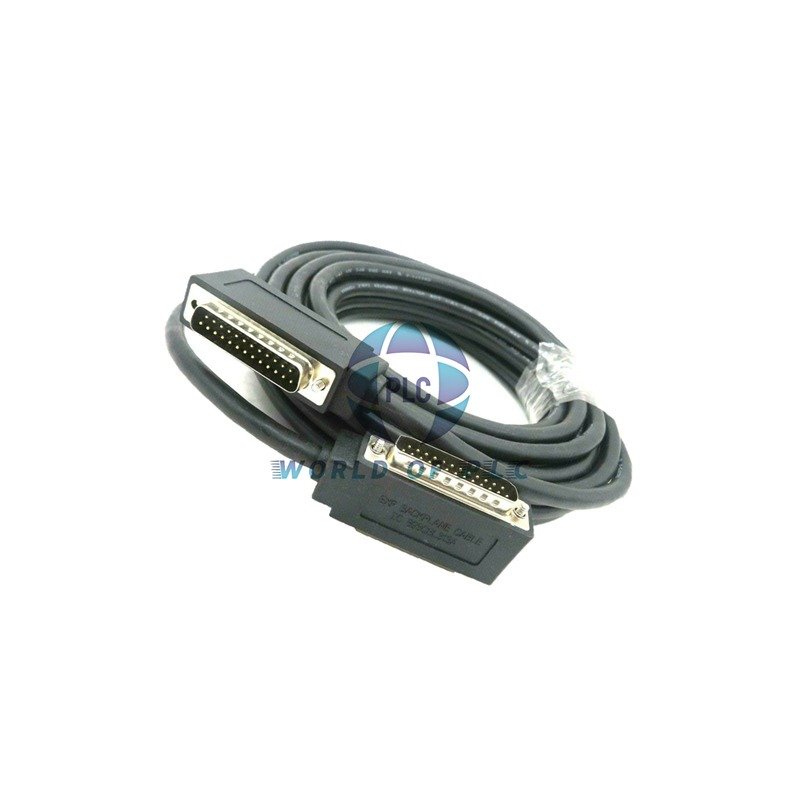

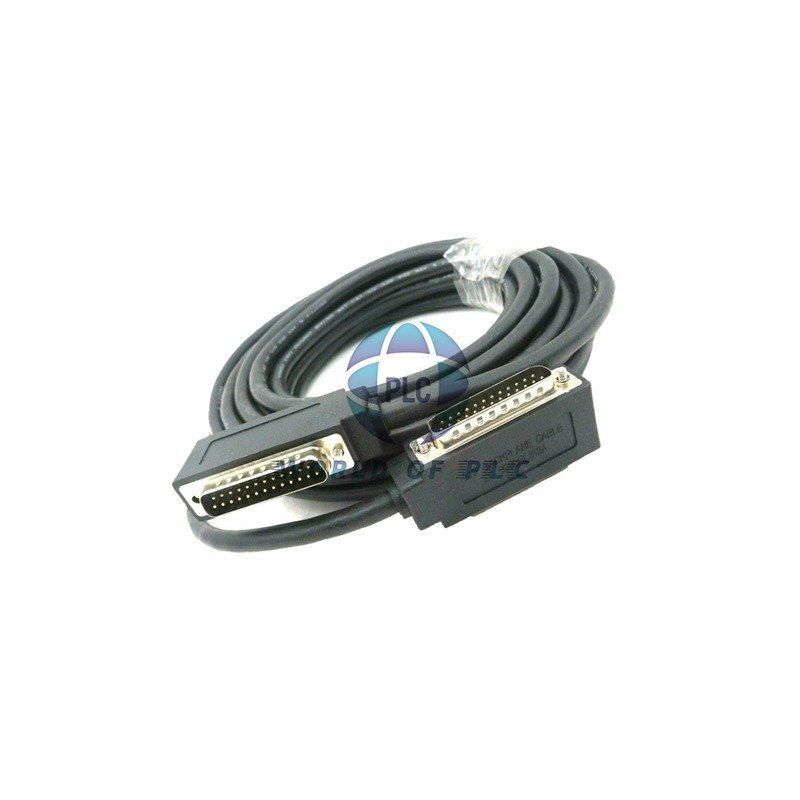

The IC693CBL313 is a shielded Wye cable. It links the main CPU baseplate to expansion or remote baseplates. This 25-foot cable helps you build bigger and more flexible PLC systems.

Technical Specifications

• Brand: GE Fanuc
• Model Number: IC693CBL313
• Compatible Series: Series 90-30
• Cable Type: Shielded Wye Cable
• Total Length: 25 Feet (7.6 Meters)
• Wire Gauge: 28 AWG
• Connector A: 25-pin male D-Sub (single)
• Connector B: Dual-head 25-pin (1 male, 1 female)
• Shielding: Full continuous shield
• Voltage Rating: 30V
• Product Weight: 2.0 lbs (0.9 kg)

Compatibility

This cable works with all GE Series 90-30 CPU and expansion baseplates. It is designed for daisy-chain configurations to connect multiple baseplates together.

How To Install

Connect the single male end to the CPU baseplate female port. Attach the dual-head end to the next baseplate. Use the male connector for the new baseplate. Use the female connector to add another cable or a terminator plug.

Package Includes

• 1 x IC693CBL313 Expansion Cable
• Installation guide

Shipping & Warranty

We ship fast via FedEx, UPS, and DHL. This product includes a 12-month warranty for quality assurance.

Frequently Asked Questions

• What is the maximum number of baseplates I can connect?
  You can connect up to 7 expansion baseplates in a daisy-chain using these cables.
• Do I need a terminator plug?
  Yes, the last baseplate in the chain must have a terminator plug on its unused port.
• Can I use this for remote I/O?
  Yes, this cable is suitable for connecting remote baseplates to the CPU baseplate.
• What is the purpose of the dual-head connector?
  It allows you to continue the daisy-chain to the next baseplate without an extra adapter.
• Is the cable flexible for tight spaces?
  Yes, the cable is designed to be routed through control panels and tight spaces.
