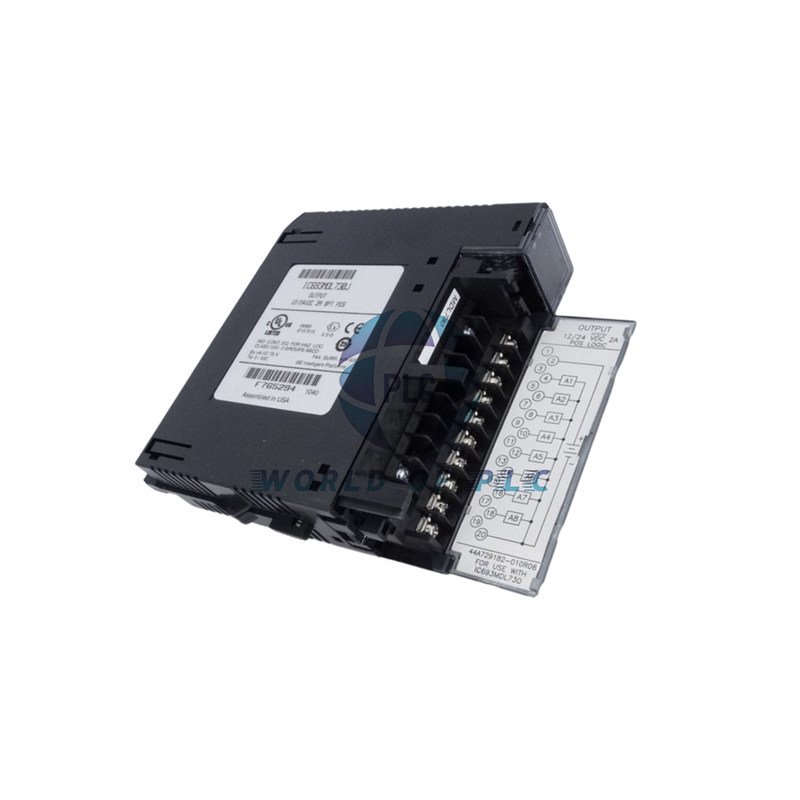

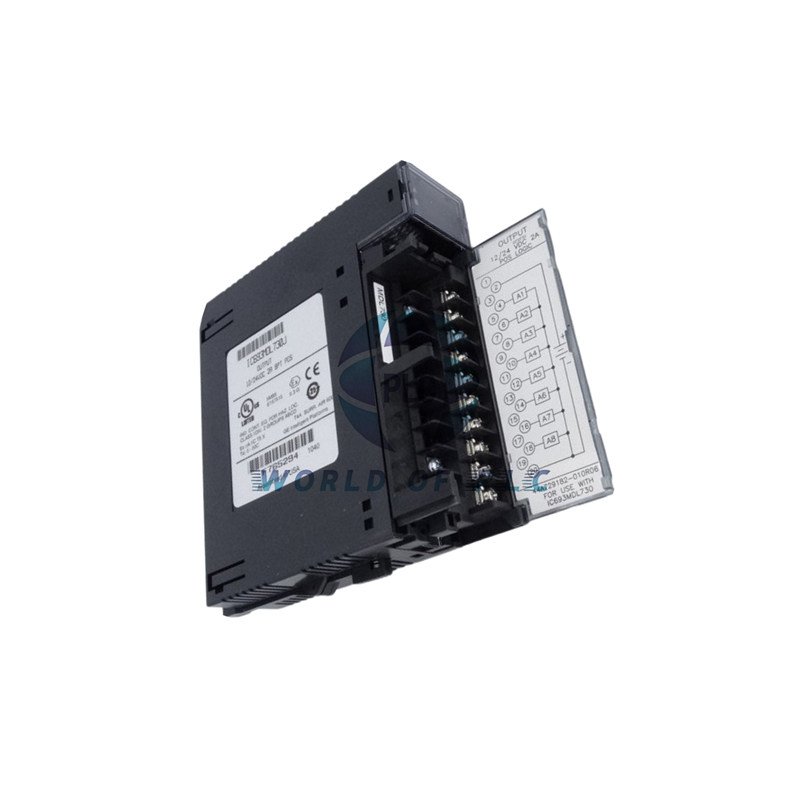

GE Fanuc IC693MDL730 24VDC Output Module
Powerful 8-point output module for reliable control. The IC693MDL730 delivers robust performance for your Series 90-30 PLC system. It provides 2A per point output capacity with excellent response times for demanding industrial applications.
Technical Specifications
- Brand: GE Fanuc (Now Emerson Automation)
- Series: Series 90-30
- Model: IC693MDL730
- Module Type: Discrete Output Module
- Output Points: 8 points (single group)
- Output Voltage: 12-24 VDC (±20%)
- Output Current: 2A per point
- Fuse Rating: 2A @ 60°C, 4A @ 50°C
- Response Time: 2ms (on and off)
- Isolation: 1500V between field and logic side
- Voltage Drop: 1.2V maximum
- Leakage Current: 1mA maximum
- Inrush Current: 9.4A for 10ms
- Backplane Current: 55mA (all outputs active)
- Output Type: Transistor
- Connector: Removable terminal block
Installation Guide
- Install in any Series 90-30 baseplate (5 or 10 slot)
- Connect external 12-24VDC power supply
- Use removable terminal block for easy wiring
- Ensure proper fuse ratings for temperature conditions
- Verify operation using status LED indicators
Package Contents
- 1 x IC693MDL730 Output Module
- 1 x Installation and user manual
Shipping & Support
- Fast worldwide shipping via FedEx, UPS, DHL
- 12-month product warranty included
- Expert technical support available
Frequently Asked Questions
- What types of devices can this module control?
It can control motor starters, solenoids, indicators, relays, and contactors - Why are there different fuse ratings for different temperatures?
Fuse capacity decreases at higher temperatures to ensure safe operation - Do I need an external power supply?
Yes, you must provide an external 12-24VDC power supply for the outputs - What does the blown fuse indicator show?
It lights up when a fuse needs replacement, simplifying maintenance - Can I use this module with 12V and 24V devices simultaneously?
No, all outputs share the same external power supply voltage
