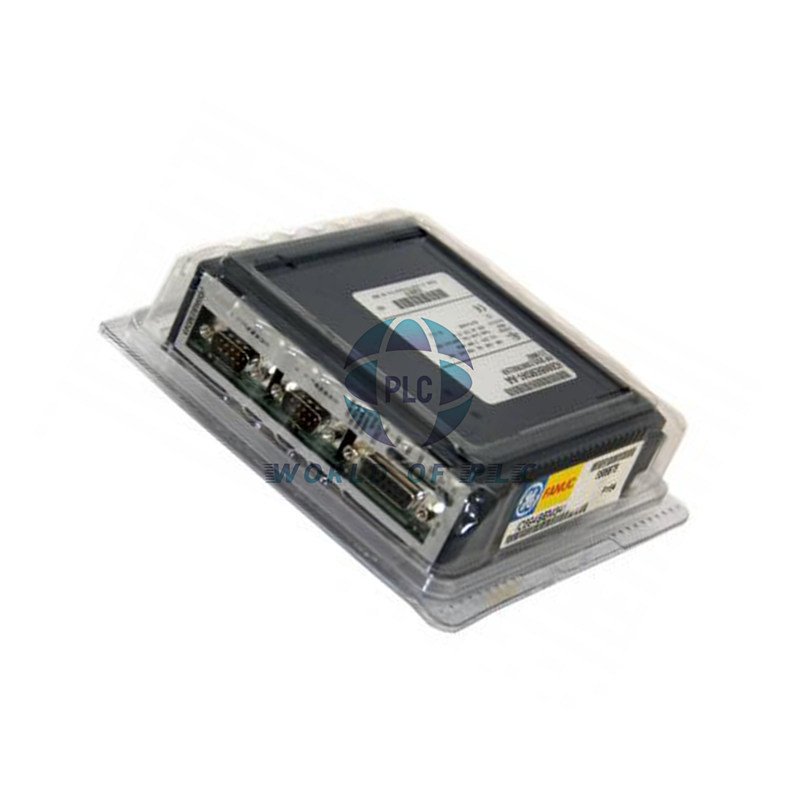

FIP Bus Control Solution: Emerson IC694BEM341 Controller Module
Enable advanced fieldbus communication with the IC694BEM341 FIP bus controller. This module provides reliable data exchange for your RX3i automation systems.
- High-Speed Processing – 2.5 MHz clock speed for fast data handling
- Comprehensive Monitoring – 6 LED indicators for real-time status
- Robust Communication – RS-485 interface with 9-pin D connector
- Advanced Diagnostics – Built-in error detection and alarm features
Technical Specifications
Brand: Emerson (formerly GE Fanuc)
Model: IC694BEM341
Series: PACSystems RX3i
Module Type: FIP Bus Controller
Clock Speed: 2.5 MHz
Data Exchange: 128 bytes maximum
Current Consumption: 1.2 Amps maximum
Communication Port: RS-485
Connector Type: 9-pin male D-sub
LED Indicators: 6 status lights
Backplane Support: Universal RX3i
Slot Requirement: Single slot
Protocol Support: FIP fieldbus
Cable Type: Twisted pair
Communication Method: Datagrams
Baud Rate: Configurable range
Diagnostic Features: Under/over range detection, no-load detection
Alarm Capability: Configurable alarm levels
Environmental: Indoor use, protect from water
Reliable Fieldbus Communication
The IC694BEM341 provides stable FIP bus connectivity for industrial networks. It ensures smooth data exchange between your RX3i controller and field devices.
Comprehensive Status Monitoring
Six LED indicators give clear visual feedback on module operation, network status, battery health, and process execution for easy system monitoring.
Advanced Diagnostic Capabilities
Built-in error detection identifies under-range, over-range, and no-load conditions. Configurable alarm levels allow customized fault management.
Frequently Asked Questions
What type of network does this module support?
It supports FIP (Factory Instrumentation Protocol) fieldbus networks using RS-485 communication.
How many status indicators does it have?
Six LED indicators provide comprehensive status information for different module functions.
What is the maximum data capacity?
The module can exchange up to 128 bytes of data per communication cycle.
Can it operate in harsh environments?
It’s designed for indoor industrial use but should be protected from water and extreme conditions.
What software is used for configuration?
Proficy Machine Edition software is used for module setup and parameter configuration.
Package Contents
• IC694BEM341 FIP Bus Controller
• Installation Documentation
• Configuration Guide
Warranty & Shipping
12-month quality warranty. Fast worldwide delivery via FedEx, UPS, DHL.
Related Products
Compare with: IC695MDL765 Output Module | IC695NIU001 Ethernet Unit
