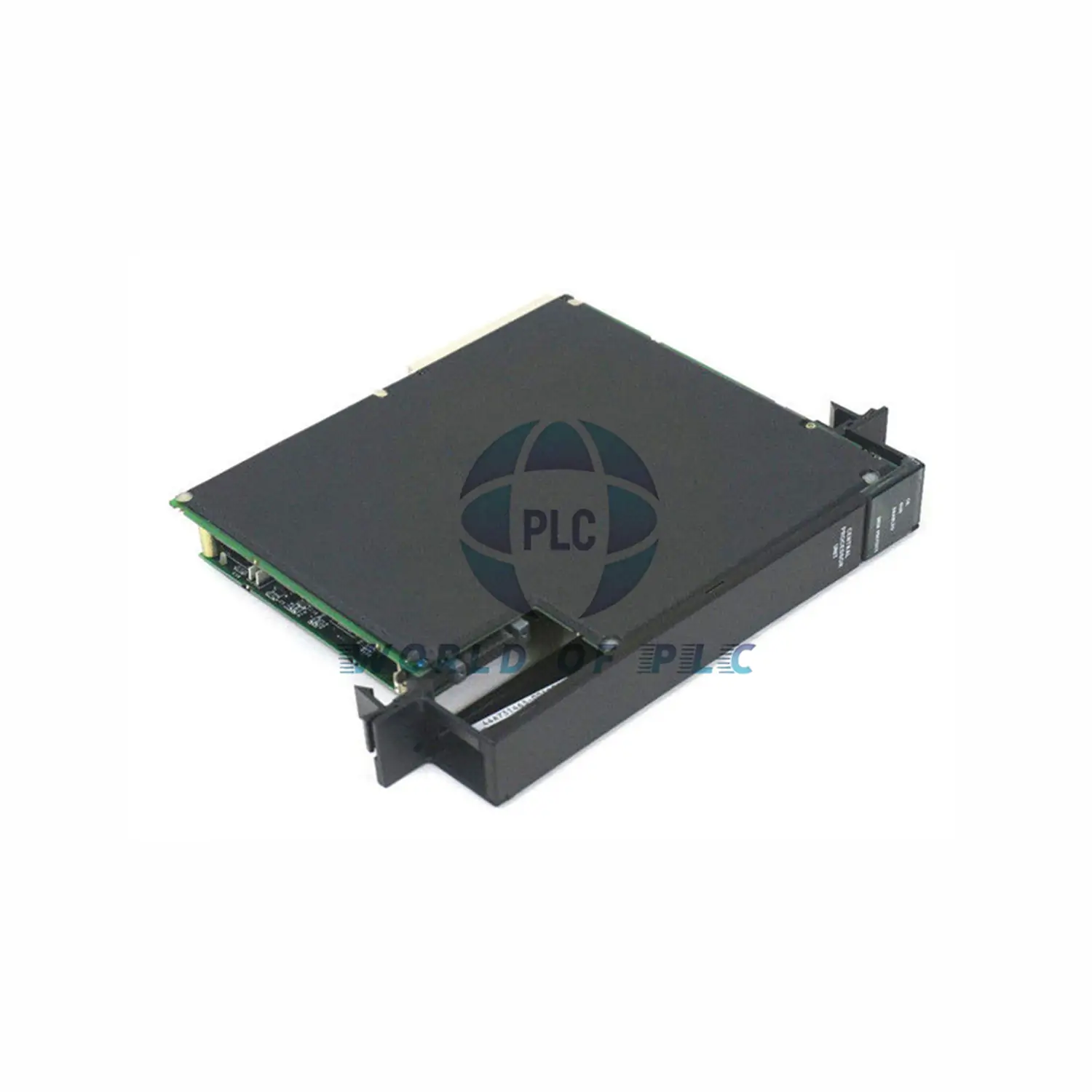

IC697CPU782 GE Fanuc 16 MHZ CPU Series 90-70

IC697CPU782 Series 90-70 PLC CPU Module

Reliable industrial processor for automation control. Features 16MHz 80386DX processor and 0.4μs logic speed. Perfect for factory machines and process systems.

Key Specifications

• Brand: GE Fanuc (Emerson)
• Model: IC697CPU782
• Series: Series 90-70
• Processor: 80386DX @ 16MHz
• Logic Speed: 0.4 μs/function
• I/O Capacity: 12K discrete + 8K analog
• Memory: 512KB max RAM
• Ports: RS485 serial port

Environmental Ratings

• Temp Range: 0°C to 60°C (32°F to 140°F)
• Humidity: 5-95% non-condensing
• Vibration: 1G @ 57-150Hz
• Shock: 15G for 11ms
• Enclosure: IP54 steel cabinet

Installation Guide

• Mount in Slot 1 only
• Use VME C.1 standard racks
• Connect via RS485 port (15-pin)
• Power: 5V DC ±5% (1.6A)

Diagnostics & Maintenance

• LED status: OK, RUN, Outputs
• Battery: IC697ACC701 (replace every 10 years)
• Software: Logicmaster/VersaPro/Proficy

Package Includes

• IC697CPU782 CPU Module
• Lithium battery (IC697ACC701)
• Installation manual

Shipping & Warranty

• Delivery: FedEx | UPS | DHL
• Coverage: 12-month warranty
• Global: CE/UL/CSA certified

Common Questions

Q: Programming options?
A: Use Logicmaster 90, VersaPro, or Proficy software.

Q: Supports PID control?
A: Yes, advanced math functions included.

Q: Compatible I/O modules?
A: Works with IC660/IC661 and all IC697 I/O products.
