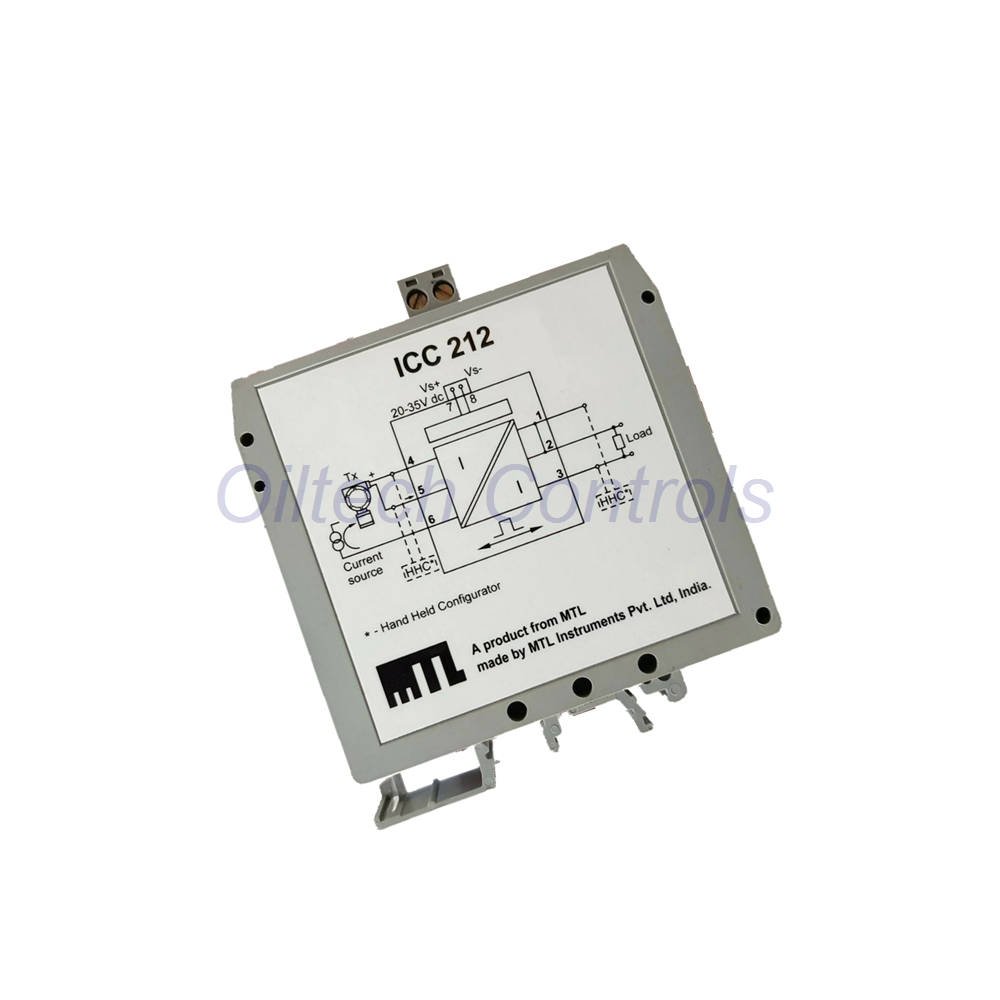

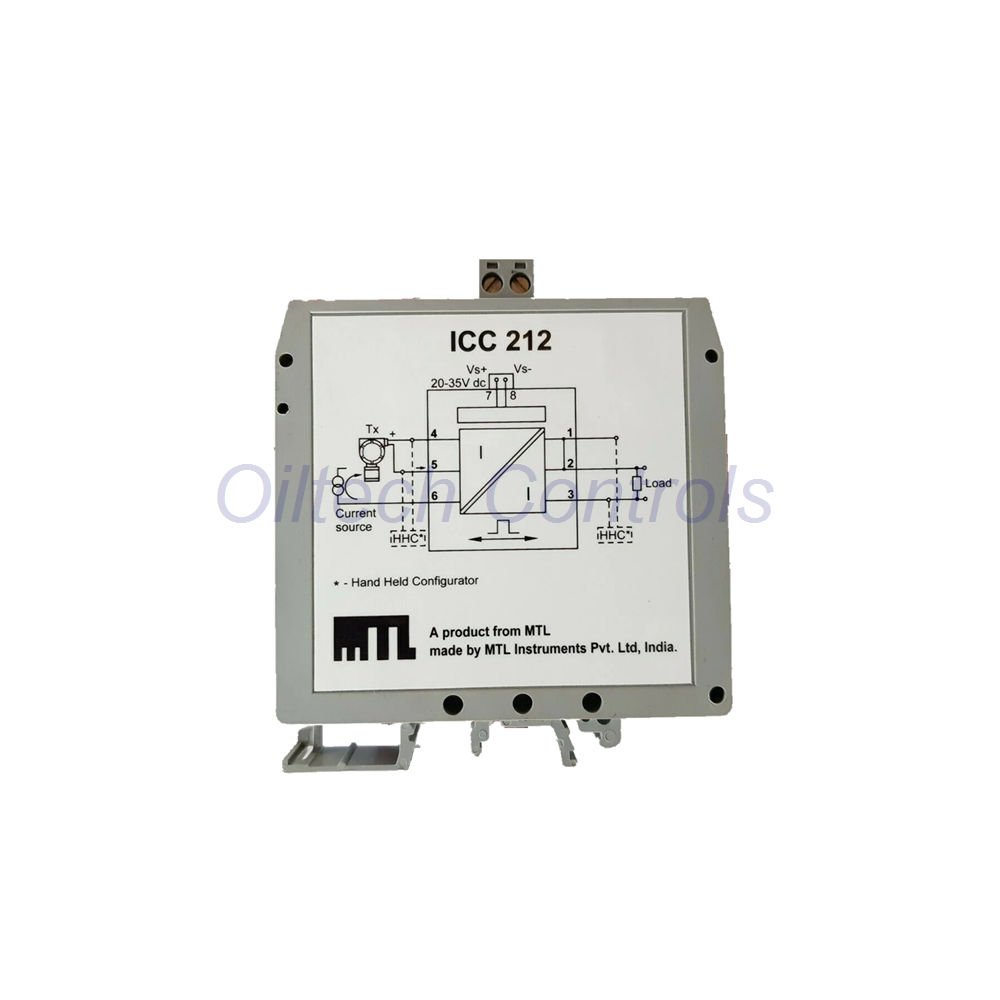

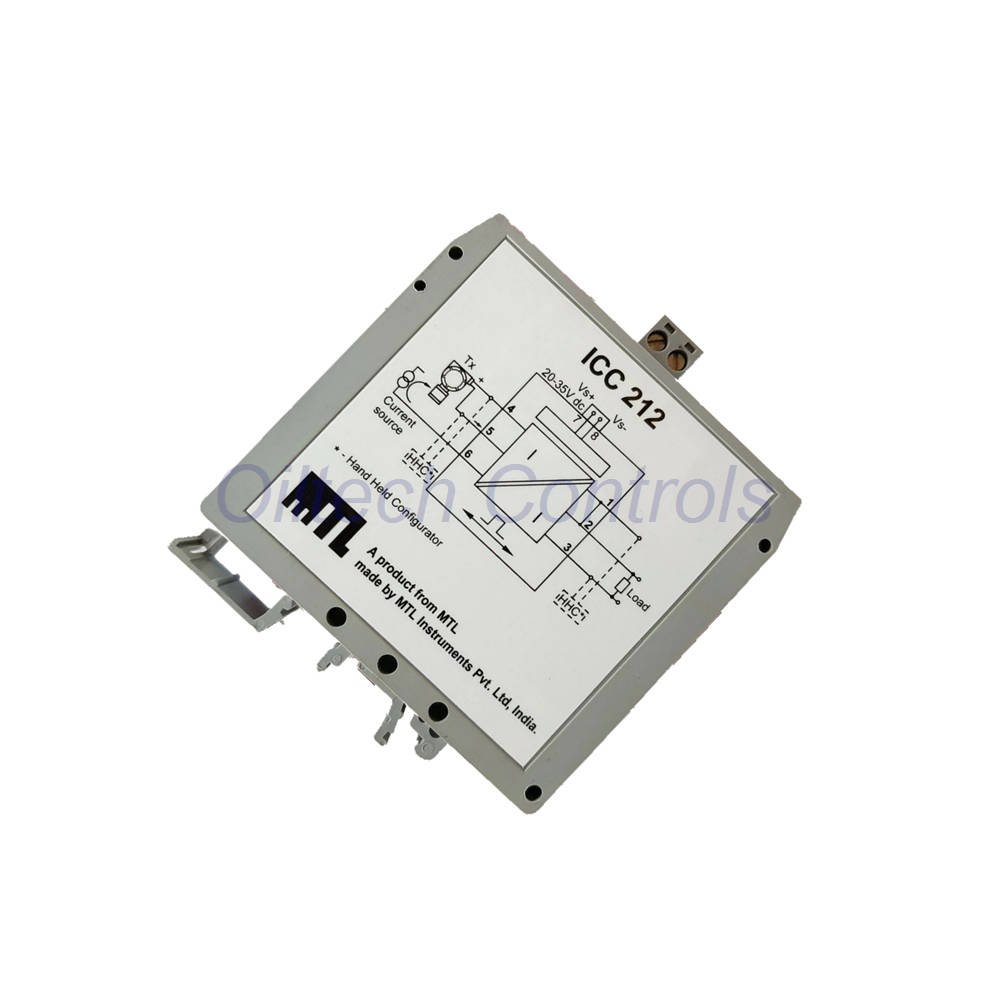

ICC212 Galvanic Isolated 4-20mA Signal Converter

Overview of the ICC212 Signal Converter

• The ICC212 serves as a dual-purpose current-to-current converter for industrial automation systems.
• Oiltech Controls engineers designed this unit to provide fully floating power for 2-wire or 3-wire smart transmitters.
• Users operate the ICC212 as either a dedicated repeater power supply or an isolated signal driver.
• This device ensures bidirectional HART digital signal transmission for seamless remote configuration of field instruments.

Core Technical Specifications

• Manufacturer: MTL
• Model Number: ICC212
• Input/Output Signal: 0 to 20mA (standard) or 4 to 20mA (with HART communication)
• Isolation Rating: 1500V DC/AC (3-port galvanic isolation)
• Power Input: 20 to 35V DC
• Transmitter Voltage: 20V minimum at 20mA output
• Digital Bandwidth: 100Hz to 10kHz for HART compatibility
• Load Capacity: Up to 650Ω for standard drivers; 2200Ω peak capability for smart transmitters
• Accuracy: Better than 20μA including non-linearity and hysteresis
• Thermal Stability: Drift remains under 1μA/°C
• Response Time: 80ms to reach 90% of span; 280ms to 99.9% of span
• Common Mode Rejection: 150dB typical performance

Environmental and Physical Standards

• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5 to 95% RH (non-condensing)
• Enclosure Width: 25mm polyamide housing for high-density panel mounting
• Terminal Capacity: Accommodates 2.5mm² conductors for secure connections
• Mounting Type: Snap-on design for T-section or G-section DIN-rails

Installation and Shipping Guidelines

• Mount the ICC212 directly onto standard DIN-rails to save valuable cabinet space.
• Connect the power supply via the removable 2-way plug-in connector located at the top.
• Ensure proper wire gauge selection for the 2.5mm² terminals to maintain signal integrity.
• We facilitate rapid global delivery via FedEx, UPS, or DHL.
• Contact our support team at info@oiltechcontrols.com for technical integration assistance.
• Reach out via WhatsApp at +86 158 8020 0923 for immediate inquiries.

Frequently Asked Questions

• Q: Can the ICC212 support HART communication?
  A: Yes, the unit allows bidirectional digital signals superimposed on the 4-20mA loop.
• Q: How do I select between repeater or driver modes?
  A: The top-mounted power terminals allow you to configure the device for specific loop requirements easily.
• Q: Is the device protected against common mode noise?
  A: The 150dB common mode rejection ratio ensures stable operation in electrically noisy industrial environments.
• Q: What is the benefit of the 3-port isolation?
  A: It protects your control system by electrically separating the power supply, input, and output circuits.
• Q: Does this model fit standard DIN-rail systems?
  A: It installs onto both T-section and G-section rails, making it highly versatile for existing panels.
