ICC312 MTL Signal Isolator: Dual Output Repeater Power Supply

Overview of MTL ICC312 Performance

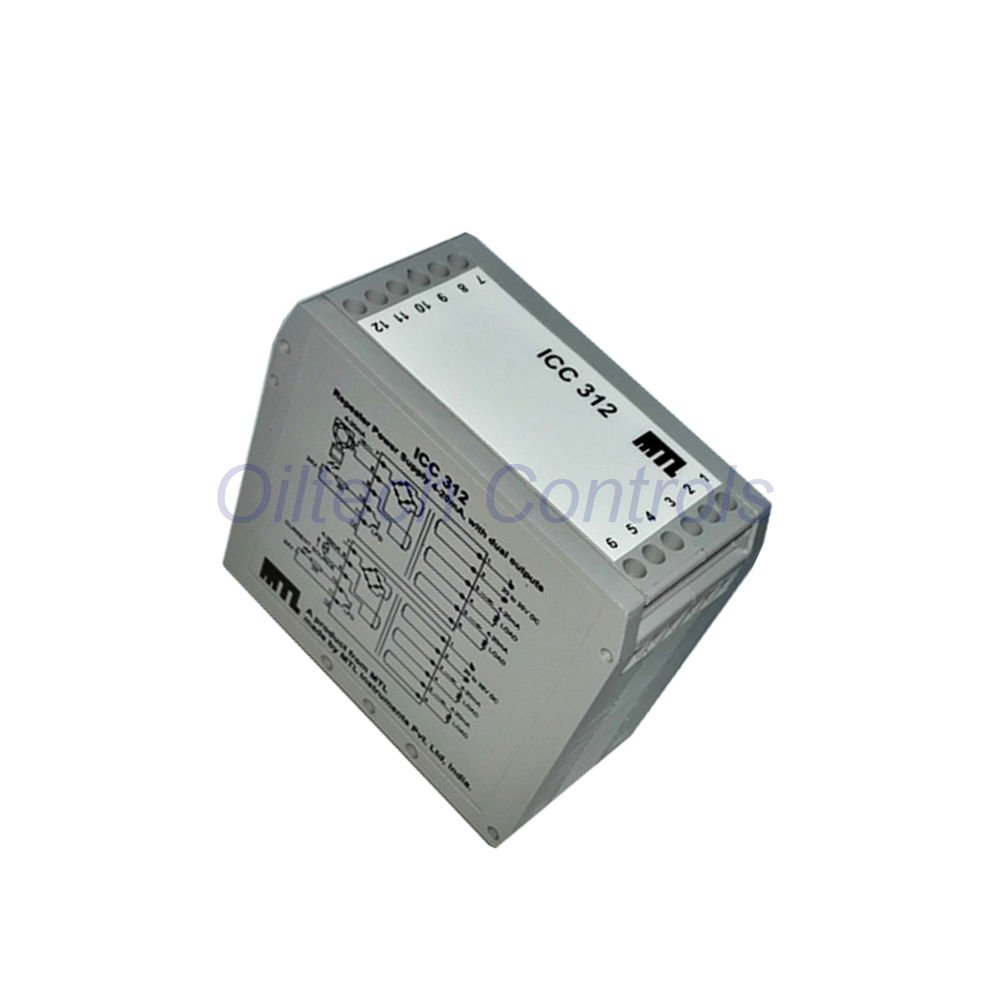

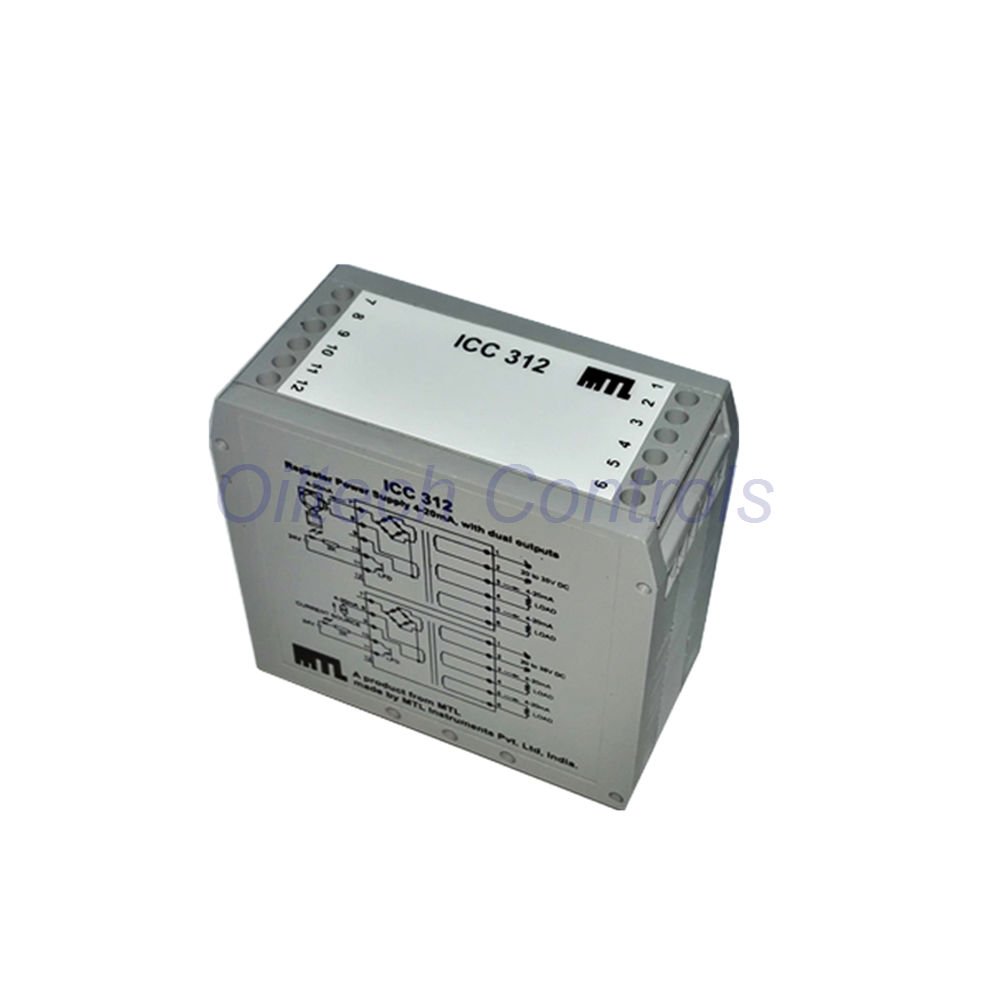

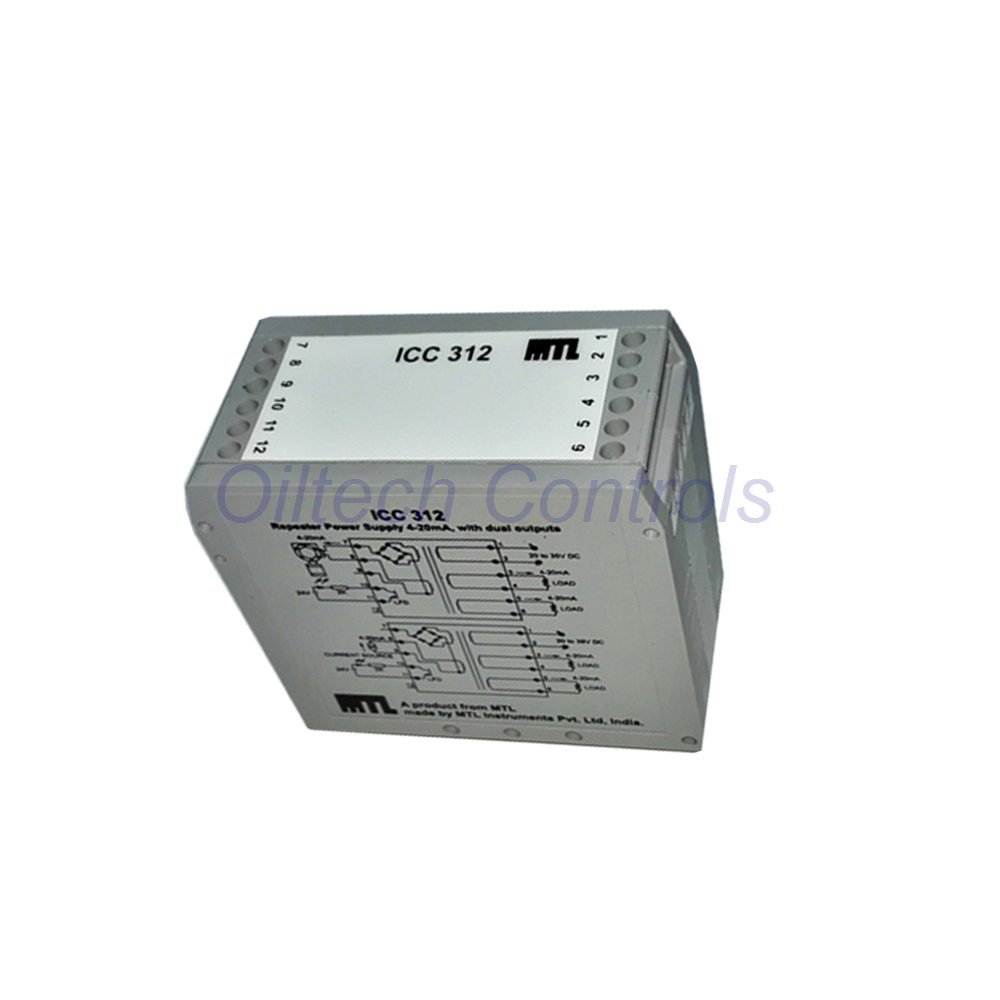

• Oiltech Controls presents the ICC312, a precision repeater power supply for mission-critical process loops.
• The ICC312 provides a stable, fully isolated DC supply to energize standard 2-wire transmitters efficiently.
• Engineers utilize this unit to split a single 4-20mA transmitter signal into two independent output channels.
• This device ensures high signal integrity by maintaining superior 3-port isolation between inputs, outputs, and power.
• For technical inquiries, please reach out via info@oiltechcontrols.com or message us on WhatsApp.

Core Technical Specifications

• Manufacturer: MTL
• Model: ICC312
• Input Signal: 4-20mA (Active 2-wire transmitter or external current source)
• Output Channels: Two isolated 4-20mA circuits
• Transfer Accuracy: Better than 20μA at 25°C
• Voltage Supply: 20V to 35V DC input requirement
• Transmitter Voltage: 20V minimum available at 20mA signal output
• Load Resistance: Supports loads from 0 to 1kΩ per channel
• Common Mode Rejection: 150dB typical for superior noise immunity
• Response Time: 80ms to reach 90% span; 280ms to reach 99.9% span
• Temperature Drift: Less than 1μA/°C for stable, long-term accuracy

Advanced Safety and Environmental Protection

• The ICC312 features isolated line-fault detection to alert operators of broken input cables instantly.
• The open collector output stays OFF when input current remains below 0.2mA during wire faults.
• Operating temperatures range from -20°C to +55°C, ensuring reliable performance in harsh industrial environments.
• The device withstands 5% to 95% relative humidity without condensing in sensitive control cabinets.
• Each unit offers 1500V DC/AC isolation to protect downstream systems from dangerous ground loops.

Installation and Mechanical Configuration

• The ICC312 features a compact 40mm wide polyamide casing for dense DIN-rail mounting applications.
• Technicians mount the unit directly onto industry-standard T-section or G-section DIN-rails per DIN 46277.
• Terminals securely accommodate 2.5mm conductors for robust electrical connections in vibrating environments.
• We ship all products globally using reliable carriers including Fedex, UPS, or DHL.

Packing List

• One (1) MTL ICC312 Repeater Power Supply unit.
• Printed technical installation guide and configuration reference sheet.
• Standard mounting clips for DIN-rail attachment.

Frequently Asked Questions

• How does the LFD feature function during a signal loss?
• The transistor output turns OFF when the input current drops below 0.2mA, indicating a loop break.
• Can I use the ICC312 with an existing 4-20mA source?
• Yes, you can connect an external 4-20mA current source to terminals 8 and 9 directly.
• What should I check if my output signal is inaccurate?
• Verify your power supply voltage is between 20V and 35V DC and check for load resistance limits.
• Is this isolator suitable for high-vibration environments?
• Yes, the robust DIN-rail mounting and secure terminal design ensure excellent performance in industrial sites.
