Product Overview

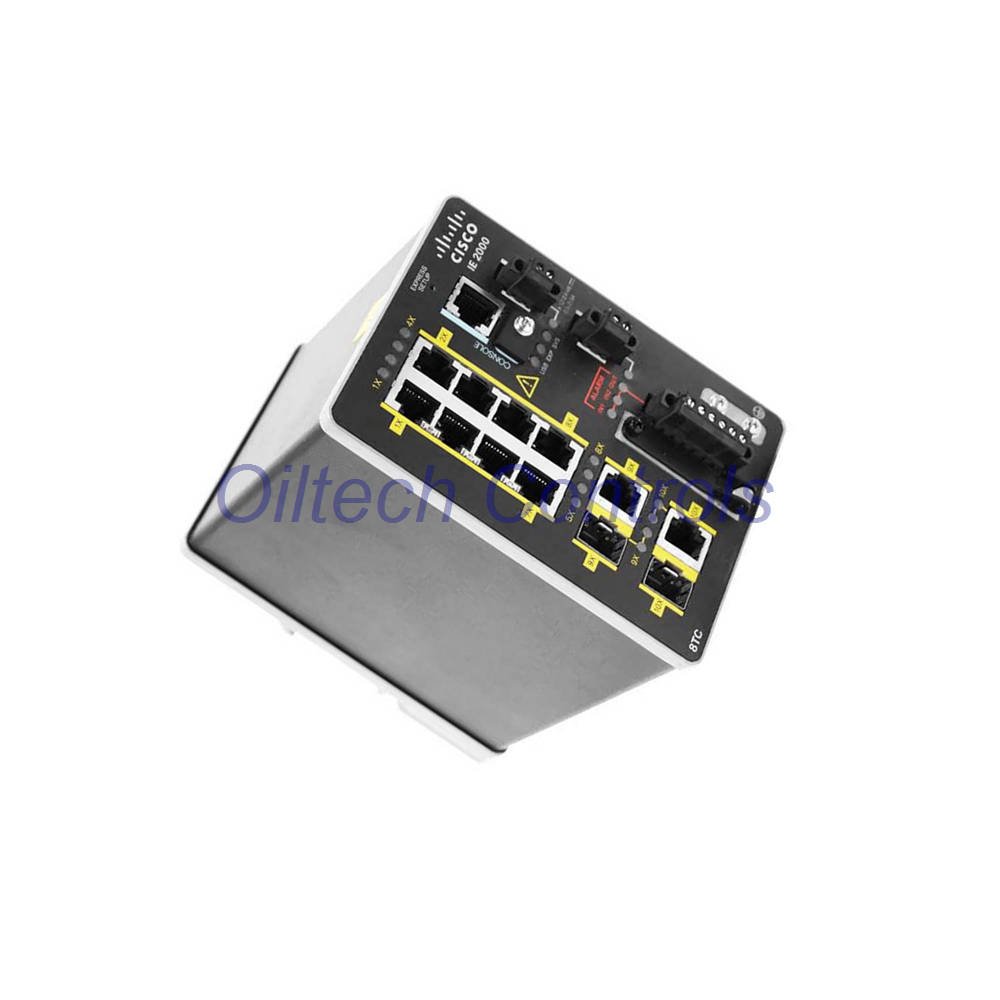

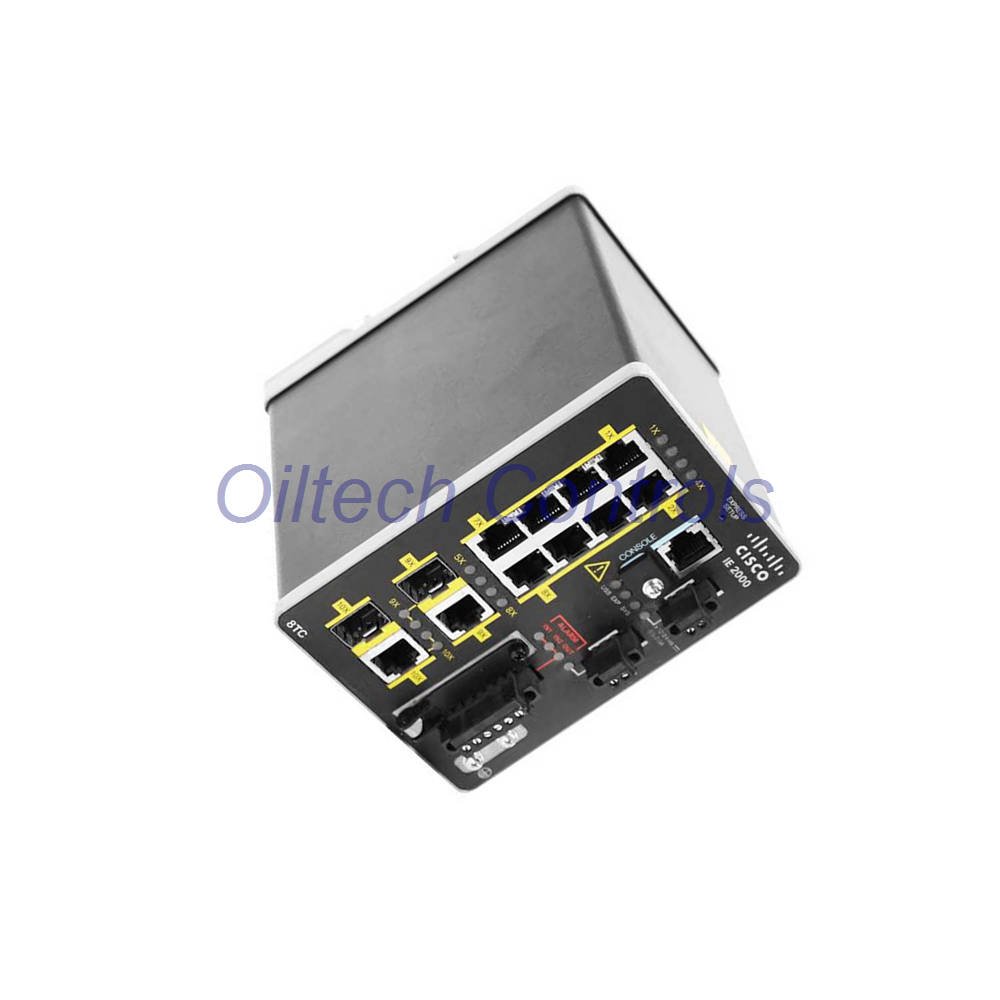

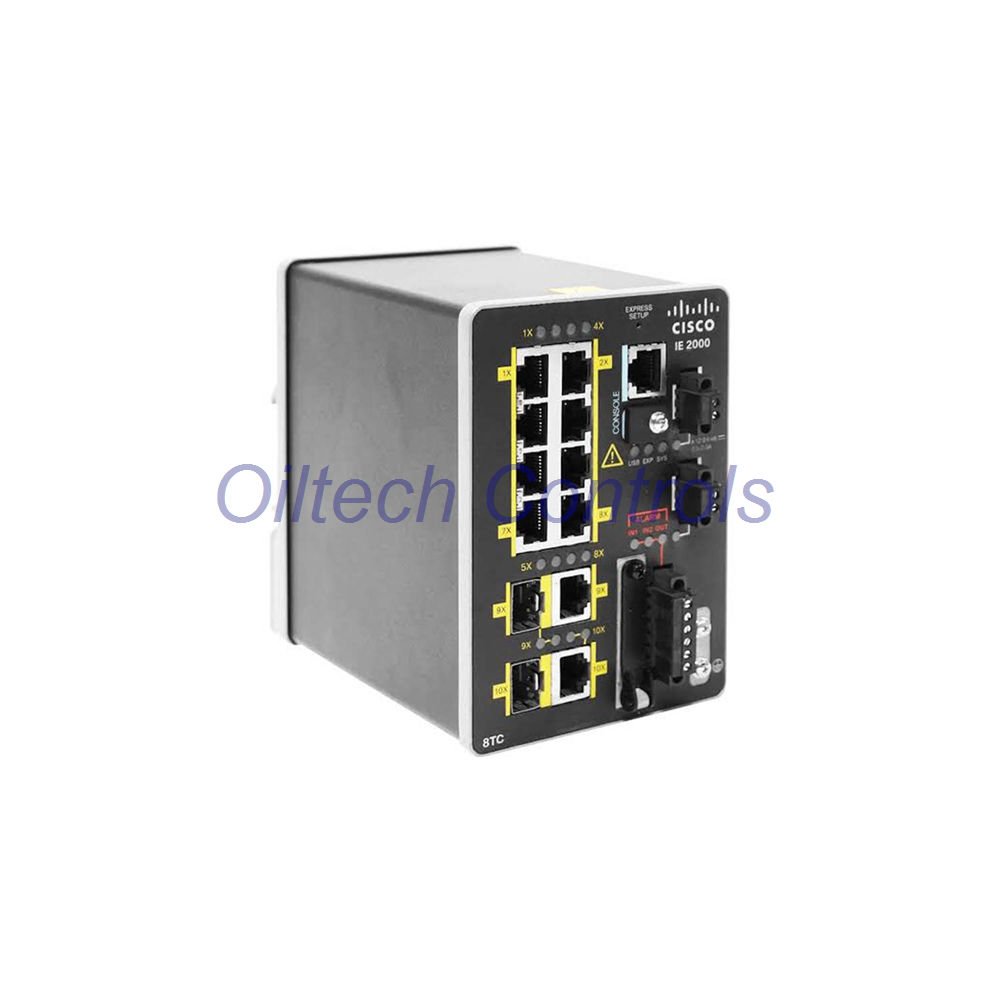

The Cisco IE-2000-8TC-G-B is a compact industrial Ethernet switch for harsh factory spaces. Engineers build reliable networks with this rugged access switch. It safely moves video, security, and control traffic in real time. The unit supports LAN Base software for enhanced Layer 2 switching. Industrial teams use it in energy, oil, gas, and transportation sites.
Technical Specifications
| Brand | Cisco |
| Model | IE-2000-8TC-G-B |
| Series | IE 2000 Series |
| Total Network Ports | 10 Active Ports |
| Fast Ethernet Ports | 8 x 10/100Base-T RJ45 Copper Ports |
| Gigabit Combo Ports | 2 x Gigabit Uplinks (RJ45 or SFP) |
| License Level | LAN Base License |
| System Memory | 256 MB DRAM with ECC, 64 MB On-Board Flash |
| Removable Storage | Supports 1GB SD Flash Memory Card |
| Power Consumption | 12.5 W to 20 W Maximum |
| Power Input & Relay | Dual DC Inputs with Alarm Relay Contacts |
| Operating Temperature | -40°C to 70°C Industrial Rating |
| Environmental Endurance | Heavy EMI Resistance and Shock/Vibration Immunity |
| Precise Timing | IEEE 1588v2 Hardware FPGA Precision Time Protocol |
| Certifications | PROFINET v2 and EtherNet/IP Certified |
Network Protocols and Security
- Layer 2 features include REP Ring, Spanning Tree, VTPv3, and EtherChannel.
- Advanced QoS offers ingress policing, egress shaping, and PROFINET priority traffic.
- Security features include 802.1X, DHCP Snooping, Dynamic ARP Inspection, and ACLs.
- Management options include Web Device Manager, SNMPv3, SSH, and Cisco Prime.
- Basic L3 features support IPv4 static routing and IPv6 host management.
Compatibility and Supported Transceivers
- Compatible with GLC-SX-MMD multi-mode 850nm optical transceivers.
- Supports GLC-LH-SMD and GLC-ZX-SMD single-mode SFP modules.
- Accepts GLC-TE 1000BASE-T copper SFP modules for extra RJ45 links.
- Works directly with SD-IE-1GB memory cards for rapid swap replacement.
- Mounts seamlessly using STK-RACK-DINRAIL= standard 19-inch rack adapters.
System Diagnostics and Event Monitoring
- Two alarm inputs detect open or closed external dry contacts.
- One alarm output relay alerts operators during power loss or link failure.
- Embedded Event Manager triggers rapid actions upon local system fault alerts.
- Port mirroring via SPAN and RSPAN allows deep packet traffic analysis.
- Syslog messages log system performance data for field technicians.
Installation, Setup, and Maintenance
- Mount the switch on a standard 35mm DIN rail inside control panels.
- Connect dual DC power supplies to ensure zero power interruption.
- Use Category 5 UTP cables for 8 Fast Ethernet downlink ports.
- Insert optional SFP optics into combo ports for long-distance optical links.
- Use Express Setup or mini-USB console port for initial switch setup.
- Swap configuration instantly using the swappable SD flash card slot.
Typical Application Fields
- Substation automation networks needing IEEE 1588 precision timing sync.
- Oil and gas refinery control panels using PROFINET or EtherNet/IP.
- Roadway traffic management systems requiring wide temperature range operation.
- Factory automation lines requiring fast ring recovery with REP protocol.
Package List and Warranty Terms
- One original Cisco IE-2000-8TC-G-B Industrial Ethernet Switch unit.
- DIN rail mount clip attached directly to the back of the chassis.
- Pluggable terminal block connectors for DC power and alarm wiring.
- Covered by our 12-Month Hardware Replacement Warranty policy.
- Express global dispatch via DHL, FedEx, or UPS door-to-door delivery.
Why Buy From Oiltech Controls?
- Over 15 years of solid industrial automation spare parts experience.
- Fast global shipment support for urgent facility maintenance orders.
- Fully tested industrial surplus and factory refurbished hardware options.
- Comprehensive 12-month replacement warranty on every delivered product.
- Strict technical verification and test reports generated before final shipment.
- Dedicated lifecycle support for obsolete and hard-to-find control systems.
Frequently Asked Questions
Q: What is the main difference between LAN Lite and LAN Base models?
A: The LAN Base model adds advanced security, traffic QoS, EtherChannel, and static routing features.
Q: Can I upgrade this switch to support L3 routing protocols?
A: Yes, you can purchase the optional IP Lite license software upgrade.
Q: How fast does the network recover if a fiber link breaks?
A: Cisco REP protocol recovers link failures in under 50 milliseconds inside ring topologies.
Q: What cable do I need for the serial setup port?
A: You can use a standard mini-USB console cable or a traditional RJ45 console cable.
