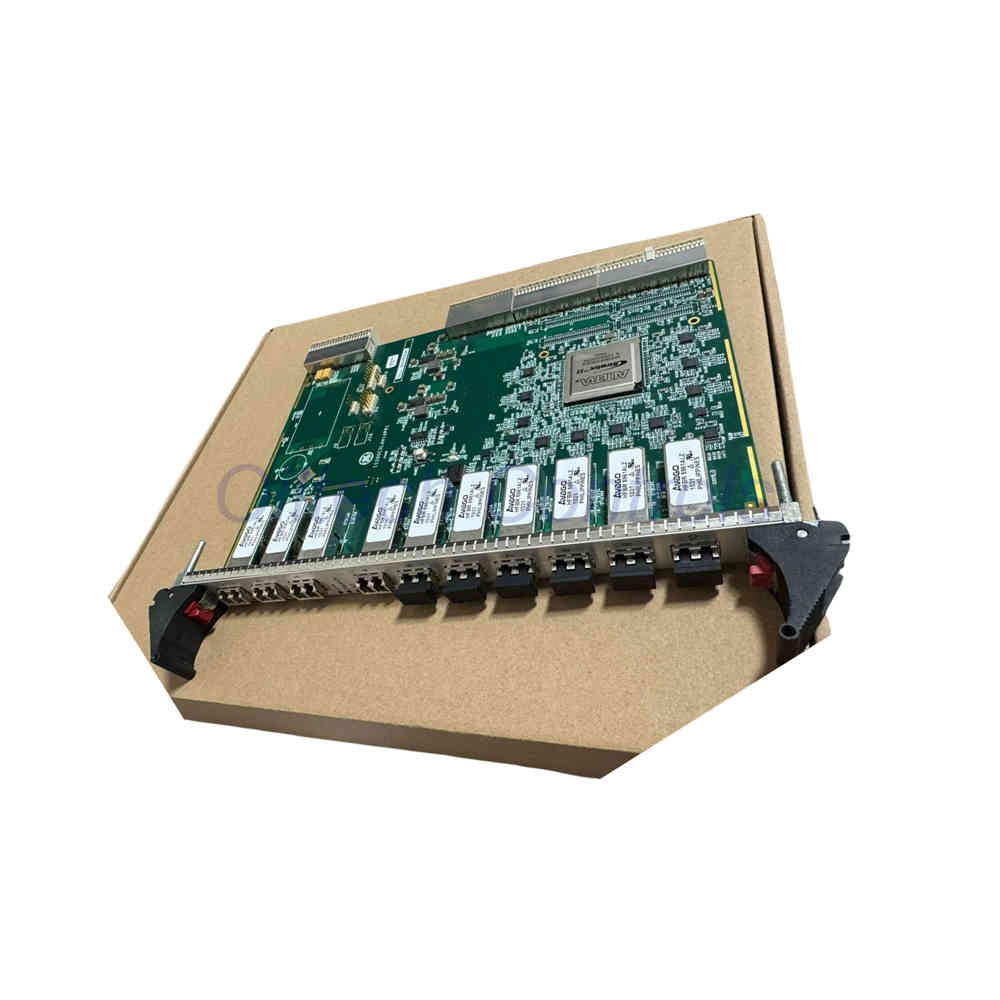

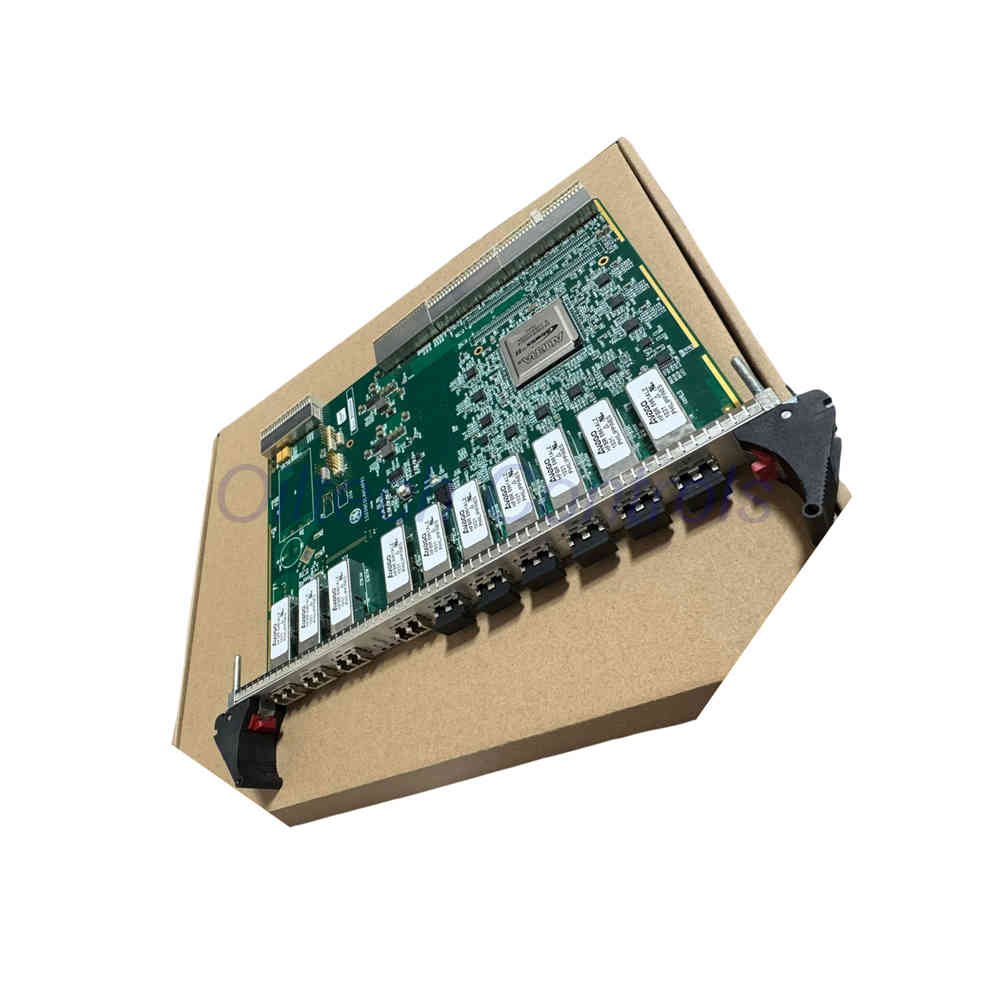

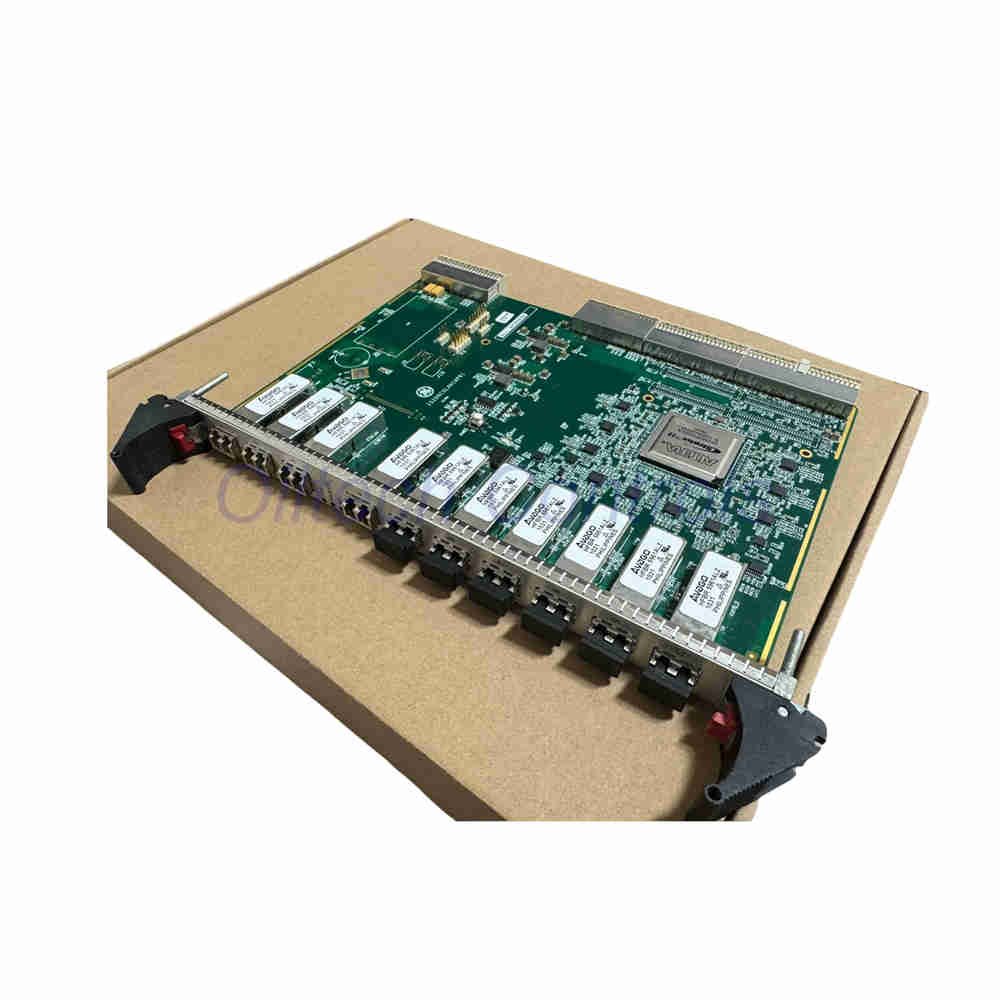

IS200CSLAH1A Compact PCI Serial Link Board EX2100e GE

IS200CSLAH1A GE EX2100e Compact PCI Serial Link Expansion Board

Built for stable high-speed data communication.
IS200CSLAH1A is a Compact PCI Serial Link Expansion Board from the GE EX2100e platform.
It connects directly with the EX2100e main processor through high-speed serial communication.
The board supports reliable turbine excitation control and fast signal transfer.
Designed for industrial systems requiring low-delay communication and stable diagnostics.

Compact System Overview

• Manufacturer: General Electric
• Model: IS200CSLAH1A
• Series: EX2100e Excitation Control Platform
• Board Type: Compact PCI Serial Link Expansion Board
• Functional Acronym: CSLA
• Supports high-speed processor communication.
• Designed for excitation control applications.
• Uses Compact PCI architecture for reliable integration.
• Improves communication stability in turbine systems.
• Surface-mount technology improves long-term durability.
• Conformal coating protects against dust and moisture.

Technical Highlights

• Operating Temperature: -30°C to +65°C
• PCB Protection: Conformal Coated
• Technology: Surface-Mount Design
• Communication Type: High-Speed Serial Link
• Signal Stability: Industrial-grade low-noise transmission
• Anti-Interference Ability: High EMI resistance
• Environmental Endurance: Suitable for harsh industrial sites
• Installation Style: Compact PCI rack mounting
• Revision: Functional Revision A
• Country of Manufacture: United States
• Availability: In Stock

Front Panel Diagnostic Indicators

• RUN LED
  Green light confirms normal serial link operation.
• STATUS LED
  Blinking yellow light shows fault detection status.
• FAIL LED
  Red light indicates reset faults or critical failures.

Communication Hardware Features

• Integrated with ten HFBR-5961xxZ transceivers.
• Avago transceivers support fast optical communication.
• Handles both receiving and transmitting functions.
• Supports stable onboard communication processing.
• Optimized for continuous industrial operation.

Suitable Equipment & Systems

• GE EX2100e excitation systems
• Steam turbine control cabinets
• Gas turbine automation systems
• Industrial power generation units
• Retrofit excitation platforms
• High-speed control communication racks

Oiltech Controls’ Insight

• IS200CSLAH1A focuses on communication stability inside EX2100e systems.
• The conformal coating improves reliability in humid environments.
• HFBR optical transceivers reduce communication loss risks.
• RUN and FAIL LEDs simplify field troubleshooting.
• This board suits long-cycle industrial operation projects.
• Recommended for users needing stable turbine communication performance.

Installation & Maintenance Notes

• Install only after complete power isolation.
• Check Compact PCI slot alignment carefully.
• Confirm transceiver cleanliness before startup.
• Monitor LED status during commissioning.
• Use anti-static handling procedures.
• Inspect communication ports during scheduled maintenance.

Shipping & Warranty

• 24–28 Hours Fast Dispatch
• Global shipping via FedEx, UPS, and DHL.
• Secure anti-static export packaging included.
• 12-Month Warranty Support
• Technical support available before and after purchase.

Why Engineers Choose This Board

• Fast communication response inside EX2100e systems.
• Simple visual diagnostics reduce troubleshooting time.
• Reliable operation in harsh industrial environments.
• Compact structure supports easy replacement.
• Good compatibility with GE excitation architectures.

Professional FAQ

• How can I confirm communication status quickly?
  Check the RUN LED first. Stable green means normal serial communication.
• What should I inspect before buying a replacement board?
  Verify the EX2100e series version and confirm Compact PCI compatibility.
• Why is conformal coating important?
  It protects the PCB against dust, moisture, and conductive contamination.
• What usually causes the FAIL LED to turn red?
  Reset faults, damaged communication paths, or processor communication loss.
• Is this board suitable for long-term turbine projects?
  Yes. It supports continuous industrial operation with stable communication performance.
