Product Overview

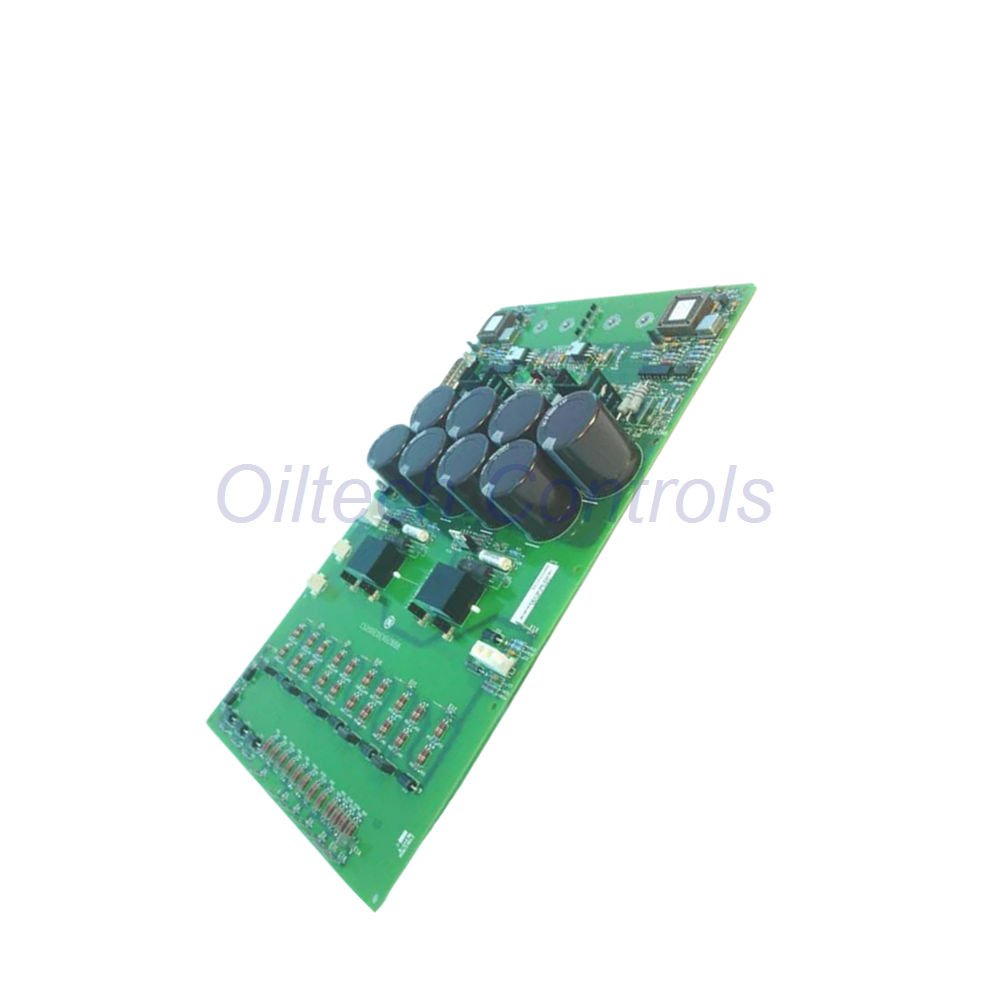

IS200EDEXG1BQ is a high-performance de-excitation bridge and protection board designed by GE for the EX2100 Excitation Control Series.
This module manages generator field discharge and protection functions during shutdown or fault conditions.
The board supports fast de-excitation control using an SCR-based discharge path.
It works together with the EMIO and EXTB boards for stable excitation system operation.
The EXTB board supplies power and control signals during standard operation.
The EDEX board can still trigger de-excitation if EXTB control fails.
24 VDC power input supports reliable field discharge control.
The SCR circuit quickly removes stored magnetic energy from the generator field.
This process protects connected equipment from overvoltage damage.
The module includes break-over diode protection for emergency SCR triggering.
Its rugged design fits demanding industrial power environments.
Technical Data
- Brand: GE General Electric
- Model: IS200EDEXG1BQ
- Series: GE Innovation Series / EX2100
- Module Type: De-Excitation Bridge and Protection Board
- Function: Generator field discharge and protection
- Control Method: SCR-based de-excitation
- Input Power: 24 VDC
- Connectors: 2 D-pin connectors
- Configurable Jumpers: JP1, JP2, JP3, JP4, JP5, JP6
- Manual: GEH-6632
- Installation Location: Auxiliary cabinet
- Protection Method: Overvoltage-triggered SCR firing
- Field Energy Handling: Fast magnetic field discharge
- Weight: 3 lbs. 6 oz.
- Frequency Response: Fast transient response design
- Signal Stability: High noise immunity
- Anti-Interference: Industrial EMC resistant design
- Temperature Resistance: Suitable for industrial environments
- System Compatibility: Compatible with EMIO and EXTB modules
- Protection Capability: Overvoltage and discharge fault protection
- Diagnostic Support: Supports excitation fault monitoring
- Mounting Method: Cabinet-mounted board installation
Core Features
- Fast SCR de-excitation control
- Reliable field discharge protection
- Supports emergency overvoltage triggering
- Works with EX2100 excitation systems
- Improves generator protection performance
- Stable operation under harsh conditions
- Flexible jumper configuration
- High operational reliability
- Industrial-grade PCB construction
- Low maintenance requirements
Installation Guide
- Disconnect system power before installation.
- Install the module inside the auxiliary cabinet.
- Verify all D-pin connections before startup.
- Check jumper settings before operation.
- Connect correctly with EMIO and EXTB boards.
- Confirm stable 24 VDC input power.
- Inspect grounding for signal stability.
- Follow GEH-6632 manual procedures.
Commissioning and Maintenance
- Supports quick startup testing.
- Simple jumper adjustment reduces setup time.
- SCR protection improves fault recovery speed.
- Easy connector access supports fast replacement.
- Routine inspection helps maintain stable performance.
- Clean connectors regularly for better conductivity.
- Check discharge circuits during scheduled maintenance.
Compatibility Information
- Compatible with GE EX2100 excitation systems.
- Supports operation with EMIO interface boards.
- Works together with EXTB control modules.
- Suitable for generator excitation protection systems.
- Designed for industrial turbine and power applications.
Typical Applications
- Steam turbine generator systems
- Gas turbine excitation control
- Power plant generator protection
- Industrial excitation cabinets
- Utility power generation systems
- Critical generator shutdown circuits
Diagnostic Capability
- Detects abnormal field discharge conditions.
- Supports SCR firing verification.
- Helps identify excitation control faults.
- Improves troubleshooting efficiency.
- Supports system reliability analysis.
Certification and Quality
- Manufactured for industrial automation systems.
- Designed for high-reliability applications.
- Tested for stable operational performance.
- Suitable for continuous-duty environments.
Packing List
- 1 × IS200EDEXG1BQ module
- Protective anti-static packaging
- Quality inspection before shipment
- Installation guidance support
Shipping Information
- Worldwide shipping available.
- Fast delivery by FedEx, UPS, and DHL.
- Secure industrial packaging included.
- Tracking number provided after shipment.
Warranty Terms
- 12-month warranty included
- Technical support available during warranty period.
- Professional after-sales service support.
- Replacement support for quality-related issues.
FAQ
- What is the main function of IS200EDEXG1BQ?
It controls generator field de-excitation and protection. - Which systems support this module?
It supports GE EX2100 excitation systems. - What happens if EXTB control fails?
The EDEX board can still initiate de-excitation. - What type of discharge control does it use?
It uses SCR-controlled discharge technology. - Does this module support industrial environments?
Yes. It supports high-noise industrial applications. - How can I get technical support?
Contact our engineering support team anytime.
