IS200ISBEH1ABB ISBus Extender Board | Mark VI Speedtronic | Oiltech

Product Short Description

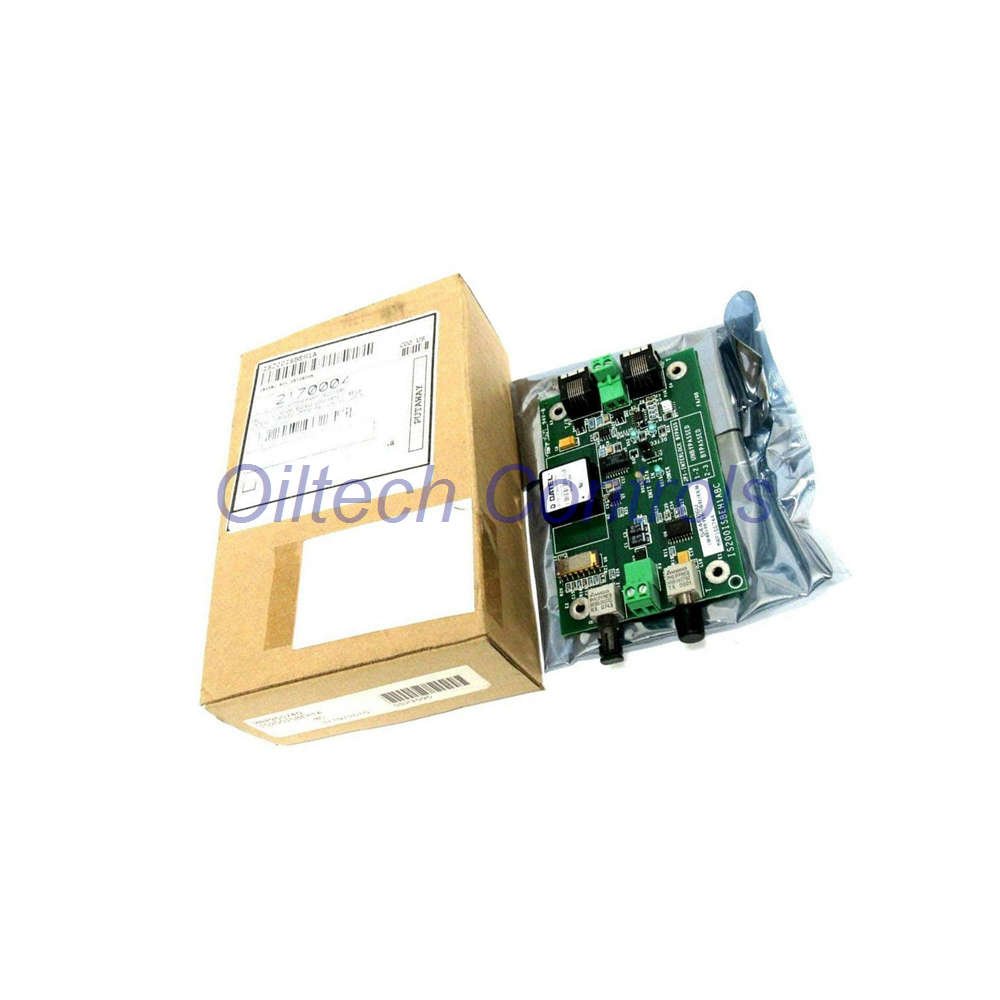

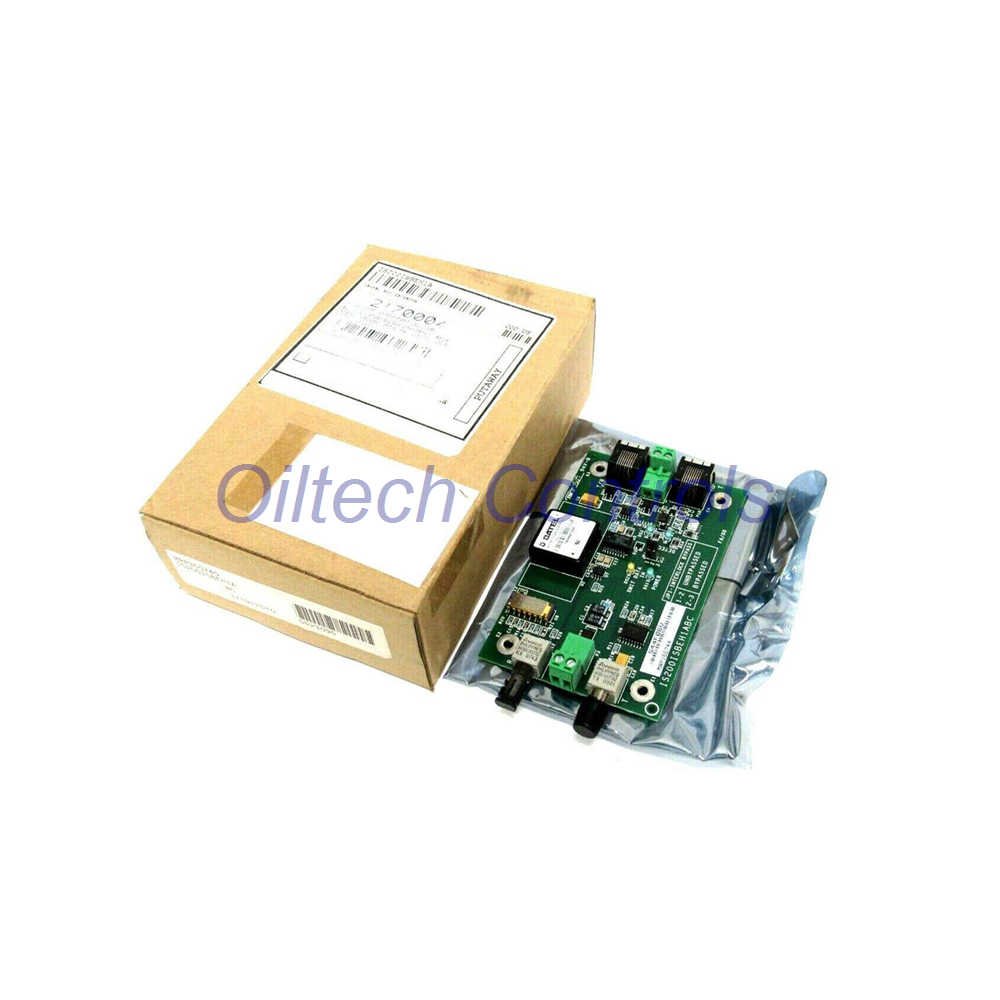

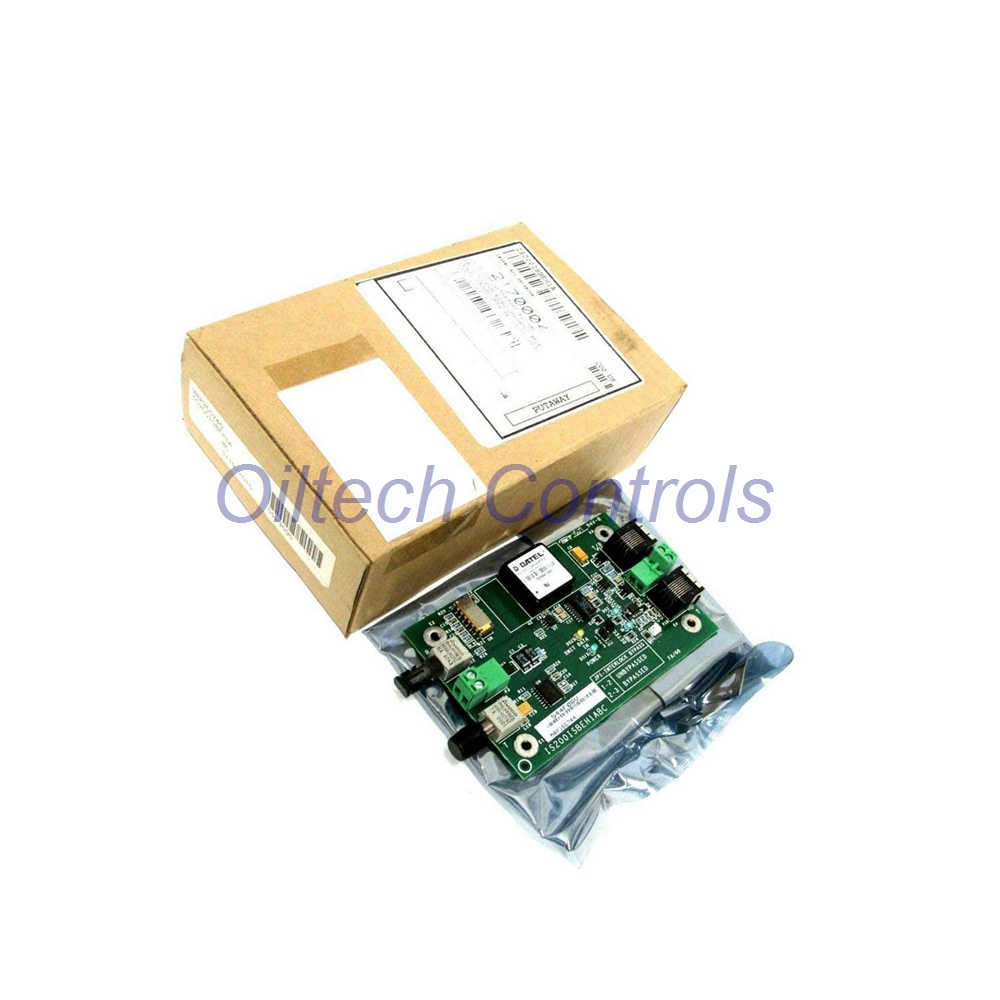

IS200ISBEH1ABB is a Mark VI Speedtronic ISBus Extender board. It extends high-speed synchronous communication for GE turbine control systems. Supports fiber optic I/O and DIN rail mounting.

Technical Overview – IS200ISBEH1ABB

• Manufacturer: GE Power Systems
• Model: IS200ISBEH1ABB (ISBE – ISBus Extender)
• Series: Mark VI Speedtronic / EX2100 excitation system
• Function: Extends ISBus communication between CAPB backplane and higher-level controllers (e.g., ACL_ board)
• Connections: J11A / J12A interfaces; 2 plug connectors + 2 fiber-optic connectors
• Fiber support: ST-type HCS (hard clad silica) or glass fiber
• Mounting: 35 mm DIN rail
• Coating: Conformal coating (lightweight, full-face protection)
• LED indicators: DS1 (24 V DC power), DS2 (XMIT data in), DS3 (interlock active), DS4 (optical data received)
• Jumper: 1 customizable bypass/unbypassed switch
• Manual: GEH-6416

Installation & Commissioning

• Mounting: Secure onto standard DIN rail in the turbine control cabinet.
• Wiring: Connect to CAPB J11A or J12A; plug fiber cables into ST connectors.
• Configuration: Set bypass jumper per application needs (refer to layout diagram).
• Power check: Verify DS1 green LED for 24 V DC presence.
• Optical test: Confirm DS4 green LED indicates correct optical data reception.

Compatibility & Certifications

• Compatible with: GE Mark VI Speedtronic turbine control systems, EX2100 excitation, CAPB backplane, ACL_ controllers.
• HMI: PC-based with Windows + GE CIMPLICITY software.
• Standards: GE Speedtronic specifications, conformal coating per industry standards.
• Origin: Manufactured in USA.

Oiltech Controls Insight – Our Review

• Reliable ISBus extender for legacy GE Mark VI turbine systems.
• Conformal coating protects against moisture and debris in harsh environments.
• Optical-to-electrical signal conversion ensures noise-free communication.
• Plug-and-play replacement – minimal downtime during maintenance.
• Proven in gas and steam turbine applications worldwide.

Suitable Equipment & Applications

• Ideal for: GE Mark VI turbine control retrofits, EX2100 excitation upgrades.
• Works with: CAPB backplane, ACL_ boards, HCS fiber networks.
• Applications: Industrial gas turbines, steam turbines, generator excitation control.
• Environment: Control rooms, turbine decks, power generation facilities.

5 Professional FAQs – Experience & Selection Guide

• Q: Can this replace the older IS200ISBEH1A version?
  A: Yes, IS200ISBEH1ABB is a functional revision upgrade (Rev 1 A) – fully backward compatible.
• Q: What fiber type works best?
  A: Use HCS (hard clad silica) fiber with ST connectors for optimal optical performance.
• Q: How do I set the bypass jumper?
  A: Refer to GEH-6416 diagram. Bypass mode is used during maintenance; set to normal for operation.
• Q: Does this board require a separate power supply?
  A: It draws 24 V DC from the backplane – no external supply needed.
• Q: Is CIMPLICITY required?
  A: Not for board operation, but needed for HMI integration and system diagnostics.
