Product Overview
IS210AEDBH4AGD is a high-performance Bridge Interface Card engineered by GE. This module functions as a core hardware component within the robust Mark VI distributed control system. Engineers deploy the Mark VI architecture to monitor and control complex industrial gas and steam turbines.

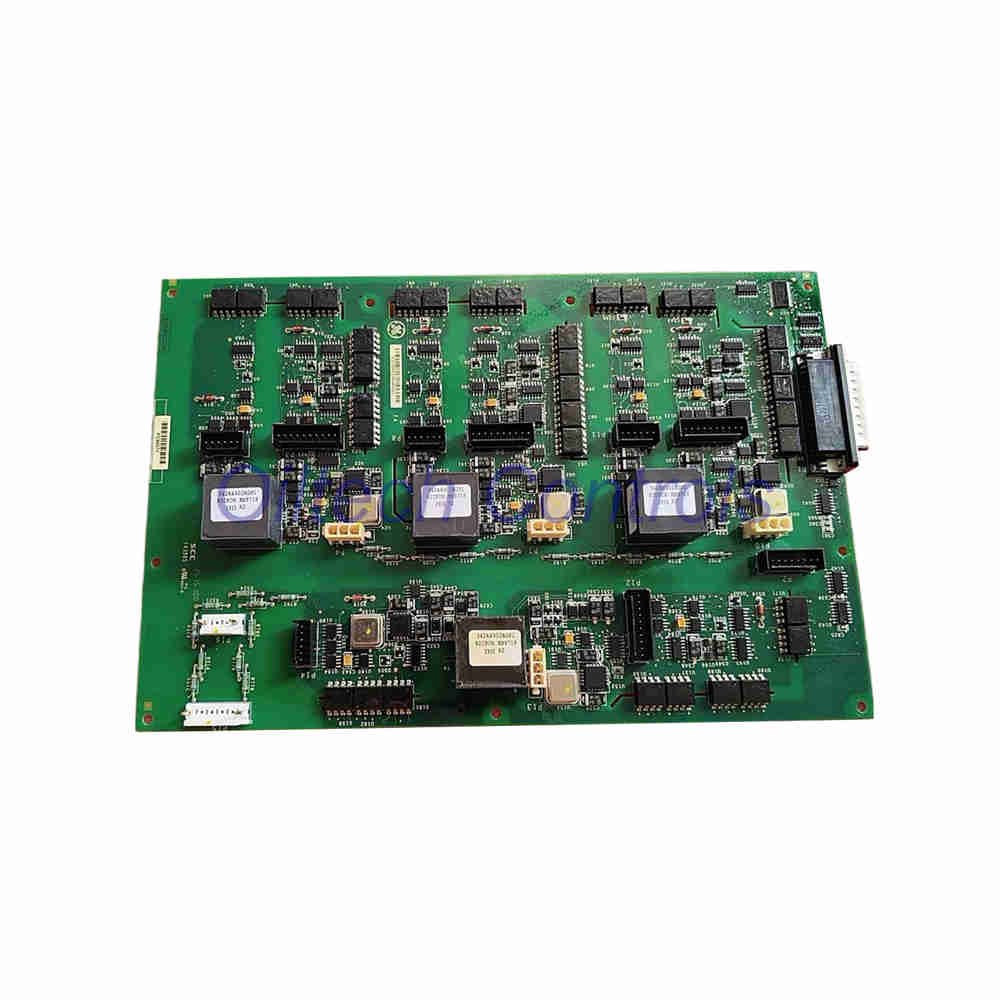

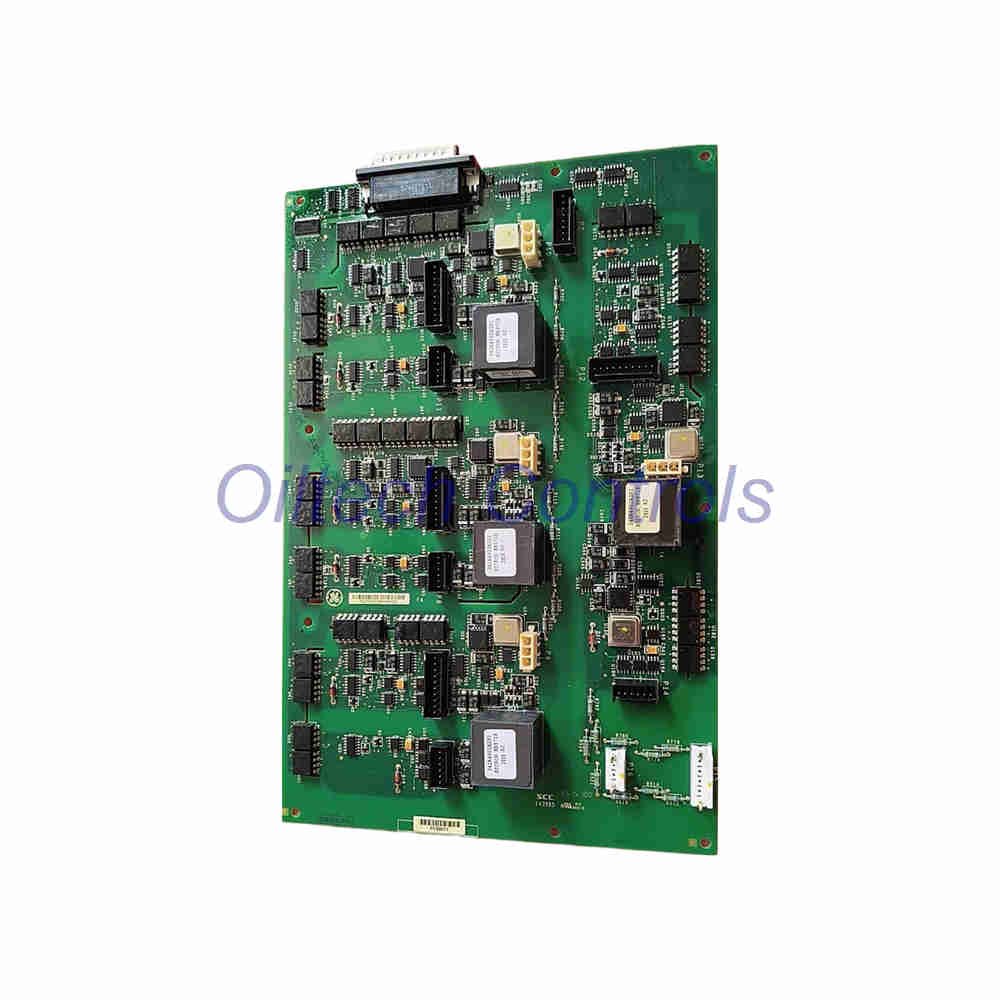

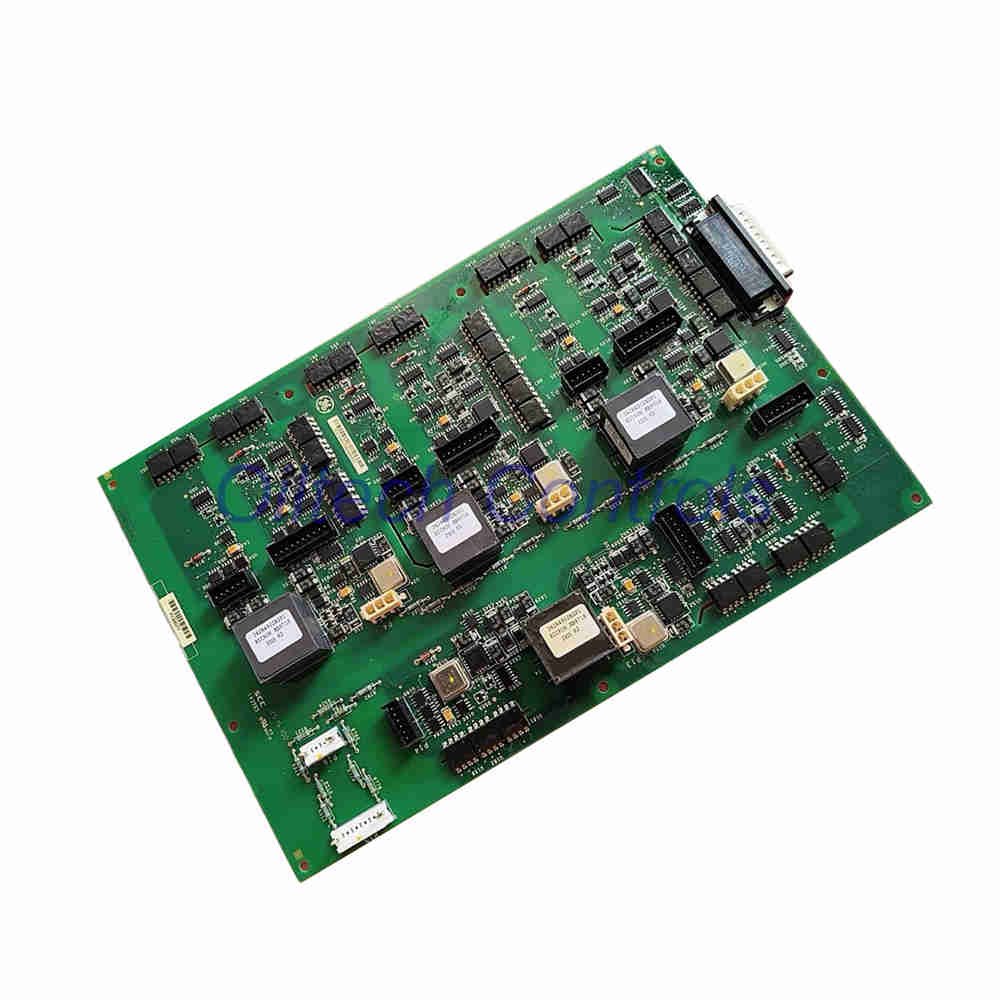

The IS210AEDBH4AGD unit features a dual-sided layout with sophisticated electronic elements. The front surface hosts specialized components, integrated circuits, and custom pulse transformers. The rear surface accommodates essential surface-mount capacitors, resistors, diodes, and transistors to ensure signal stability.
Operators integrate this device with human-machine interface software platforms such as GE CIMPLICITY to visualize real-time plant data. Industrial facilities utilize the IS210AEDBH4AGD module to maintain high availability and precise control over critical power generation assets.
Technical Specifications
Review the comprehensive technical parameters for the IS210AEDBH4AGD component below:
| Specification Parameter | Technical Detail |
|---|---|
| Brand / Manufacturer | GE (General Electric) |
| Model Number | IS210AEDBH4AGD |
| Series | Mark VI Distributed Control System |
| Module Type | AE DB Bridge Interface Device / Card |
| Switching Frequency | 10 kHz to 500 kHz |
| Dielectric Hipot Level | 5 KVAC insulation rating |
| Transformer Configuration | Four Bicron pulse transformers (Marked B9178) |
| Integrated Circuits | Over 175 ICs including read-only and oscillating chips |
| Physical Mounting | Drilled in nine locations with surface slots |
| Operating Temperature Range | Standard industrial turbine enclosure range (-20°C to +70°C) |
| Warranty Term | 12 Months |
| Global Shipping Partners | FedEx, UPS, DHL |
Installation, Commissioning and Maintenance Guidelines
Technicians must follow strict electrostatic discharge procedures during the handling of the IS210AEDBH4AGD board. Verify slot alignments and secure mounting hardware across the nine designated mounting locations. Connect the four three-position terminal plugs securely to establish reliable bridge communication links. Perform initial diagnostic checks via the Mark VI software suite prior to full turbine synchronization.
Diagnostic Capabilities and System Compatibility
The internal circuitry provides advanced fault detection for bridge communication errors. Technicians isolate transient signal anomalies efficiently using high-frequency pulse transformers. The unit integrates seamlessly with legacy GE Mark VI racks and control nodes.
Typical Industrial Applications
- Heavy-duty gas turbine management systems
- Steam turbine speed and excitation control loops
- Distributed industrial power generation facilities
- Petrochemical plant turbine automation architecture
Package Contents
- One IS210AEDBH4AGD Bridge Interface Card
- Protective antistatic industrial packaging
- Factory technical verification report
Frequently Asked Questions
Q: What is the primary function of the IS210AEDBH4AGD?
A: It serves as a bridge interface card within the GE Mark VI system to link control modules and process turbine data reliably.
Q: Does the unit include a warranty?
A: Yes, this hardware includes a comprehensive 12-month warranty.
Q: Which carriers handle international deliveries?
A: We ship globally using trusted couriers including FedEx, UPS, and DHL.
Why Buy From Oiltech Controls?
- 15+ years industrial automation spare parts experience
- Global shipment support via FedEx, UPS, and DHL
- Tested industrial surplus and refurbished options available
- Comprehensive 12-month warranty on hardware
- Strict technical verification before shipment
- Specialized support for obsolete control systems
