IS215ACLEH1B General Electric Mark VI EX2100 Application Control Layer Module

Product Introduction

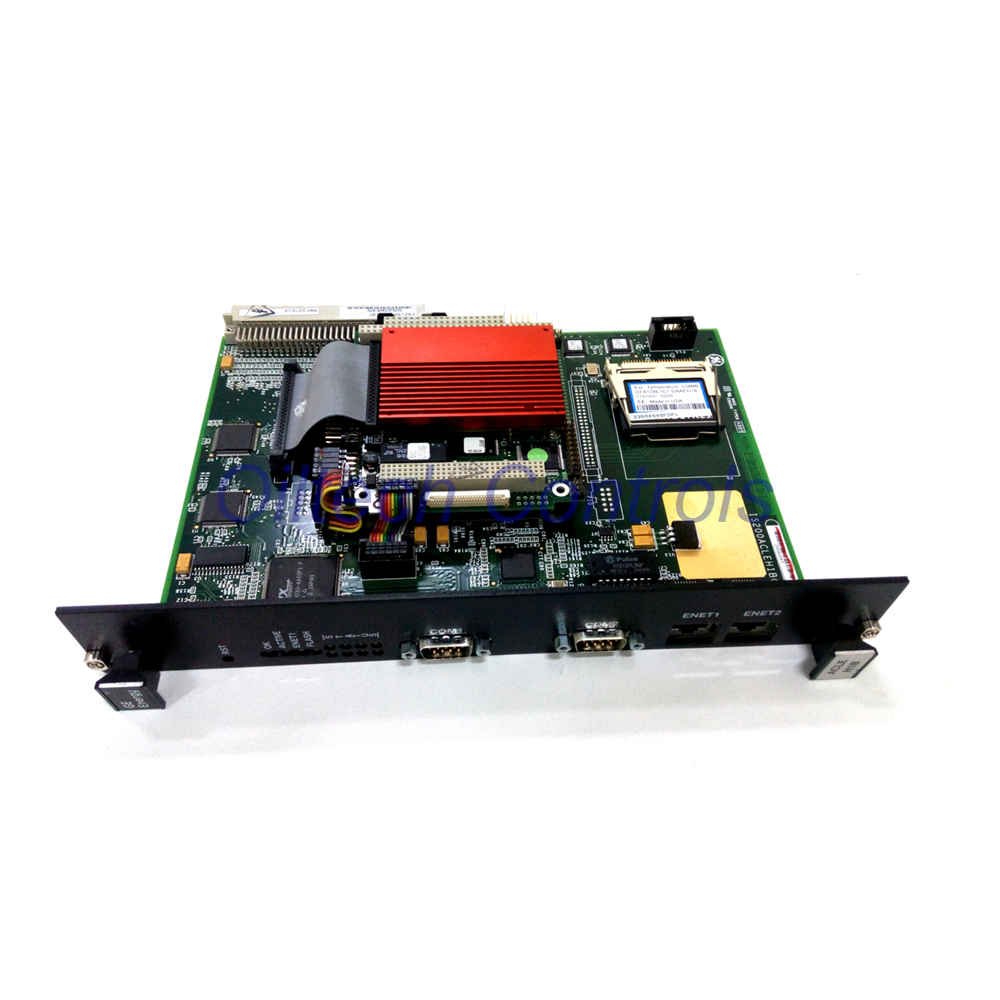

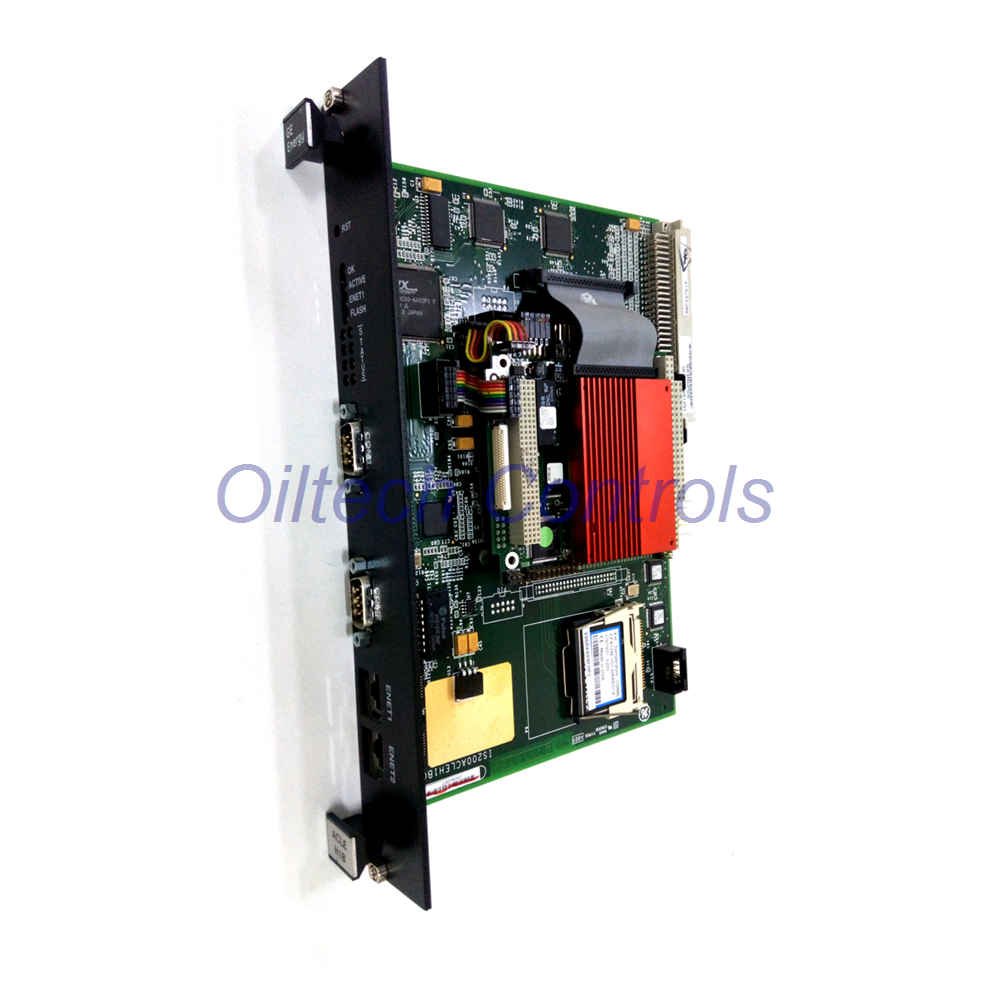

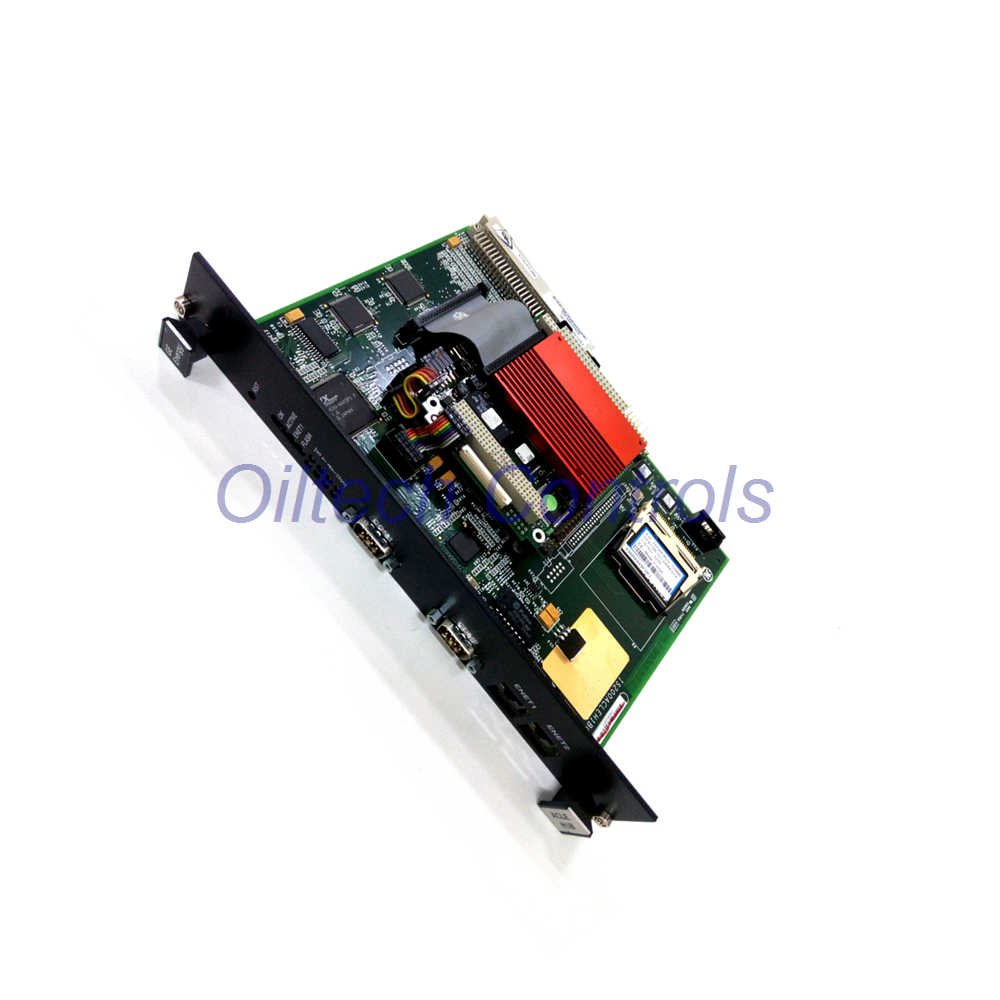

The IS215ACLEH1B is an Application Control Layer Module manufactured by General Electric. This unit belongs to the Mark VI and EX2100 Excitation Controller series. Engineers use this module in GE Speedtronic Gas Turbine Control Systems. The board runs turbine control logic and manages system safety protocols. It operates as a microprocessor-based controller on communication networks. The modular unit fits inside standard VME rack structures or Innovation Series drives.

Technical Data

Core Functions and Operational Capabilities

• The unit handles turbine control logic for speed, load, and temperature regulation.
• It enforces safety protocols and executes emergency shutdown procedures.
• The module provides communication interfaces for sensors, actuators, and controllers.
• It monitors system faults and executes root cause diagnostics.
• The system coordinates subsystems like fuel management and temperature regulation.
• It balances loads across multiple turbines in power plants.
• Operators manage remote monitoring and control from central rooms.
• The board logs operational data and generates system health reports.
• It implements cybersecurity measures against unauthorized network access.
• The unit integrates with SCADA systems for plant-wide data visibility.

Diagnostic and Troubleshooting Features

• Onboard LEDs display real-time operational status and fault alerts.
• The CPU runs built-in diagnostic routines during startup.
• The PCI controller monitors data transfers across internal buses.
• Flash memory stores persistent event logs for review.
• The BIOS initializes network connections and hardware checks.

Compatibility and System Integration

• The board integrates seamlessly into GE EX2100 and EX2100E excitation systems.
• It communicates over ISBus and Ethernet network protocols.
• The front panel includes a 10baseT or RJ45 jack for network attachment.
• The unit occupies two half-slots in standard drive racks.

Installation Guidelines

• Mount the module inside the designated control cabinet.
• Secure the metal installation faceplate to the VME rack structure.
• Verify input voltage connections at 125 V dc before power-up.
• Connect the Ethernet cable to the front panel RJ45 port.
• Check LED indicator lights to confirm successful boot procedures.

Commissioning and Maintenance Convenience

• Technicians load online application configurations without full system resets.
• Non-volatile flash memory retains data during power cycles.
• Software tools support I/O points and internal Boolean forcing.
• Modular design allows quick replacement during scheduled maintenance.

Environmental Tolerance and Compliance

• The unit operates in temperatures from -30 to +65 degrees Celsius.
• Conformal PCB coating protects circuits from harsh industrial elements.
• Voltage suppression components shield against electrical surges.
• Built-in hardware filters reduce electromagnetic interference.

Certification and Quality Information

• Manufactured under strict General Electric quality standards.
• Complies with industrial automation safety guidelines.
• Every unit undergoes technical verification before shipment.

Package List and Warranty Terms

• One IS215ACLEH1B Control Module
• Factory Packaging Materials
• 12-month warranty included with purchase.

Shipping Information

• Global shipping support available.
• Fast delivery via FedEx, UPS, and DHL.

Typical Application Settings

• Gas turbine power generation plants.
• Industrial excitation control systems.
• Heavy manufacturing turbine drives.
• Energy transmission substations.

Frequently Asked Questions

• What series does the IS215ACLEH1B belong to? The unit belongs to the Mark VI and EX2100 Excitation Controller series.
• How many slots does the module occupy? The board occupies two half-slots in an EX2100 rack.
• What is the input voltage rating? The module accepts an input voltage of 125 V dc.
• Does the product include a warranty? Yes, it includes a 12-month warranty.

Product Manual

Download the official product guide and user manual for the IS215ACLEH1B module to assist with your engineering tasks.
