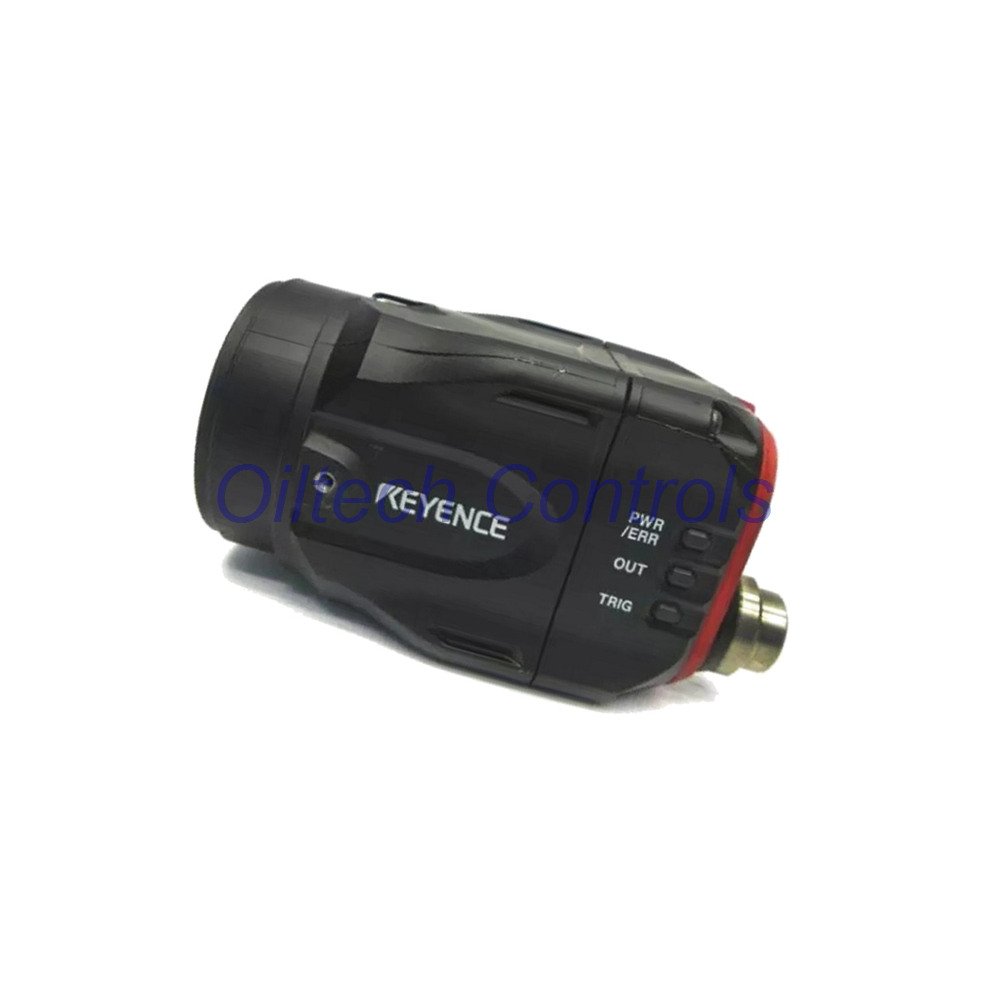

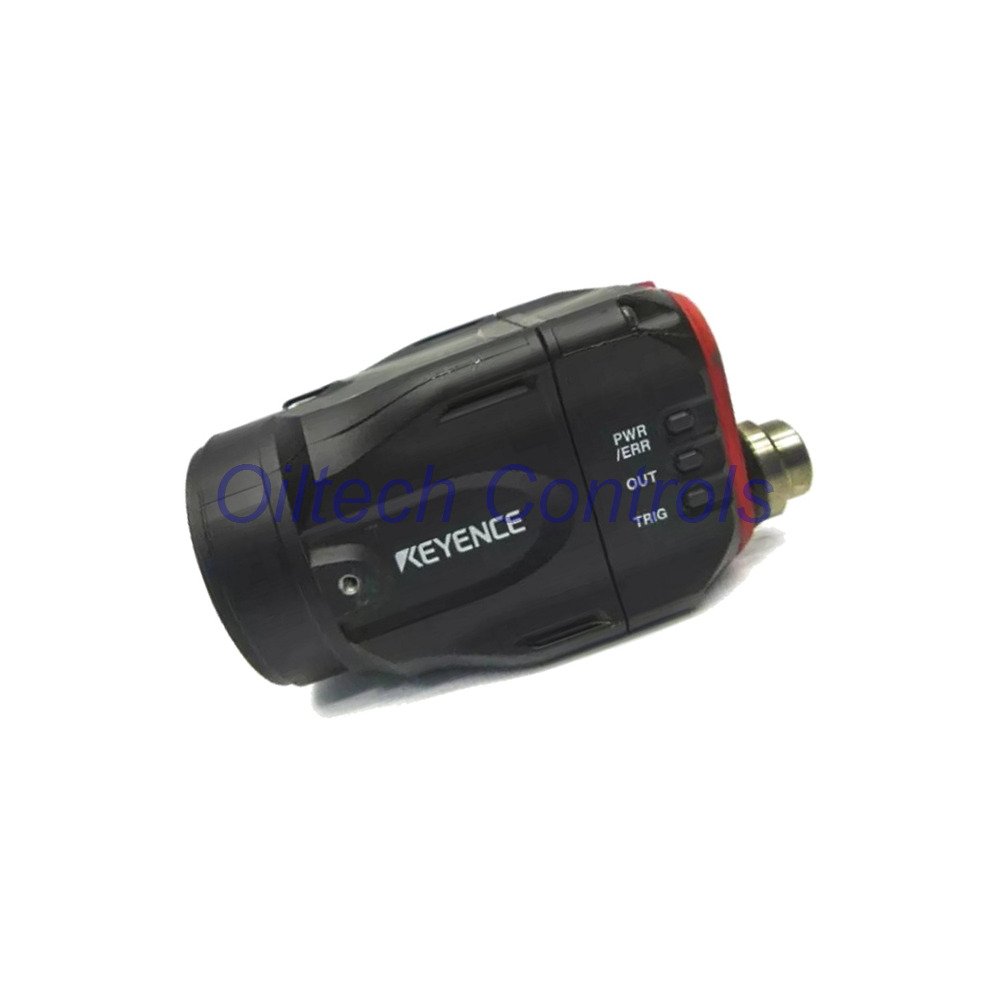

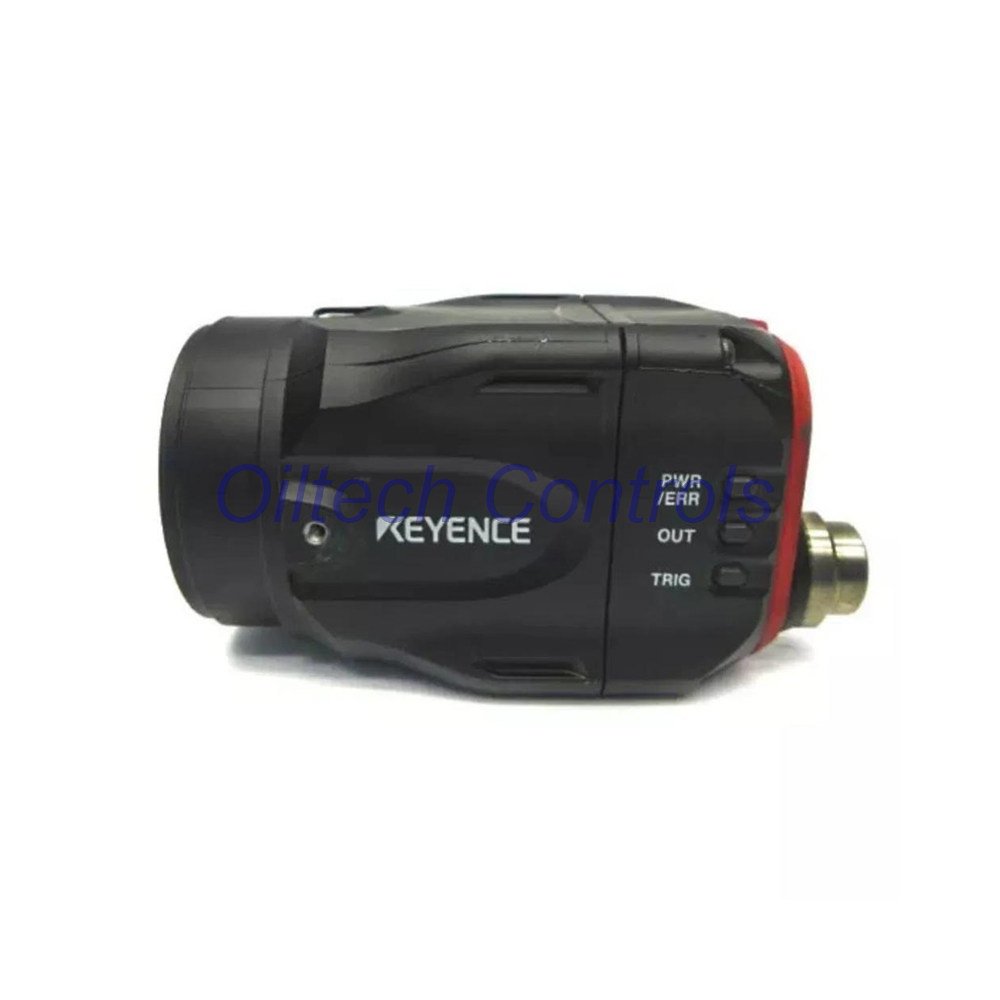

IV-2000MA Keyence IV Series Long-Range Monochrome Vision Sensor
The IV-2000MA from Keyence is a long-range, monochrome integrated vision sensor. It belongs to the IV Series. This sensor uses auto focus and infrared LED lighting. It works well for industrial inspection tasks. The IV-2000MA supports shape detection, color area, area, and position adjustment. It offers 16 detection tools and 1 position adjustment tool. You can store up to 32 programs. The sensor has a 1/3 inch monochrome CMOS image sensor with 752 x 480 pixels. It connects through M12 4-pin connector for 100BASE-TX/10BASE-T. It supports FTP client, EtherNet/IP, and PROFINET. The IV-2000MA runs on 24 VDC. It is IP67 rated. This makes it suitable for harsh factory environments. The IV-2000MA is an active product from Keyence. Oiltech Controls supplies tested industrial surplus and refurbished options. We provide a 12-month warranty. We ship globally with FedEx, UPS, and DHL. For inquiries, contact us at info@oiltechcontrols.com or +86 158 8020 0923.
Technical Specifications
| Brand | Keyence |
| Model | IV-2000MA |
| Series | IV Series |
| Type | Sensor, Long range |
| Installed distance | 300 to 2,000 mm |
| View | 300 mm: 45 (H) x 33 (V) mm; 2000 mm: 300 (H) x 225 (V) mm |
| Image sensor | 1/3 inch monochrome CMOS, 752 (H) x 480 (V) pixels |
| Focus adjustment | Auto |
| Illumination | Infrared LED |
| Lighting method | Pulse lighting / DC lighting switchable |
| Tools | Shape Detection, Color Area, Area, position adjustment |
| Number of tools | Detection tools: 16, position adjustment tool: 1 |
| Switch settings | 32 programs |
| Built-in ports | M12 4-pin connector (100BASE-TX/10BASE-T) |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Communication expansion | None |
| Supply voltage | 24 VDC +/-10% (including ripple) |
| Power consumption | 0.6 A or less |
| Output type | Open collector output, NPN/PNP switchable, N.O./N.C. switchable, max 26.4 V 50 mA |
| Number of inputs | 6 (IN1 to IN6) |
| Number of outputs | 4 (OUT1 to OUT4) |
| Operating temperature | 0 to +50°C (no freezing) |
| Relative humidity | 35 to 85% RH (no condensation) |
| Protection rating | IP67 (except when polarized filter OP-87436/OP-87437 is mounted) |
| Vibration resistance | 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each X/Y/Z direction (except when dome attachment IV-D10 is mounted) |
| Shock resistance | 500 m/s², 3 times in each of 6 directions (except when dome attachment IV-D10 is mounted) |
| Dimensions (H×W×D) | Not available |
| Material | Main unit case: Aluminium die-casting. Packing: NBR. Front cover: Acrylic. Mounting adapter: POM. |
| Weight | Approx. 270 g |
| Lifecycle | Active; official Keyence production status confirmed via product/spec page (Last verified: 2026-09) |
Installation Guide
- Mount the IV-2000MA at a distance between 300 mm and 2,000 mm.
- Use the auto focus function to adjust the lens.
- Connect the M12 4-pin connector to your network.
- Set the lighting method to pulse or DC based on your application.
- Configure up to 32 programs for different inspection tasks.
- Keep the protection rating in mind. IP67 does not apply when a polarized filter is mounted.
Commissioning and Maintenance Convenience
- Auto focus reduces setup time.
- Switchable NPN/PNP and N.O./N.C. outputs simplify wiring.
- Six inputs and four outputs support flexible control.
- Pulse lighting extends LED life and lowers power use.
- IP67 rating allows cleaning without extra protection.
- Aluminium die-casting case resists vibration and shock.
Compatibility Notes
- Works with EtherNet/IP and PROFINET networks.
- Supports FTP client for image and data transfer.
- Compatible with Keyence IV Series accessories.
- Polarized filter OP-87436/OP-87437 changes IP67 rating.
- Dome attachment IV-D10 affects vibration and shock resistance.
- No communication expansion module is available.
Certifications and Compliance
Keyence designs the IV-2000MA to meet common industrial standards. The product page confirms active production status. For specific certification documents, please contact us. We can provide compliance information before shipment.
Packing List
- 1 x IV-2000MA vision sensor
- 1 x Mounting adapter
- 1 x Quick guide (if supplied by Keyence)
- Test report from Oiltech Controls
Warranty and Shipping
Oiltech Controls offers a 12-month warranty on this product. We ship with FedEx, UPS, and DHL. Every unit undergoes technical verification before shipment. We support obsolete control systems. We have over 15 years of industrial automation spare parts experience.
Typical Applications
- Presence and absence checks on production lines.
- Shape detection for small metal or plastic parts.
- Color area inspection on monochrome tasks.
- Position adjustment for robotic pick and place.
- Long-range inspection up to 2,000 mm.
- Factory automation with EtherNet/IP or PROFINET.
Diagnostic Capabilities
- Built-in tools detect shape, area, and position errors.
- Program switching helps isolate faulty recipes.
- Open collector outputs signal pass or fail results.
- Network protocols allow remote monitoring.
- FTP client supports image logging for troubleshooting.
- LED indicators help with quick status checks.
Why Buy From Oiltech Controls?
- 15+ years of industrial automation spare parts experience.
- Global shipment support through FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options.
- 12-month warranty on every qualifying product.
- Technical verification before shipment to reduce risk.
- Support for obsolete control systems when new parts are hard to find.
FAQ
Q: What is the model number?
A: The model is IV-2000MA from Keyence.
Q: What is the installed distance?
A: It ranges from 300 mm to 2,000 mm.
Q: Does it have auto focus?
A: Yes, the IV-2000MA has auto focus.
Q: How many programs can I store?
A: You can store up to 32 programs.
Q: What is the protection rating?
A: IP67, except when a polarized filter is mounted.
Q: What warranty do you offer?
A: Oiltech Controls offers a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Can I get technical help?
A: Yes. Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
