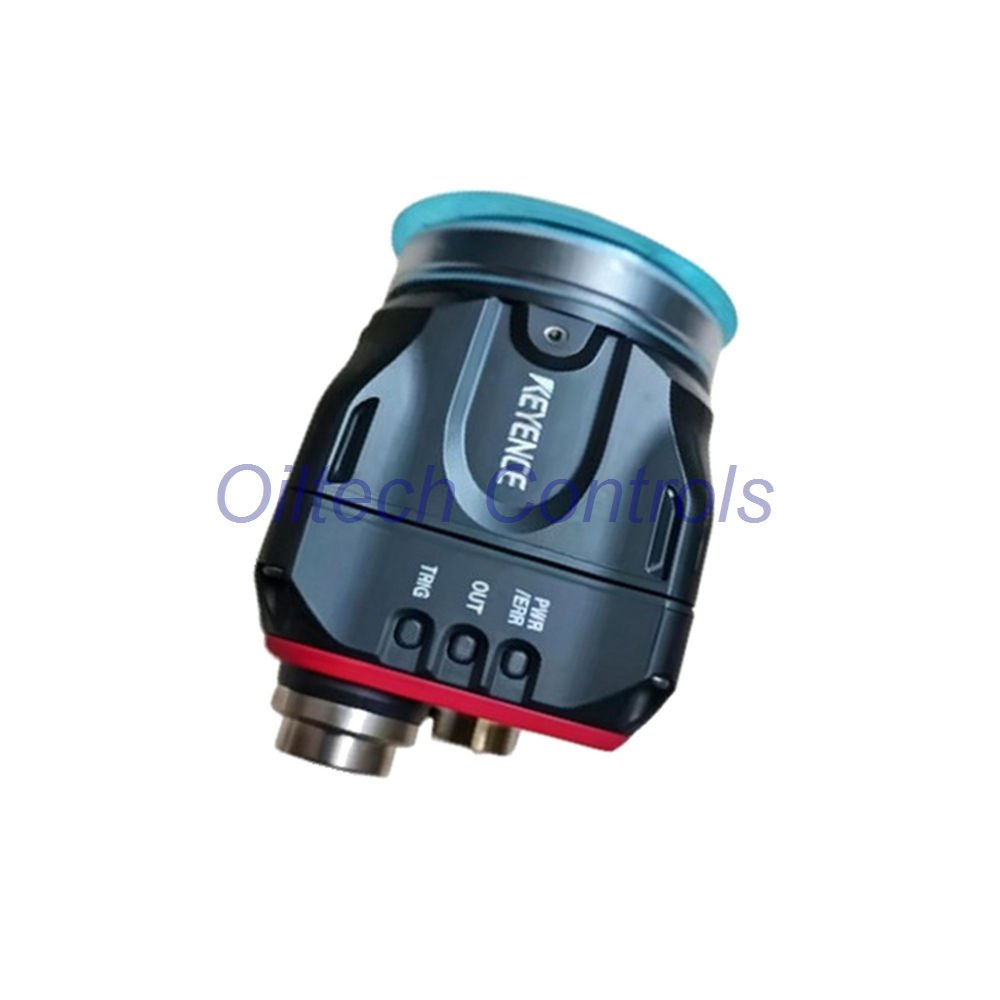

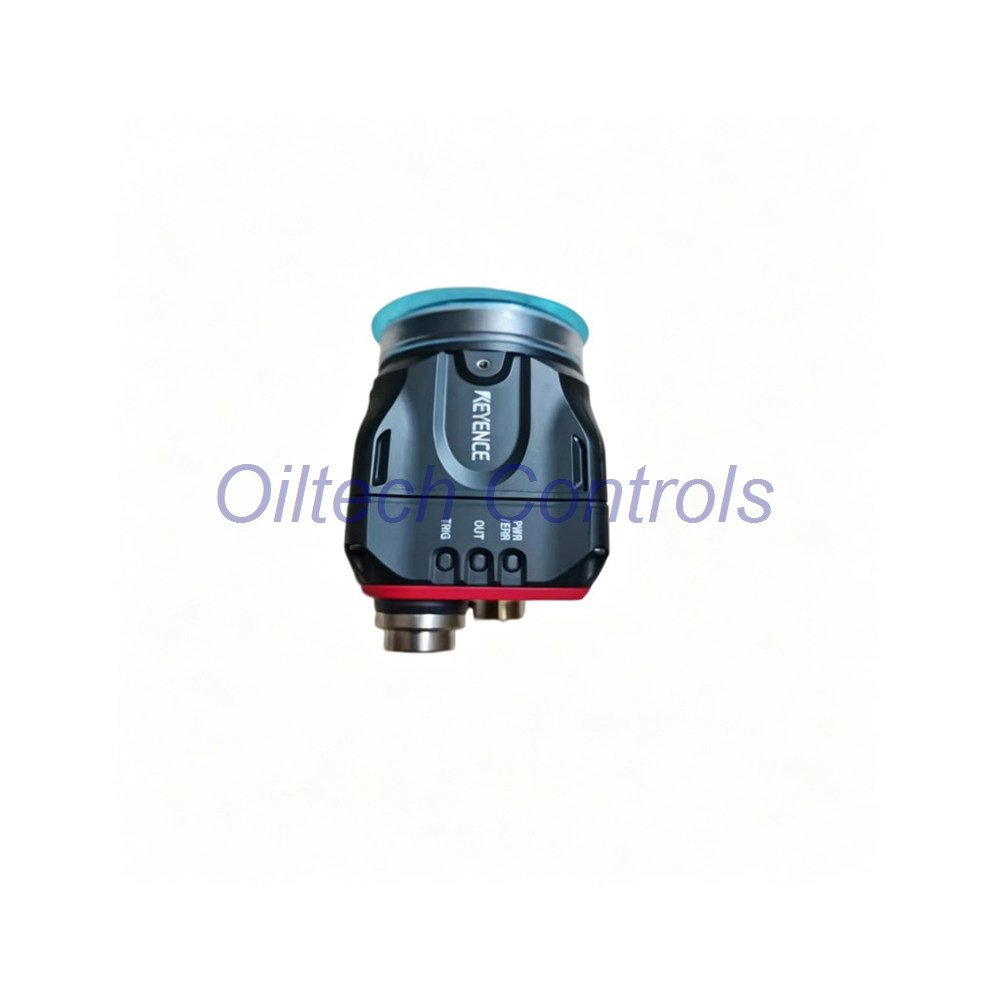

IV-H2000MA Keyence IV Series Long Range Monochrome Vision Sensor

IV-H2000MA Keyence IV Series Long Range Monochrome Vision Sensor

IV-H2000MA is a long range monochrome integrated vision sensor camera from the Keyence IV Series. It works at an installed distance of 300 to 2,000 mm. The 1/3 inch monochrome CMOS sensor delivers 752 x 480 pixels. Auto focus and infrared LED lighting simplify setup on the line. Pulse and DC lighting modes are switchable. The M12 4-pin connector supports 100BASE-TX/10BASE-T with FTP client, EtherNet/IP and PROFINET protocols. The IP67 housing suits demanding factory floors. This unit fits inspection, positioning and presence checks where long range and stable imaging matter.

Key Specifications

• Model: IV-H2000MA
• Brand: Keyence
• Series: IV Series
• Type: Long range monochrome vision sensor
• Installed distance: 300 to 2,000 mm
• View at 300 mm: 45 (H) x 33 (V) mm
• View at 2,000 mm: 300 (H) x 225 (V) mm
• Image sensor: 1/3 inch monochrome CMOS, 752 x 480 pixels
• Focus: Auto
• Exposure: 1/10 to 1/25,000
• Lighting: Infrared LED, pulse or DC switchable

Inspection Tools and Programs

• Shape Detection, Color Area, Area, Edge Pixels
• Width/Height, Diameter, Edge Presence, Pitch
• Position Adjustment and High Speed Position Adjustment
• Detection tools: 16
• Position adjustment tool: 1
• Switch settings: 32 programs

Communication and Electrical Data

• Built-in port: M12 4-pin connector (100BASE-TX/10BASE-T)
• Protocols: FTP client, EtherNet/IP, PROFINET
• Communication expansion: None
• Supply voltage: 24 VDC +/-10% including ripple
• Power consumption: 0.6 A or less
• Output type: Open collector, NPN/PNP switchable, N.O./N.C. switchable
• Output rating: Maximum 26.4 V, 50 mA
• Inputs: 6 (IN1 to IN6)
• Outputs: 4 (OUT1 to OUT4)

Environmental and Physical Data

• Operating temperature: 0 to +50°C, no freezing
• Relative humidity: 35 to 85% RH, no condensation
• Protection rating: IP67, except with polarized filter OP-87436/OP-87437
• Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis
• Shock resistance: 500 m/s², 3 times in 6 directions
• Material: Aluminium die-cast case, NBR packing, acrylic front cover, POM mounting adapter
• Weight: Approx. 270 g
• Lifecycle: Active, official Keyence status confirmed, last verified 2026-09

Oiltech Controls Review and Insight

• The IV-H2000MA suits long range inspection where part position varies.
• Auto focus reduces changeover time on mixed production lines.
• Infrared LED lighting helps in low contrast or dark environments.
• 16 detection tools cover common presence, width and pitch checks.
• IP67 rating supports washdown and dusty areas with proper cabling.
• Best fit for automotive, electronics, packaging and metal forming lines.

Why Buy From Oiltech Controls?

• More than 15 years supplying industrial automation spare parts
• Worldwide shipment support for hard-to-find items
• Tested industrial surplus and refurbished options available
• 12-month warranty on eligible products
• Technical verification before every shipment
• Support for obsolete and legacy control systems

Warranty, Dispatch and Shipping

• 12-month warranty on eligible items
• Dispatch within 24 to 28 hours after order confirmation
• Shipping by FedEx, UPS and DHL
• Tracking details provided after dispatch
• Contact info@oiltechcontrols.com or +86 158 8020 0923 on WhatsApp

FAQ

Q: What makes the IV-H2000MA different from standard IV Series sensors?

A: The IV-H2000MA is a long range monochrome model. It works from 300 to 2,000 mm. This gives more mounting freedom than short range heads. It also uses infrared LED lighting for stable imaging in dark or low contrast scenes. Engineers often choose it when the camera must sit far from the target.

Q: Can I use the IV-H2000MA with EtherNet/IP and PROFINET at the same time?

A: No. The sensor supports FTP client, EtherNet/IP and PROFINET, but you select one protocol for the network link. Plan the PLC or controller side before installation. Confirm the master device settings first. This avoids communication errors during commissioning.

Q: How do I choose between the IV-H2000MA and a color vision sensor?

A: Choose the IV-H2000MA for monochrome shape, edge and position tasks. Choose a color model when color sorting or color area checks are required. If the part has clear contrast under infrared light, the monochrome version often gives more stable results. Review the inspection target first, then match the sensor type.

Q: What should I check before buying a used or surplus IV-H2000MA?

A: Check the lens cover, connector pins and mounting threads. Ask for test images at 300 mm and 2,000 mm. Confirm the firmware and protocol support. Verify the IP67 seals are intact. Oiltech Controls performs technical verification before shipment on eligible units.

Q: Does the IP67 rating apply with all attachments?

A: No. The IP67 rating does not apply when the polarized filter OP-87436 or OP-87437 is mounted. Vibration and shock ratings also exclude the dome attachment IV-D10. Always confirm the accessory configuration before use in wet or high vibration areas.
