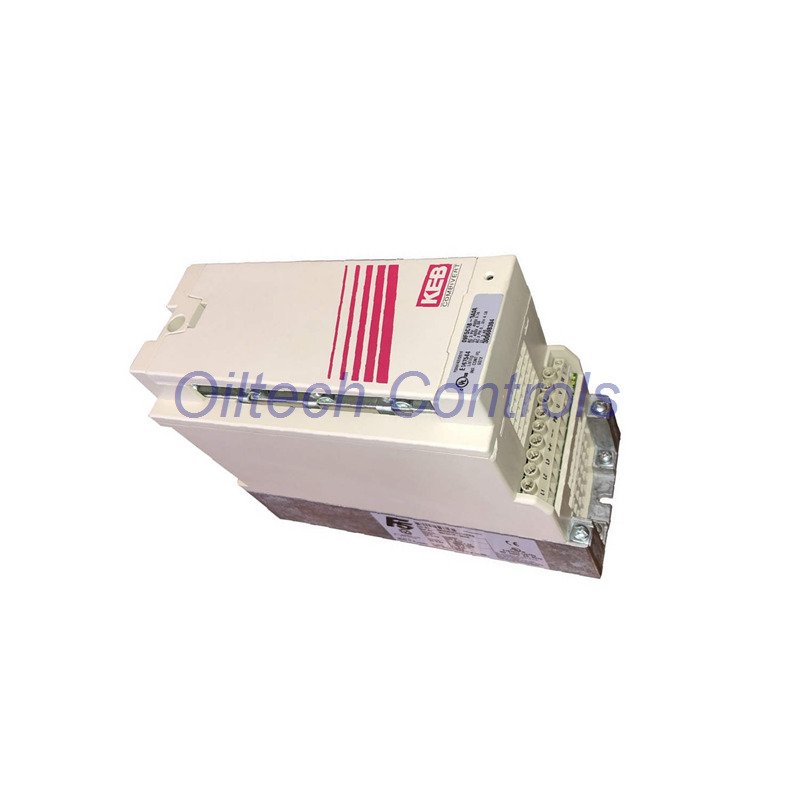

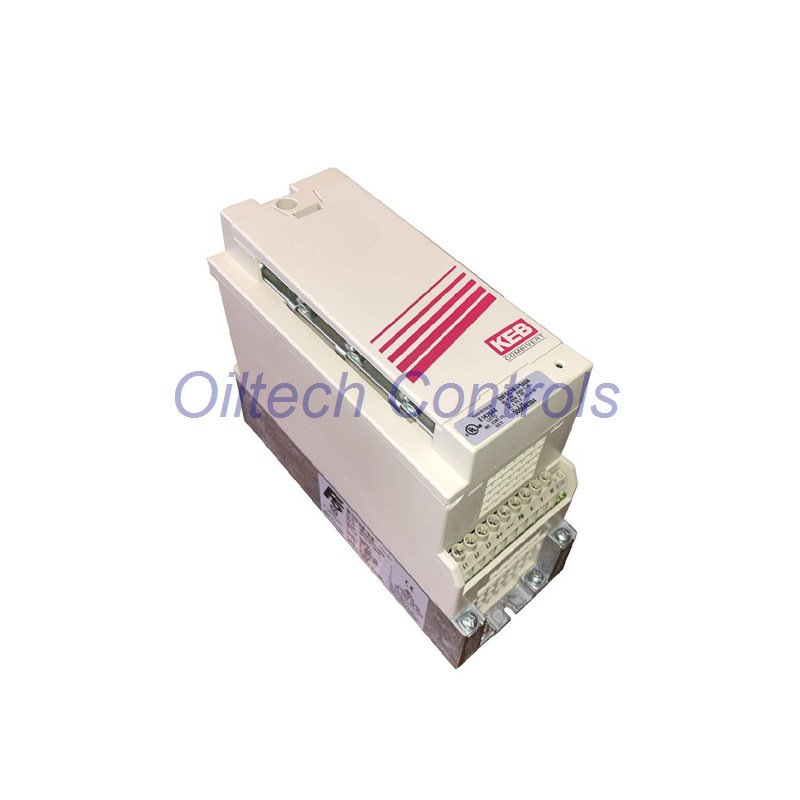

High-Performance KEB F5 Series Frequency Inverter
The KEB 09F5C1B-3A0A is a premium 3-phase frequency inverter from the Combivert F5 series. This 1.5 kW industrial drive delivers exceptional motor control precision for automation applications. It provides reliable variable speed operation for three-phase AC motors. The 09F5C1B-3A0A excels in demanding industrial environments with robust performance.
Detailed Technical Specifications
- Brand: KEB Automation
- Model: 09F5C1B-3A0A (Combivert F5 Series)
- Power Rating: 1.5 kW / 2.0 HP
- Input Power: 3-Phase 400 VAC, 50/60 Hz, 5.7 A
- Output Power: 0-480 VAC, 0-800 Hz, 4.1 A
- Peak Current (Imax): 8.9 A
- Switching Frequency: 8 kHz / 16 kHz (Normal/Max)
- Enclosure Rating: IP20
Advanced Control & Safety Features
- Comprehensive motor feedback options for precise control.
- Supports resolver, incremental, Sin/Cos, and absolute encoders.
- Built-in short-circuit and earth fault monitoring systems.
- Complies with EN 61800-2, -5-1 safety standards and EN 61800-3 for EMC.
- Features potential-free operator connections for safe control interfacing.
- Includes serial communication interfaces for system integration.
Environmental Specifications
- Operating Temperature: -10°C to +45°C (14°F to 113°F)
- Storage Temperature: -25°C to +70°C (-13°F to 158°F)
- Dimensions: 220 x 90 x 160 mm (8.6″ x 3.5″ x 6.2″)
- Weight: 2.0 kg (4.4 lbs)
- Cooling Method: Convection cooling
- Mounting: Wall or panel mounting
What’s Included in Your Order
- KEB 09F5C1B-3A0A Frequency Inverter Unit (1x)
- Product Documentation and Installation Manual
- Mounting Hardware (as applicable)
- All items come in protective industrial packaging
Shipping & Delivery Information
- We ship worldwide using reliable carriers
- Standard shipping options include FedEx, UPS, and DHL
- Processing time is typically 1-2 business days
- Tracking information provided for all shipments
- Contact us for expedited shipping options
Installation Requirements
- Install in a clean, dry location with adequate ventilation
- Maintain proper clearance around the drive for air circulation
- Ensure ambient temperature remains within specified limits
- All electrical connections must be made by qualified personnel
- Follow national and local electrical codes during installation
- Refer to KEB manual for specific wiring and grounding requirements
Frequently Asked Questions
What type of motors can this drive control?
This drive controls standard three-phase asynchronous AC motors.
Is this drive suitable for pump and fan applications?
Yes, the 09F5C1B-3A0A is excellent for centrifugal pump and fan control.
Can I connect multiple encoders simultaneously?
No, you can connect only one feedback device at a time from the supported types.
What communication protocols are supported?
The drive supports various serial protocols; check the manual for specific options.
How do I obtain technical support or documentation?
Contact our technical team at info@oiltechcontrols.com or +86 158 8020 0923.
