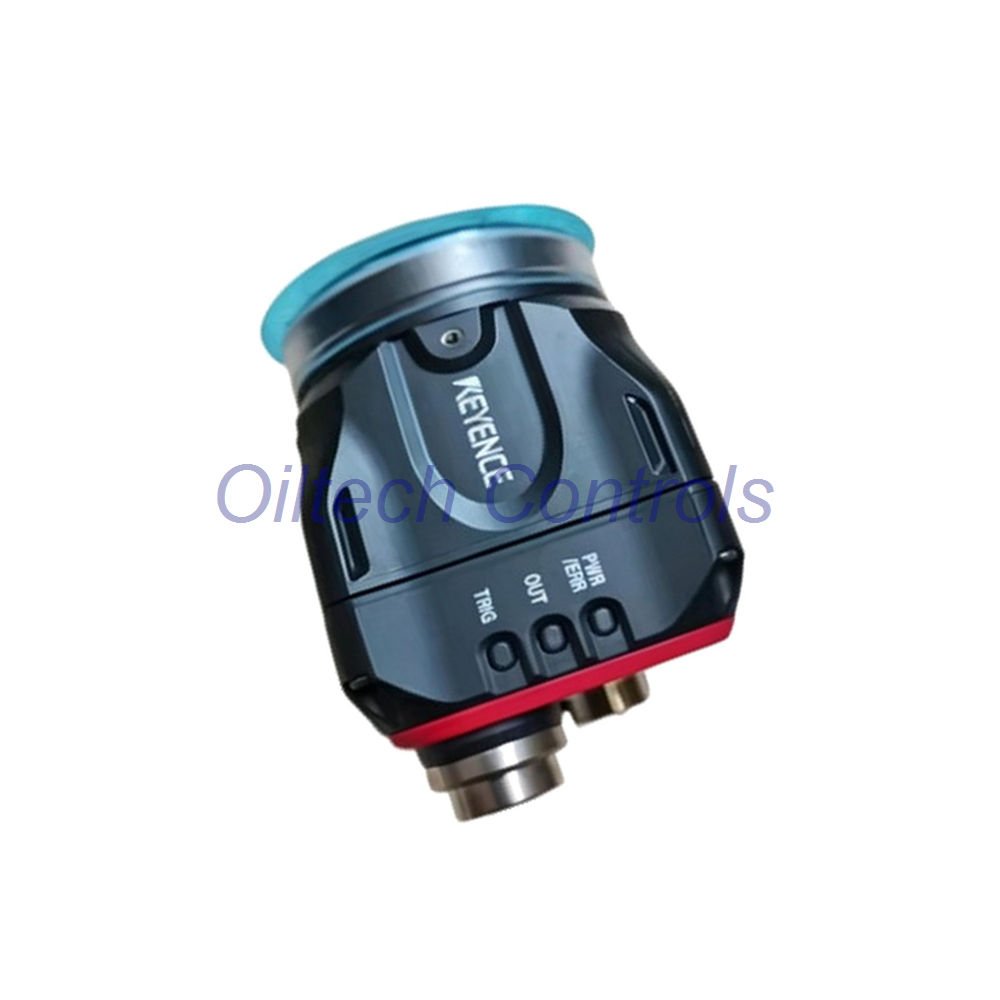

IV-H500CA Keyence IV Series Integrated Vision Sensor Camera
The IV-H500CA from Keyence is a color integrated vision sensor camera. It belongs to the IV Series. This model uses a standard distance design. It fits inspection tasks from 50 mm to 500 mm. The camera combines a 1/3 inch color CMOS sensor, white LED lighting, and 32 inspection programs in one body. It handles shape detection, color area, edge presence, and position adjustment. The IP67 housing suits harsh factory floors. The unit weighs about 270 g. It runs on 24 VDC and supports EtherNet/IP, PROFINET, and FTP client protocols. This camera is active in the Keyence lineup. Last verified: 2026-09.
Technical Specifications
| Brand | Keyence |
| Model | IV-H500CA |
| Series | IV Series |
| Module Type | Integrated vision sensor camera |
| Type | Sensor, standard distance, color |
| Installed Distance | 50 to 500 mm |
| View | 50 mm: 25 x 18 mm; 500 mm: 210 x 157 mm |
| Image Sensor | 1/3 inch color CMOS, 752 x 480 pixels |
| Focus Adjustment | Auto |
| Exposure Time | 1/10 to 1/50,000 |
| Illumination | White LED |
| Lighting Method | Pulse or DC lighting, switchable |
| Tools | Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment |
| Number of Tools | 16 detection tools, 1 position adjustment tool |
| Switch Settings | 32 programs |
| Built-in Ports | M12 4-pin connector, 100BASE-TX/10BASE-T |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Communication Expansion | None |
| Supply Voltage | 24 VDC +/-10%, including ripple |
| Power Consumption | 0.6 A or less |
| Output Type | Open collector, NPN/PNP switchable, N.O./N.C. switchable, max 26.4 V 50 mA |
| Number of Inputs | 6 (IN1 to IN6) |
| Number of Outputs | 4 (OUT1 to OUT4) |
| Operating Temperature | 0 to +50°C, no freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67, except with polarized filter OP-87436/OP-87437 |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis |
| Shock Resistance | 500 m/s², 3 times in 6 directions |
| Dimensions | Not available |
| Material | Case: aluminium die-casting. Packing: NBR. Front cover: acrylic. Mounting adapter: POM. |
| Weight | Approx. 270 g |
| Lifecycle | Active; official Keyence production status confirmed |
Core Performance Data
- Measurement Range: 50 to 500 mm working distance
- Resolution: 752 x 480 pixels
- Temperature Range: 0 to +50°C
- Environmental Tolerance: IP67, 35 to 85% RH, vibration and shock rated
- Anti-interference: Pulse or DC lighting, shielded M12 connector, industrial protocols
- Frequency Response: Not specified by manufacturer
- Linearity: Not specified by manufacturer
- Sensitivity: Not specified by manufacturer
Installation Guide
- Mount the camera with the POM mounting adapter.
- Keep the front cover clear. Use the OP-87436/OP-87437 filter only if IP67 is not required.
- Set the installed distance between 50 mm and 500 mm.
- Use the M12 4-pin connector for Ethernet.
- Connect 24 VDC power. Observe polarity.
- Choose NPN or PNP output mode before wiring.
- Do not mount the IV-D10 dome attachment if vibration or shock ratings matter.
Setup and Maintenance Convenience
- Auto focus cuts setup time.
- 32 programs store multiple inspection recipes.
- 16 detection tools cover common vision tasks.
- Pulse or DC lighting adapts to motion or static parts.
- IP67 housing allows rinse-down cleaning.
- Only the front cover and packing need periodic checks.
Compatibility Notes
- Works with EtherNet/IP and PROFINET networks.
- Supports FTP client for image transfer.
- Uses standard M12 4-pin Ethernet cabling.
- Accepts 24 VDC industrial power.
- Replaces or pairs with other IV Series components.
- No communication expansion module is available.
Certifications and Compliance
- IP67 protection rating
- CE and RoHS typically apply to Keyence IV Series. Confirm with the official datasheet.
- Official Keyence production status confirmed.
Packing List
- IV-H500CA camera unit
- Mounting adapter
- Instruction sheet
- Original packaging
Warranty and Shipping
- 12-month warranty included.
- Shipping by FedEx, UPS, or DHL.
- Global shipment support.
- Technical verification before shipment.
Typical Applications
- Presence and absence checks on assembly lines
- Color area inspection
- Edge and width measurement
- Pitch and diameter verification
- Position adjustment for robotic pick and place
- High speed position adjustment for moving parts
Diagnostic Capabilities
- Shape detection finds missing or wrong parts.
- Color area tool checks color consistency.
- Edge pixels and edge presence tools verify boundaries.
- Width/height and diameter tools measure dimensions.
- Pitch tool checks spacing.
- Position adjustment tools align targets.
FAQ
Q: What is the IV-H500CA?
A: It is a Keyence IV Series color vision sensor camera with standard distance.
Q: What is the working distance?
A: 50 to 500 mm.
Q: Does it support PROFINET?
A: Yes. It also supports EtherNet/IP and FTP client.
Q: What is the warranty?
A: 12 months.
Q: How do you ship?
A: FedEx, UPS, or DHL.
Q: Is the IV-H500CA active?
A: Yes. Keyence confirms active production status.
