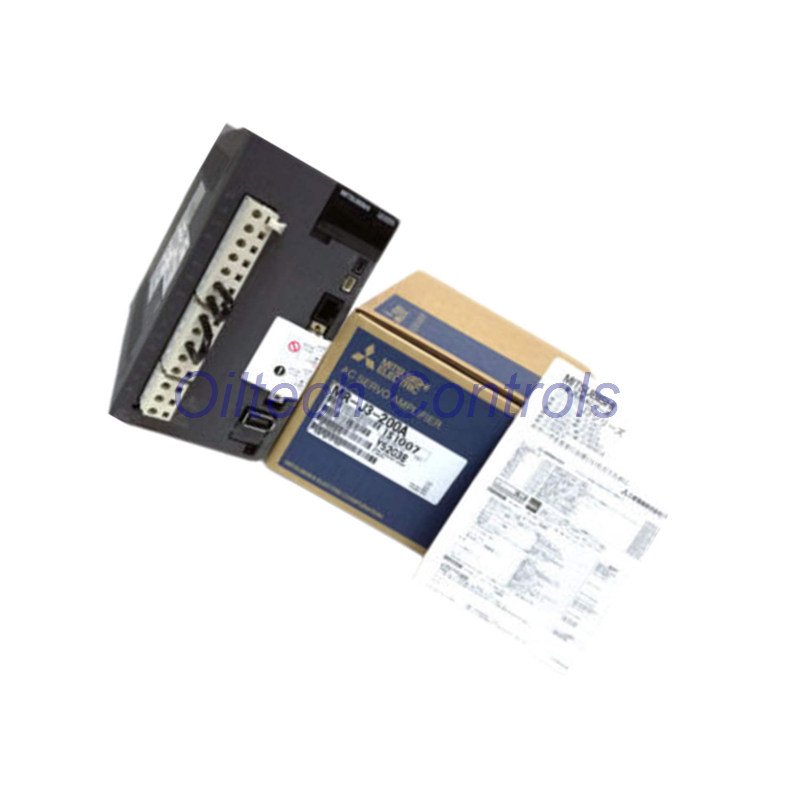

Product Identity
- Brand: Mitsubishi Electric
- Series: MELSERVO J3
- Model: MR-J3-200A
- Category: Servo Drive / Servo Control
- This amplifier supports precise motion in industrial automation systems.
Compact Mechanical Design
- The housing keeps a slim and space-saving structure.
- Overall height reaches 16.8 cm for easy cabinet placement.
- Width measures only 9 cm for dense control panels.
- Total weight stays near 2.1 kg for fast manual installation.
Electrical Performance Data
- The amplifier operates on three-phase AC power.
- Input voltage supports 200 to 230 VAC at 50/60 Hz.
- Rated working voltage equals 170 VAC.
- Rated output current reaches 11 amperes.
- Power consumption remains low at 30 watts.
Motion Control Capabilities
- The unit delivers a rated output power of 2.0 kW.
- Sine-wave PWM control ensures smooth motor rotation.
- Current control improves torque stability.
- The amplifier supports position, speed, and torque control.
Safety and Stability Features
- The built-in dynamic brake improves stop accuracy.
- Stable frequency tolerance remains within ±5 percent.
- IP00 structure fits protected control cabinet environments.
- Reliable design supports long-term industrial operation.
Application Advantages
- The drive suits packaging, assembly, and conveyor systems.
- Fast response improves cycle time efficiency.
- Compact size reduces cabinet design cost.
- High reliability lowers maintenance frequency.
Installation Notes
- Install the unit vertically for best heat flow.
- Keep ventilation space around the amplifier.
- Use proper grounding to reduce electrical noise.
- Follow Mitsubishi wiring recommendations during setup.
Packaging and Warranty
- The package includes one servo amplifier unit.
- Standard industrial protective packaging is applied.
- Warranty period covers 12 months.
- Shipping methods include FedEx, UPS, and DHL.
Professional FAQ
- Can this amplifier handle continuous duty cycles?
- Yes, it supports long-term continuous industrial operation.
- Does MR-J3-200A support multiple control modes?
- Yes, it supports position, speed, torque, and switching modes.
- Is this model suitable for compact control cabinets?
- Yes, the slim body fits limited installation space.
- Does the unit include internal braking?
- Yes, a built-in dynamic brake is included.
- What power class does this amplifier belong to?
- It belongs to the 2.0 kW servo amplifier class.
