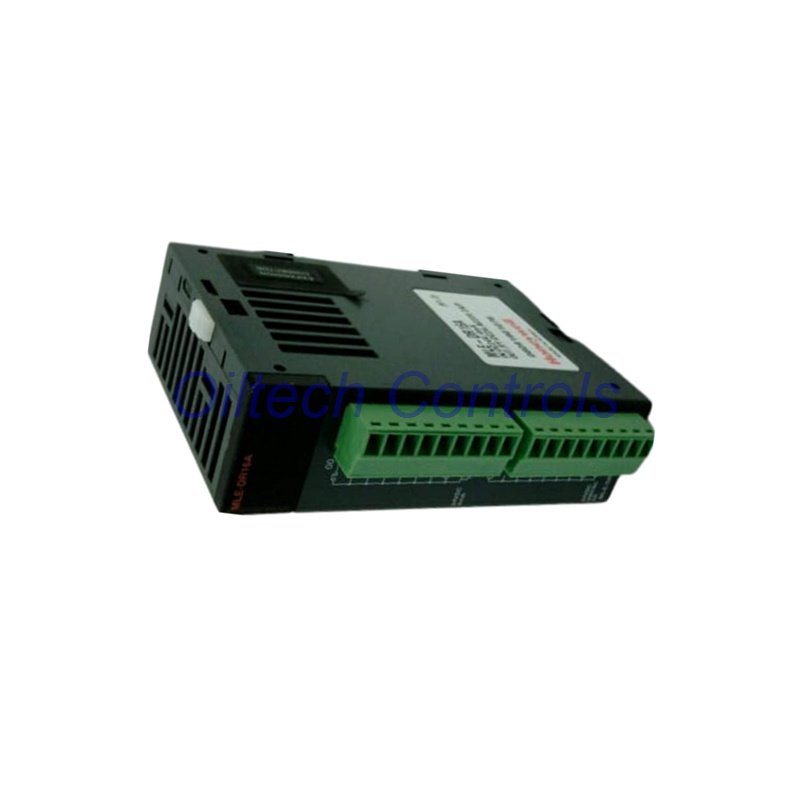

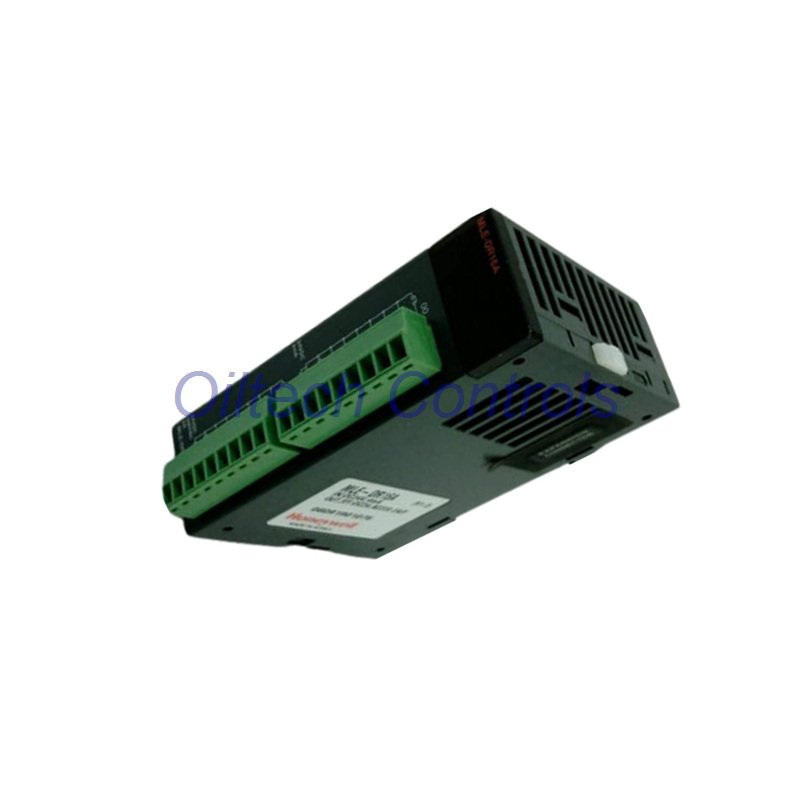

Honeywell MLE-DR16A Digital I/O Module
This compact module connects your control system to the real world. It reads signals from sensors and switches. It also controls lights, motors, and other devices. The MLE-DR16A is built for reliable industrial automation.
Key Features & Advantages
- Complete I/O Solution: Combines 8 inputs and 8 outputs in one compact unit.
- Versatile Relay Outputs: Control both AC and DC loads with relay contacts.
- Fast Response: Inputs respond within 3ms for quick system reaction.
- Wide Voltage Range: Inputs accept 20.4V to 28.8V DC for stable operation.
- Easy Connection: Uses convenient 9-pin terminal block connectors.
Digital Input Specifications
- Channels: 8 independent input points
- Type: Sinking (NPN) digital input
- Rated Voltage: 24V DC
- Operating Range: 20.4V to 28.8V DC
- Input Current: 4mA typical
- ON Threshold: 19V DC or higher / 3mA or higher
- OFF Threshold: 6V DC or lower / 1mA or lower
- Input Resistance: 5.6 kΩ
- Response Time: Programmable from 1ms to 100ms (default: 3ms)
- Isolation: Photocoupler isolation for safety
- Commoning: 8 points per common (COM)
Relay Output Specifications
- Channels: 8 independent relay outputs
- Contact Type: SPDT (Single Pole Double Throw)
- Contact Material: Silver alloy for long life
- Maximum Voltage: 250V AC / 125V DC
- Maximum Current: 2A at 24V DC / 2A at 220V AC
- Minimum Load: 5V DC / 1mA
- Response Time: ON: ≤10ms, OFF: ≤12ms
- Switching Frequency: Up to 3600 operations/hour
- Mechanical Life: 20 million operations minimum
- Electrical Life: 100,000 operations at rated load
- Leakage Current: ≤0.1mA when OFF
- Commoning: 8 points per common (COM)
General Specifications
- Power Consumption: 280mA maximum
- Indicator LEDs: Output status indicators (LED on = relay energized)
- Connection Method: 9-pin removable terminal blocks
- Terminal Wire Size: Accepts 0.2-2.5mm² (AWG 24-12) wires
- Mounting: DIN rail mountable (35mm standard)
- Weight: 81g (2.86 oz)
- Dimensions: 90mm × 25mm × 70mm (H × W × D)
- Ambient Temperature: -20°C to +55°C (operating)
- Storage Temperature: -25°C to +70°C
- Humidity Range: 10-90% RH (non-condensing)
- Vibration Resistance: 10-55Hz, 0.75mm amplitude
- Shock Resistance: 147m/s² (15G) for 11ms
Warranty & Shipping Information
- This product is covered by a 12-month manufacturer warranty.
- The warranty covers defects in materials and workmanship.
- We ship worldwide using reliable carriers: FedEx, UPS, and DHL.
- Most orders ship within 24-48 hours of payment confirmation.
- Tracking information is provided for all shipments.
Frequently Asked Questions
Q: What types of devices can I connect to the inputs?
A: You can connect push buttons, limit switches, proximity sensors, and other dry contact or 24V DC sensing devices.
Q: Can the relay outputs switch both AC and DC loads?
A: Yes, the relay contacts are rated for both AC and DC switching. The maximum ratings differ for each type, so check specifications.
Q: How do I mount and wire this module?
A: Mount on a standard 35mm DIN rail. Use the removable terminal blocks to connect wires. Ensure proper wire size and torque.
Q: What is the difference between this module and solid-state outputs?
A: Relay outputs can switch both AC and DC, handle higher inrush currents, but have limited switching speed and mechanical life compared to solid-state.
Q: From field experience, what helps relays last longer?
A> Using relays within 50% of their rated current significantly extends life. Also, add suppression circuits for inductive loads like motors and solenoids.
