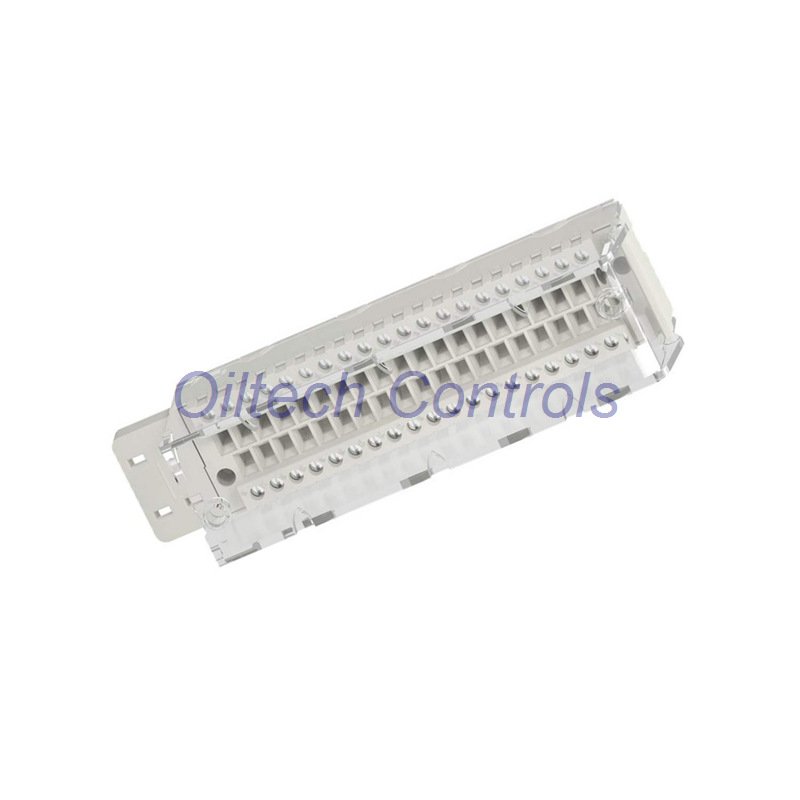

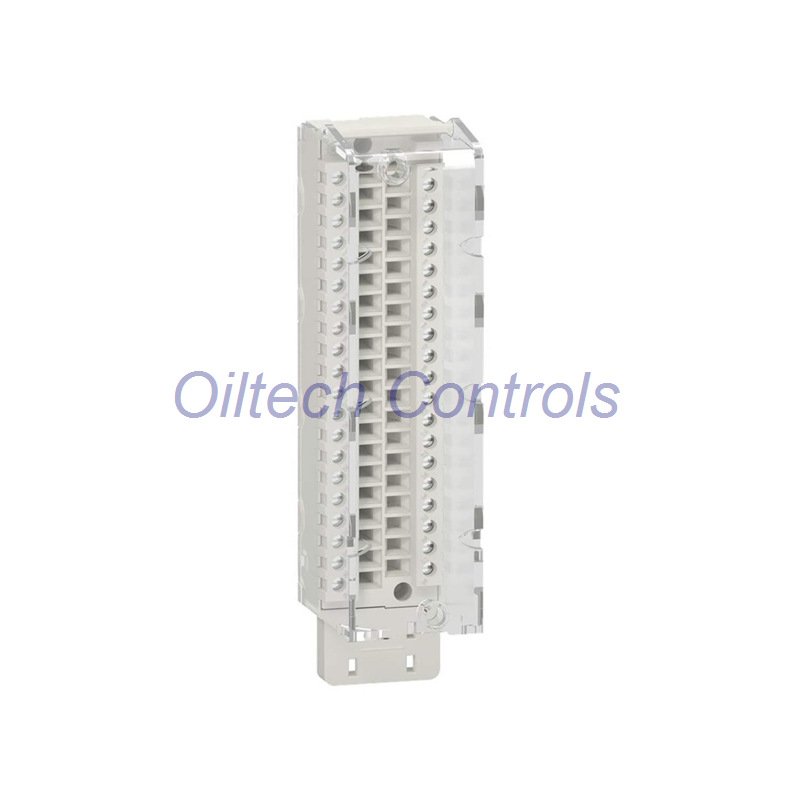

Introducing the Schneider Electric BMXFTB4000 Terminal Block
The Schneider Electric BMXFTB4000 is a premium 40-position terminal block designed for Modicon X80 automation systems. This component provides reliable wiring connections for industrial control applications. Oiltech Controls supplies this essential Schneider Electric accessory.
Key Technical Specifications
- Brand & Model: Schneider Electric BMXFTB4000
- Terminal Type: 40 removable cage clamp terminals
- Housing Color: Standard gray industrial finish
- Protection Rating: IP20 for basic dust protection
- Operating Temperature: 0°C to 60°C range
- Flammability Rating: UL94 V-0 certified material
- Certifications: CE, UL, cUL approved
- Dimensions: 53mm height, compact design
Environmental Performance
- Storage Temperature: -25°C to 70°C range
- Humidity Range: 5% to 95% non-condensing
- Vibration Resistance: 5-9Hz at 0.75mm, 9-150Hz at 1g
- Shock Resistance: 15g for 11ms duration
- The BMXFTB4000 maintains stability in demanding conditions
- Ideal for various industrial environments
Installation Guide
- Mounting Type: Removable terminal block design
- Compatibility: Modicon X80 systems with 40-pin interface
- Product Weight: Only 0.19kg for easy handling
- Terminal Access: Tool-less cage clamp operation
- Simple integration into existing control panels
- Requires standard DIN rail mounting
Package Contents
- Quantity: 1 x BMXFTB4000 Terminal Block
- Package Size: 15.5cm x 5.5cm x 3.5cm
- Package Weight: 191 grams total
- Unit Packaging: Individual protective packaging
Shipping Information
- Available Carriers: FedEx, UPS, DHL
- Shipping Time: Typically 3-7 business days
- International Shipping: Available worldwide
- Order Tracking: Provided for all shipments
Frequently Asked Questions
- What systems use the BMXFTB4000 terminal block?
This terminal block connects to Schneider Electric Modicon X80 series programmable controllers. - How do cage clamp terminals work?
You insert the wire into the terminal and a spring clamp secures it automatically without screws. - What does IP20 protection mean?
IP20 protects against solid objects larger than 12.5mm, like fingers, but not against water. - Can I purchase single units?
Yes, the BMXFTB4000 sells as one unit per package for flexibility. - What wire sizes does it accept?
Typically accepts standard industrial control wiring from 0.2mm² to 2.5mm².
Contact Information
- For technical support and pricing inquiries
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
- Response within 24 business hours
