Product Introduction

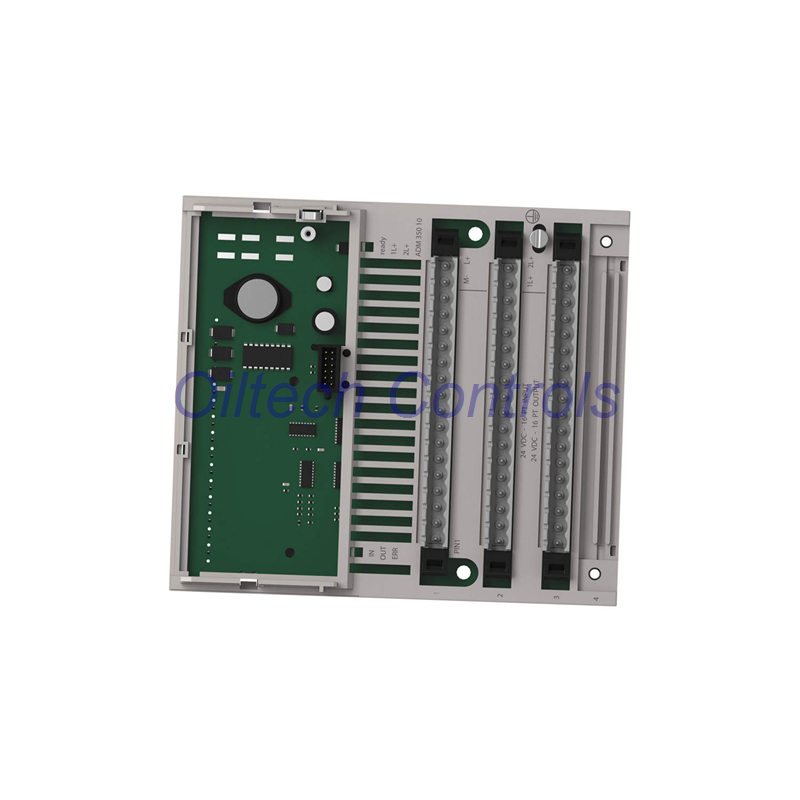

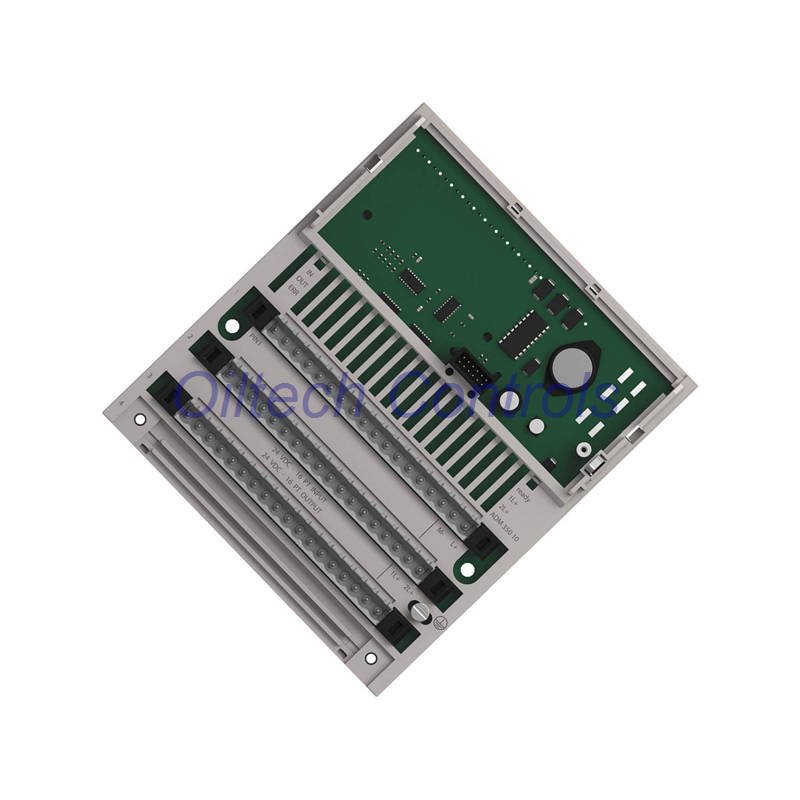

This is the Schneider Electric 170ADM35010C digital I/O module. It belongs to the Modicon Momentum family. Use it to connect your PLC to many devices. It reads 16 signals and controls 16 outputs. A reliable choice for industrial control panels.
Key Features & Benefits
- High Channel Count: Manages 32 total signals in one compact unit.
- Standard Power: Designed for 24 VDC systems.
- Good Drive Capacity: Each output can handle 0.5 Amps.
- Extreme Climate Ready: Operates in very cold or hot conditions.
- Board Protection: Special coating fights humidity and contamination.
- Quick Switching: Solid-state electronics for fast response times.
- Simple Setup: Snaps directly into the Momentum base unit.
Detailed Technical Specifications
- Brand: Schneider Electric
- Series: Modicon Momentum
- Full Part Number: 170ADM35010C
- EAN: 3595863798319
- Function: 16-Point Digital Input / 16-Point Digital Output Module
- Nominal Input Voltage: 24 VDC
- Input Type: Sinking (Positive Logic)
- Input Impedance: 4 kilo-ohms
- Output Technology: DC Solid-State
- Max Output Voltage: 30 VDC
- Max Output Current (per point): 500 mA
- Supply Frequency: 47-63 Hz
Environmental & Durability
- Temperature (Operating): -40°C to +70°C
- Temperature (Storage): -40°C to +85°C
- Humidity (Operating/Storage): Up to 80%, non-condensing
- Conformal Coating: Humiseal 1A33 for environmental protection
- Overload Protection: Short-circuit and overload protected outputs.
- Status Indication: LED per channel for visual diagnostics.
Warranty & Shipping
All items come with a 12-month satisfaction warranty. Global delivery is available through FedEx, UPS, and DHL. We provide tracking details once your package ships.
Frequently Asked Questions
General Use
Can I mix input and output types on this module?
No. The 170ADM35010C is fixed: the first 16 points are inputs, the next 16 are outputs. You cannot change their function.
What does “discrete” mean for this module?
Discrete means on/off signals. It reads simple switches (on/off) and controls devices that are either powered (on) or not (off).
Installation & Tips
Do I need an external fuse for the outputs?
The module has electronic protection. For added safety in your system, installing external fuses on the output power supply is a good practice.
An input LED is on, but my PLC doesn’t see it. Why?
The LED shows power at the terminal. The issue could be in the rack communication or PLC configuration. Check the module’s address and rack connection.
Buying Advice
I need to control a small motor starter (1A). Can this module do it?
No. The 170ADM35010C output is rated for 0.5A max. You must use its output to control an intermediate relay, and that relay would power the motor starter coil.
