Product Overview

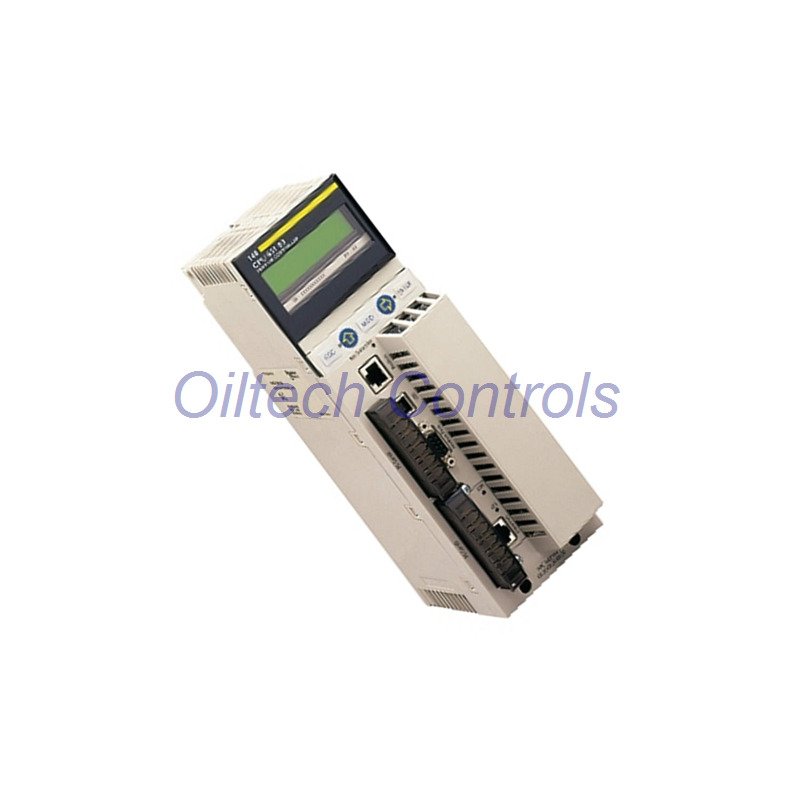

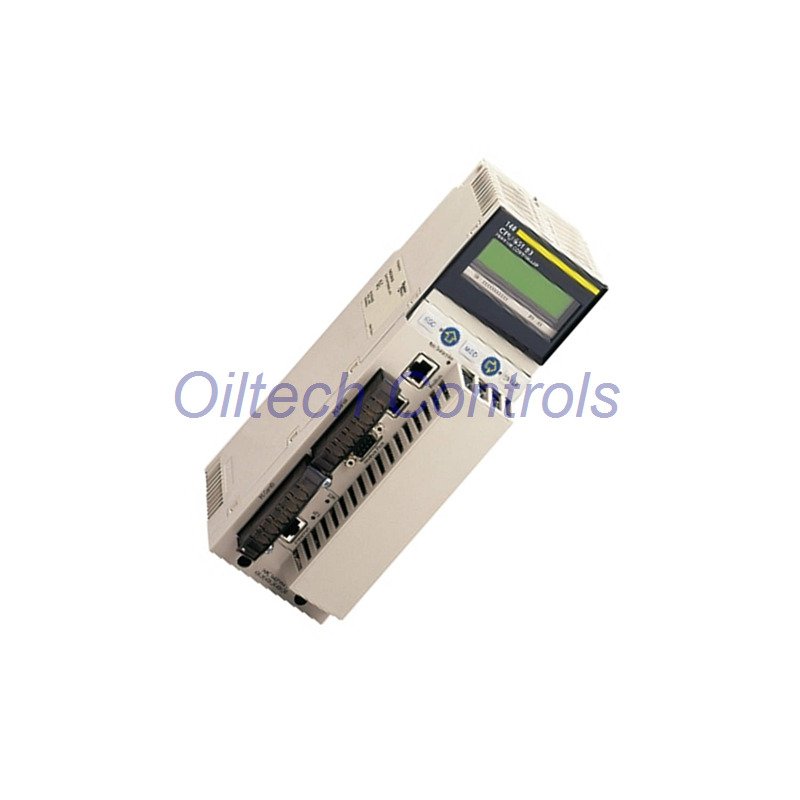

The Schneider Electric 140CPU65160C Unity Processor is a high-performance PLC CPU for the Modicon Quantum platform. It offers fast execution, large memory expansion, and strong network capability for complex automation systems.
Main Product Highlights
- 266 MHz processor ensures fast logic execution.
- Large expandable memory supports complex programs.
- Built-in Ethernet and Modbus Plus simplify networking.
- Designed for process and discrete control.
- Ideal for large-scale industrial systems.
Processor & Memory Performance
- CPU speed: 266 MHz
- Internal RAM: 1024 kB
- Program memory expansion: 7168 kB
- File storage expansion: 8 MB
- Instruction speed: 0.0525 µs Boolean
- Floating-point execution: 0.4–0.5 µs
System Capacity
- Local racks supported: 2
- Local slots available: 10
- Distributed I/O stations: 63
- Remote I/O stations: 31
- Maximum discrete I/O: 31,744 inputs / outputs
- Analog I/O capacity: 1,984 channels
Communication & Networking
- Integrated Ethernet TCP/IP port.
- Integrated Modbus Plus interface.
- Integrated Modbus serial support.
- USB port for local access.
- Supports Profibus DP and AS-Interface.
Connection Limits
- Ethernet TCP/IP connections: 6 local
- Modbus Plus connections: 6 local
- Profibus DP connections: 6 local
- AS-Interface connections: 2 distributed, 4 remote
- USB connection: 1
Task Management & Control
- 1 master control task.
- 1 fast periodic task.
- 128 I/O interrupt tasks.
- 128 event interrupt tasks.
- 32 timer-based interrupt tasks.
Electrical & Mechanical Data
- Bus current requirement: 2760 mA
- Net weight: 0.85 kg
- Package weight: 1.46 kg
- SUB-D 9 connector for Modbus Plus.
- RJ45 ports for Ethernet and Modbus.
Environmental & Compliance
- Conformal coating for moisture protection.
- Certified for hazardous locations.
- Approvals include CE, UL, CSA, ATEX.
- Suitable for marine and industrial use.
Typical Use Cases
- Process automation systems.
- Oil and gas control platforms.
- Power generation plants.
- Large manufacturing lines.
- Critical infrastructure projects.
Warranty & Shipping
- 12-month warranty provided.
- Secure industrial packaging.
- Worldwide delivery via FedEx, UPS, or DHL.
Professional FAQ
- Is the 140CPU65160C suitable for large I/O systems?
- Yes. It supports very high local and remote I/O counts.
- Does this CPU support modern Ethernet networks?
- Yes. It includes Ethernet TCP/IP routing functions.
- Is memory expansion required for complex projects?
- Large programs benefit from PCMCIA memory expansion.
- Can this processor replace older Quantum CPUs?
- Yes. It is commonly used for system upgrades.
- How do I choose the right Unity processor?
- Check I/O size, network needs, and program complexity.
