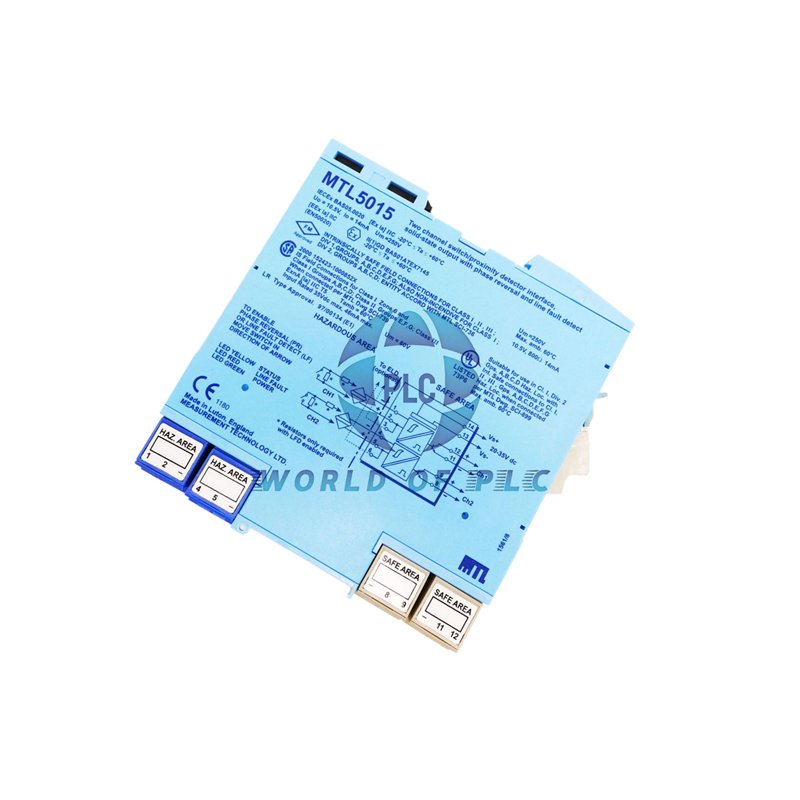

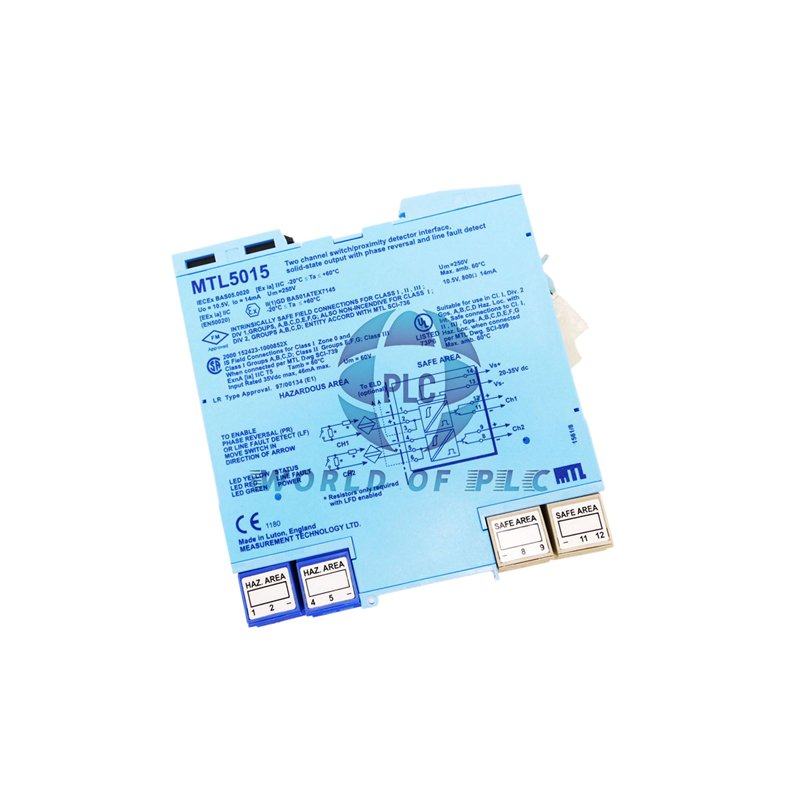

MTL5015 Dual-Channel Isolator – Advanced Hazardous Area Control
Dual-Sensor Safety Interface
The MTL5015 connects two hazardous area sensors (Zone 0/Div.1) to safe-area logic. Each channel features independent control with phase reversal and fault detection.
Technical Highlights
- Brand: MTL | Model: 5015 (Full code: MTL5015-EX-DUAL)
- Channels: 2 fully isolated
- Input Type: NAMUR/DIN 19234 compliant
- Output Capacity: 50mA per channel
- Response Speed: DC to 5kHz
- Sensor Power: 7-9V @1kΩ per channel
- Isolation: 250V AC/DC between channels
Channel Status Indicators
Channel 1:
- ● Yellow: Output active
- ● Red: Fault detected
Channel 2:
- ● Yellow: Output active
- ● Red: Fault detected
● Green: Power ON (both channels)
5 Key Questions
- Can both channels work differently?
Yes, independent phase reversal and fault detection. - How to connect mechanical switches?
Use 500Ω-1kΩ series + 20kΩ-25kΩ parallel resistors. - What’s the max cable length?
Up to 100m with standard 0.5mm² cable. - Can I use only one channel?
Yes, unused channels remain inactive. - How to test fault detection?
Check red LEDs activate on open/short circuit.
Package & Support
- 1x MTL5015 isolator
- Quick-start guide
- DIN-rail mounting kit
- 12-month reliability guarantee
- Express shipping via FedEx/UPS/DHL
