MTL SD275X High-Current Surge Protection Solution

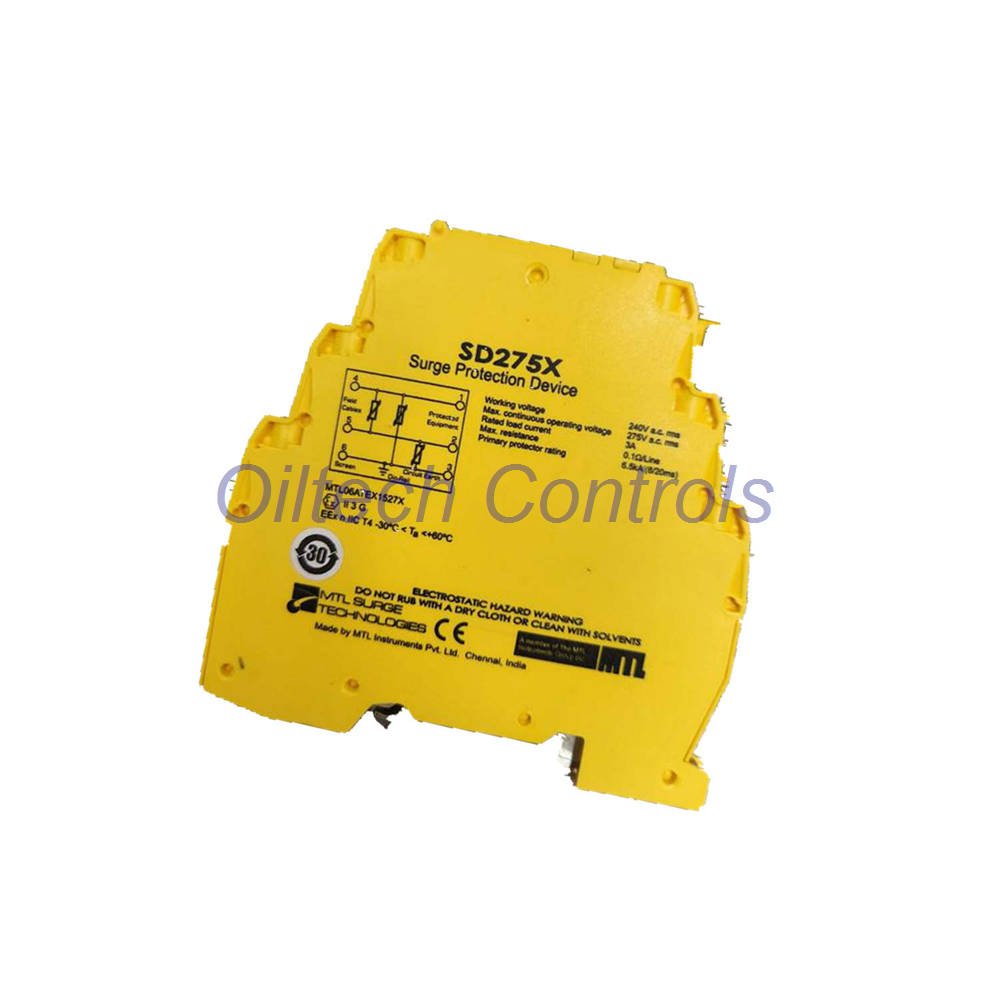

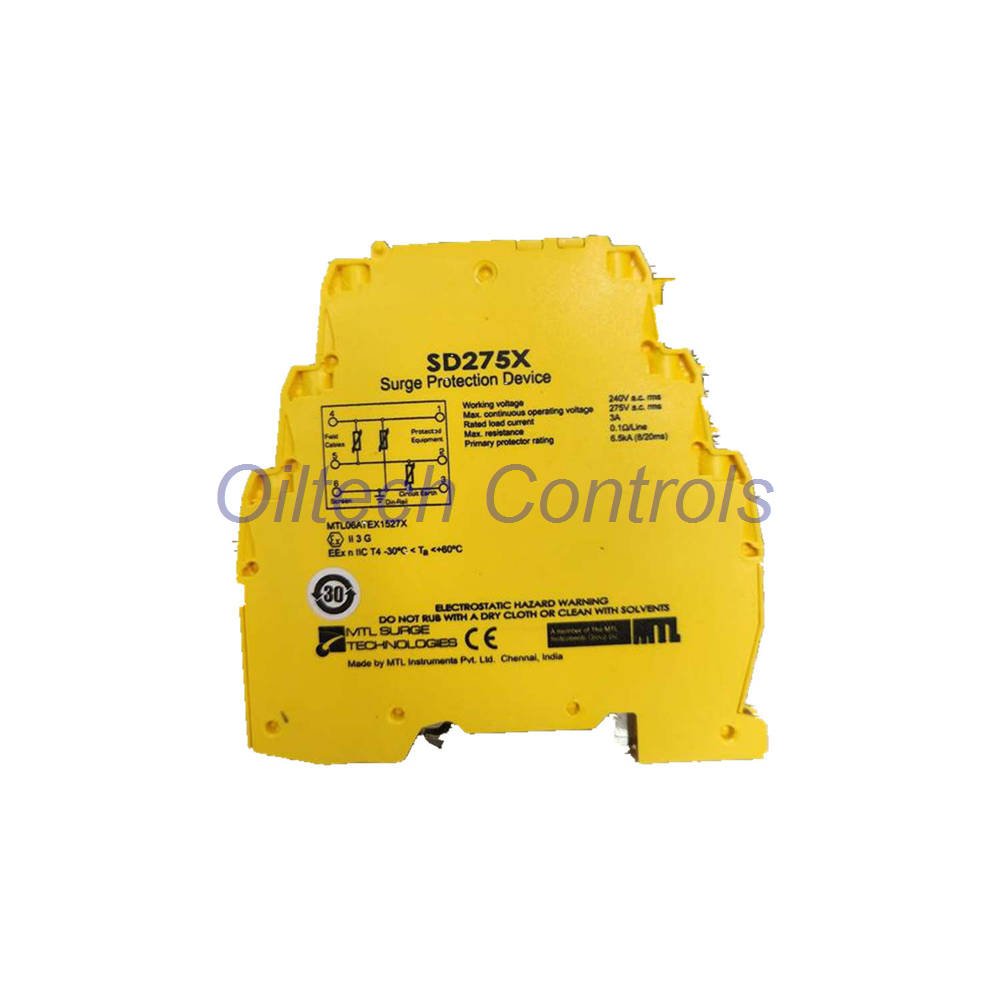

The MTL SD275X is a high-performance surge protection device (SPD) specifically engineered by MTL Instruments for demanding power applications. With a robust 3A nominal current capacity and versatile voltage support (320V DC / 240V AC), the MTL SD275X serves as an essential barrier against voltage transients. Oiltech Controls recommends this unit for critical power feeds where current draw and reliability are paramount for operational continuity.

Technical Engineering Specifications

• Manufacturer: MTL Instruments
• Model: MTL SD275X
• Nominal Voltage: 320V DC / 240V AC
• Rated Voltage (MCOV): 360V DC / 275V AC (rms)
• Nominal Current: 3A
• Series Resistance: 0.1 Ω/line
• Voltage Protection Level: < 700V (@1kV/µs)
• Residual Voltage: 850V (@isn)
• Max. Leakage Current: 50µA

Oiltech Controls Insights & Applications

• Recommended Equipment: Ideal for power supply units, industrial controllers, AC mains feeds, and heavy-duty contactor systems.
• Design Advantage: The 0.1 Ω series resistance ensures minimal power loss while maintaining maximum surge dissipation efficiency.
• Performance Note: Oiltech Controls recommends verifying that your peak operating voltage does not exceed the 275V AC (rms) threshold to ensure long-term device longevity.
• Contact Support: Reach out to us at info@oiltechcontrols.com for custom project integration advice.
• Instant Assistance: Need urgent support? Connect via WhatsApp: +86 158 8020 0923.

Logistics, Shipping & Quality Assurance

• Shipping Partners: We ship globally using FedEx, UPS, and DHL.
• Dispatch Time: Orders are processed and dispatched within 24-28 hours of confirmation.
• Warranty Policy: This device includes a 12-month quality guarantee covering manufacturing and material defects.
• Packaging: Secure industrial-grade packaging is standard for all international shipments to ensure safe delivery.
• Customer Service: Our technical team is available to guide your procurement process through info@oiltechcontrols.com.

Expert FAQ & Selection Guide

• Question: How does the 3A current rating affect my system design?
• Answer: The 3A rating is sufficient for most control-level power distribution; ensure your circuit breaker is coordinated to protect the MTL SD275X from overcurrent.
• Question: Is this unit suitable for non-linear power loads?
• Answer: While excellent for standard power feeds, always verify the surge energy requirements of your specific non-linear equipment before selection.
• Question: Can I install the MTL SD275X in high-temperature cabinets?
• Answer: Ensure adequate ventilation, as high-current applications can generate localized heat that may shorten the lifespan of internal protection components.
• Question: How is this different from lower-current signal protectors?
• Answer: The MTL SD275X is built for power-line protection rather than low-voltage signal transmission, featuring higher MCOV and surge handling capabilities.
• Question: Does grounding affect the residual voltage levels?
• Answer: Yes, a low-impedance connection to a dedicated protective earth (PE) is critical to keeping the residual voltage below the specified 850V level.
