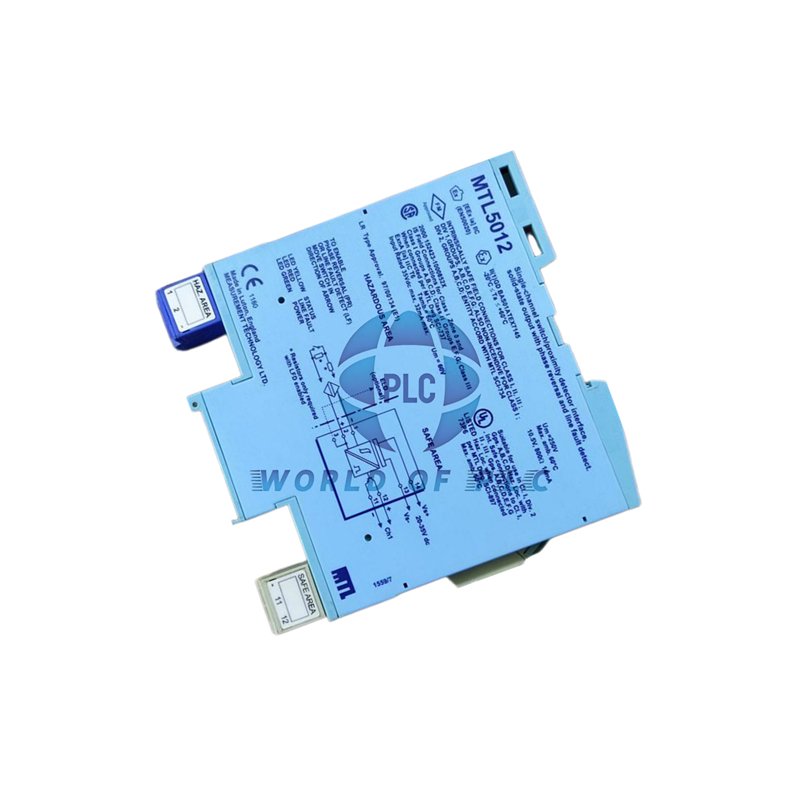

MTL5012 Solid-State Isolator – Safe Zone Control from Hazardous Areas

Smart Hazardous Area Interface

The MTL5012 connects Zone 0/Div.1 hazardous area sensors to safe-area logic circuits. Features phase reversal and line fault detection with clear LED indicators.

Key Features & Specs

• Brand: MTL | Model: 5012 (Full code: MTL5012-EX-SS)
• Input Type: NAMUR/DIN 19234 compliant
• Output Type: Floating solid-state (50mA max)
• Frequency Range: DC to 5kHz
• Sensor Power: 7-9V @1kΩ
• Response Time: <1ms typical
• Isolation: 250V AC/DC
• Certification: ATEX/IECEx Zone 0, IIC

Visual Status Indicators

• Green: Power ON
• Yellow: Output active
• Red: Line fault detected

5 Installation FAQs

1. Can MTL5012 drive PLC inputs?
   Yes, compatible with most digital inputs.
2. How to test line fault detection?
   Check red LED activates on open/short circuit.
3. What resistors are needed for switches?
   500Ω-1kΩ series + 20kΩ-25kΩ parallel.
4. Is output polarity reversible?
   Yes, via user-selectable phase reversal.
5. Can I use this with mechanical switches?
   Yes, with proper resistor network.

Package & Support

• 1x MTL5012 isolator unit
• Installation guide
• DIN-rail mounting hardware
• 12-month product warranty
• Global shipping via FedEx/UPS/DHL
