MTL5041 – Advanced 2-Wire 4-20mA Isolator for Hazardous Areas

Description

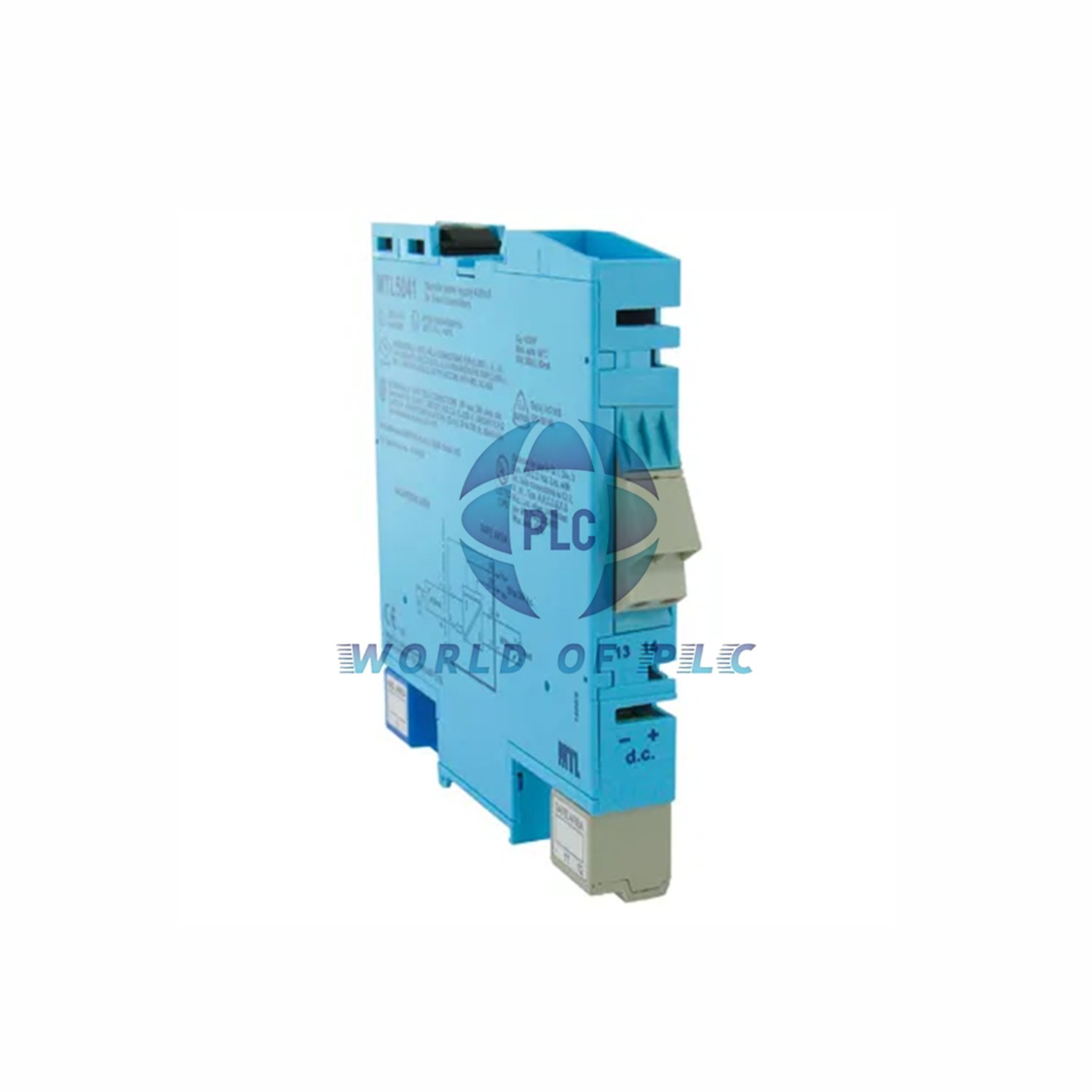

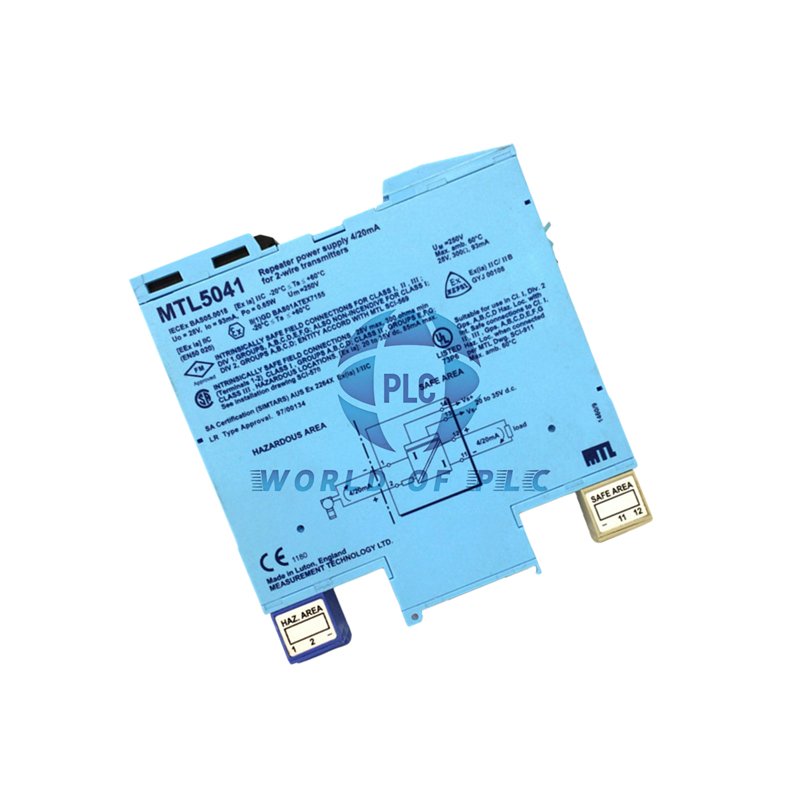

The MTL5041 is a high-performance signal isolator designed for 2-wire 4-20mA transmitters in hazardous areas (Zone 0/Div.1). It provides fully floating DC supply and repeats the current signal to a safe-area load with ultra-low ripple and fast response. Ideal for critical process control applications.

Technical Data

• Brand: MTL
• Model: 5041 (Full suffix: MTL5041-EX)
• Input Range: 0-24mA (4-20mA nominal)
• Output Range: 4-20mA (0-24mA over-range)
• Accuracy: <20μA @20°C
• Temp. Drift: <1μA/°C
• Output Load: 0-1kΩ
• Supply Voltage: 20-35V DC
• Response Time: <250μs
• Hazardous Area Cert: ATEX/IECEx (Zone 0, IIC)

Key Features

• 16.5V transmitter voltage @20mA
• 2MΩ output resistance for safe-area isolation
• Green LED for power indication
• Compact DIN-rail mounting

Installation Guide

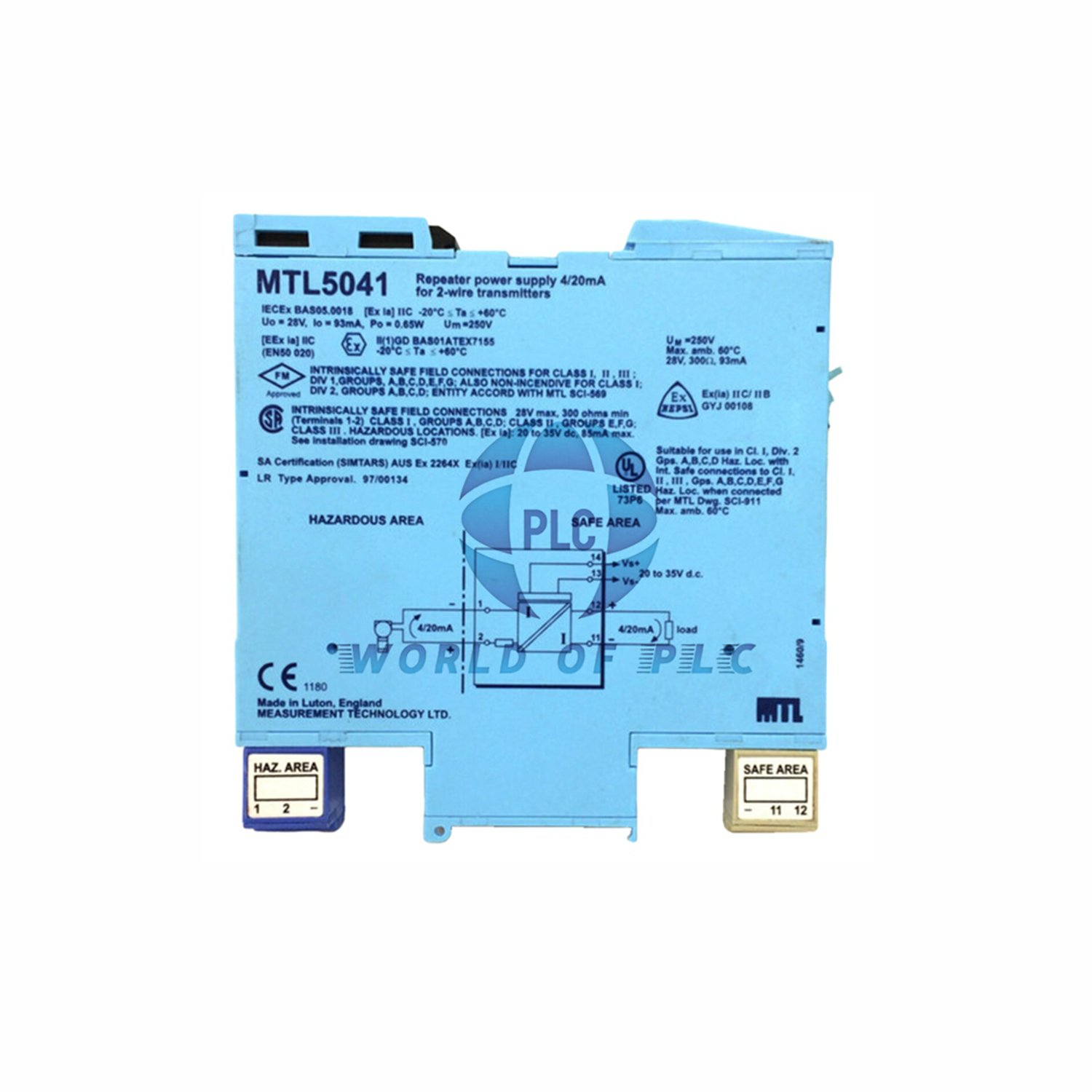

Connect terminals: 1(-ve), 2(+ve) for input; 11(-ve), 12(+ve) for output; 13/14 for power supply. Ensure proper grounding. Max ambient temp: 60°C.

Compatibility

Works with all 2-wire 4-20mA transmitters in hazardous locations. Compatible with Group A gases (T4-T6).

Package Includes

• 1x MTL5041 isolator unit
• Installation manual
• DIN-rail clip

Shipping & Warranty

Shipped via FedEx/UPS/DHL. 12-month warranty from delivery date.
