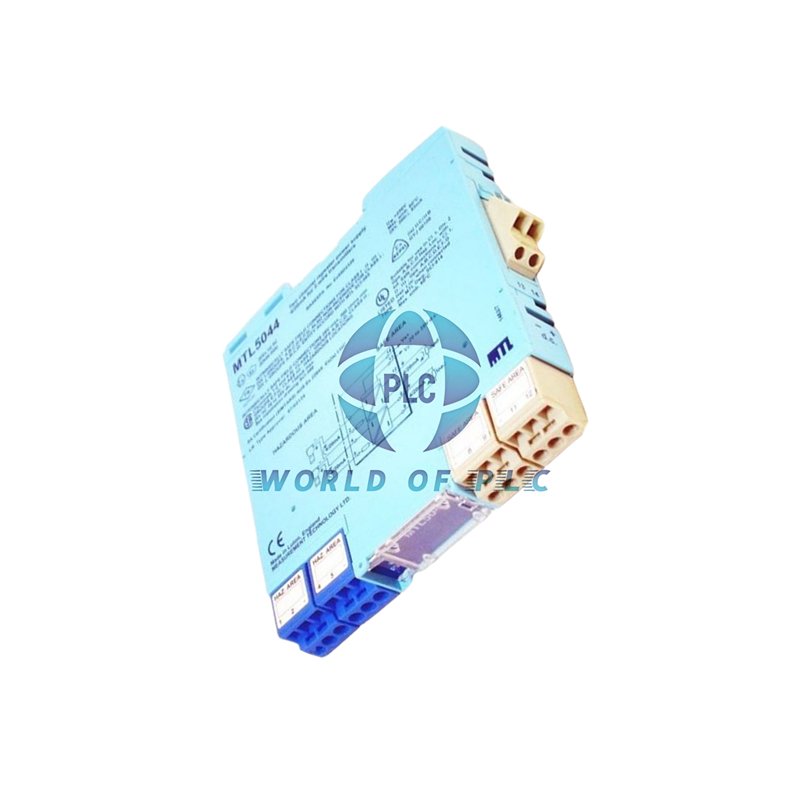

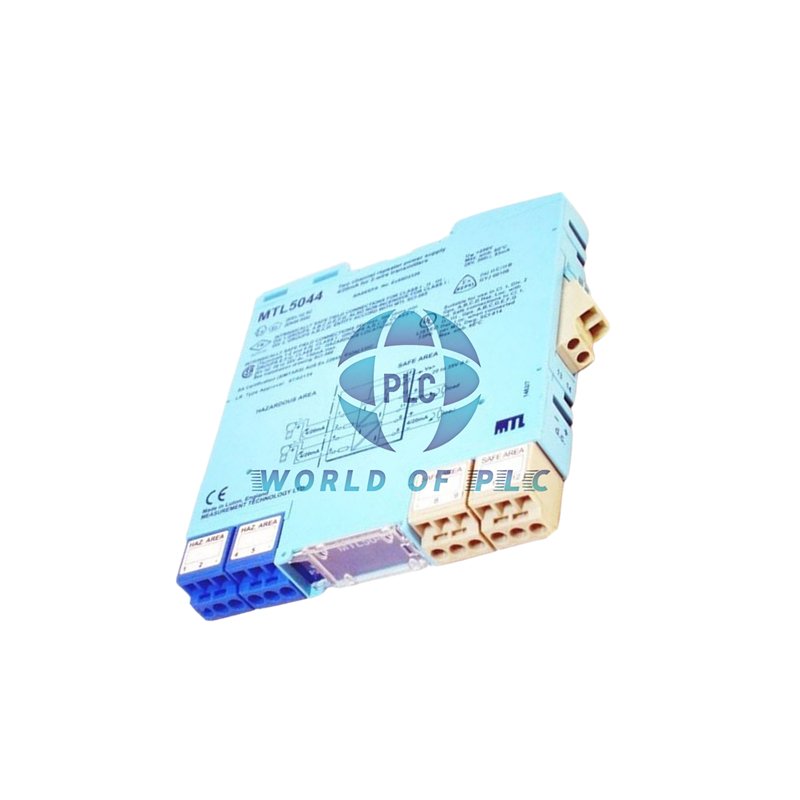

MTL5044 – MTL Dual-Channel Isolator | Original New

MTL5044 Dual-Channel Isolator – Safe & Reliable 4-20mA Signal Repeater

Product Highlights

The MTL5044 safely powers two 2-wire 4-20mA transmitters in hazardous areas (Zone 0/Div.1) while sending clean signals to safe zones. With dual isolated channels, it’s perfect for critical monitoring systems.

Key Specifications

• Brand: MTL | Model: 5044 (Full code: MTL5044-EX-DUAL)
• Channels: 2 fully isolated
• Input/Output: 4-20mA (0-24mA range)
• Speed: <250μs response
• Accuracy: ±0.1% (20μA max error)
• Power: 20-35V DC (16.5V transmitter supply)
• Load Capacity: 550Ω per channel
• Safety: ATEX/IECEx Zone 0, IIC

Easy Installation

Simple wiring:

• Channel 1: Terminals 1(-) & 2(+) in, 11(-) & 12(+) out
• Channel 2: Terminals 4(-) & 5(+) in, 8(-) & 9(+) out
• Power: 13(-) & 14(+)

5 Technical FAQs

1. Can MTL5044 handle sensor failures?
   Yes, it works with 0-24mA signals including fault conditions.
2. Is calibration needed?
   No, factory-calibrated with <1μA/°C drift.
3. What’s the max cable length?
   Up to 500m with standard 0.5mm² cables.
4. Can I use one channel only?
   Yes, unused channels stay inactive.
5. Is LED status monitoring available?
   Green light shows power is on.

Package & Support

• 1x MTL5044 unit
• Quick-start guide
• DIN-rail mount kit
• 12-month product warranty
• Fast shipping via FedEx/UPS/DHL
