Product Introduction

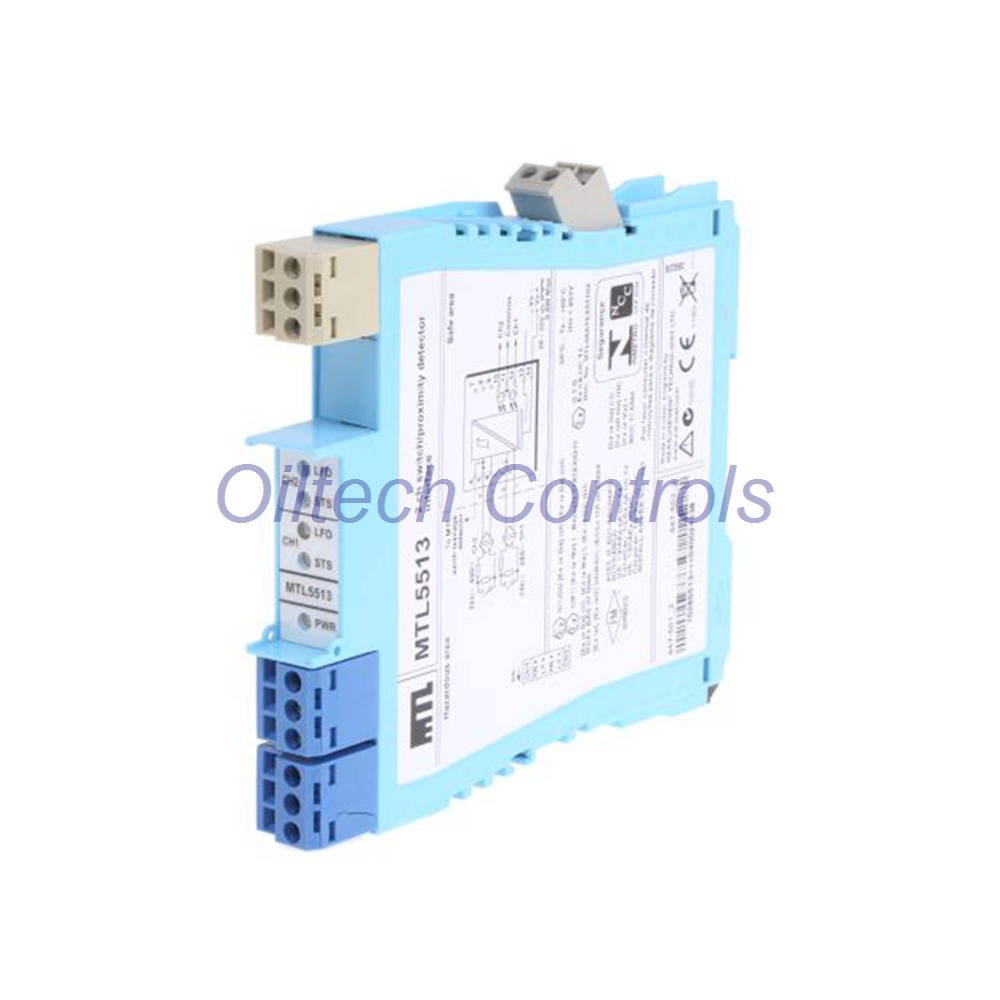

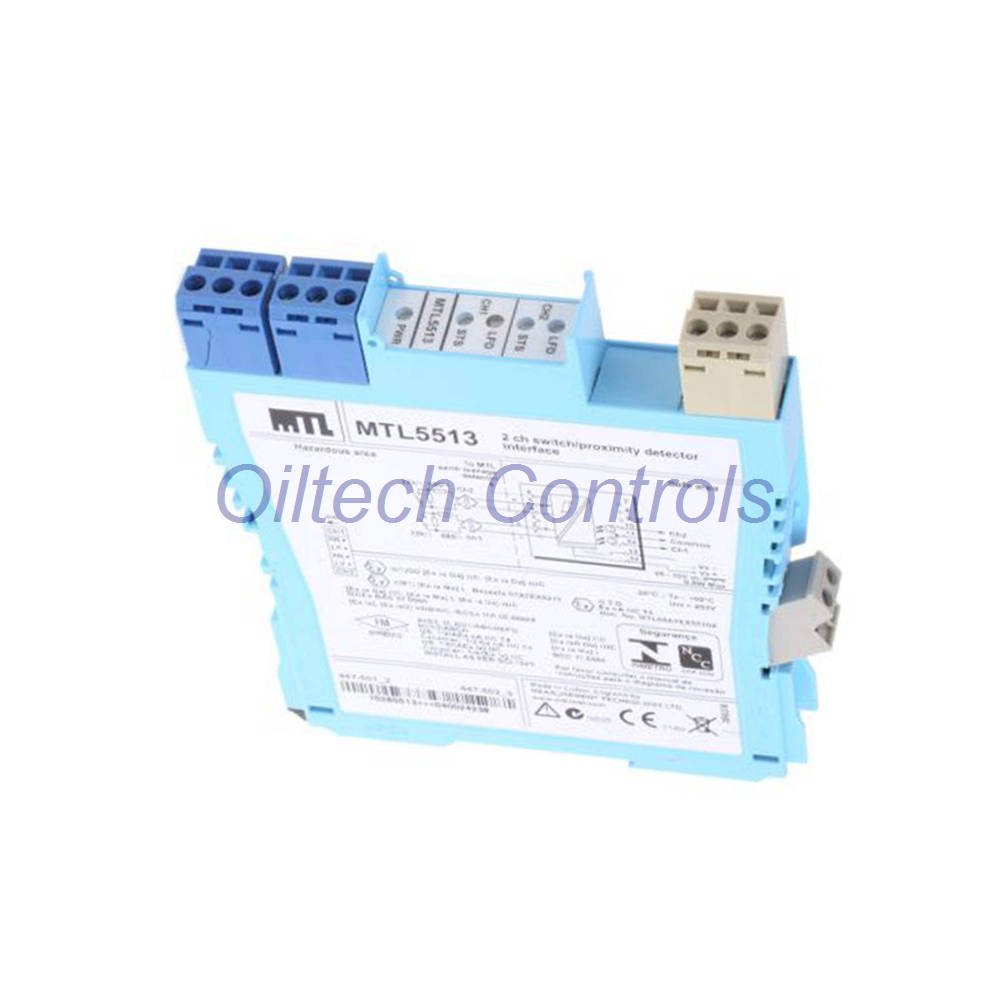

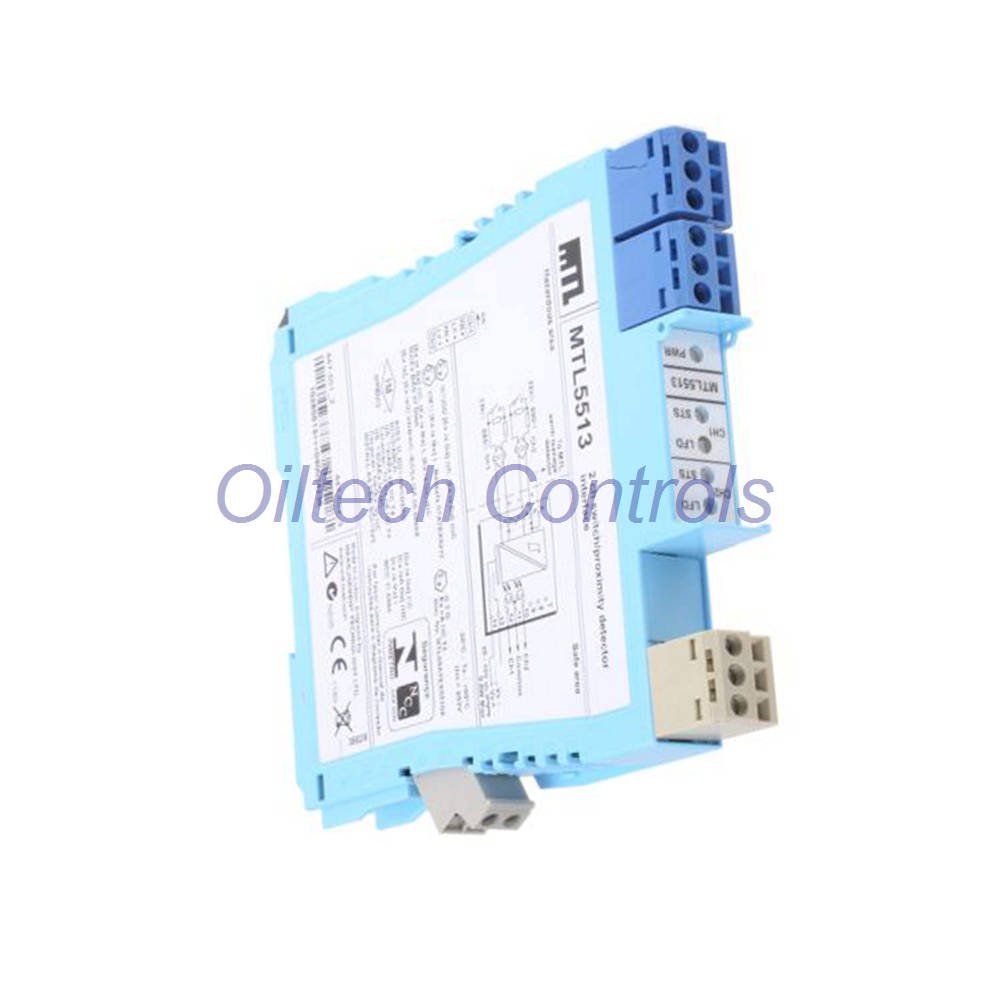

The MTL5513 is a high-performance 2-channel digital input isolator from the trusted Eaton Crouse-Hinds MTL5500 series. Engineering teams specify this switch/proximity detector interface to bridge safe areas and hazardous zones safely. It provides robust galvanic isolation to protect your control systems from dangerous voltage spikes. The device seamlessly transfers digital signals from intrinsically safe sensors located in Zone 0 environments. Each channel works independently to ensure maximum system reliability and uptime in critical industrial automation setups. For quick technical support or bulk pricing, contact our engineering team directly at info@oiltechcontrols.com today.
Technical Specifications
Core Identity
- Brand: Eaton Crouse-Hinds
- Model: MTL5513
- Series: MTL5500 series
- Module Type: Switch/proximity detector interface
- Number of Channels: 2 independent channels
Input & Sensor Signal Control
- Sensor Voltage: 7-9 Vdc from 1kΩ ±10% source
- Input Switch Thresholds: Outputs open if input < 1.2mA (> 10kΩ)
- Output Switch Thresholds: Outputs closed if input > 2.1mA (< 2kΩ)
- Frequency Response: DC to 500 Hz switching frequency
- Hysteresis Range: 200µA (650Ω) nominal value
- Phase Reversal: Independent user-selectable phase reversal per channel
Electrical & Power Data
- Power Supply Range: 20-35 Vdc supply voltage
- Current Consumption: 30mA current draw at 24Vdc
- Power Dissipation: 0.65W typical power loss at 24V
- Current Safety Limit: ±50mA maximum current limit
- Maximum Safe Voltage: ±35V maximum voltage rating
- Galvanic Isolation: 250V rms between safe-area and power
Hazardous Area & Certifications
- Area Classification: Hazardous and classified locations
- Standards Type: IECEx and ATEX approvals
- Hazardous Zone Rating: Zone 0 certified protection
- Electromagnetic Compatibility: EN61326 compliance for industrial environments
Environmental Resistance
- Operating Temperature: -20 °C to 60 °C ambient range
- Storage Temperature: -40 °C to 80 °C storage range
- Humidity Tolerance: 5% to 95% relative humidity non-condensing
Physical Wiring & Mounting
- Mounting Method: T-section 35mm DIN rail installation
- Terminal Capacity: Accepts up to 2.5mm2 single-core wires
- Electrical Connection: Crimp ferrules for secure wiring connections
- Device Width: 15.8 mm slim design
- Device Height: 118.8 mm total height
- Device Depth: 109.8 mm total depth
- Net Weight: 150 g lightweight housing
Diagnostics & Maintenance Capabilities
- Power Indicator: Green LED confirms active power supply status
- Channel Status: Yellow LED shows active output state
- Line Fault Detection: Red LED signals sensor line faults
- LFD Configuration: User-selectable side switches for line fault setup
System Compatibility & Application
- Sensor Compatibility: NAMUR proximity sensors and dry switch contacts
- Control System Integration: Connects safely to PLC and DCS digital inputs
- Typical Application Scenes: Oil refineries, chemical processing, gas plants
Shipping, Warranty & Packaging
- Package List: One brand new MTL5513 module and manual
- Factory Warranty: 12 months comprehensive warranty protection
- Express Shipping Methods: FedEx, UPS, and DHL fast delivery
Product Document Download
Please follow these steps to access full engineering documentation:
- Click the download link below to get the official manufacturer datasheet.
- Review the wiring schematics before connecting the loop power supply.
- Check the control drawing requirements for intrinsic safety compliance.
- Chat with our technical experts via +86 158 8020 0923 for instant installation advice.
Frequently Asked Questions (FAQ)
How do I configure the Line Fault Detection on this module?
You can configure Line Fault Detection via the small slide switches located on the side of the plastic housing.
Can I use the module with standard mechanical switches?
Yes, you can use mechanical switches, but you must fit resistors if you require line fault detection.
Does this device require a separate structured ground connection?
No, the MTL5500 series isolates safe area and hazardous area circuits without requiring a high-integrity earth ground.
