New Allen-Bradley 1746-OA8 SLC 500 AC Output Module | 8-Channel

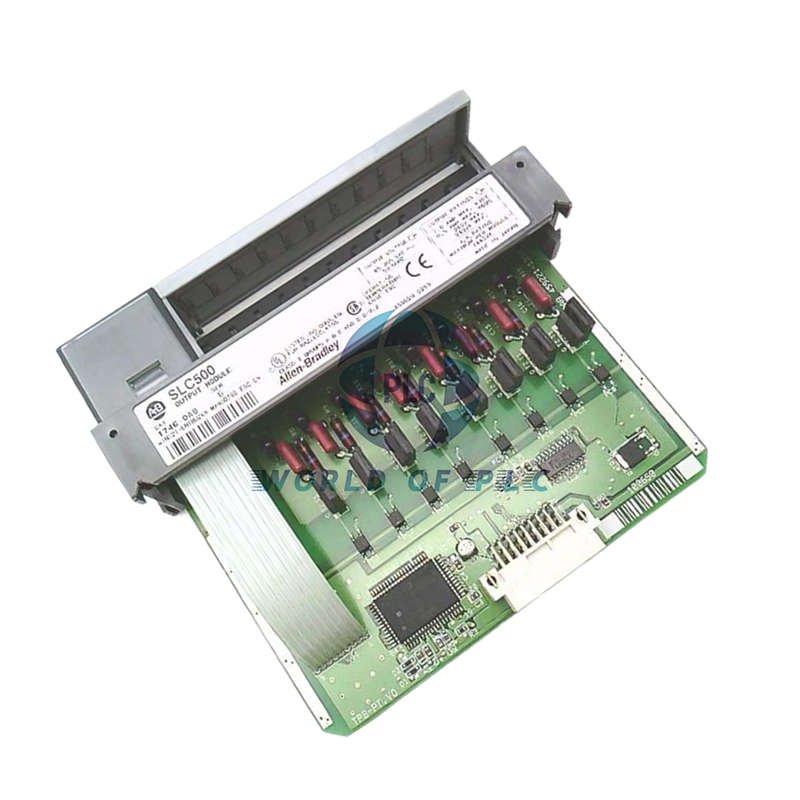

Allen-Bradley 1746-OA8 AC Output Module

Powerful AC control with the Allen-Bradley 1746-OA8. This reliable output module handles high-voltage AC devices directly. Perfect for controlling motors, lights, and heaters in your SLC 500 system.

Key Advantages

• Eight AC output channels for multiple devices
• Handles worldwide voltage standards
• High surge current capability
• Simple installation and wiring
• Proven reliability in industrial applications

Technical Specifications

Brand: Allen-Bradley
Model: 1746-OA8
Series: SLC 500
Module Type: Discrete AC Output
Outputs: 8 channels
Output Groups: 2 groups of 4
Voltage Range: 85-264V AC
Frequency: 47-63 Hz
Current Rating: 1.0A @ 30°C, 0.5A @ 60°C
Surge Current: 10A for 25ms
Response Time: 1ms ON, 11ms OFF
Backplane Current: 185mA @ 5V DC
Voltage Drop: 1.5V maximum
Operating Temperature: 0-60°C (32-140°F)
Heat Dissipation: 4.8W maximum

Warranty & Shipping

We offer a 12-month warranty on this module. We ship worldwide via FedEx, UPS, and DHL.

Frequently Asked Questions

• What types of devices can this module control?
  It can control AC motors, heaters, lighting, and contactors.
• What is the maximum voltage this module handles?
  It can handle voltages up to 264V AC.
• How many output groups does it have?
  It has two groups of four outputs each.
• Can it handle surge currents?
  Yes, it can handle 10A surge currents for 25ms.
• What is the operating temperature range?
  It operates from 0°C to 60°C (32°F to 140°F).

Compare With Related Products

• Allen-Bradley 1746-NO8I Current Output Module
• Allen-Bradley 1746-NO8V Output Module
