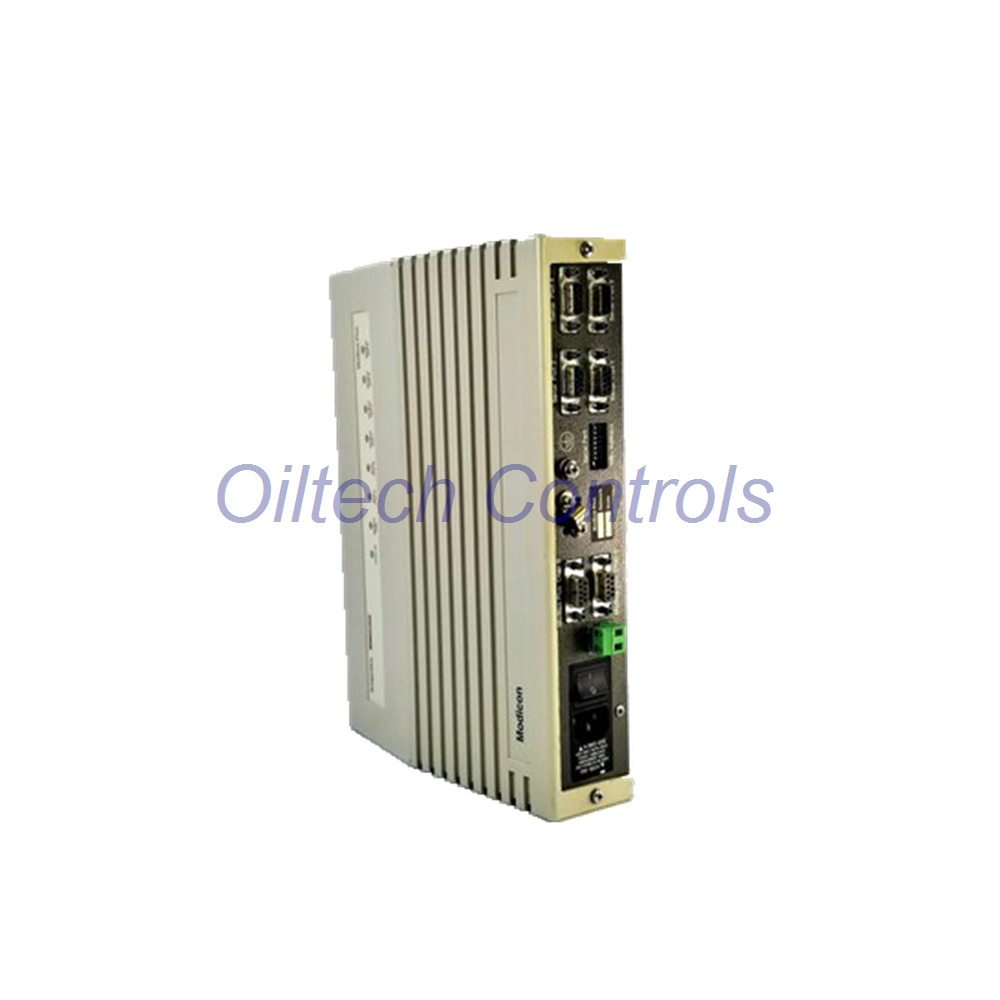

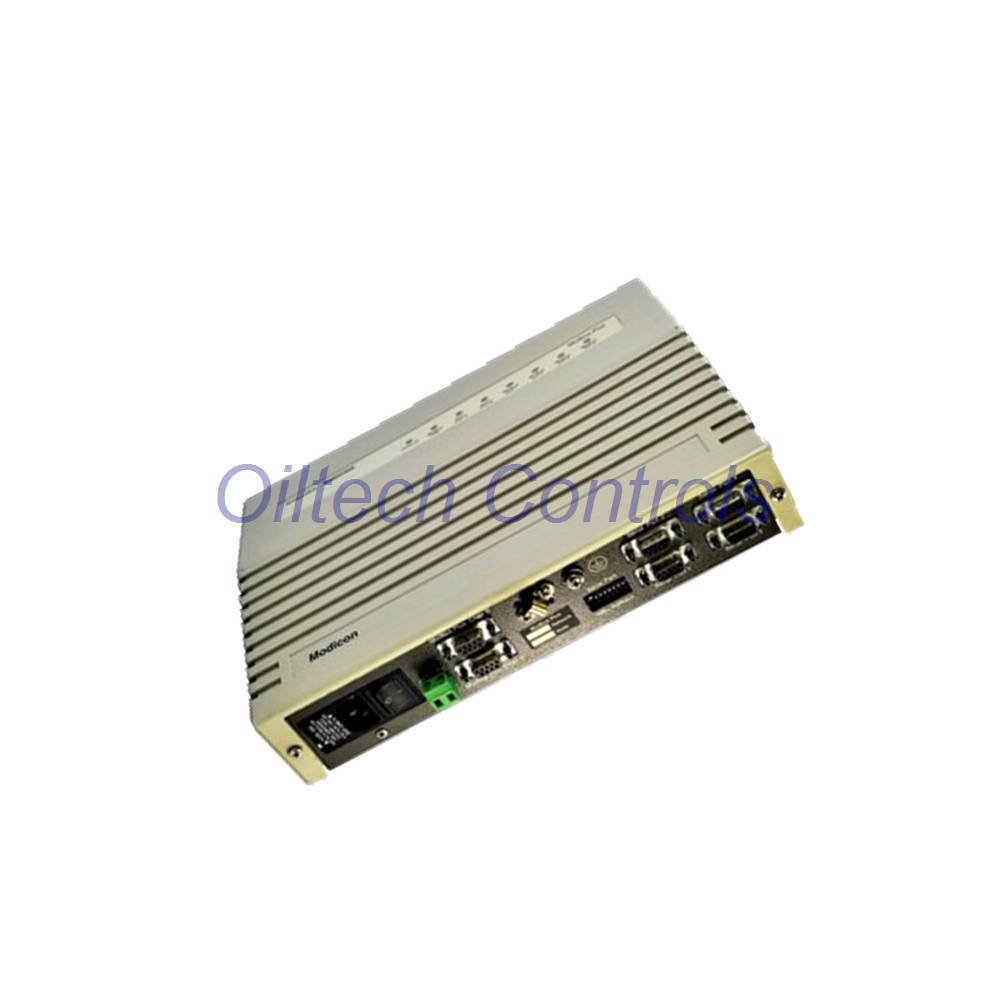

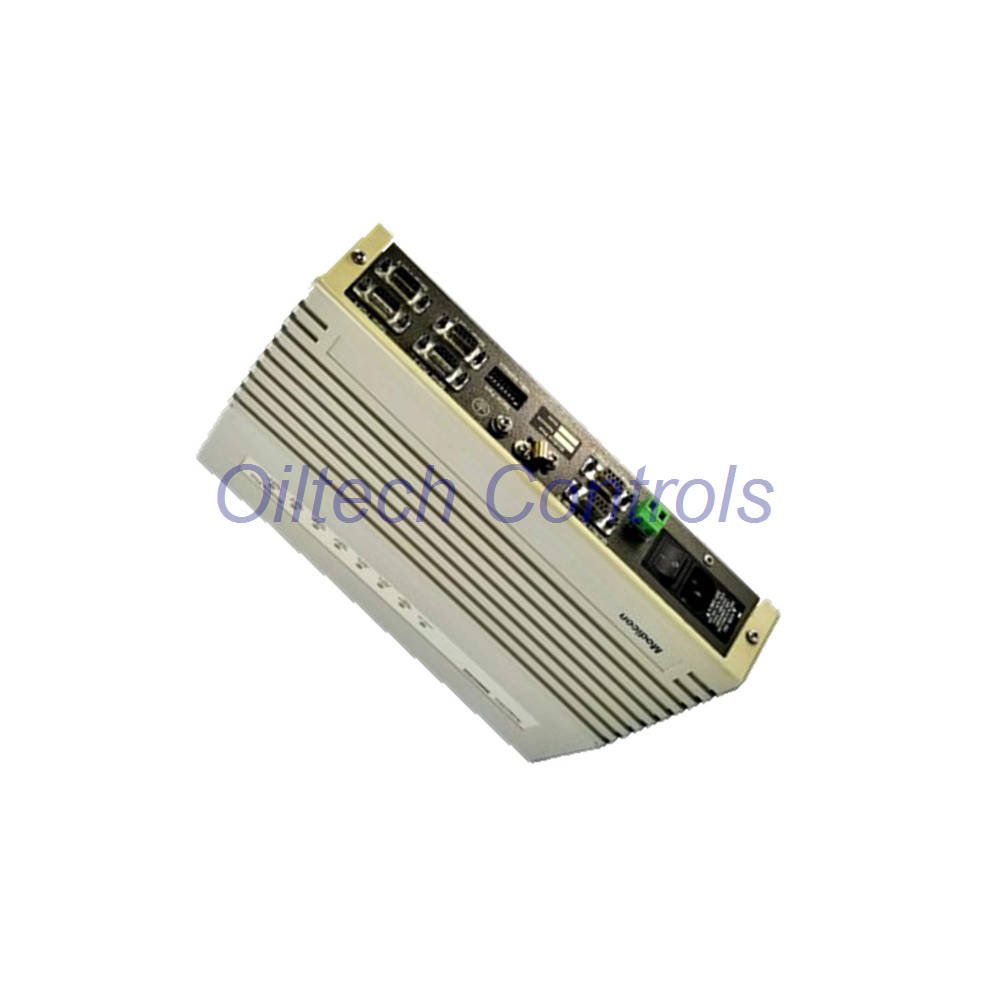

NW-BM85C002 Modicon Multiplexer Module Industrial Communication

NW-BM85C002 Schneider Electric Multiplexer Module | NW-BM85C002 Modicon Modbus Plus Unit

Overview

NW-BM85C002 is a strong multiplexer module. It helps data flow fast. It connects many devices in one network.

• Stable communication
• Easy setup
• Strong network support
• Built for industrial use

Short Description

• Multiplexer for Modbus Plus
• Supports multi-device link
• Flexible mounting
• High reliability

Key Features

• Handles complex networks
• Improves signal routing
• Reduces communication delay
• Supports priority settings
• Works with legacy systems

Main Technical Specs

• Protocol: Modbus Plus
• Data Format: 8 data bits, 1 stop bit
• Mounting: Panel or rack
• Weight: 2.27 kg
• Application: Network multiplexing

Advanced Parameters

• Operating temp: 0°C to 60°C
• Storage temp: -40°C to 85°C
• Humidity: 5%–95% non-condensing
• Power consumption: ≤10W
• Signal isolation: 500V
• Communication speed: up to 1 Mbps
• EMC protection: industrial grade

Configuration Breakdown

• Module Structure
  • Core Function
    • NW-BM85C002 multiplexer
    • Modbus Plus interface
  • Communication Setup
    • 8-bit data frame
    • Configurable priority
  • Installation
    • Panel mount
    • Rack mount
  • System Role
    • Network bridge
    • Signal distribution

Application Areas

• Industrial automation
• Process control systems
• Factory networks
• Legacy Modbus systems
• Data routing hubs

Compatibility

Works with Modicon systems and supports
Modicon Quantum.

Warranty

• 12 months warranty
• Tested before delivery
• Support service available

Shipping Options

• FedEx
• UPS
• DHL

Contact Us

• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923

FAQ

1. What is this module used for?

It connects and manages multiple network signals.

2. Is it good for old systems?

Yes. It works well with legacy Modbus Plus setups.

3. Can I install it easily?

Yes. Panel or rack mounting is simple.

4. How to choose this model?

Choose it if you need network expansion and signal control.

5. Does it improve network stability?

Yes. It helps reduce data conflict and delay.
