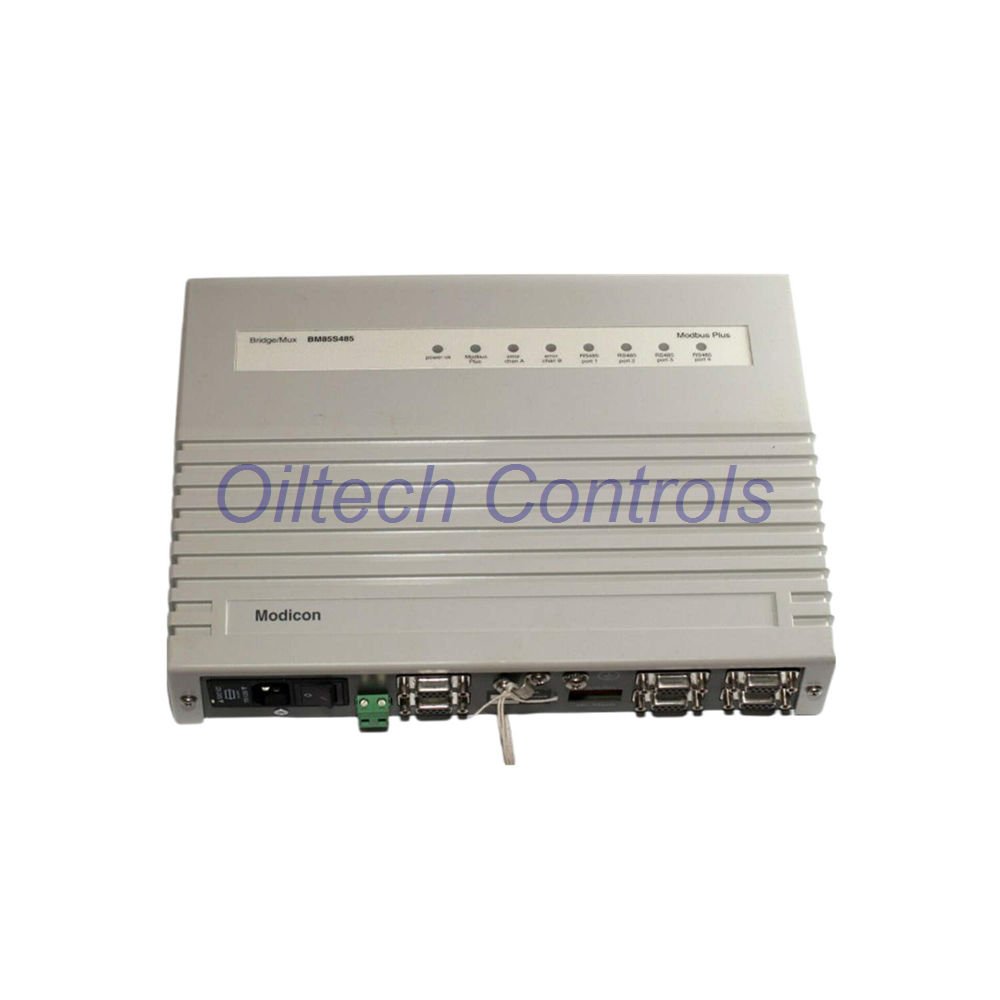

NW-BM85S485 Modicon Quantum Multiplexer Bridge Module
The NW-BM85S485 is a compact communication bridge module.
It belongs to the Modicon Quantum automation platform.
It enables stable data exchange using Modbus RTU over RS485.
This module improves network integration across industrial systems.
Communication Capabilities
- Supports Modbus RTU protocol over RS485 network.
- Handles data rates up to 115.2 kbps.
- Provides multiplexer and bridge communication functions.
- Includes 4 communication ports for flexible connections.
- Ensures stable signal transmission across devices.
Electrical & Performance Features
- Operates within 12–24V DC or 115–220V AC supply range.
- Consumes less than 1W for energy efficiency.
- Uses galvanic isolation for signal protection.
- Supports shielded twisted pair cable.
- RJ45 connector enables quick installation.
Environmental Adaptability
- Operating temperature from -20°C to +70°C.
- Storage temperature from -40°C to +85°C.
- Humidity tolerance between 5% and 95%.
- IP20 enclosure suits controlled environments.
Mechanical & Design
- Compact size simplifies cabinet integration.
- Dimensions: 100 × 50 × 25 mm.
- Weight approximately 2.07 kg.
- Rack-mounted design ensures secure installation.
Application Areas
- Industrial communication networks
- PLC system integration
- Process automation systems
- Distributed control environments
Oiltech Controls’s Insight
- This module excels in multi-device communication systems.
- It suits Modicon Quantum PLC architectures.
- Best used where stable RS485 communication is required.
- Ideal for upgrading legacy communication networks.
Warranty & Shipping
- 12-month warranty ensures product confidence.
- Dispatch within 24–48 hours after order confirmation.
- Global shipping via FedEx, UPS, DHL.
- Protective packaging for safe delivery.
FAQ
- What is the main role of this module?
- It acts as a communication bridge for RS485 networks.
- How to select this module for a system?
- Confirm protocol compatibility and required port count.
- Can it improve network stability?
- Yes, galvanic isolation reduces interference risks.
- What installation tip is important?
- Use shielded cables to maintain signal quality.
- How to order and receive quickly?
- Contact via email or WhatsApp for fast handling.
