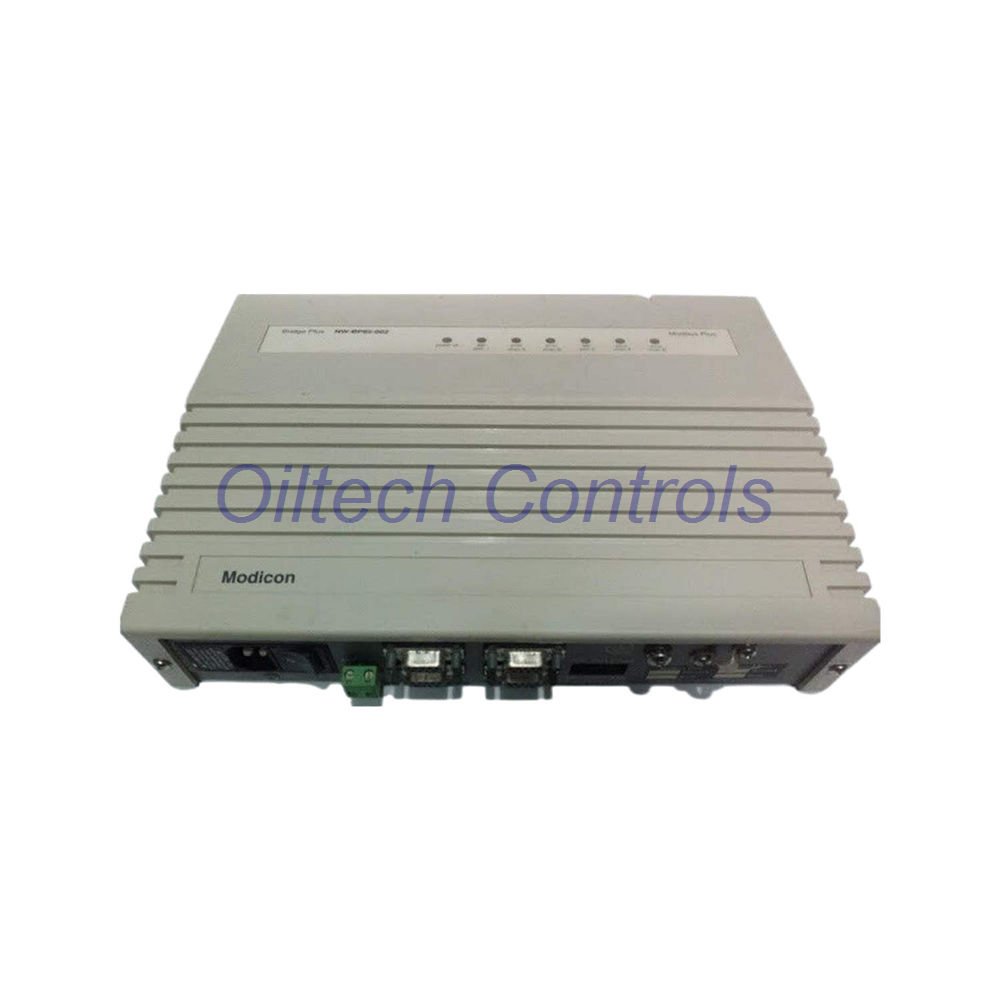

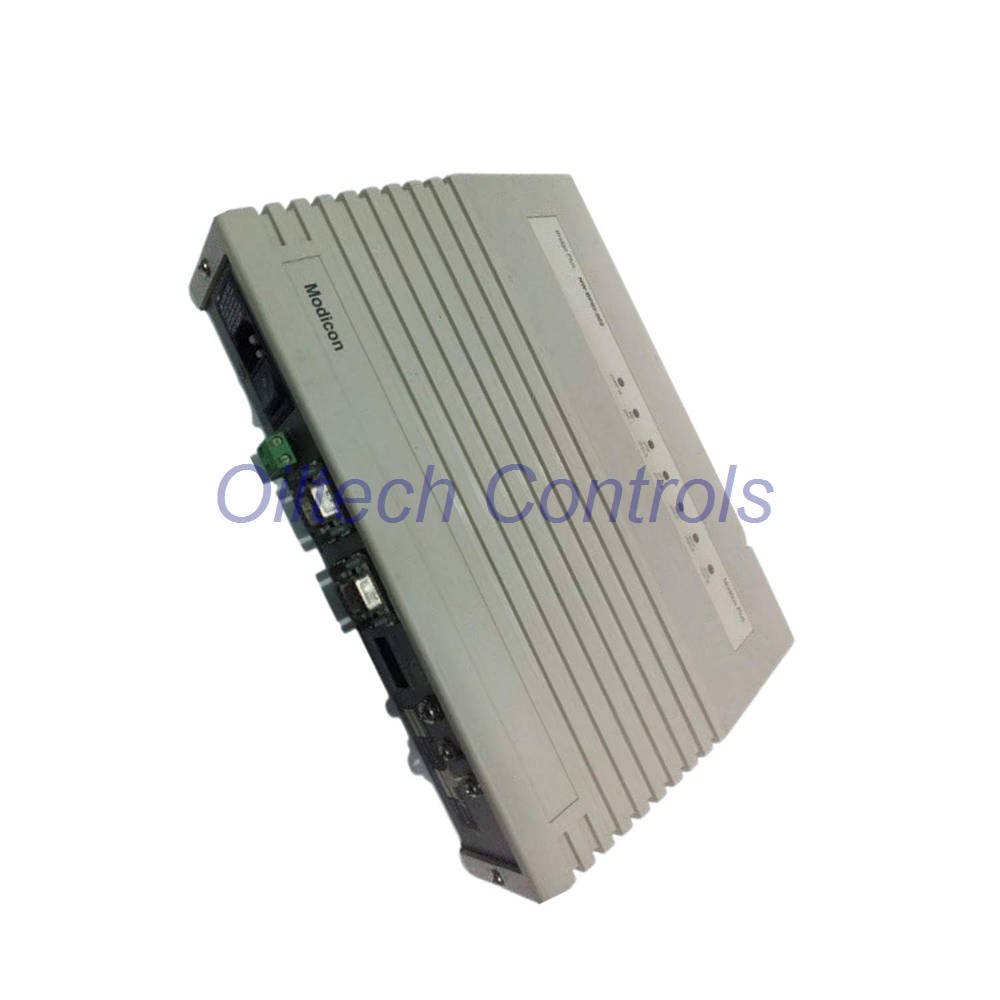

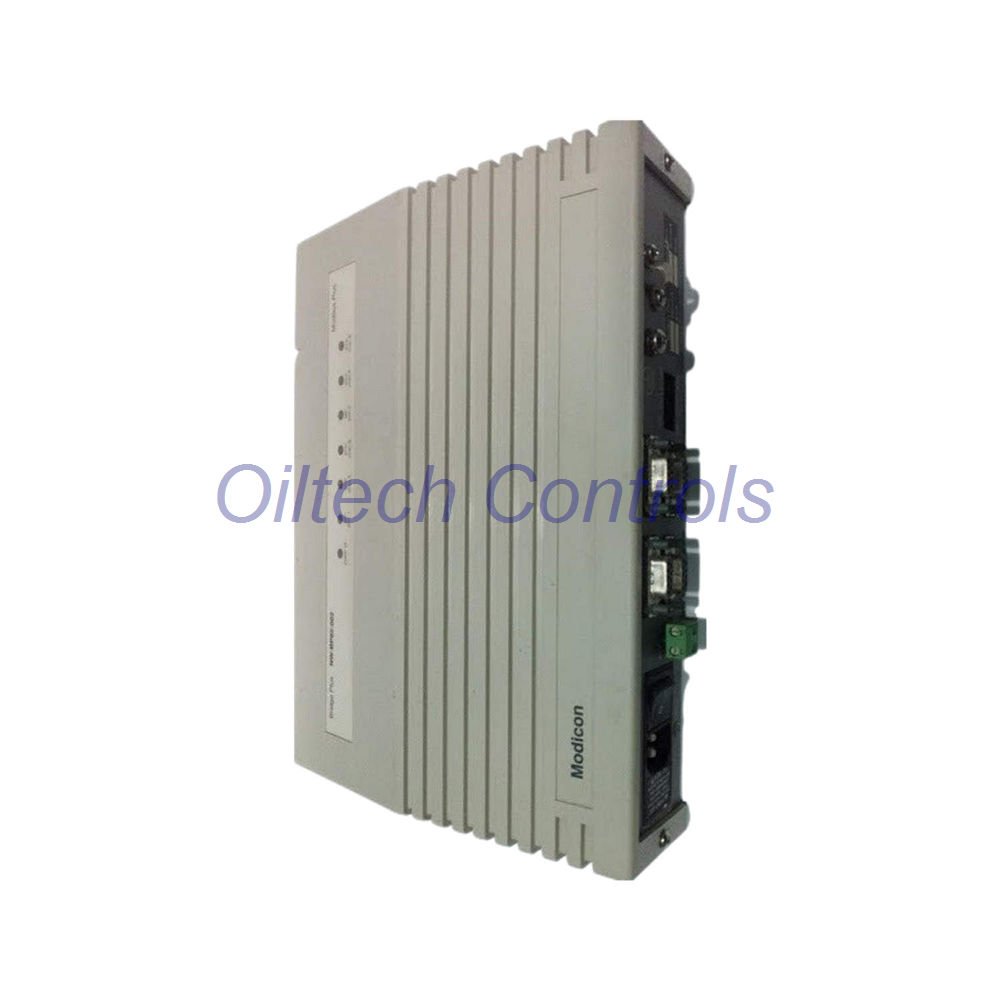

NWBP85002 Overview
NWBP85002 is a Modbus Plus bridge from Schneider Electric.
It links Modicon controllers into one stable network.
Built for long-term industrial use.
Core Selling Points
- Reliable Modbus Plus communication
- Works with Premium and Quantum PLCs
- Wide power input range
- Strong signal stability
- Flexible mounting options
Configuration Breakdown
- Power Supply
- 115–220 V AC input
- 24 V DC optional input
- Auto voltage tolerance
- Communication Structure
- 4 independent Modbus Plus ports
- High noise immunity
- Optimized data routing
- Mechanical Design
- Panel mounting ready
- Shelf mounting supported
- Compact metal housing
Extended Technical Highlights
- Application: Modicon communication assembly
- Network type: Industrial automation
- Cooling: Natural air flow
- Installation depth: optimized for cabinets
- Average MTBF: high industrial standard
System Compatibility
Designed for Modicon Premium systems.
Fully compatible with
Modicon Quantum
automation platforms.
Why Engineers Choose NWBP85002
- Reduces network bottlenecks
- Improves PLC data flow
- Easy to replace legacy bridges
- Low failure rate in harsh sites
Warranty & Logistics
- 12-month functional warranty
- 100% tested before shipment
- Shipping via FedEx, UPS, DHL
Professional FAQ
Q1: When should I add a Modbus Plus bridge?
When the network grows and needs better traffic control.
Q2: Is this better than a simple hub?
Yes. A bridge manages data paths more efficiently.
Q3: Can it mix Premium and Quantum PLCs?
Yes. It is designed for mixed Modicon networks.
Q4: Which power option should I choose?
Use AC in cabinets. Use 24 V DC for control panels.
Q5: Is panel mounting required?
No. Shelf mounting works when space is limited.
