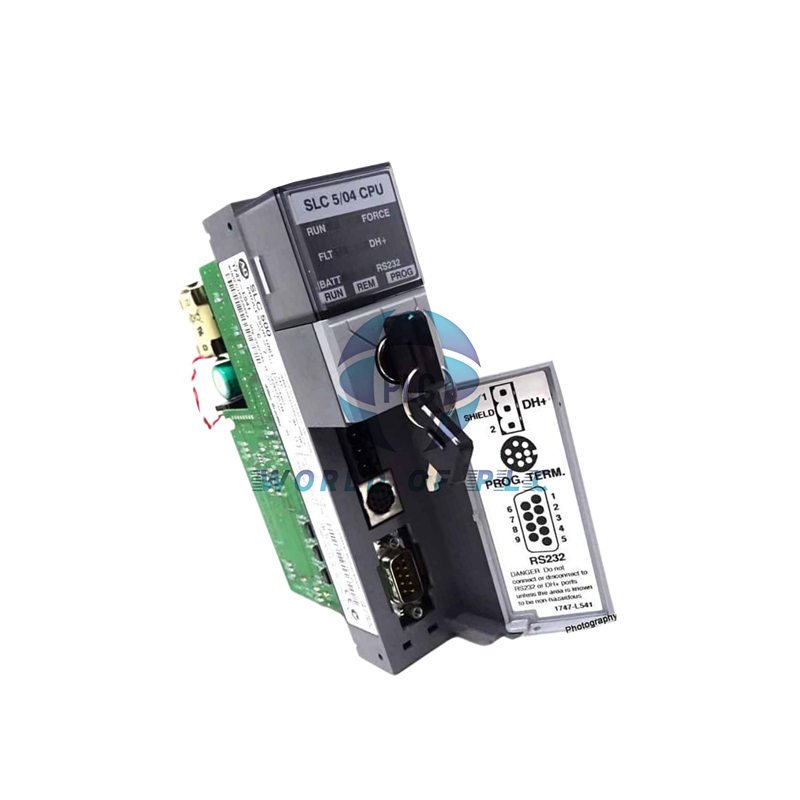

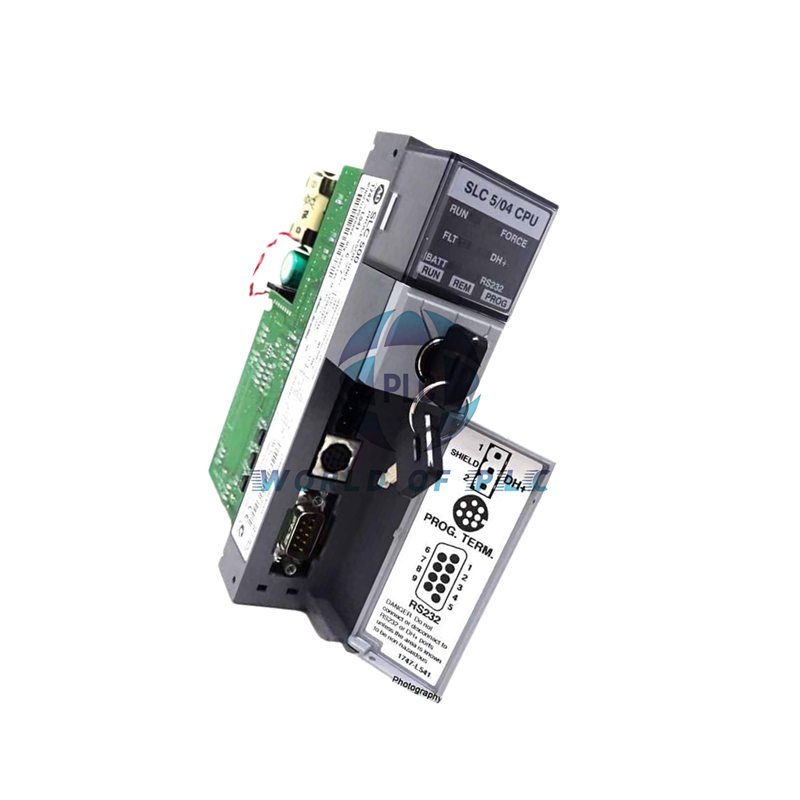

Allen-Bradley 1747-L541 SLC 5/04 Processor
Advanced control solution with the Allen-Bradley 1747-L541 processor. This powerful SLC 5/04 unit delivers high-speed performance for medium to large automation applications. Perfect for distributed control systems.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1747-L541
- Series: SLC 500
- Module Type: SLC 5/04 Processor
- User Memory: 16,000 words
- I/O Capacity: 4096 inputs, 4096 outputs
- Analog I/O: 480 points
- Program Scan Time: 0.9 ms per Kword
- I/O Scan Time: 0.225 ms
- Communication Ports: DH+, RS-232
- Backup Memory: Battery-backed RAM
- Backplane Current: 1A @ 5V DC, 200mA @ 24V DC
- Local I/O Capacity: 3 chassis, 30 slots
- Operating Temperature: 0-60°C (32-140°F)
- Interrupt Response: 1ms STI, 0.5ms DII
Warranty & Shipping
We offer a 12-month warranty on this processor. We ship worldwide via FedEx, UPS, and DHL.
Frequently Asked Questions
- What communication protocols are supported?
It supports DH+, DF1, DH-485, ASCII, and Modbus RTU protocols. - How much analog I/O can it handle?
It supports up to 480 analog I/O points. - Does it require a battery for memory backup?
Yes, it uses a 1747-BA battery for memory retention. - What is the maximum number of I/O points?
It can handle up to 4096 discrete inputs and 4096 discrete outputs. - Can it be used in distributed systems?
Yes, it supports distributed I/O with communication adapters.
Compare With Related Products
• Allen-Bradley 1747-AENTR Ethernet/IP Adapter
• Allen-Bradley 1747-BA Lithium Battery
