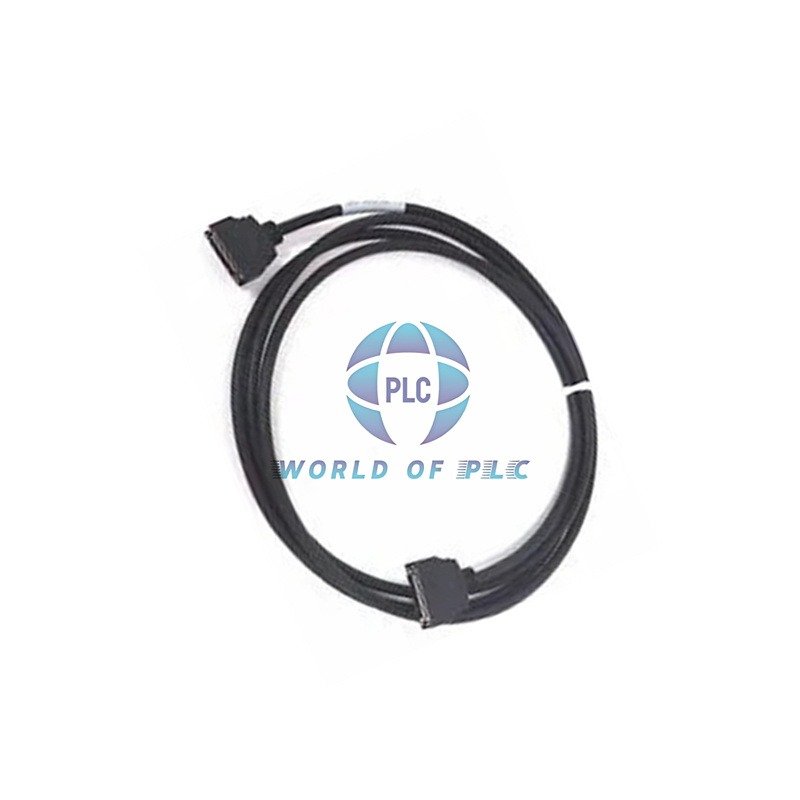

GE Fanuc IC693CBL324 Terminal Board Interface Cable

This interface cable connects DSM modules to terminal boards in GE Series 90-30 systems. It is 3.28 feet long for short-range links. The IC693CBL324 cable transfers critical I/O data for servo control.

Product Description

The IC693CBL324 cable links your DSM module to an axis terminal board. It carries signals for limit switches, home sensors, and strobe inputs. This cable is key for proper servo motor control.

Technical Specifications

• Brand: GE Fanuc
• Model: IC693CBL324
• Series: Series 90-30
• Cable Type: Shielded Interface Cable
• Cable Length: 3.28 Feet (1.0 Meter)
• Wire Gauge: 28 AWG
• Connectors: Two 36-pin connectors
• Shielding: Yes, for noise protection
• Voltage Rating: 60V DC
• Current Rating: 1A per contact
• Weight: 2.0 lbs (0.9 kg)

Compatibility

Works with Series 90-30 DSM modules and IC693ACC336 Auxiliary Terminal Board or IC693ACC355 Axis Terminal Board.

Package Contents

• 1 x IC693CBL324 Interface Cable

Shipping & Warranty

We ship worldwide via FedEx, UPS, and DHL. Includes a 12-month warranty on all parts.

Frequently Asked Questions

• What is the main purpose of this cable?
  It connects a DSM module to a terminal board to access I/O points like limit switches and home sensors.
• What is the difference between IC693CBL324 and IC693CBL325?
  The IC693CBL325 is 3 meters long, while this IC693CBL324 is 1 meter long.
• Which port on the DSM module does this cable use?
  It connects to the PL2 connector on the DSM module.
• Can I use this cable for analog servo connections?
  Yes, it supports both digital and analog servo connections through the terminal board.
• Do I need a special tool to connect the cable?
  No, the connectors are designed for tool-less installation. Just plug them in firmly.
