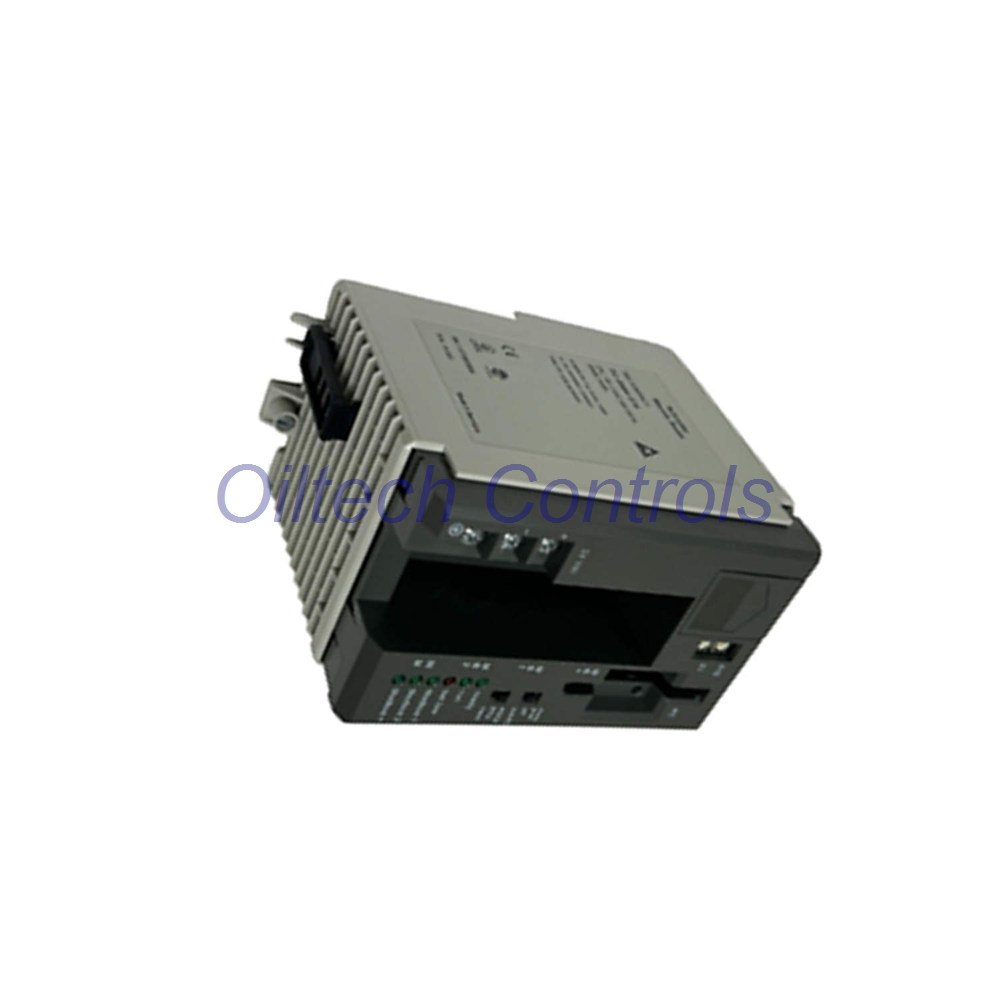

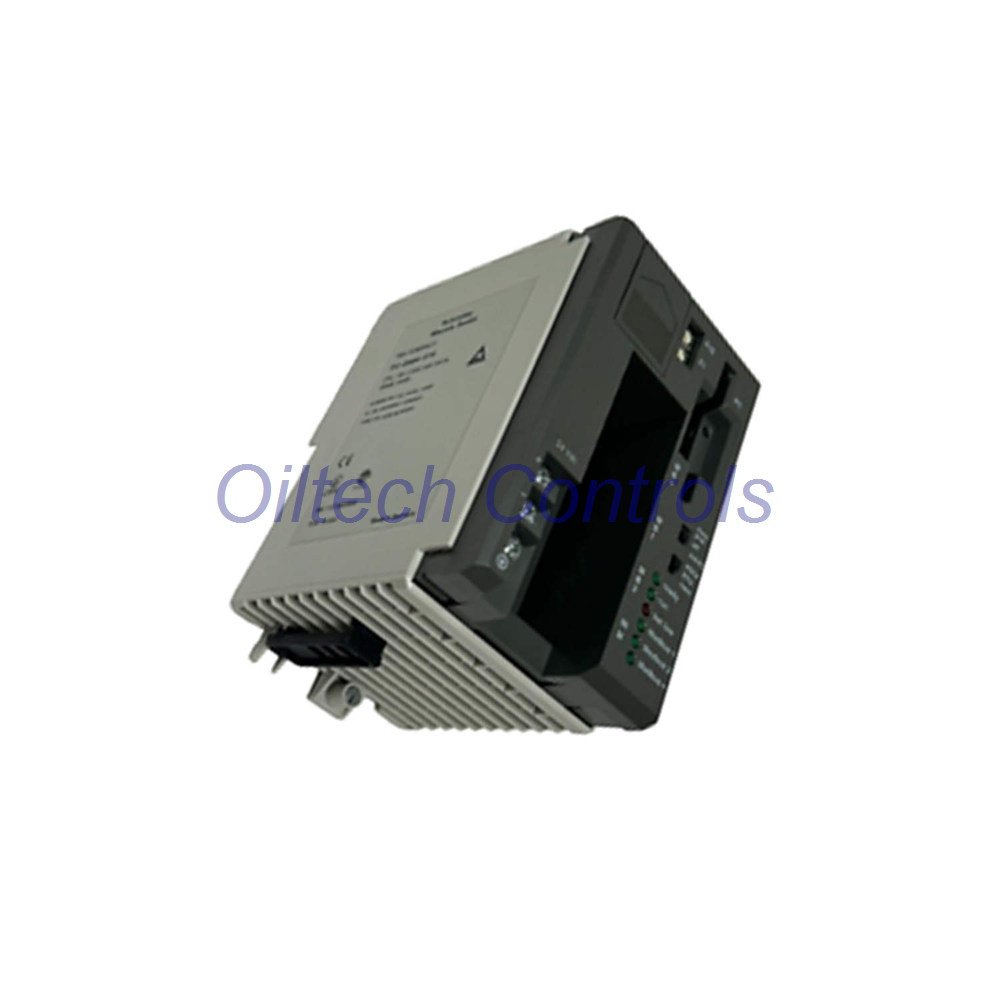

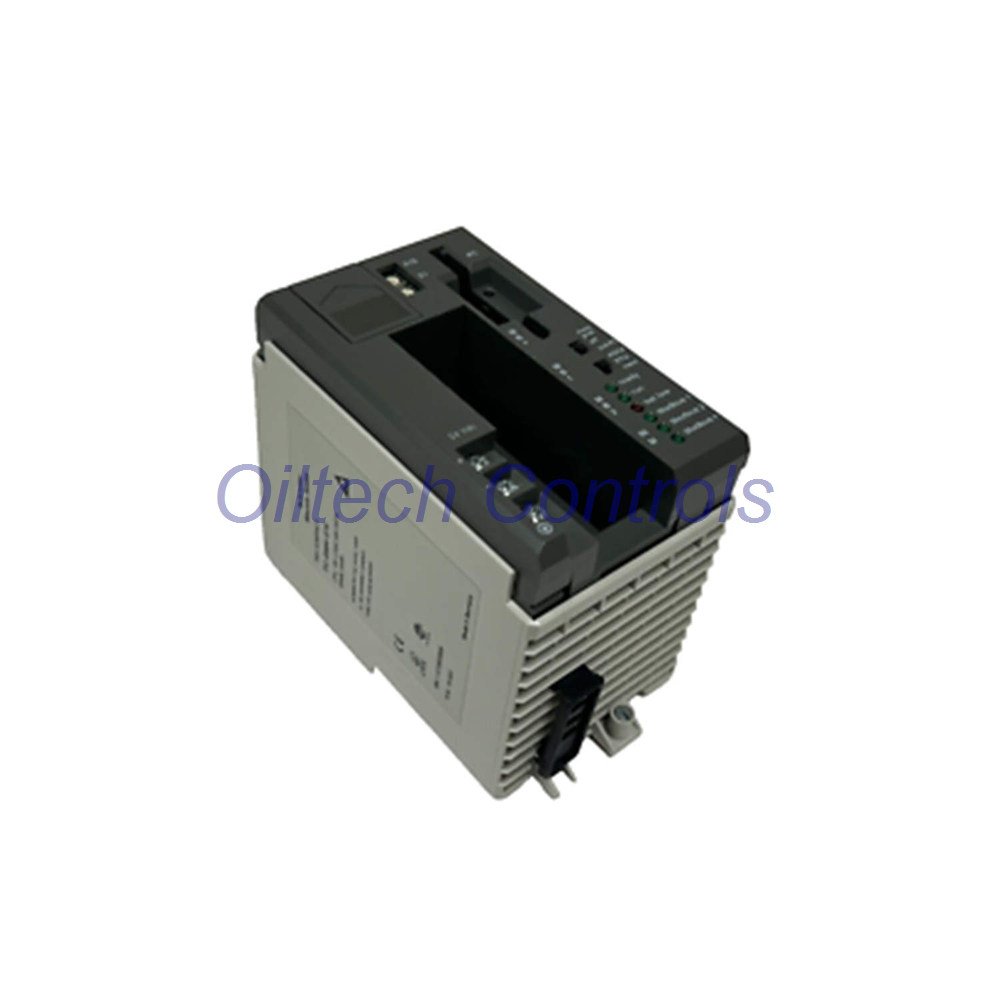

PC-E984-275 Schneider Electric CPU Module | Modicon Controller

PC-E984-275 | High Performance PLC CPU

• Brand: Schneider Electric
• Model: PC-E984-275
• Series: Modicon
• Type: CPU Module
• Voltage: 24V DC
• Current: 1A
• Warranty: 12 Months

PC-E984-275 is designed for stable industrial control.
It offers strong memory, fast scan speed, and reliable communication.

Performance Specifications

• User Memory: 512 KB
• Registers: 1920
• Scan Time: 2.5 ms/k
• Local I/O: 256 Points
• Total I/O: 512 Input / 512 Output
• I/O Drops: 1
• Maximum Racks: 4
• Program Support: Ladder Logic
• Diagnostics: Built-in Self Test

Communication Interface

• 2 × Modbus Ports
• 1 × Modbus+ Port
• Multi-device Networking
• Industrial Serial Stability

For larger distributed systems, please check Modicon Quantum

Electrical & Environmental Data

• Voltage Range: 20.4–28.8V DC
• Power Consumption: Approx. 24W
• Operating Temp: 0°C to 60°C
• Storage Temp: -40°C to 85°C
• Humidity: 5%–95% Non-Condensing
• Cooling: Natural Air
• Mounting: Rack Install
• Weight: 1.36 kg

Configuration Breakdown

• PC-E984-275
  • Power Layer
    • 24V DC Input
    • 1A Rated Current
  • CPU Layer
    • 512KB Memory
    • 1920 Registers
    • Fast 2.5 ms/k Scan
  • I/O Layer
    • 256 Local Points
    • 512/512 Total Capacity
    • 4 Rack Expansion
  • Network Layer
    • Dual Modbus
    • Single Modbus+

Main Advantages

• Large memory capacity
• Strong network support
• Scalable rack system
• Stable 24V DC design
• Industrial grade durability
• Easy integration

Warranty & Shipping

• 12-Month Warranty
• Fully Tested Before Delivery
• Shipping via FedEx / UPS / DHL
• Worldwide Fast Delivery

Contact Us:
Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
Partner: Powergear X Automation Limited

Professional FAQ

1. Is PC-E984-275 good for medium size plants?

Yes. It supports up to 4 racks and 512/512 I/O.

2. How do I choose between this and a small PLC?

Choose this model if you need more memory and more communication ports.

3. What power supply should I use?

Use a stable 24V DC industrial power supply with good grounding.

4. Can it connect to legacy systems?

Yes. The Modbus+ port supports older network systems.

5. How do I confirm compatibility?

Check rack type, I/O count, voltage, and communication setup before purchase.
