PLX32-EIP-PND ProSoft Module EtherNet/IP PROFINET IO Controller

Product Introduction

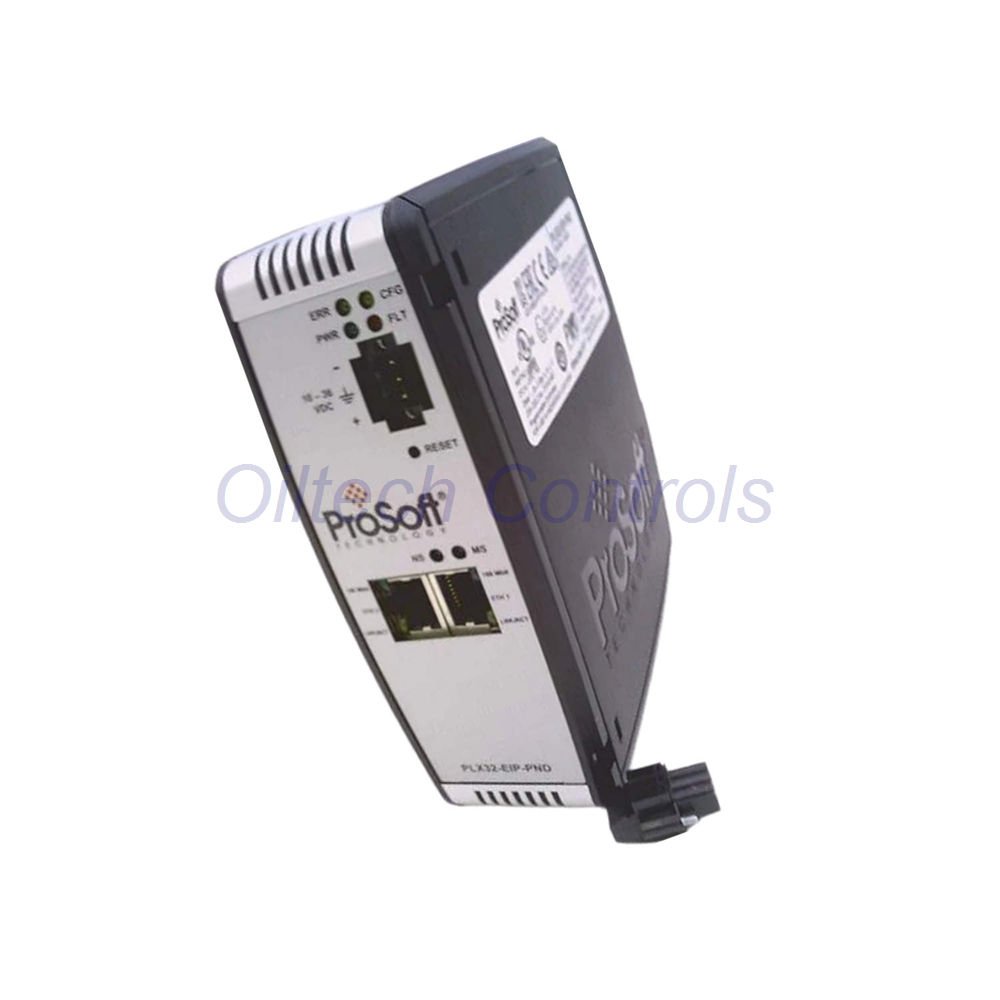

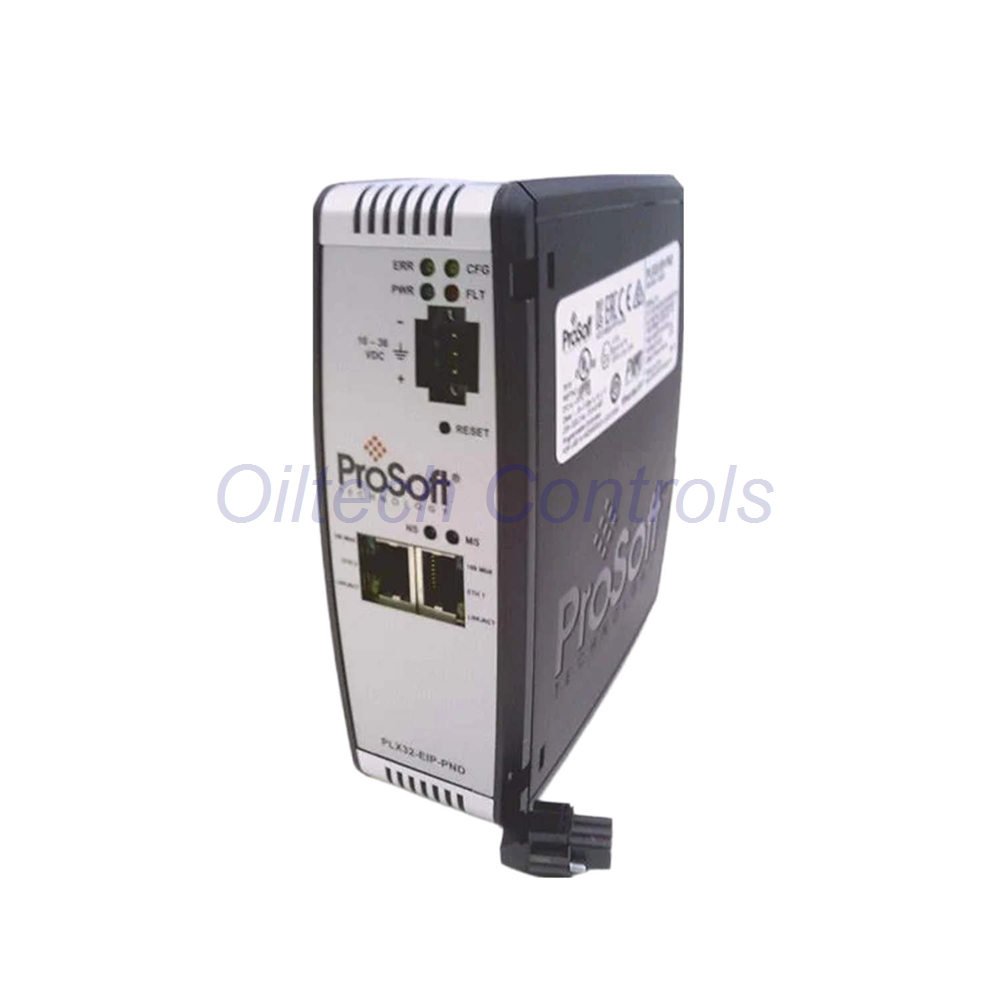

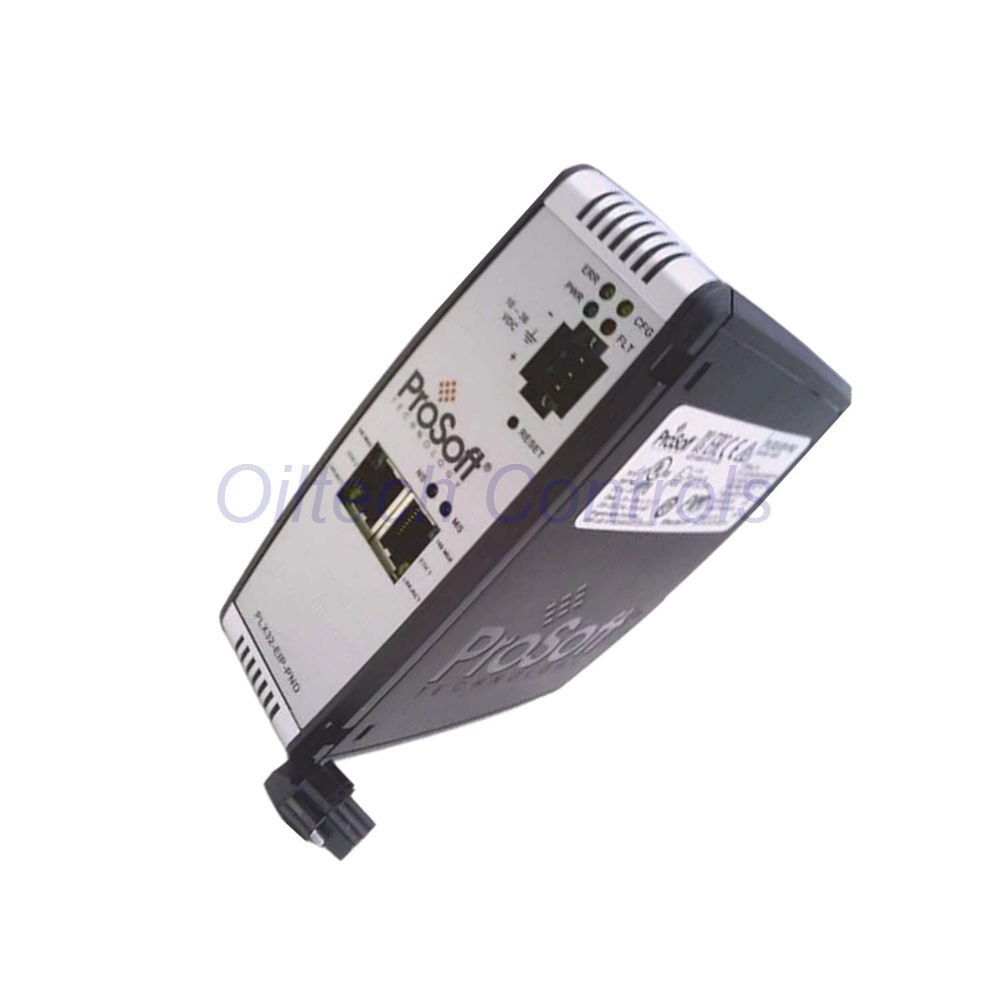

• The ProSoft Technology PLX32-EIP-PND is a high-performance protocol gateway for industrial system integration.
• It enables bi-directional data exchange between EtherNet/IP and PROFINET networks with high reliability.
• This stand-alone unit features two Ethernet ports to support two different subnets simultaneously.
• Engineers use this module to bridge Allen-Bradley Logix platforms with Siemens or other PROFINET controllers.
• It eliminates complex ladder programming by using standard Class 1 I/O connections.

Technical Specifications

• Brand: ProSoft Technology
• Model: PLX32-EIP-PND
• Data Capacity: Up to 10,000 16-bit registers for large data packets.
• EtherNet/IP Driver: Supports 8 Class 1 I/O connections and Class 3 Messaging.
• PROFINET Driver: Operates as a PROFINET Class A device for cyclic data.
• I/O Data Size: 1440 bytes IN and 1440 bytes OUT for maximum throughput.
• Update Speed: Minimum RPI time of 5 ms per connection for real-time control.
• Operating Temperature: Robust performance from -25°C to 70°C in harsh environments.
• Power Requirements: 24 VDC nominal with a wide 10 to 36 VDC input range.
• Mechanical Design: Compact DIN-rail mounted unit for easy cabinet installation.
• Isolation: 1500 Vrms electrical isolation protects your network hardware from surges.
• Configuration: Integrated SD Card slot allows for rapid recovery and backup.

Connectivity and Compatibility

• Supports CLX, CMPLX, PLC5, and SLC 500 via EtherNet/IP protocol.
• Seamless integration into Studio 5000 using the provided embedded EDS AOP.
• Compatible with PCCC and CIP message types to support legacy industrial systems.
• The dual RJ45 ports allow secure communication across separate network subnets.
• Field-tested with multiple PROFINET controllers to ensure multi-vendor interoperability.

Installation and Maintenance

• Mount the PLX32-EIP-PND on a standard 35mm DIN-rail for secure vibration resistance.
• Connect the 24V power supply to the included J180 power connector.
• Use the onboard SD slot to transfer settings to a new gateway quickly.
• Diagnose network health and traffic remotely through the embedded web server.
• Secure hardware settings using the physical module switch on version 1.04 or greater.
• Email technical inquiries to info@oiltechcontrols.com for expert engineering support.

Certifications and Durability

• ODVA Approved ensures full compliance with EtherNet/IP industrial standards.
• PROFINET v2 certified with Class A compliance for stable network performance.
• Shock resistance rated at 15G operational to withstand industrial machinery movement.
• Vibration resistance meets IEC 60068-2-6 standards for high-reliability automation.
• Advanced Broadcast Storm Resiliency prevents network crashes during high traffic loads.

Applications and Shipping

• Typical use: Bridging Rockwell Automation hardware with Siemens S7 series controllers.
• Ideal for integrating PROFINET sensors into an existing EtherNet/IP SCADA system.
• 12-Month Warranty provided on all PLX32-EIP-PND units for peace of mind.
• Fast global shipping via FedEx, UPS, and DHL for urgent project requirements.
• Contact our team on WhatsApp: +86 158 8020 0923 for shipping quotes.

Frequently Asked Questions

• Does it require ladder logic? No, it uses I/O connections for automatic data mapping.
• Is the SD card included? The SD card is optional and not included in the box.
• Can I bridge different subnets? Yes, each 10/100Mbit port supports a different subnet.
