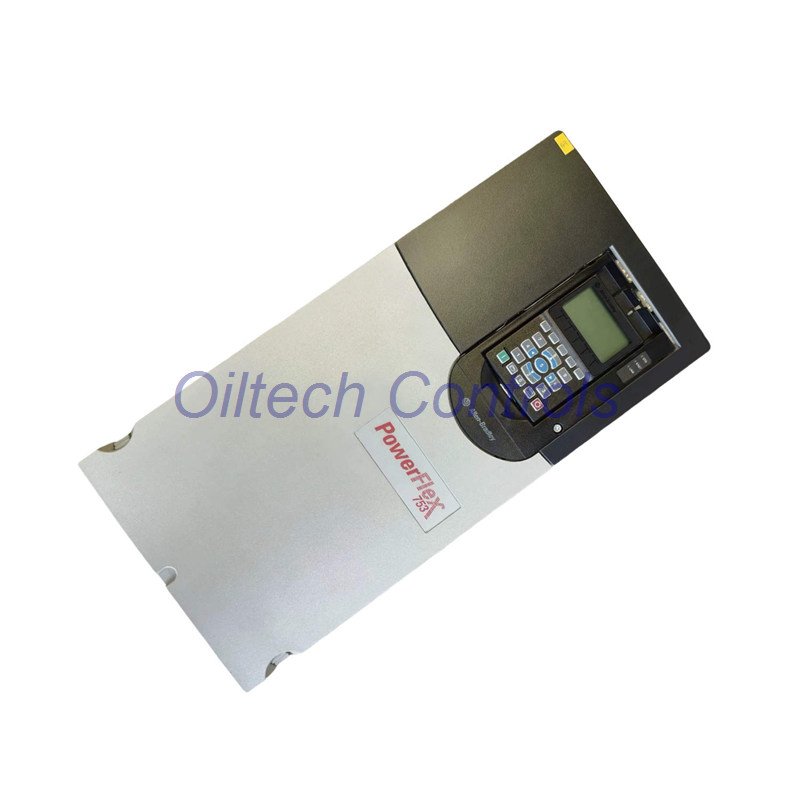

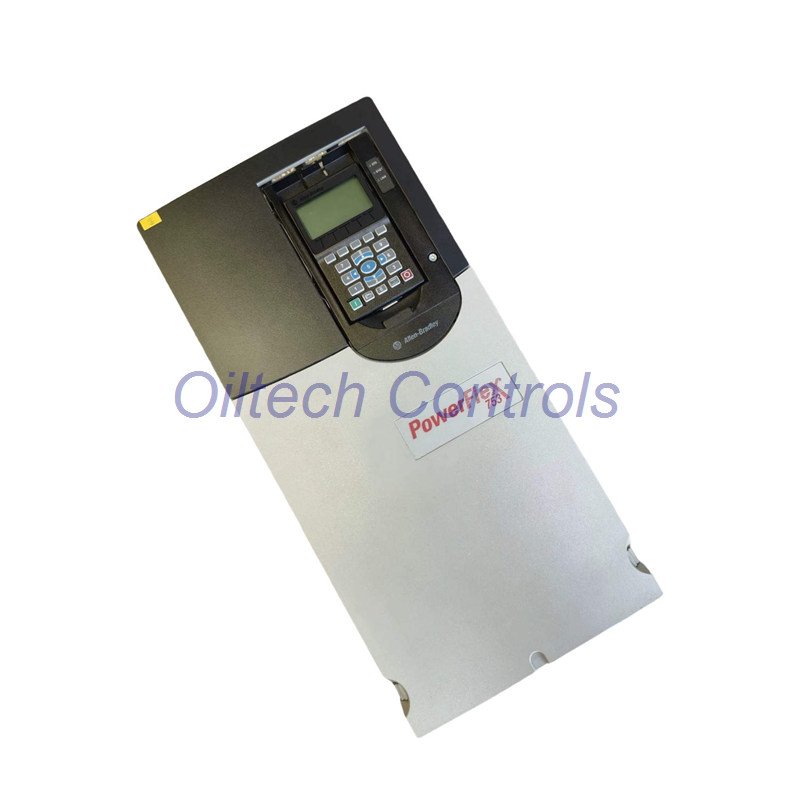

Allen-Bradley PowerFlex 753 AC Drive 20F11NC072JA0NNNNN
The Allen-Bradley 20F11NC072JA0NNNNN is a PowerFlex 753 series variable frequency AC drive.
It handles 72 A current and 400V AC / 540V DC voltage.
Embedded I/O and open-frame design simplify integration.
Ideal for industrial 3-phase motor control systems.
Key Features
- Frame Size: 4, vertical panel mount.
- Open type enclosure for easy access.
- Embedded I/O included for direct connectivity.
- Three option slots for safety, feedback, or communication modules.
- Dynamic braking transistor integrated.
- Common Mode (CM) jumper pre-installed.
Electrical & Power Specs
- Rated Current: 72 Amps
- Power Rating ND: 37 kW
- Power Rating HD: 30 kW
- Input Phase: 3-phase
- Voltage: 400V AC / 540V DC
- Frequency Range: 50/60 Hz compatible
- PowerFlex 753 AC input with precharge and DC terminals
Mechanical & Cooling
- Cooled design ensures reliable operation.
- Vertical mounting for efficient panel use.
- Open-frame access simplifies installation and maintenance.
- Lightweight at 27.22 kg for easy handling.
Protection & Reliability
- Filtered design for cleaner power output.
- Stable performance under varying loads.
- No dynamic braking resistor included (transistor-based only).
- Designed for non-condensing environments.
Applications
- Pumps, fans, and compressors.
- Conveyors and mixers in factories.
- Industrial HVAC systems.
- Custom motor control panels.
Warranty & Shipping
- 12-month warranty included.
- Shipping via FedEx, UPS, DHL.
- Secure packaging with documents included.
Professional FAQ
- Can this drive operate in high humidity?
- Yes, up to 80% non-condensing is safe.
- Does it support heavy-duty motors?
- Yes, HD rating allows up to 30 kW applications.
- Is additional braking hardware required?
- No, the integrated transistor handles dynamic braking.
- Can I expand functionality?
- Yes, three option slots allow for modules.
- How is installation simplified?
- Open-frame and CM jumper pre-installed for fast setup.
