Strong AC Drive For Big Machines

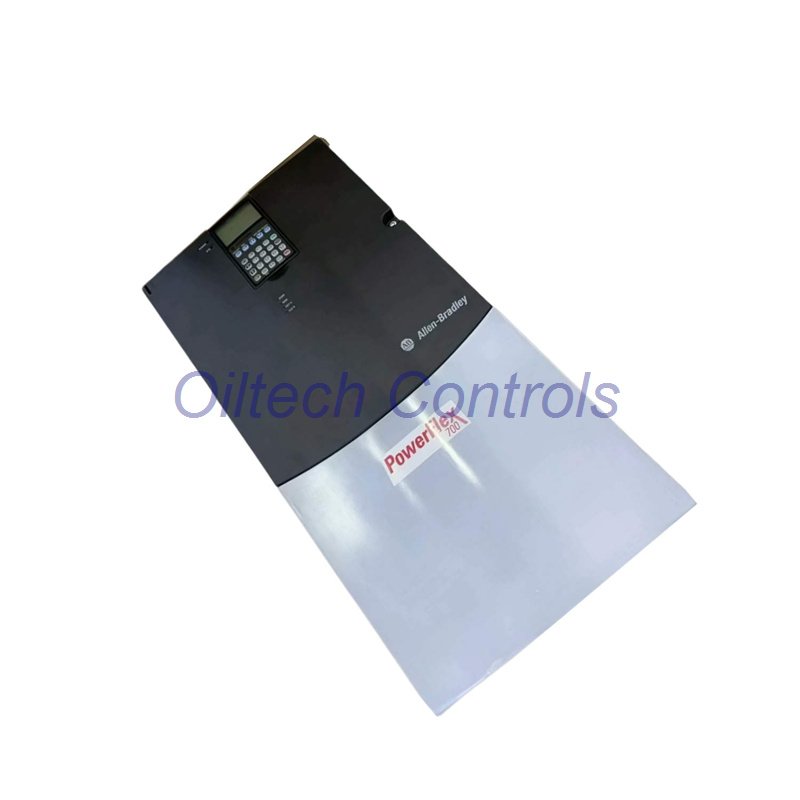

The Allen Bradley 20F11ND096JA0NNNNN is a PowerFlex 753 drive. This AC drive controls motor speed. It gives you 75 horsepower for heavy work. It works with 480 volt power systems. The 20F11ND096JA0NNNNN is reliable for factories.
Drive Specifications
- Brand & Model: Allen Bradley 20F11ND096JA0NNNNN
- Series: PowerFlex 753 AC Drive
- Horsepower: 75 HP for strong power
- Current: 96 Amps output rating
- Voltage: 480V AC / 650V DC input
- Phase: 3-phase power needed
- Frequency: 47 to 63 Hertz range
- Cooling: Air cooling for heat control
- Braking: Has internal braking transistor
- Filter: Includes power filter
- Operating Temp: 0°C to 40°C range
- Storage Temp: -40°C to 70°C safe
- Weight: 85 pounds total weight
- Warranty: 12 months full coverage
Key Features
- 75 horsepower for heavy equipment
- Built-in braking for motor control
- Power filter reduces electrical noise
- Works in wide temperature range
- Forced air cooling keeps drive cool
- Standard protection for safety
- Common mode jumper installed
- Three-phase power system
Package & Shipping
- One complete AC drive unit
- All needed installation papers
- Tested and ready for use
- Strong protective packaging
- Shipping via FedEx, UPS, DHL
- Tracking number provided
Installation Guide
- Install in clean, dry place
- Keep temperature 0-40°C
- Connect to 480V, 3-phase power
- Use correct wire for 96A
- No HIM module included
- Need separate control method
Questions & Answers
What does this AC drive do?
It controls speed for 75HP motors. Use it for pumps, fans, conveyors.
Is there a control panel included?
No, this model has no HIM. Use software or buy separate HIM.
Why is the braking transistor important?
It stops motors fast. This prevents damage and is safer.
How to pick the correct drive?
Match the amps (96A) and volts (480V) to your motor.
What is a common setup mistake?
Not enough air flow. Drives need cool air to work right.
