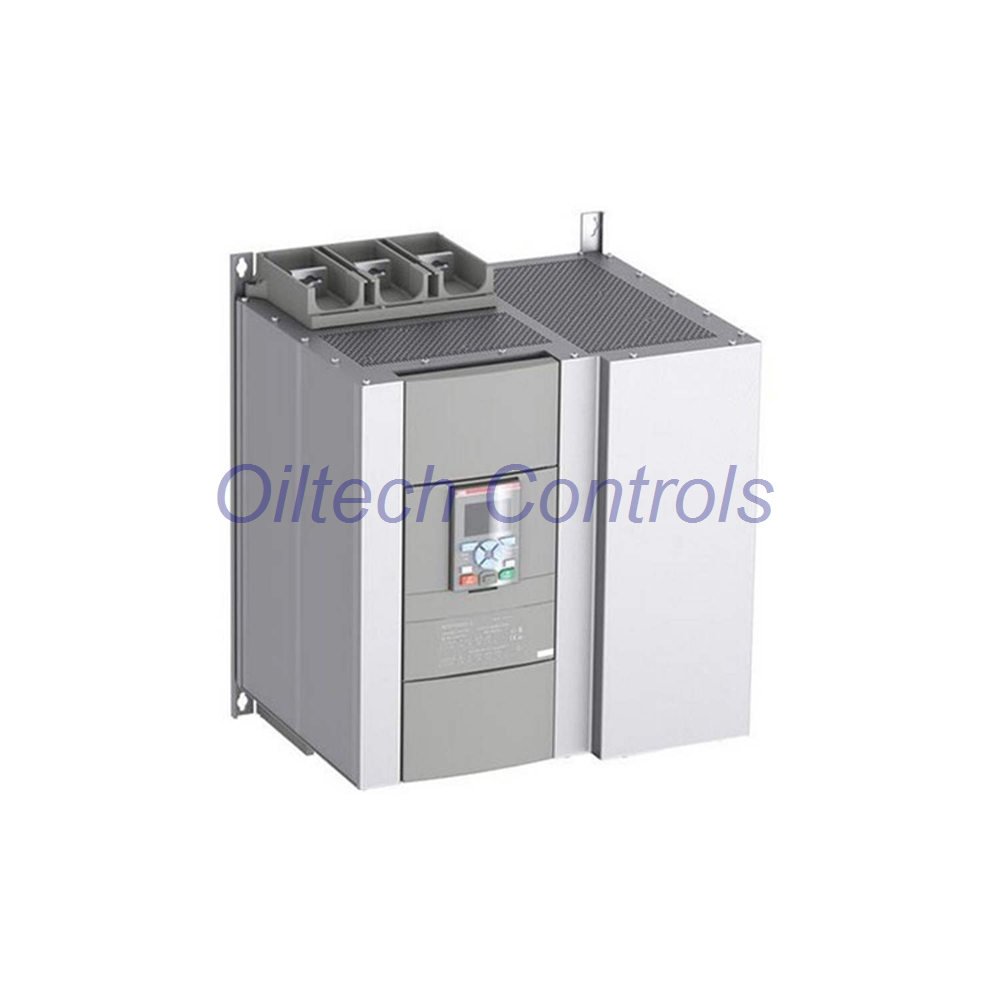

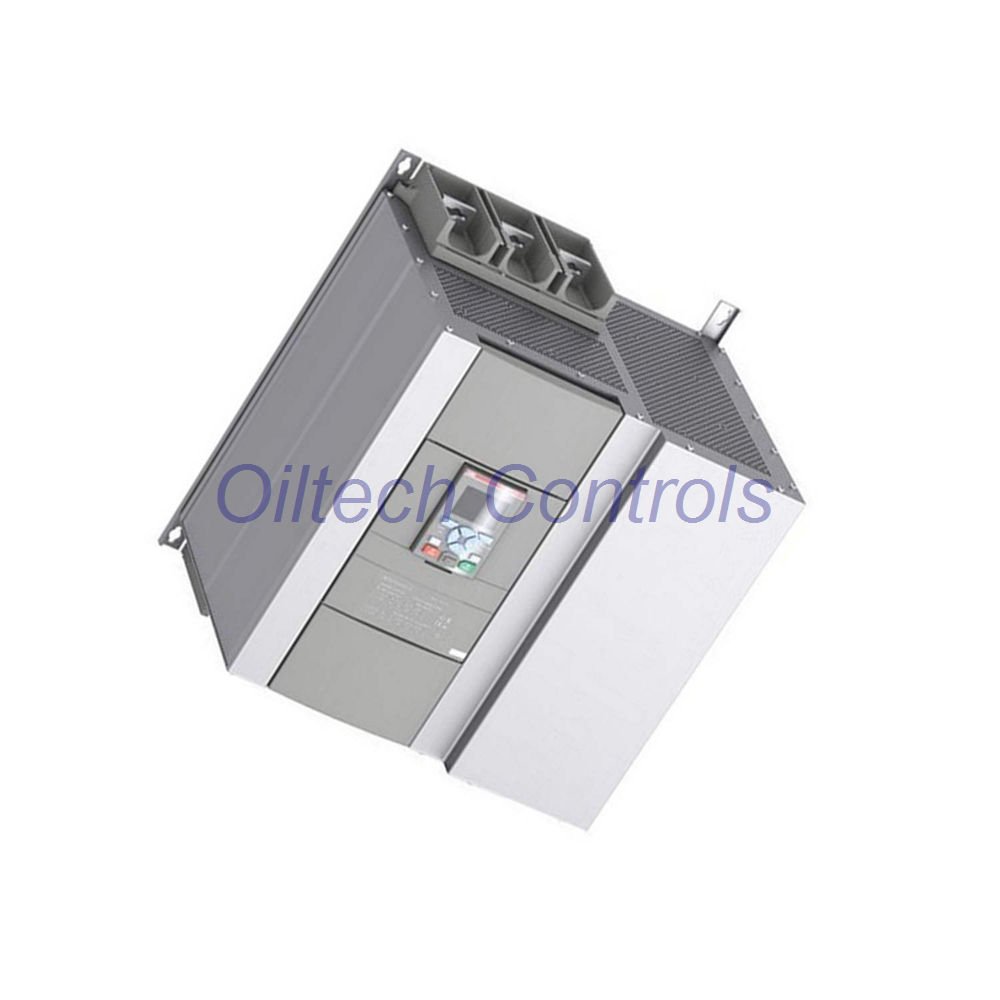

PSTX1050-600-70 ABB Motor Soft Starter Module

PSTX1050-600-70 ABB Softstarter Overview

PSTX1050-600-70 is a high-performance softstarter for medium to large three-phase motors.
Supports smooth start/stop using voltage or torque ramps.
Built-in bypass reduces energy use and simplifies installation.
Detachable full graphic display IP66 rated for outdoor use.
Multiple communication options: Modbus, Profinet, Profibus, Ethernet IP, CANopen.
Ideal for pumps, fans, compressors, conveyors, and industrial applications.

Key Features and Advantages

• Model: PSTX1050-600-70
• Main circuit current: 1050 A
• Operational voltage: 208–600 V AC
• Inline connection power: 315–730 kW depending on voltage
• Inside Delta connection power: 500–1250 kW
• Adjustable ramp time: 1–120 s
• Initial voltage: 10–99% for start
• Step-down voltage: 100–10%
• Current limit: 1.5–7.5×Ie
• Built-in electronic overload protection
• Relay outputs: RUN, TOR, Event, Bypass, Fault, Overload
• Analog outputs: 0–10 V, 0–20 mA, 4–20 mA
• LED indicators: Ready (green), Running (green), Protection (yellow), Fault (red)

Control and Communication

• Rated control supply: 100–250 V AC
• Control circuit: 24 V DC
• Frequency: 50/60 Hz
• Inputs: Start/Stop/Reset and 3 programmable digital inputs
• Fieldbus options: Modbus RTU/TCP, Profinet, Profibus, EtherCAT, DeviceNet, Ethernet IP, BACnet
• External adaptor or Fieldbus plug for communication
• Full diagnostic features including event log and emergency pump mode

Mechanical and Physical Data

• Dimensions: 435 × 515 × 367 mm (W×H×D)
• Weight: 62.3 kg net, 74.3 kg gross
• Main terminals: bars, suitable for high current connection
• Tightening torque: main 45 N·m
• Compact design for panel mounting

Environmental and Compliance

• Operation temperature: −25–60°C, storage −40–70°C
• Degree of protection: IP00 for main terminals
• RoHS II, REACH compliant
• Conflict Minerals Reporting Template certified
• CE, DNV, CQC declarations
• WEEE Category: 4 Large Equipment

Installation and Usage Guidelines

• Install in ventilated control panel
• Connect main and control circuits per torque requirements
• Configure ramp time, initial voltage, and current limit for motor
• Monitor LED and relay signals for safe operation
• Use fieldbus or digital inputs for advanced communication

Industrial Applications

• Pump stations and booster pumps
• Fan and HVAC motor control
• Industrial compressors
• Conveyor and processing lines
• Emergency or fire pump systems

Professional FAQ

• Which motors are compatible with PSTX1050-600-70?
• Suitable for three-phase motors 30–1250 A inline or 52–2160 A inside delta.
• Can it manage high inrush currents?
• Yes, supports 4×Ie for 10 seconds with current limit function.
• What communication options are available?
• Modbus RTU/TCP, Profinet, Profibus, EtherCAT, DeviceNet, BACnet, optional Anybus modules.
• Is it suitable for outdoor installation?
• Yes, detachable display is IP66 rated for outdoor environments.
• How can I save energy with PSTX1050?
• Use built-in bypass and adjustable voltage ramps to reduce power loss.

Warranty and Shipping

• 12-month warranty included
• Ships worldwide via FedEx, UPS, DHL
• Industrial-grade packaging with protection
• Reliable delivery tracking
