Overview

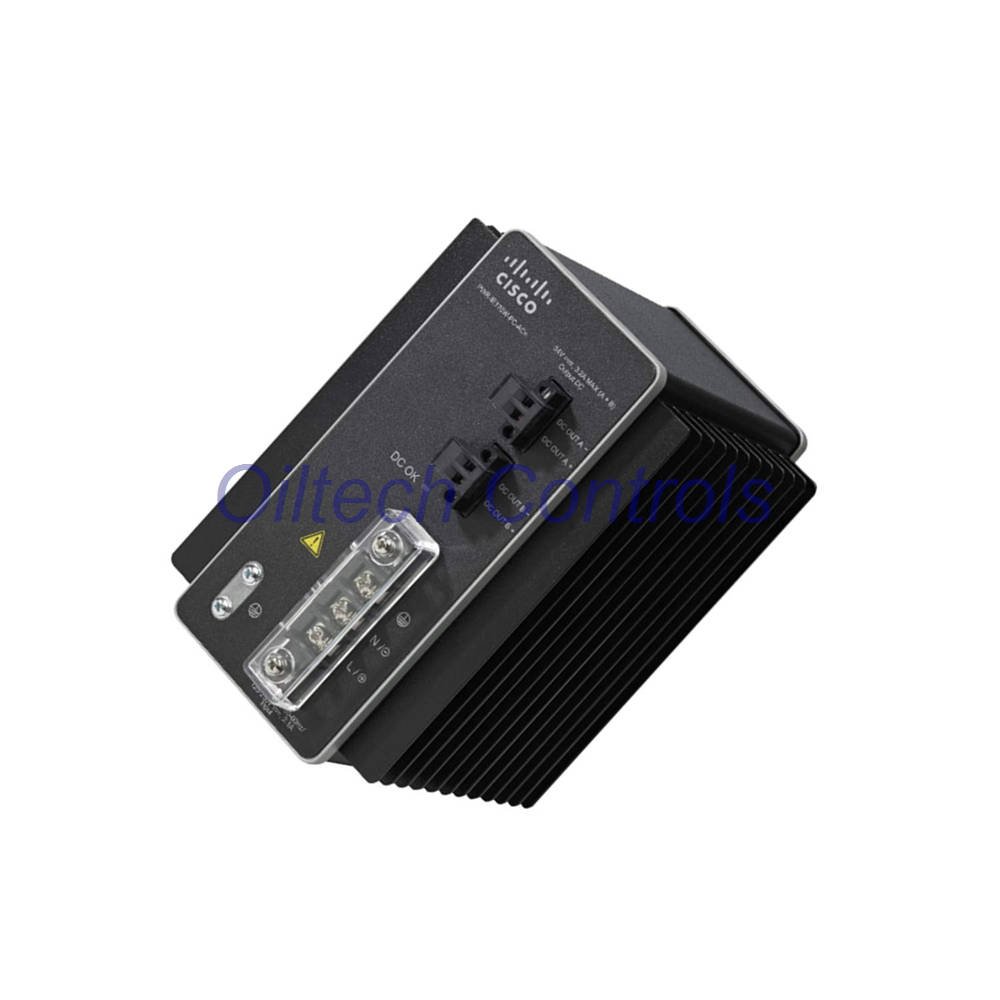

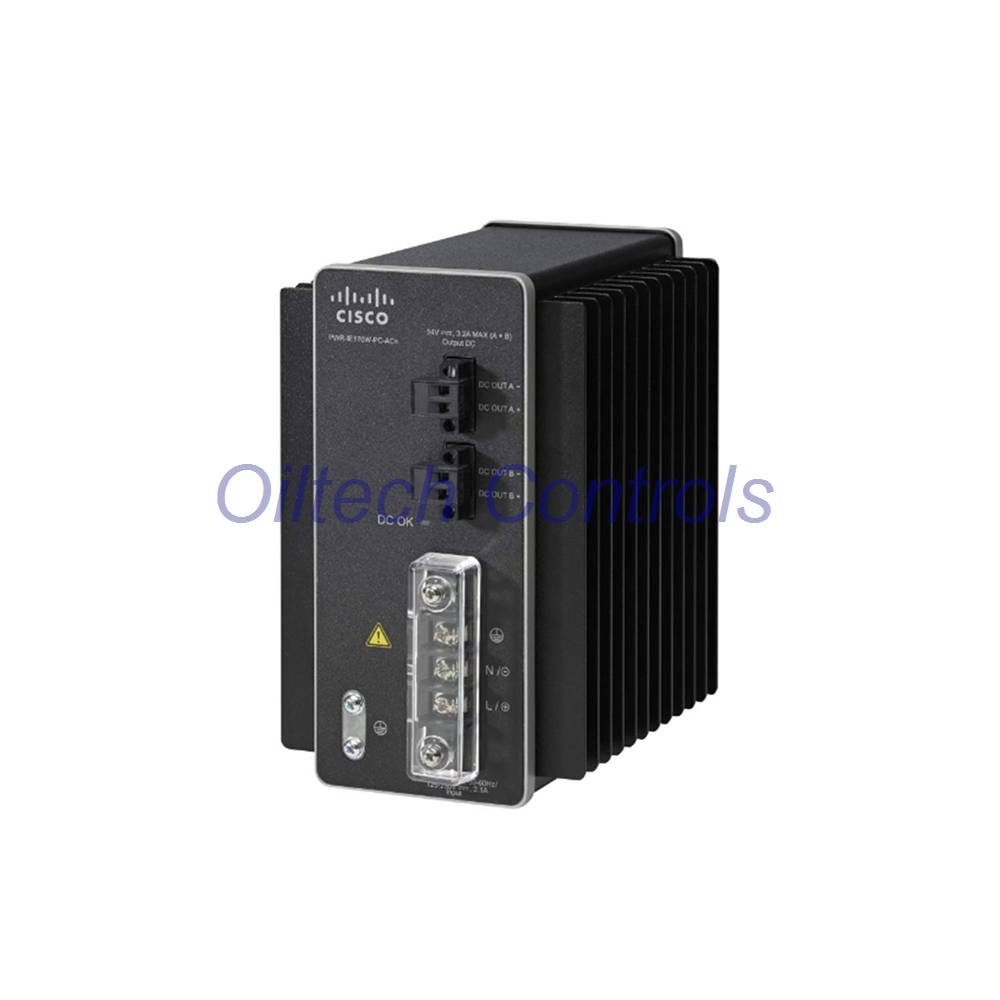

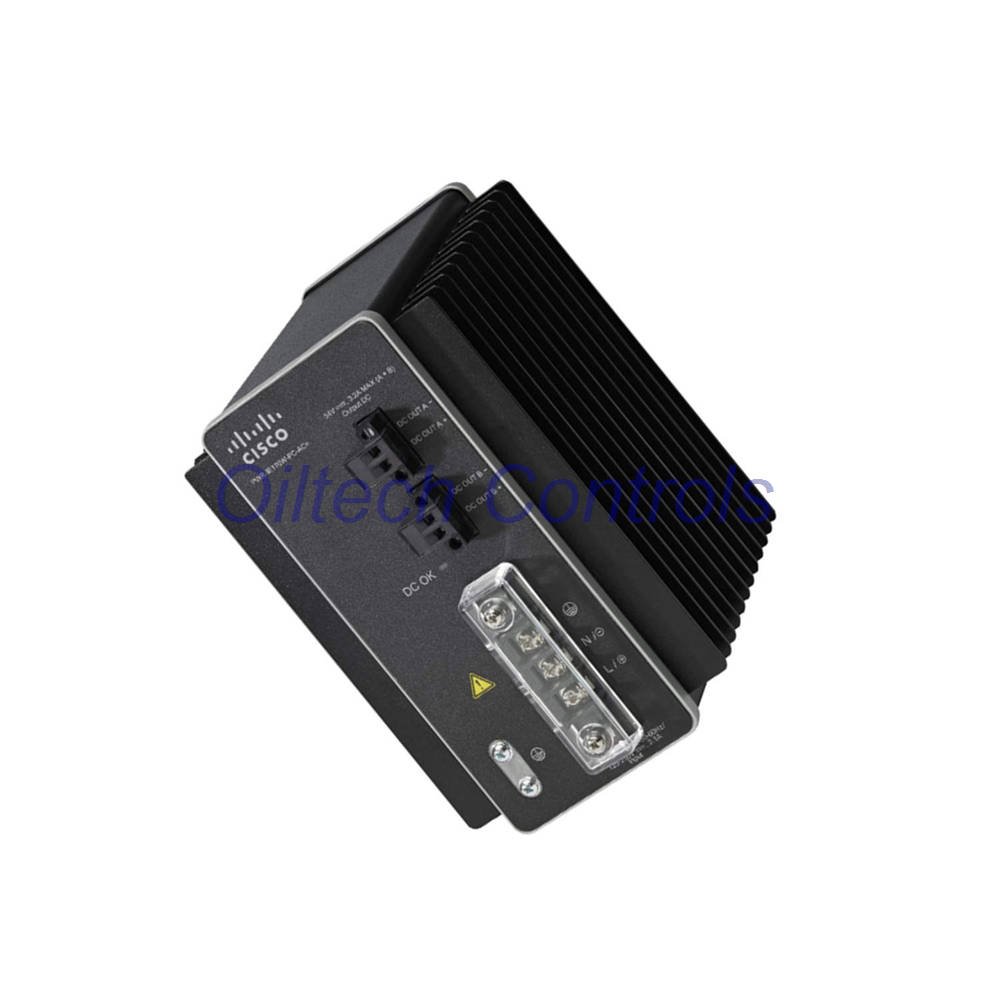

The PWR-IE170W-PC-AC is a high-reliability industrial power module built for extreme operational environments. It converts wide-range AC mains input into regulated direct current to drive Cisco Industrial Ethernet (IE) switches and connected PoE field devices. Engineered without moving cooling parts, it withstands severe thermal stress, mechanical vibration, and electromagnetic interference inside control enclosures.
Need complete wiring pinouts, derating curves, and installation guidelines? Download the technical manual by contacting our engineering desk at info@oiltechcontrols.com.
Technical Parameters & Electrical Attributes
| Attribute | Engineering Specification |
|---|---|
| Model Number | PWR-IE170W-PC-AC |
| Manufacturer | Cisco Systems |
| Rated Output Power | 170W continuous DC capacity |
| AC Input Range | 90V AC to 264V AC wide-range input |
| Line Frequency | 50 Hz to 60 Hz nominal |
| Peak Efficiency | 92% power conversion efficiency |
| Thermal Design | Passive fanless conduction cooling |
| Operating Range | -40°C to +70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Physical Footprint | 96.52 mm x 177.8 mm x 111.76 mm |
| Module Type | Hot-swappable plug-in module |
| Integrated Protection | Over-voltage, over-current, and short-circuit protection |
| Safety Approvals | UL, CE, CB, CCC certified |
Hardware Compatibility & Field Equipment Integration
- Native integration with Cisco Industrial Ethernet 3000 (IE-3000) series switches.
- Directly supports Cisco Industrial Ethernet 4000 (IE-4000) series switch chassis.
- Powers Cisco IE-5000 series high-density aggregation switches.
- Schedules power headroom for Power over Ethernet (PoE/PoE+) field instruments, IP cameras, and wireless access points.
- Fits standard industrial control cabinets, power distribution sub-panels, and roadside traffic management enclosures.
Oiltech Controls’s Insight
- Heavy-duty 170W overhead delivers stable power margins needed for PoE+ field deployments without thermal throttling.
- Convection-cooled fanless design eliminates mechanical wear points, preventing dust buildup in harsh factory air conditions.
- Wide 90-264V AC input tolerances compensate for severe brownouts and line surges typical of heavy industrial grids.
- Essential power component for substation automation, intelligent transportation systems (ITS), oil & gas telemetry, and mining networks.
Commercial & Express Shipping Terms
- Includes a full 12-Month replacement warranty covering hardware operational defects.
- Rapid dispatch window of 24 to 28 hours from warehouse stock verification.
- Shipped worldwide via premier express logistics partners: FedEx, UPS, and DHL.
- To reserve stock or request formal proforma invoices, email our support team at info@oiltechcontrols.com or text us via WhatsApp at +86 158 8020 0923.
Why Buy From Oiltech Controls?
- Over 15 years of dedicated supply chain expertise in industrial automation components.
- Global logistics dispatch infrastructure ensuring rapid delivery to plant sites worldwide.
- Rigorous quality verification for new surplus, factory tested, and refurbished inventory.
- Comprehensive 12-month hardware warranty protection on all shipped products.
- Mandatory pre-shipment technical verification and bench testing by qualified engineers.
- Extensive sourcing support for legacy, hard-to-find, and obsolete control systems.
Frequently Asked Questions (FAQ)
Does the PWR-IE170W-PC-AC require forced air cooling inside a closed control cabinet?
No, the unit utilizes passive convection cooling and operates fanlessly. However, engineers must maintain recommended clearance around the module’s heat dissipation fins inside the cabinet to support air convection across its full -40°C to 70°C operating thermal envelope.
How do I determine if 170W is sufficient for my Cisco IE switch setup?
Calculate the base power consumption of the switch chassis plus the total maximum wattage required by all connected PoE/PoE+ field devices. If total power consumption stays under 170W, this module is optimal. For higher PoE density, dual power supplies or higher-wattage units may be required.
Can the PWR-IE170W-PC-AC handle unstable AC input lines in remote plant locations?
Yes, the internal transformer accepts a wide 90V AC to 264V AC input range at 50-60Hz. It incorporates built-in surge, over-voltage, and short-circuit protection circuits to isolate sensitive switch electronics from grid fluctuations.
Selection Guide: When should I choose the PWR-IE170W-PC-AC over a DC-input power module?
Select this AC module when your installation site supplies standard mains power (110V/220V AC) directly to the control panel and lacks a centralized 24V/48V DC bus infrastructure. It converts AC mains to required switch rail voltages in a single integrated step.
What is the recommended installation procedure when replacing a failed power module in an active cabinet?
Isolate the incoming AC power feeder line before removing the module wiring. Unbolt the module from the DIN-rail or chassis mounting plate, insert the replacement unit, verify correct terminal polarity, re-engage wire retainers, and restore AC mains. Check status LEDs on the connected switch chassis to verify normal power delivery.
