System Overview

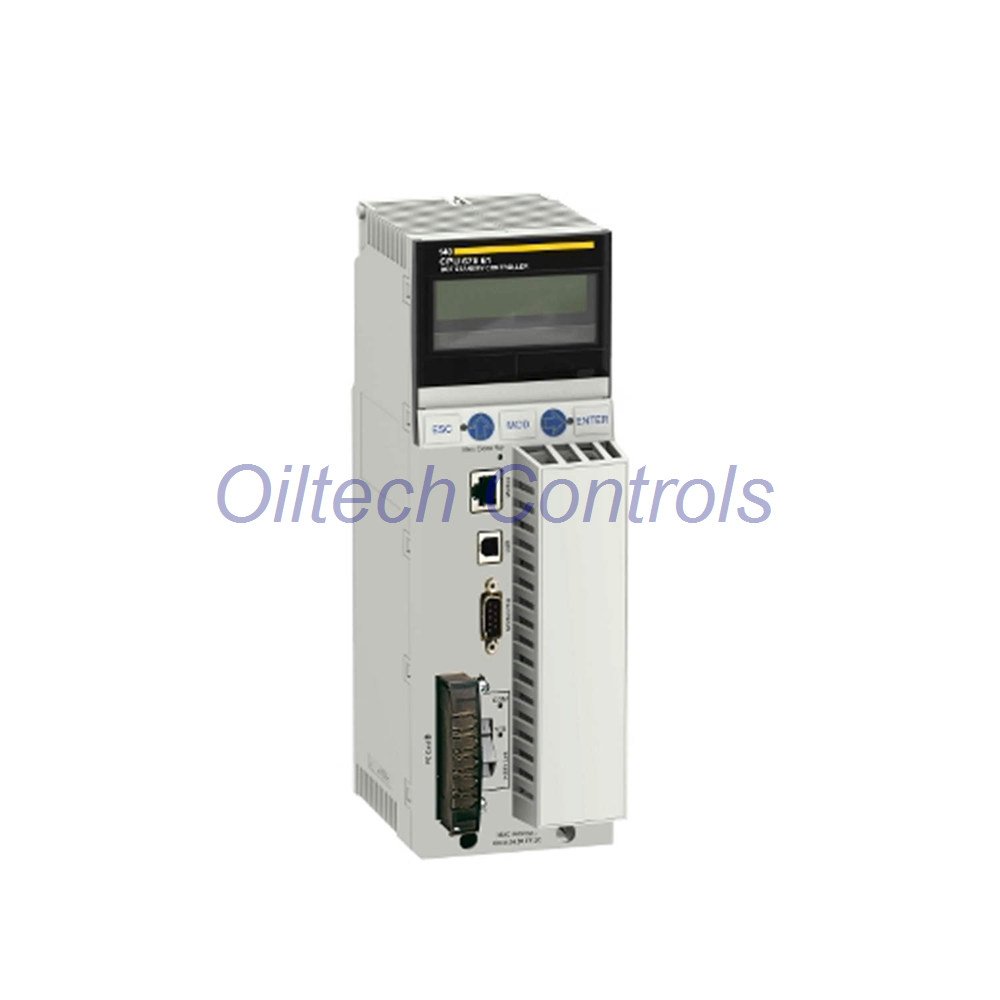

The Schneider Electric 140CPU67261C is a Unity Hot Standby processor for the Modicon Quantum automation platform. It provides fast processing and full redundancy. The unit keeps machines running during faults. It supports large I/O systems and complex control tasks.
Key Functional Strengths
- Hot Standby redundancy for continuous operation
- 266 MHz processor for fast control response
- Supports dual local racks for system expansion
- Handles large scale remote and distributed I/O
- Multiple industrial network interfaces built in
- High instruction execution speed per millisecond
- Designed for mission critical automation systems
Core Technical Data
- Manufacturer: Schneider Electric
- Model: 140CPU67261C
- Platform: Modicon Quantum
- Processor type: Unity Hot Standby CPU
- Clock frequency: 266 MHz
- Transmission mode: Single mode Ethernet backbone
- Local rack support: 2 racks
- Slot options: 2, 4, 6, 10, or 16 slots
- Distributed I/O stations: Up to 63
- Remote I/O stations: 31 per network
- Discrete I/O capacity: Up to 31,744 remote points
- Analog I/O capacity: Up to 1,984 remote points
- RAM memory: 11,264 kB with 1,536 kB data area
- Memory expansion: 8 MB PCMCIA card
- Instruction speed: About 10 K instructions per ms
- Bus current requirement: 2,760 mA
Communication and Connectivity
- Supports Ethernet TCP/IP networks
- Compatible with Modbus Plus systems
- Works with Profibus DP devices
- Includes USB service interface
- Fiber optic link for Hot Standby pairing
- Up to 6 Ethernet and 6 Modbus Plus connections
Environmental and Certification Data
- Conformal coated for industrial protection
- Designed for harsh plant environments
- Certified with CE, UL, CSA, and ATEX Zone 2
- Suitable for marine and hazardous locations
- Stable operation in controlled cabinet spaces
Shipping and Warranty
- Factory sealed and tested before dispatch
- Supplied as a single packaged unit
- Includes a 12-month warranty
- Global delivery by FedEx, UPS, or DHL
Typical Industrial Uses
- Continuous process control systems
- Large manufacturing production lines
- Energy and utility automation
- Critical infrastructure monitoring
- Redundant PLC control architectures
FAQ
- Why is Hot Standby important in automation?
- It keeps the system running if one processor fails.
- How do I size this CPU for my project?
- Estimate I/O count and network load before selection.
- Can this processor manage large I/O networks?
- Yes. It supports very high remote I/O capacity.
- What storage option improves performance?
- An external PCMCIA card expands file storage space.
- What installation practice improves reliability?
- Use clean power and proper cabinet grounding.
