Schneider 140NOE25110C Modicon Quantum TCP/IP 8‑Channel

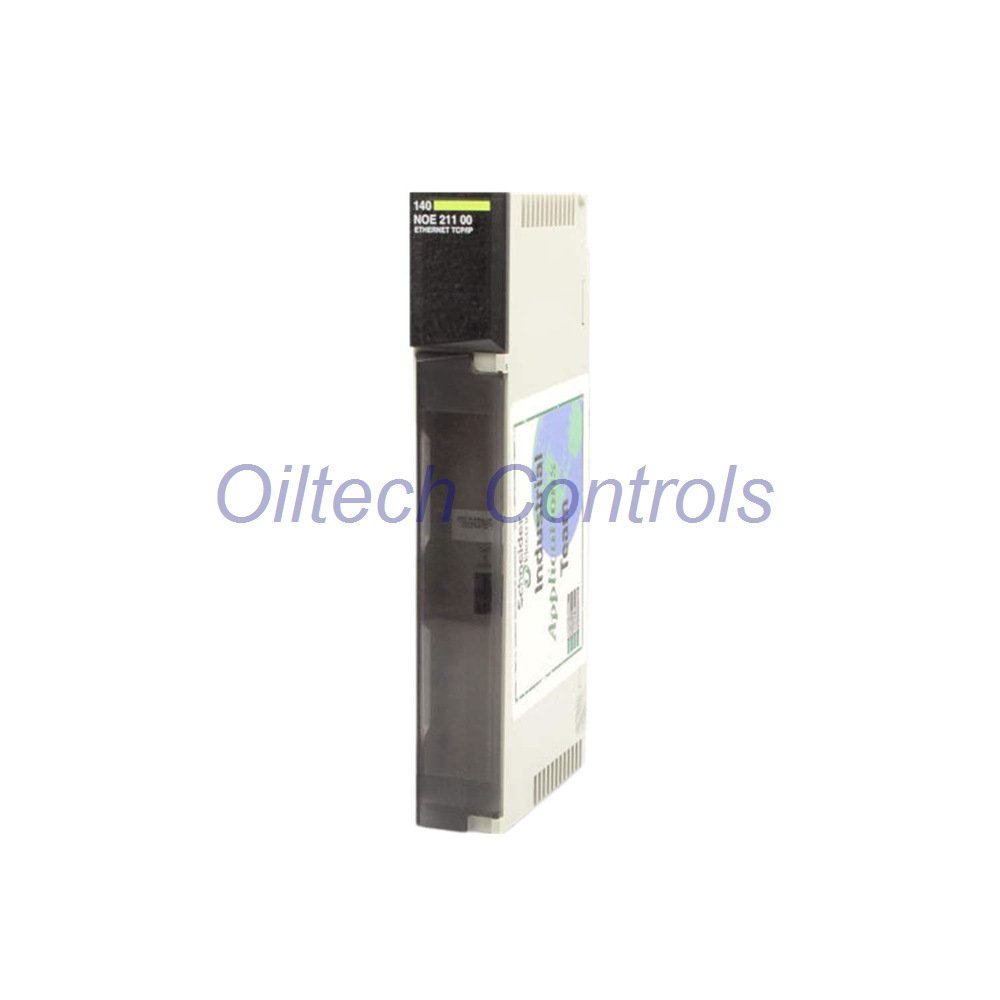

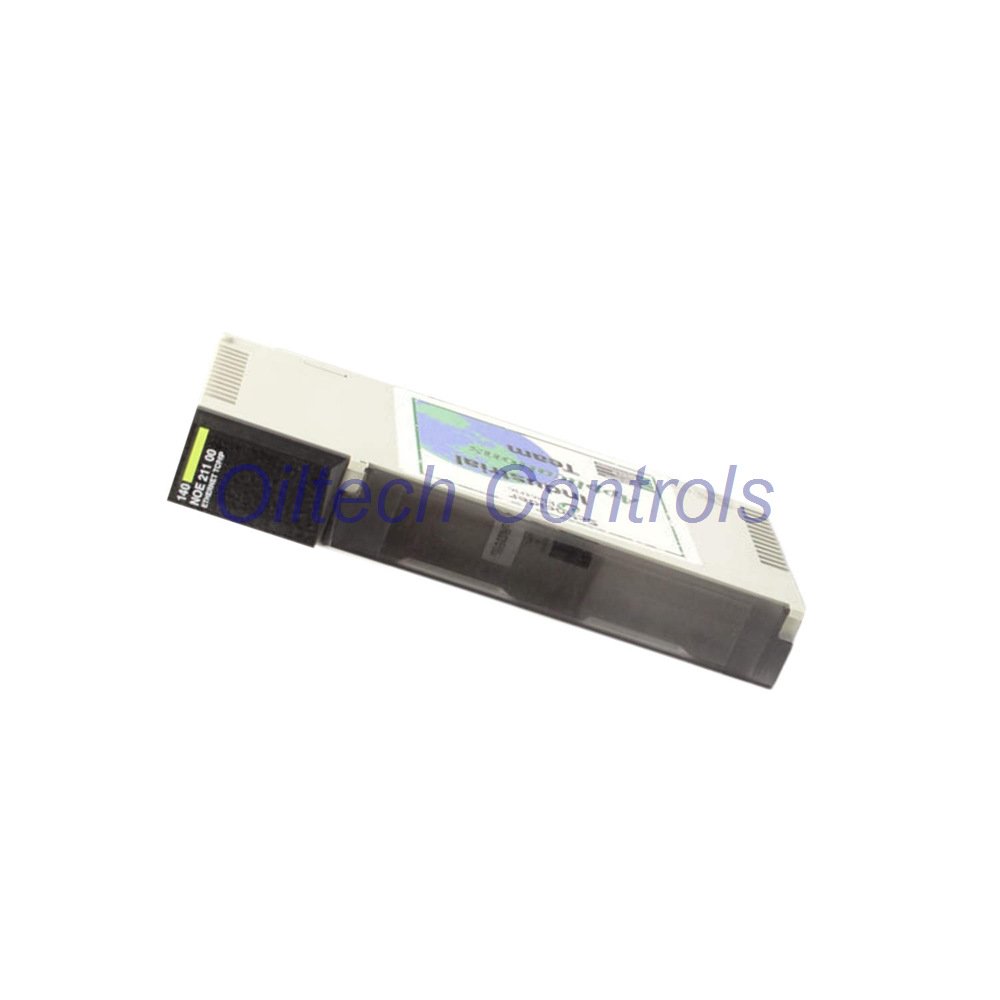

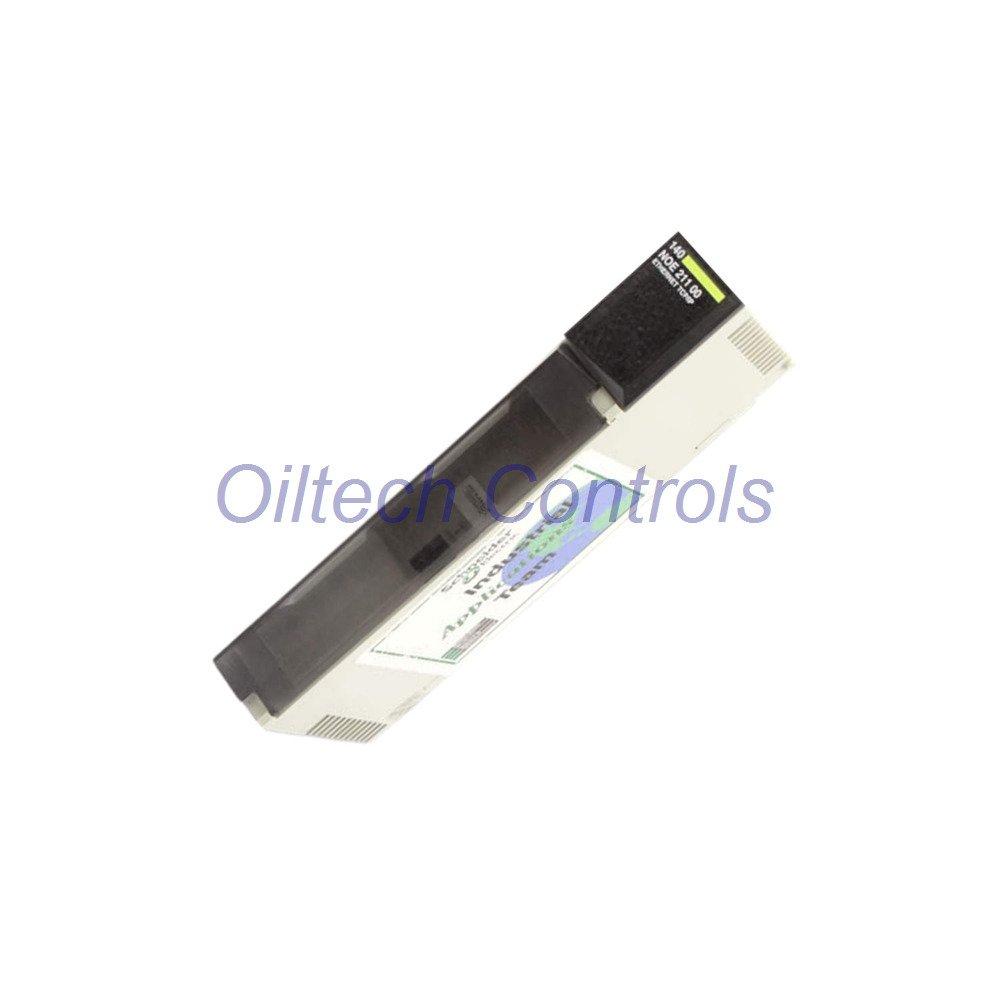

🔹 Schneider 140NOE25110C – Modicon Quantum Ethernet TCP/IP Module

The 140NOE25110C is a high‑speed TCP/IP communication module with 8 channels and fiber‑cable support. Built for material handling, packaging, and textile machines. Works in clean industrial indoor environments.

⚡ At a glance – key facts

• 8 channels for multi‑device networking
• Fiber cables supported – noise‑free, long distance
• Operating temp : 0 … 40 °C · storage : 0 … 50 °C
• Humidity : 80% RH non‑condensing (operate/store)
• Altitude : 1000 m max (operating & storage)
• Environment : clean indoor, no corrosive chems
• Mounting : fits Quantum backplane (XBus)

✅ Why choose this module? – real benefits

• Fiber‑optic ready – immune to EMI, perfect for long runs between cabinets
• 8 independent channels – connect multiple devices without extra switches
• Built for light industry : proven in packaging, textile, and material handling lines
• No moving parts – natural cooling, low maintenance
• Plug‑and‑play with Quantum backplane – works in Unity Pro / Control Expert

📋 Technical data – short & clear

• Part number : 140NOE25110C · type : TCP/IP module
• Channels : 8 (RJ45 or fiber SFP – check manual for fiber type)
• Communication rate : 10/100 Mbps auto‑negotiating
• Power consumption : 0.8 A @ 5 VDC (from backplane)
• Indicators : LED per port for link/activity and module status
• Isolation : 1500 Vrms between network and logic
• Certifications : CE, cULus, (fiber option may add others)

🔧 Installation & environment notes

• Mount directly into any Quantum rack (140XBPxxx). No tools needed.
• Keep ambient below 40 °C – if inside a hot panel, add ventilation.
• Fiber cable : use duplex multimode or single‑mode as per your distance.
• Avoid areas with oil mist, solvents, or corrosive gas – IP20 rated.
• Grounding : use functional earth (FE) on rack for best EMC.

📞 Support & shipping

• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923 (click to chat)
• Warranty : 12 months against defects
• Delivery : FedEx, UPS, DHL – express worldwide

❓ 5 practical FAQs – from the field

• Q: Can I use this module with CAT5e copper cable and fiber at the same time?A: The 140NOE25110C has 8 channels, but they are usually all copper or all fiber depending on the variant. Check your exact model – if it’s the ‘C’ version with fiber, all 8 ports are fiber (often ST or SC). You cannot mix copper/fiber on this single part.
• Q: What is the maximum fiber distance supported?A: With multimode fiber (62.5/125 µm) you can go up to 2 km. With single‑mode, up to 15 km typically. Always check the transceiver specs if using SFP.
• Q: Does this module work with newer Schneider M580 racks?A: No – it is designed for Quantum (140 series) backplanes only. For M580 you need X80 Ethernet modules.
• Q: The LEDs show activity, but I can’t ping the module. What’s wrong?A: First, check the IP address configuration in Unity Pro. Common mistake: duplicate IP or wrong subnet. Also verify the fiber cables are crossed correctly (TX to RX).
• Q: Can I use it in a packaging line with high humidity?A: Yes, up to 80% non‑condensing. But if the area is washed down, you must protect the module in an IP54 or higher enclosure – it is only IP20.
